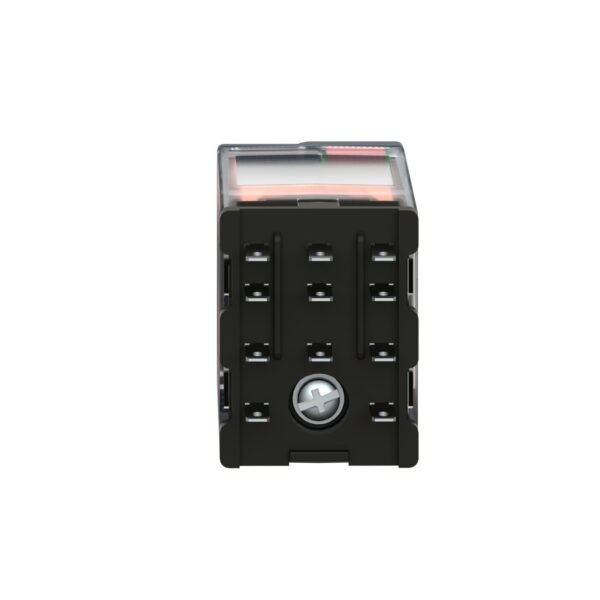

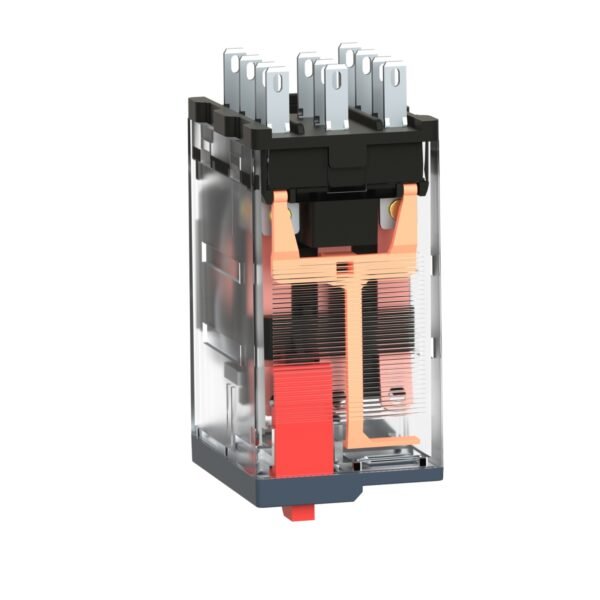

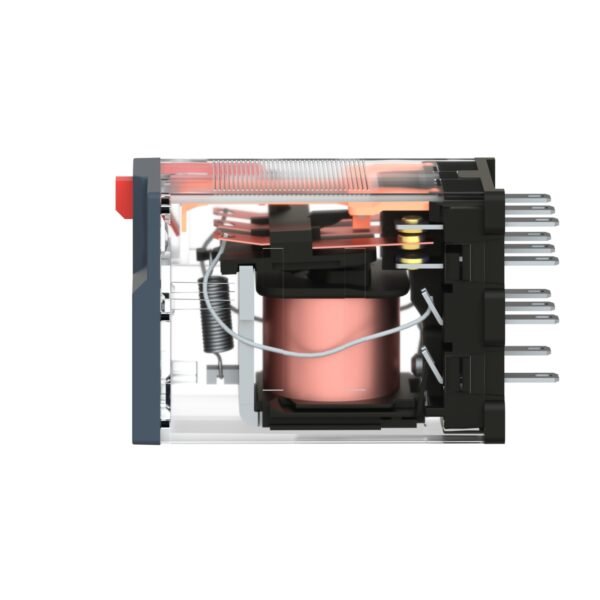

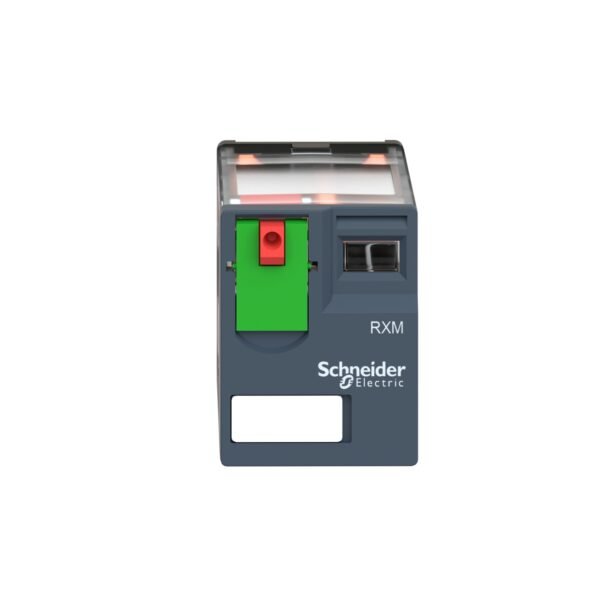

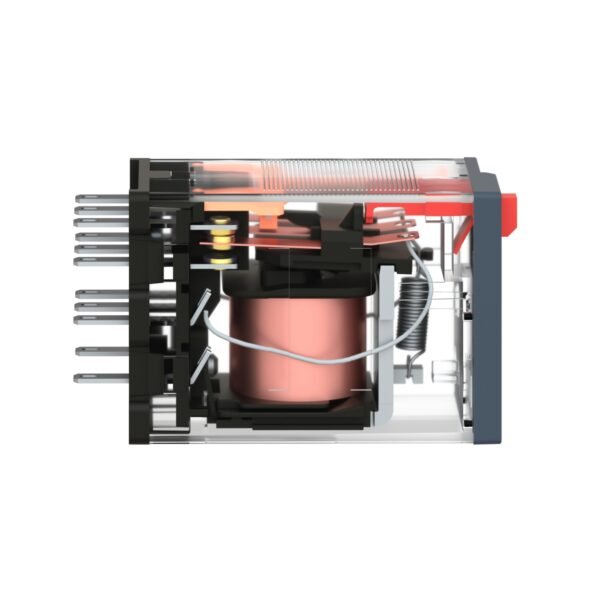

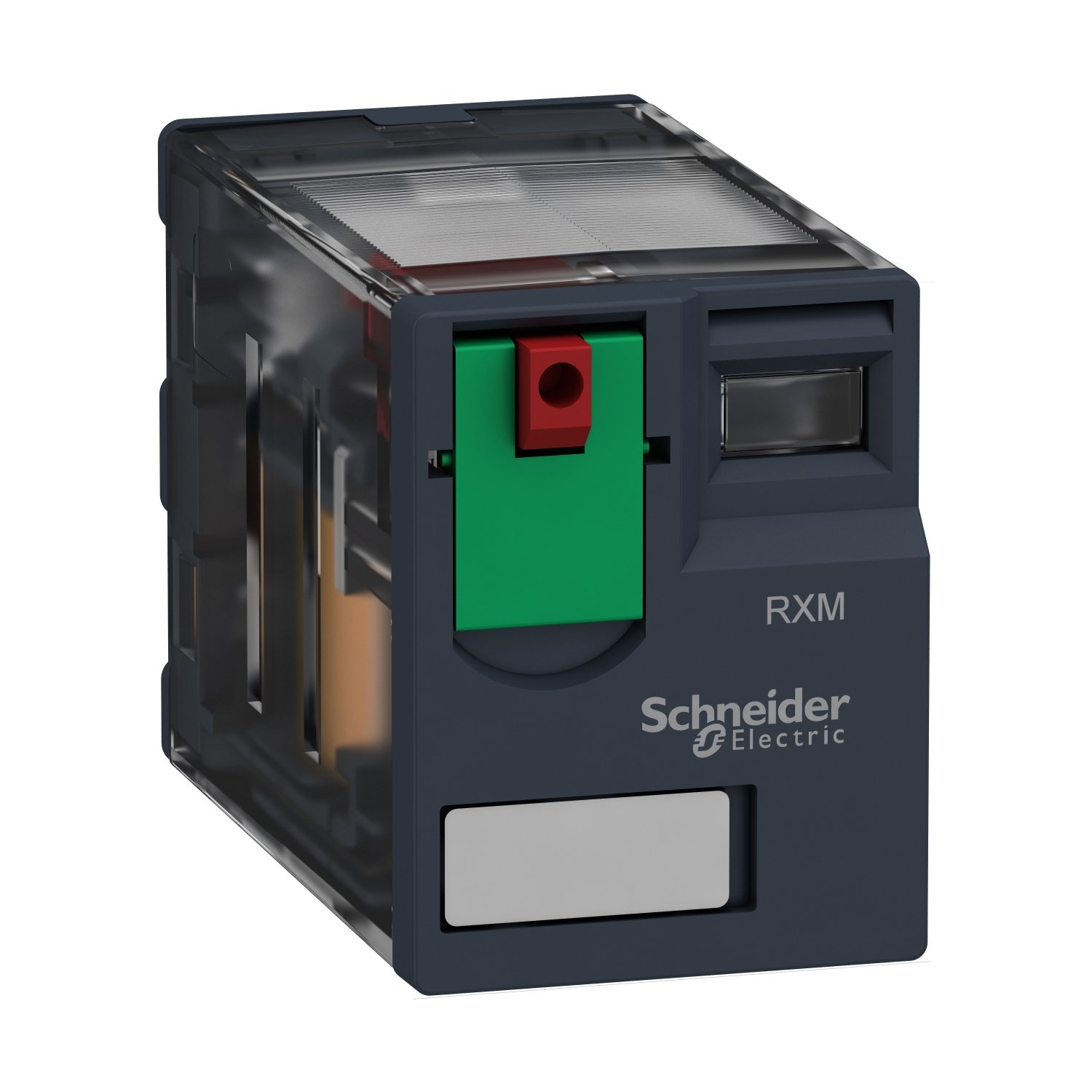

Schneider RXM3AB1F7 | Miniature plug-in relay, 10 A, 3 CO, 120 V AC
Original price was: EGP 3,658.00.EGP 2,122.00Current price is: EGP 2,122.00.
Description
Schneider RXM3AB1F7 | Miniature plug-in relay, 10 A, 3 CO, 120 V AC
Schneider RXM3AB1F7 | Miniature Plug-in Relay, 10 A, 3 CO, 120 V AC Description
Relays play a crucial role in electrical systems, ensuring seamless control and switching operations. Among the myriad of relays available, it stands out as a miniature plug-in relay designed for efficient and reliable performance. Let’s delve into its features, applications, advantages, and more.
Introduction to Schneider RXM3AB1F7 Relay
it is a compact yet powerful plug-in relay known for its versatility and robustness. It is widely used in various industrial and commercial settings where precise control and switching capabilities are paramount.
Specifications and Features
- Plug-in Relay Type: This relay is designed for easy installation and maintenance, making it suitable for both new installations and retrofitting existing systems.
- Current Rating of 10 A: With a high current handling capacity, it can manage substantial electrical loads effectively.
- 3 CO (Changeover) Contacts: The presence of three changeover contacts enhances its flexibility in controlling multiple circuits or devices.
- Operating Voltage of 120 V AC: The relay is optimized for use with 120 volts AC power systems, ensuring compatibility and efficient performance.
Applications and Usage Scenarios
it finds applications in:
- Industrial automation
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Lighting control
- Power distribution
- Motor control
Its versatile design and reliable operation make it a preferred choice across various industries.
Advantages of Using the Schneider RXM3AB1F7 Relay
- Compact size saves space in control panels.
- High current rating ensures reliable operation under heavy loads.
- Changeover contacts offer flexibility in circuit configurations.
- Easy installation and maintenance reduce downtime.
- Compatible with standard 120 V AC power systems.
Installation Guide and Precautions
When installing it, ensure proper wiring and adherence to safety guidelines provided by Schneider Electric. Regular maintenance checks are recommended to ensure optimal performance and longevity.
Maintenance Tips for Optimal Performance
- Keep the relay and surrounding area free from dust and debris.
- Check for loose connections or signs of overheating regularly.
- Follow manufacturer-recommended servicing intervals.
Comparison with Other Relays in the Market
While there are several relays available in the market, it stands out for its combination of compact design, high current rating, and reliable performance. A comparative analysis can further highlight its strengths.
Customer Reviews and Feedback
Feedback from users often highlights the reliability, ease of installation, and durability of it relay, reinforcing its positive reputation in the industry.
Conclusion
In conclusion, it offers a blend of compactness, high performance, and versatility, making it an ideal choice for various electrical control applications. Its robust design, coupled with Schneider Electric’s reputation for quality, ensures reliable operation and customer satisfaction.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of Product | Harmony Electromechanical Relays |
|---|---|
| Series name | Miniature |
| Product or Component Type | Plug-in relay |
| Device short name | RXM |
| Contacts type and composition | 3 C/O |
| [Uc] control circuit voltage | 120 V AC 50/60 Hz |
| Status LED | Without |
| Control Type | Lockable test button |
| Utilisation coefficient | 20 % |
| Shape of pin | Flat |
|---|---|
| [Ui] rated insulation voltage | 250 V IEC 300 V CSA 300 V UL |
| [Uimp] rated impulse withstand voltage | 4 kV 1.2/50 µs |
| Contacts material | AgNi |
| [Ie] rated operational current | 10 A 28 V DC) NO IEC 10 A 250 V AC) NO IEC 5 A 28 V DC) NC IEC 5 A 250 V AC) NC IEC 10 A 30 V DC) UL 10 A 277 V AC) UL |
| Continuous output current | 6.7 A |
| Maximum switching voltage | 250 V IEC |
| resistive rated load | 10 A 250 V AC 10 A 28 V DC |
| Maximum switching capacity | 2500 VA/280 W |
| Minimum switching capacity | 170 mW 10 mA, 17 V |
| Operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles resistive |
| average coil consumption in VA | 1.2 60 Hz |
| Average consumption | 1.2 VA 60 Hz |
| Drop-out voltage threshold | >= 0.15 Uc |
| operate time | 20 ms |
| release time | 20 ms |
| average coil resistance | 4430 Ohm 20 °C +/- 15 % |
| Rated operational voltage limits | 96...132 V AC |
| Safety reliability data | B10d = 100000 |
| Protection category | RT I |
| Test levels | Level A group mounting |
| Operating position | Any position |
| CAD overall height | 3.1 in (79 mm) |
| CAD overall depth | 3.09 in (78.45 mm) |
| Net Weight | 0.082 lb(US) (0.037 kg) |
| Device presentation | Complete product |
| Dielectric strength | 1300 V AC between contacts with micro disconnection 2000 V AC between coil and contact 2000 V AC between poles |
|---|---|
| Product Certifications | UL Lloyd's CE CSA GOST IECEE CB Scheme |
| Standards | UL 508 IEC 61810-1 CSA C22.2 No 14 |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient air temperature for operation | -40…131 °F (-40…55 °C) |
| Vibration resistance | 3 gn +/- 1 mm 10…150 Hz)5 cycles in operation 5 gn +/- 1 mm 10…150 Hz)5 cycles not operating |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Shock resistance | 10 gnin operation 30 gnnot operating |
| Pollution degree | 2 |
| Category | US10CP221127 |
|---|---|
| Discount Schedule | 0CP2 |
| GTIN | 3389119403580 |
| Returnability | Yes |
| Country of origin | CN |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.60 in (4.064 cm) |
| Package 1 Width | 0.80 in (2.032 cm) |
| Package 1 Length | 1.10 in (2.794 cm) |
| Package 1 Weight | 1.280 oz (36.287 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 1.20 in (3.048 cm) |
| Package 2 Width | 4.00 in (10.160 cm) |
| Package 2 Length | 4.60 in (11.684 cm) |
| Package 2 Weight | 13.760 oz (390.089 g) |
| Warranty | 18 months |
|---|
