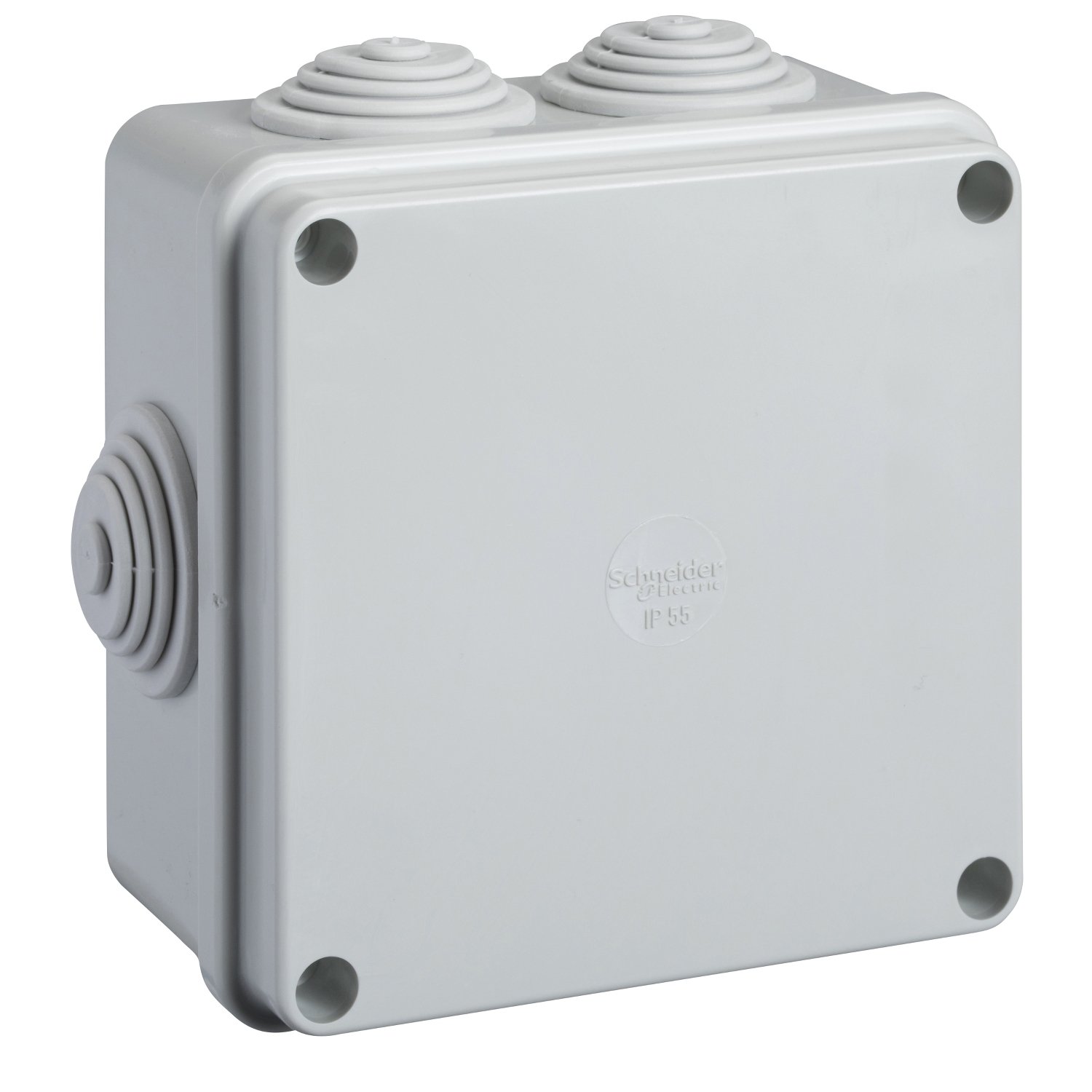

Schneider SL02500 | junction boxPilote IP55 100x100x50 grommet

Technical Specifications

• Brand: Schneider Electric
• Model: SL02500
• Series: Pilote
• Type: Junction Box
• Dimensions: 100 x 100 x 50 mm
• Material: Durable thermoplastic
• Protection Rating: IP55 (Dust and water-resistant)
• Cable Entry Type: Grommet
• Mounting Type: Wall-mounted or surface-mounted
• Color: Light grey (RAL 7035)
• Operating Temperature Range: -25°C to +60°C
• Flame Retardant: Yes
• Cover Type: Snap-on cover for easy access

Key Features

1. IP55 Protection for Reliable Safety

• Designed with an IP55 rating, making it dust-protected and resistant to low-pressure water jets, ensuring secure and durable protection for electrical connections.

2. Compact and Space-Saving Design

• With its 100x100x50 mm size, this junction box is ideal for tight spaces, providing a compact yet effective solution for wiring installations.

3. Durable Thermoplastic Construction

• Made from high-quality thermoplastic, offering excellent impact resistance, UV stability, and flame retardancy, ensuring long-lasting performance in various environments.

4. Grommet Cable Entries for Easy Installation

• Features multiple grommet entries, allowing flexible and secure cable entry without the need for additional drilling, maintaining IP55 protection integrity.

5. Quick and Secure Snap-On Cover

• The snap-on cover provides easy access to internal wiring while ensuring a tight and secure fit, reducing the risk of accidental disconnections.

6. Versatile Mounting Options

• Can be surface-mounted on walls, ceilings, or panels, making it suitable for a wide range of electrical installations.

7. Wide Temperature Range

• Designed to operate between -25°C and +60°C, ensuring reliable performance in harsh industrial and outdoor environments.

Applications

1. Residential Electrical Installations

• Used in household wiring systems for connecting and protecting electrical circuits.

2. Commercial Buildings and Offices

• Provides a safe enclosure for wiring in lighting systems, power outlets, and electrical control panels.

3. Industrial Wiring Systems

• Ensures safe cable management and protection in factories, warehouses, and production facilities.

4. Outdoor Electrical Installations

• With its IP55 protection, it is suitable for outdoor lighting connections, security systems, and garden installations.

5. Automation and Control Panels

• Used to organize and protect control wiring in PLC panels and automation systems.

6. Telecommunication and Data Cabling

• Helps secure and protect network and communication cables in IT and telecom infrastructure.
