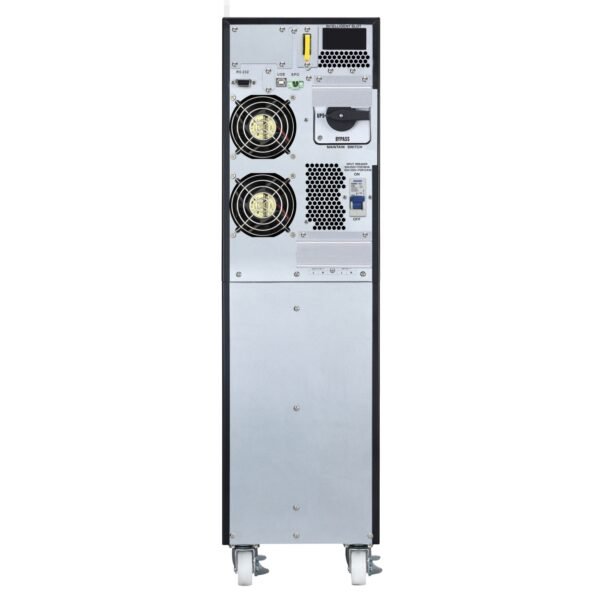

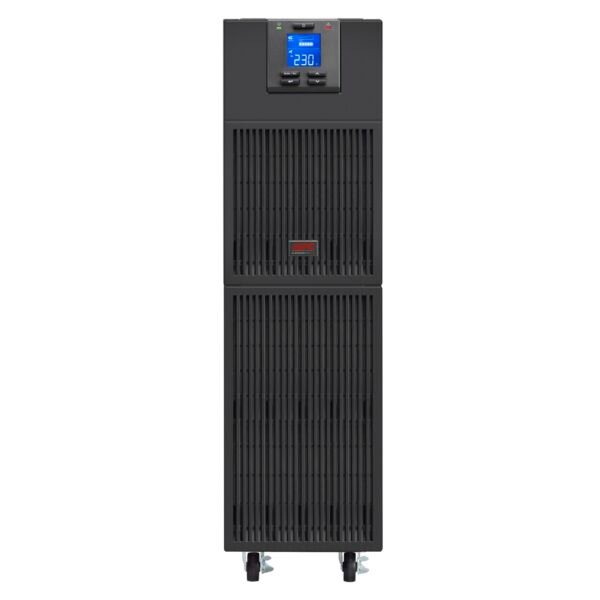

Schneider SRV10KI UPS | 10kVA/10kW, 230V, APC Easy UPS On-Line, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Tower – Pure Sine wave
Schneider SRV10KI UPS UPS
-
10000VA / 10000W double-conversion online tower UPS with pure sine wave output
-
High operating efficiency in energy-saving green mode
-
Extended battery lifespan with temperature-compensated smart charging
-
Easy-to-read LCD interface for detailed and accurate UPS status information
Description
Schneider SRV10KI UPS
In today’s digital age, where businesses rely heavily on technology, ensuring uninterrupted power supply is crucial. Power outages can lead to data loss, equipment damage, and downtime, all of which can have severe consequences for businesses. This is where uninterruptible power supply (UPS) systems come into play, and one notable option in this realm is it.
Introduction to Schneider SRV10KI UPS
it is a high-performance UPS system designed to provide reliable backup power in case of outages or fluctuations in the main power supply. It is part of Schneider Electric’s extensive range of UPS solutions, known for their quality, efficiency, and innovation.
UPS systems like it act as a bridge between the main power source and critical equipment, ensuring a seamless transition to backup power to prevent disruptions.
Key Features
it boasts several key features that set it apart:
Power Capacity
With a power capacity of 10 kVA, this UPS can support a wide range of equipment, from servers and networking devices to critical industrial machinery.
Efficiency
The UPS is highly efficient, minimizing energy wastage and reducing operating costs for businesses.
Scalability
It offers scalability options, allowing businesses to expand their power backup capacity as their needs grow.
Advanced Battery Management
The UPS is equipped with advanced battery management features to prolong battery life and ensure reliable performance.
Applications and Industries
it finds application across various industries, including:
- Data Centers: Critical for maintaining uninterrupted operation of servers and networking equipment.
- Hospitals: Essential for powering medical equipment and ensuring patient care remains uninterrupted.
- Manufacturing Plants: Protects sensitive machinery from damage due to power fluctuations.
- Offices: Provides backup power for computers, communication systems, and other essential devices.
Benefits of Using
- Reliable Power Backup: Ensures continuous operation of critical equipment during power outages.
- Protection Against Power Surges: Guards against voltage spikes and fluctuations, safeguarding equipment from damage.
- Enhanced Energy Efficiency: Helps reduce energy consumption and operating costs.
- Scalable Solutions: Allows businesses to scale their power backup infrastructure as needed.
Pricing and Affordability
While the initial cost of it may be higher compared to some competitors, its efficiency and reliability make it a cost-effective long-term investment for businesses.
Conclusion
In conclusion, the Schneider SRV10KI UPS is a top-of-the-line UPS system that offers reliable power backup, advanced features, and scalability to meet the needs of modern businesses. With its efficient operation and robust performance, it provides peace of mind, ensuring uninterrupted operation even in the face of power disruptions.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Presentation | High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. |
|---|---|
| Lead time | Usually in Stock |
|
Run time for load
W
information_stroke
Min-max: 1000-10000 W
|
2min 52s
|
|---|---|
|
Max. Capacity Used
information_stroke
|
|
| Main Input Voltage | 230 V |
| Product or component type | Uninterruptible power supply (UPS) |
| Other Input Voltage | 220 V 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 10000 W |
| Rated power in VA | 10000 VA |
| Output connector type | Hard wire 3-wire (1P + N + E) 1 |
| Provided equipment | 1 USB cable 1 RS-232 configuration cable user manual |
| Range of product | Easy UPS On-Line |
| Run Time |
View Runtime Graph |
|---|---|
| Efficiency |
View Efficiency Graph |
| Battery type | Lead-acid battery |
| Battery voltage | 192 V |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 5 h |
| Battery life | 3…5 year(s) |
| Battery charger power | 235 W rated |
| Number of power module filled slots | 0 |
|---|---|
| Number of power module free slots | 0 |
| Redundant | No |
| Colour | Black (RAL 7010) |
|---|---|
| Height | 68.5 cm |
| Width | 19 cm |
| Depth | 44.7 cm |
| Net weight | 65 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| USB compatible | Yes |
| Mounting position | Vertical |
| Input voltage limits | 110...300 V 60 % load 176...300 V full load |
|---|---|
| Number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| Network frequency | 40...70 Hz auto sensing |
| Maximum configurable power in VA | 10000 VA |
|---|---|
| Maximum configurable power in W | 10000 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Harmonic distortion | 1 % |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 94 % (full load) |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Product certifications | CE UKCA EAC TISI |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15…60 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
| Acoustic level | 58 dB |
| Heat dissipation | 2128 Btu/h |
| IP degree of protection | IP20 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|---|---|
| Emergency power off | Yes |
| Free slots | 1 |
| Control panel | Multifunction LCD status and control console |
| Surge energy rate | 600 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 91 cm |
| Package 1 Width | 32 cm |
| Package 1 Length | 58 cm |
| Package 1 Weight | 77 kg |
| Warranty | 2 years repair or replace |
|---|
