Schneider SRV10KIL UPS | APC Easy UPS On-Line, 10kVA/10kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime

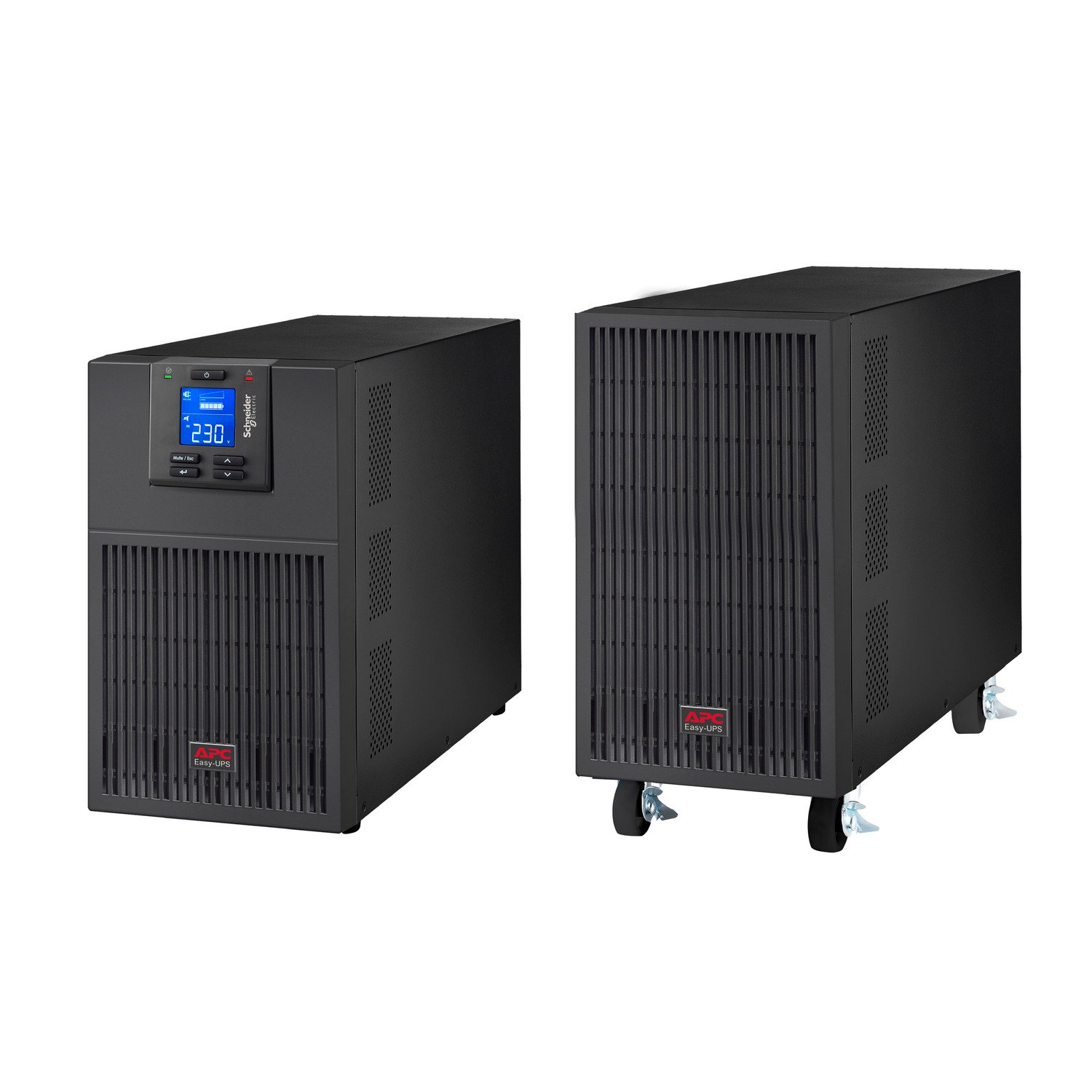

Schneider SRV10KIL UPS
- 10kVA/10kW Double Conversion Direct Connected Pure Sine Wave Tower UPS
- High operating efficiency in energy-saving eco-friendly mode
- Add up to 4 external battery packs (SRV240BP-9A) for increased runtime.
- Easy-to-read LCD interface for detailed and accurate information about the UPS unit status
EGP 13,000,000.00
Description
Schneider SRV10KIL UPS: Power Protection for Every Need
In today’s interconnected world, reliable power supply is crucial for maintaining operations across various sectors. it stands out as a robust solution designed to safeguard critical equipment from power disruptions. Whether in industrial settings, commercial environments, or residential applications, it system offers unparalleled reliability and efficiency.
Introduction to it
Understanding the importance of uninterrupted power supply systems begins with recognizing their role in preventing downtime and protecting sensitive electronics. it exemplifies excellence in power management, ensuring continuous operation even during electrical disturbances.
Overview of it
it is engineered to deliver exceptional performance with a power capacity of [insert capacity] and features like automatic voltage regulation (AVR) and comprehensive battery management. It caters to the needs of various industries, providing a stable power source amidst fluctuating conditions.
Benefits of Using
Businesses and homeowners alike benefit from it due to its:
- Reliable Power Protection: Ensures continuity during power outages.
- Energy Efficiency: Reduces operational costs by optimizing power usage.
Applications
The versatility of itextends across different sectors, including:
- Industrial: Safeguards manufacturing equipment and machinery.
- Commercial: Supports uninterrupted operations in offices and retail spaces.
- Residential: Protects home appliances and personal electronics.
Technical Specifications
- Power Capacity: [Insert capacity details]
- Input/Output Voltage: [Specify range]
- Battery Characteristics: [Details on battery type and backup duration]
Key Features Explained
- Automatic Voltage Regulation (AVR): Stabilizes voltage fluctuations to protect connected devices.
- Battery Management System: Ensures optimal battery performance and longevity.
- Network Management: Enables remote monitoring and management for enhanced control.
Installation and Setup Guide
Installing it involves:
- [Step-by-step installation process]
- [Configuration tips for optimal performance]
Maintenance Tips
To prolong the lifespan of IT, adhere to:
- Regular inspections
- Timely battery replacements
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Lead time | Usually in Stock |
|---|
|
Run time for load
W
information_stroke
Min-max: 1000-10000 W
|
2min 32s
|
|---|---|
|
Max. Capacity Used
information_stroke
|
100 %
|
| Main Input Voltage | 230 V |
| product or component type | Uninterruptible power supply (UPS) |
| Other Input Voltage | 220 V 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 10000 W |
| Rated power in VA | 10000 VA |
| Output connector type | Hard wire 3-wire (1P + N + E) 1 |
| Provided equipment | 1 USB cable 1 RS-232 configuration cable 1 external battery pack 1 battery cable user manual |
| Range of product | Easy UPS On-Line |
| Run Time |
View Runtime Graph |
|---|---|
| Efficiency |
View Efficiency Graph |
| Battery type | Lead-acid battery |
| Battery voltage | 240 V |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 5 h |
| Battery life | 3…5 year(s) |
| Battery charger power | 1170 W rated |
| Number of power module filled slots | 0 |
|---|---|
| Number of power module free slots | 0 |
| Redundant | No |
| Colour | Black (RAL 7010) |
|---|---|
| Height | 36.8 cm |
| Width | 38 cm |
| Depth | 48.5 cm |
| net weight | 76.5 kg |
| mounting location | Front |
| Mounting preference | No preference |
| mounting mode | Not rack-mountable |
| USB compatible | Yes |
| Mounting position | Vertical |
| Input voltage limits | 110...300 V 60 % load 176...300 V full load |
|---|---|
| Number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| Network frequency | 40...70 Hz auto sensing |
| Maximum configurable power in VA | 10000 VA |
|---|---|
| Maximum configurable power in W | 10000 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Harmonic distortion | 1 % |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 94 % (full load) |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Product certifications | CE UKCA EAC TISI |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15…60 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
| Acoustic level | 58 dB |
| heat dissipation | 2128 Btu/h |
| IP degree of protection | IP20 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|---|---|
| Emergency power off | Yes |
| Free slots | 1 |
| control panel | Multifunction LCD status and control console |
| Surge energy rate | 600 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 46 cm |
| Package 1 Width | 57 cm |
| Package 1 Length | 58 cm |
| Package 1 Weight | 82.5 kg |
| Warranty | 2 years repair or replace |
|---|
