High operating efficiency in eco-friendly energy-saving mode

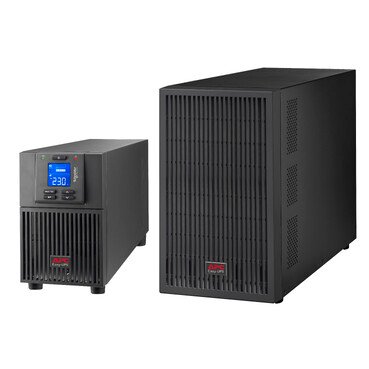

Add up to 4 external battery packs (SRV72BP-9A) to extend runtime
Easy-to-read LCD interface provides detailed and accurate UPS status information

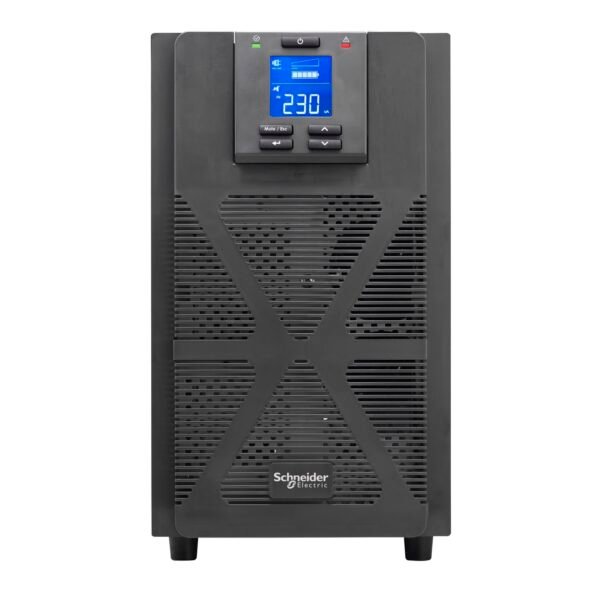

In today’s tech-driven world, power reliability is crucial. The Schneider SRV3KIL UPS is designed to ensure that your systems remain operational even during power disruptions. Uninterruptible Power Supplies (UPS) like the SRV3KIL are essential for safeguarding sensitive equipment, preventing data loss, and maintaining productivity.
it is a high-performance uninterruptible power supply engineered to provide reliable power backup and protection for critical systems. Known for its robust build and advanced features, this UPS is suitable for a wide range of applications, from home offices to large data centers.
Understanding the technical aspects of the SRV3KIL UPS helps in assessing its suitability for various applications.
With a power capacity of 3000VA/2400W, this UPS can handle significant loads, making it ideal for protecting multiple devices or larger systems.
The UPS uses high-quality, maintenance-free lead-acid batteries designed for extended runtime and durability. Depending on the load, the runtime can vary, but typically, it offers sufficient backup to safely shut down systems or switch to alternative power sources.
The SRV3KIL UPS is compact and efficiently designed to fit in various environments, whether under a desk or in a server rack.
While it is relatively heavy due to its robust build and powerful batteries, it is designed with portability in mind, featuring handles for easier transport.
Constructed from high-quality materials, the UPS is built to last, with a focus on durability to withstand rigorous use.
The SRV3KIL UPS boasts high energy efficiency, ensuring that it provides maximum power backup with minimal energy waste.
Even under heavy loads, this UPS maintains stable power output, protecting connected devices from voltage fluctuations and power surges.
An efficient cooling system prevents overheating, ensuring optimal performance even during extended use.
Setting up the Schneider SRV3KIL UPS is straightforward.
| brands | Schneider Electric |
|---|
|
Run time for load
W
information_stroke
Min-max: 240-2400 W
|
12min 44s
|
|---|---|
|
Max. Capacity Used
information_stroke
|
100 %
|
| Main Input Voltage | 230 V |
| product or component type | Uninterruptible power supply (UPS) |
| Other Input Voltage | 220 V 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 2400 W |
| Rated power in VA | 3000 VA |

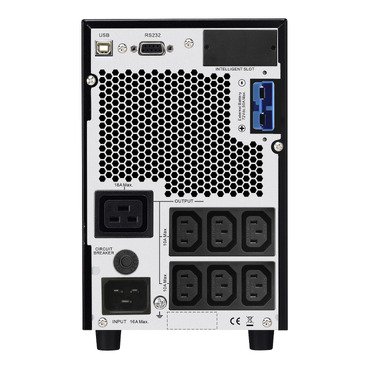

| Input Connection Type | IEC 60320 C20 |
| output connection type | 6 IEC 60320 C13 1 IEC 60320 C19 |
| Cable length | 1.5 m |
| Number of cables | 1 |
| Provided equipment | 1 IEC 60320 C19 to Schuko power cable 1 IEC 60320 C13 to C14 power cable 1 USB cable 1 RS-232 configuration cable 1 external battery pack 1 battery cable user manual |
| Run Time |
View Runtime Graph |
|---|---|
| Efficiency |
View Efficiency Graph |
| Battery type | Lead-acid battery |
| Battery voltage | 72 V |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 5.5 h |
| Battery life | 3…5 year(s) |
| Battery charger power | 350 W rated |
| Number of power module filled slots | 0 |
|---|---|
| Number of power module free slots | 0 |
| Redundant | No |
| Colour | Black (RAL 7010) |
|---|---|
| Height | 33.6 cm |
| Width | 42.5 cm |
| Depth | 42.5 cm |
| net weight | 45.9 kg |
| mounting location | Front |
| Mounting preference | No preference |
| mounting mode | Not rack-mountable |
| USB compatible | Yes |
| Mounting position | Vertical |
| Input voltage limits | 110...285 V half load 160...280 V full load |
|---|---|
| Network frequency | 40...70 Hz auto sensing |
| Maximum configurable power in VA | 3000 VA |
|---|---|
| Maximum configurable power in W | 2400 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Harmonic distortion | 3 % |
| Transfer time | 4 ms typical |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 88 % (full load) |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Product certifications | CE UKCA EAC TISI |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -20…50 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
| Acoustic level | 50 dBA |
| heat dissipation | 910 Btu/h |
| IP degree of protection | IP20 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|---|---|
| Free slots | 1 |
| control panel | Multifunction LCD status and control console |
| Surge energy rate | 600 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 2 |
| Package 1 Height | 46.5 cm |
| Package 1 Width | 56.5 cm |
| Package 1 Length | 56.5 cm |
| Package 1 Weight | 49.8 kg |
| Warranty | 2 years repair or replace |
|---|
