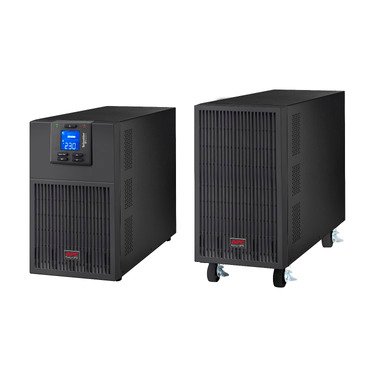

The APC Easy UPS SRV6KIL by Schneider Electric

High-performance online UPS with pure sine wave output, extended runtime, and intelligent monitoring – ideal for critical power protection

it is a robust and reliable power protection solution designed for environments requiring consistent, clean, and uninterrupted power. With a power rating of 6 kVA / 6 kW, it is delivers a pure sine wave output using double-conversion technology, making it ideal for sensitive electronics, servers, telecom equipment, and industrial control systems.

True Online Double-Conversion UPS – 6kVA / 6kW

Equipped with advanced double-conversion architecture, it provides continuous and isolated power to connected equipment, protecting against outages, voltage fluctuations, surges, and frequency variations. It ensures zero transfer time to battery, maintaining consistent power delivery.

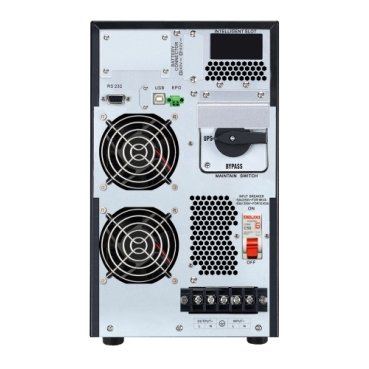

Hard-Wired Output (1P + N + E)

it features a hardwired 3-wire output (Line + Neutral + Earth) at 230V, suitable for direct panel integration or high-load equipment requiring secure and stable power connections.

High Efficiency in ECO Mode

Operate efficiently and reduce energy costs with ECO Mode, achieving up to 94% efficiency while maintaining full protection and optimal performance for less power-sensitive loads.

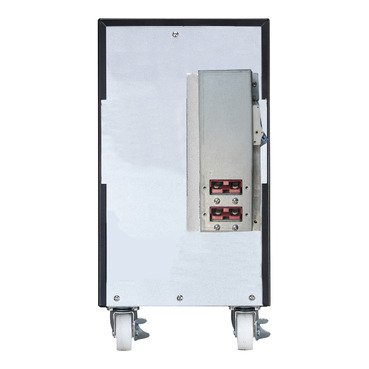

Extended Runtime with External Battery Packs

it supports up to 4 external battery packs (SRV240BP-9A) to significantly extend runtime during prolonged outages—ideal for mission-critical systems and applications that demand high availability.

User-Friendly LCD Interface

An intelligent LCD display offers easy access to real-time system data, including:

• Input/output voltage

• Load level

• Battery status

• Event logs

• Operating mode

Simple navigation makes setup and monitoring straightforward even for non-technical users.

Smart Slot for Network Monitoring

Equipped with an Intelligent Card Slot, the UPS supports optional network management cards, enabling remote monitoring and integration with Schneider’s PowerChute or other power management platforms.

Applications

it is ideal for:

• Small to medium data centers

• Server rooms

• Surveillance and security systems

• Telecom and VoIP equipment

• Laboratory and testing devices

• Industrial automation and control systems

Included Accessories

• USB and RS-232 communication cables

• External battery connection cables

• User manual and quick setup guide

• Mounting and configuration kit

Battery Specifications

• Battery type: Sealed lead-acid (VRLA)

• Internal battery voltage: 240V

• Recharge time: Approx. 5 hours to 90%

• Battery life expectancy: 3 to 5 years

Environmental Conditions

• Operating temperature: 0 to 40°C

• Humidity: 0–95% non-condensing

• Protection rating: IP20

• Color: Dark grey (RAL 7010)

Certifications and Compliance

it meets international safety and performance standards:

• Certified: CE, UKCA, EAC, TISI

• Standards:

  • EN/IEC 62040-1:2019/A11:2021

  • EN/IEC 62040-2:2006/AC:2006

  • EN/IEC 62040-2:2018

Warranty and Support

• Backed by a 2-year warranty, covering repair or replacement

• Supported by Schneider Electric’s global service network and authorized partners
