Schneider SRV6KRILRK UPS | APC Easy UPS On-Line, 6kVA/6kW, Rackmount 5U, 230V, Hard wire 3-wire(P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ rail kit
Schneider SRV6KRILRK UPS | APC Easy UPS On-Line, 6kVA/6kW, Rackmount 5U, 230V, Hard wire 3-wire(P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ rail kit
EGP 9,500,000.00
Description
Schneider SRV6KRILRK UPS: A Comprehensive Review
Introduction
In an era where uninterrupted power supply is crucial for businesses and individuals alike, Uninterruptible Power Supplies (UPS) play a vital role. Schneider Electric, a leader in energy management solutions, offers a range of UPS systems designed to ensure reliable power backup. Among these, the Schneider SRV6KRILRK UPS stands out for its efficiency and performance.
Understanding the Schneider SRV6KRILRK UPS
Introduction to the Model
The Schneider SRV6KRILRK UPS is part of Schneider Electric’s lineup of high-performance UPS systems. It is engineered to provide seamless power backup for critical applications, offering advanced features and robust reliability.
Key Features
The SRV6KRILRK UPS is known for:
- High power capacity suitable for medium to large-scale applications.
- Advanced battery management system for extended battery life.
- Efficient operation with minimal energy loss.
Technical Specifications
Power Capacity
The SRV6KRILRK UPS has a power capacity of 6 kVA, making it suitable for environments requiring reliable backup power.
Input and Output Voltage
It supports a wide input voltage range and provides stable output voltage to connected devices, ensuring consistent performance.
Battery Details
Equipped with high-capacity batteries, the SRV6KRILRK UPS can sustain prolonged power outages, protecting critical equipment.
Design and Build Quality
Physical Dimensions
Compact design allows for flexible installation in various settings while optimizing space utilization.
Material and Durability
Built with durable materials, the SRV6KRILRK UPS is designed to withstand challenging environmental conditions and ensure long-term reliability.
Performance and Efficiency
Efficiency Ratings
High efficiency ratings ensure optimal energy usage, reducing operational costs and environmental impact.
Load Handling Capability
Capable of handling heavy loads without compromising performance, making it ideal for demanding applications.
Installation and Setup
Pre-Installation Considerations
Prior planning is essential to ensure seamless integration into existing power systems and environments.
Step-by-Step Installation Guide
- Site Assessment: Evaluate installation site for suitability and accessibility.
- Unboxing and Inspection: Carefully unpack UPS and verify contents.
- Positioning: Choose optimal location for UPS placement based on environmental factors.
- Connection: Connect input and output power cables according to manufacturer guidelines.
- Testing: Power up UPS and perform initial system checks to verify functionality.
Additional information
| brands | Schneider Electric |
|---|
Specifications
|
Run time for load
W
information_stroke
Min-max: 600-6000 W
|
6min 49s
|
|---|---|
|
Max. Capacity Used
information_stroke
|
100 %
|
| Main Input Voltage | 230 V |
| product or component type | Uninterruptible power supply (UPS) |
| Other Input Voltage | 220 V 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 6000 W |
| Rated power in VA | 6000 VA |
| Output connector type | Hard wire 3-wire (1P + N + E) 1 |
| Number of rack unit | 5U |

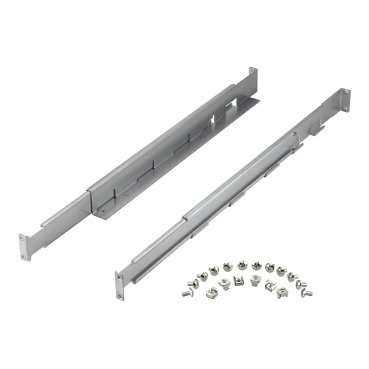

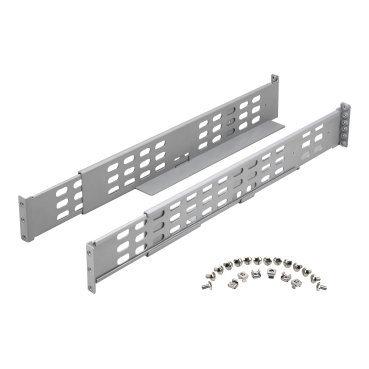

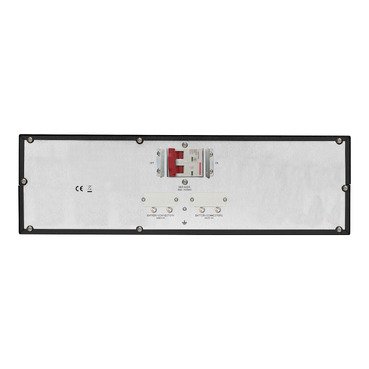

| Provided equipment | 1 USB cable 1 RS-232 configuration cable 2 rack mounting brackets 2 rack mounting support rails 1 external battery pack 1 battery cable |
| Run Time |
View Runtime Graph |
|---|---|
| Efficiency |
View Efficiency Graph |
| Battery type | Lead-acid battery |
| Battery voltage | 240 V |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 5 h |
| Battery life | 3…5 year(s) |
| Battery charger power | 1170 W rated |
| Number of power module filled slots | 0 |
|---|---|
| Number of power module free slots | 0 |
| Redundant | No |
| Colour | Black (RAL 7010) |
|---|---|
| Height | 22 cm |
| Width | 43.8 cm |
| Depth | 61.5 cm |
| net weight | 78 kg |
| mounting location | Front |
| Mounting preference | Lower |
| mounting mode | Rack-mounted |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Input voltage limits | 110...300 V 60 % load 176...300 V full load |
|---|---|
| Number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| Network frequency | 40...70 Hz auto sensing |
| Maximum configurable power in VA | 6000 VA |
|---|---|
| Maximum configurable power in W | 6000 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Harmonic distortion | 1 % |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 94 % (full load) |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Product certifications | CE UKCA EAC TISI |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15…60 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
| Acoustic level | 55 dBA |
| heat dissipation | 1172 Btu/h |
| IP degree of protection | IP20 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|---|---|
| Emergency power off | Yes |
| Free slots | 1 |
| control panel | Multifunction LCD status and control console |
| Surge energy rate | 600 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 4 |
| Package 1 Height | 49 cm |
| Package 1 Width | 60 cm |
| Package 1 Length | 87 cm |
| Package 1 Weight | 88 kg |
| Warranty | 2 years repair or replace |
|---|
