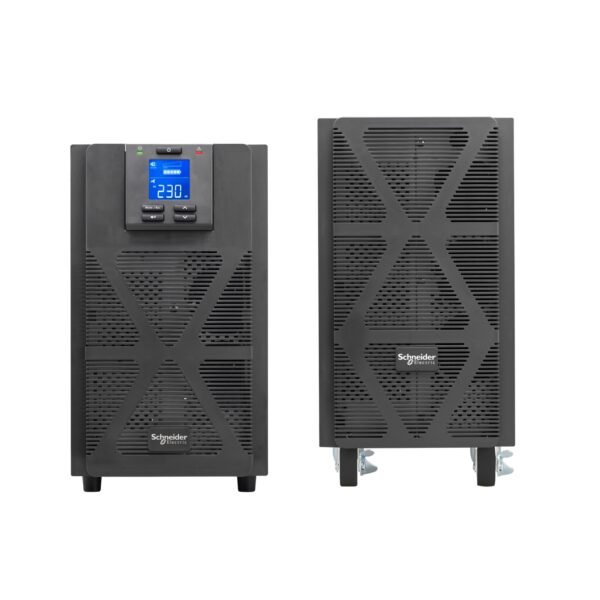

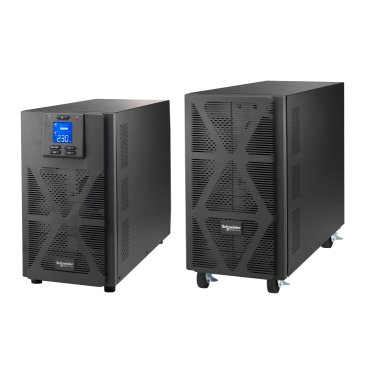

Schneider SRVS10KIL UPS | Easy UPS 1 Ph On-Line, 10kVA/10kW, Tower, 230V, 1x Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime
Schneider SRVS10KIL UPS | Easy UPS 1 Ph On-Line, 10kVA/10kW, Tower, 230V, 1x Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime
- 10kVA/10kW Double Conversion Direct Connected Pure Sine Wave Tower UPS
- High operating efficiency in energy-saving eco-friendly mode

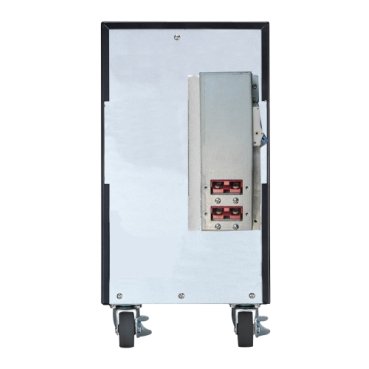

- Add up to 4 external battery packs (SRVS240BP-9A) for extended runtime
- Easy-to-read LCD interface for detailed and accurate information about the UPS unit status
EGP 13,000,000.00
Description
Schneider SRVS10KIL UPS: A Comprehensive Guide
Introduction
In today’s world, where businesses and individuals alike depend heavily on electronic devices and data, having a reliable power backup system is crucial. This is where Uninterruptible Power Supplies (UPS) come into play. A UPS ensures that your critical systems remain powered even during an outage, preventing data loss and equipment damage. Among the many UPS options available, the Schneider SRVS10KIL UPS stands out as a robust and dependable choice.
What is Schneider SRVS10KIL UPS?
Schneider Electric is a renowned name in the field of energy management and automation. The SRVS10KIL UPS is one of their top offerings, designed to provide seamless power backup for a variety of applications. This UPS model is known for its high performance, efficiency, and reliability, making it an excellent choice for both commercial and residential use.
Technical Specifications
Understanding the technical specifications of the Schneider SRVS10KIL UPS is essential to appreciate its capabilities fully.
Power Capacity
The SRVS10KIL boasts a power capacity of 10 kVA, which translates to a significant amount of power backup suitable for various applications, including data centers, industrial environments, and critical infrastructure.
Input and Output Voltage
This UPS model supports a wide input voltage range, ensuring compatibility with different power sources. The output voltage is stabilized, providing clean and consistent power to your devices.
Battery Details
The battery system in the SRVS10KIL is designed for longevity and efficiency. It features high-capacity batteries that can sustain prolonged power outages, ensuring that your systems remain operational.
Design and Build Quality
Physical Dimensions
The Schneider SRVS10KIL UPS is designed to be compact and space-efficient. Its physical dimensions allow it to be easily integrated into various setups without occupying too much space.
Durability and Material Quality
Built with high-quality materials,it is designed to withstand harsh conditions and provide reliable service over the long term. Its robust construction ensures durability and longevity.
Performance and Efficiency
Efficiency Ratings
One of the standout features of the SRVS10KIL is its high efficiency. This UPS model has impressive efficiency ratings, meaning it converts a large portion of the input power into usable output power, reducing energy wastage.
Performance Under Load
it performs exceptionally well under load, maintaining stable output even during high-demand situations. This reliability is crucial for applications that require consistent power.
Installation and Setup
Pre-Installation Considerations
Before installing ,it, it’s essential to consider factors such as the installation environment, power requirements, and space availability. Proper planning ensures a smooth setup process.
Step-by-Step Installation Guide
- Site Preparation: Ensure the installation site is clean, dry, and well-ventilated.
- Unboxing and Inspection: Carefully unbox the UPS and inspect it for any damage.
- Placement: Position the UPS in the designated location, ensuring it is stable and secure.
- Connections: Connect the input and output power cables as per the manufacturer’s instructions.
- Initial Power-Up: Power up the UPS and perform initial configuration settings.
Additional information
| brands | Schneider Electric |
|---|
Specifications
|
Run time for load
W
information_stroke
Min-max: 1000-10000 W
|
2min 32s
|
|---|---|
|
Max. Capacity Used
information_stroke
|
100 %
|
| Main Input Voltage | 230 V |
| product or component type | Uninterruptible power supply (UPS) |
| Other Input Voltage | 220 V 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 10000 W |
| Rated power in VA | 10000 VA |
| Output connector type | Hard wire 3-wire (1P + N + E) 1 |
| Provided equipment | 1 USB cable 1 RS-232 configuration cable 1 external battery pack 1 battery cable 1 user manual |
| Range of product | Easy UPS 1Ph On-Line |
| Run Time |
View Runtime Graph |
|---|---|
| Efficiency |
View Efficiency Graph |
| Battery type | Lead-acid battery |
| Battery voltage | 240 V |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 5 h |
| Battery life | 3…5 year(s) |
| Battery charger power | 1170 W rated |
| Number of power module filled slots | 0 |
|---|---|
| Number of power module free slots | 0 |
| Redundant | No |
| Colour | Black (RAL 7010) |
|---|---|
| Height | 36.8 cm |
| Width | 38 cm |
| Depth | 48.5 cm |
| net weight | 76.5 kg |
| mounting location | Front |
| Mounting preference | No preference |
| mounting mode | Not rack-mountable |
| USB compatible | Yes |
| Mounting position | Vertical |
| Input voltage limits | 110...300 V half load 176...300 V full load |
|---|---|
| Number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| Network frequency | 40...70 Hz auto sensing |
| Maximum configurable power in VA | 10000 VA |
|---|---|
| Maximum configurable power in W | 10000 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 94 % (full load) |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Product certifications | CE UKCA |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15…60 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
| Acoustic level | 58 dBA |
| heat dissipation | 2128 Btu/h |
| IP degree of protection | IP20 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|---|---|
| Emergency power off | Yes |
| Free slots | 1 |
| control panel | Multifunction LCD status and control console |
| Surge energy rate | 600 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 46.000 cm |
| Package 1 Width | 58.000 cm |
| Package 1 Length | 57.000 cm |
| Package 1 Weight | 82.500 kg |
| Warranty | 2 years repair or replace |
|---|
