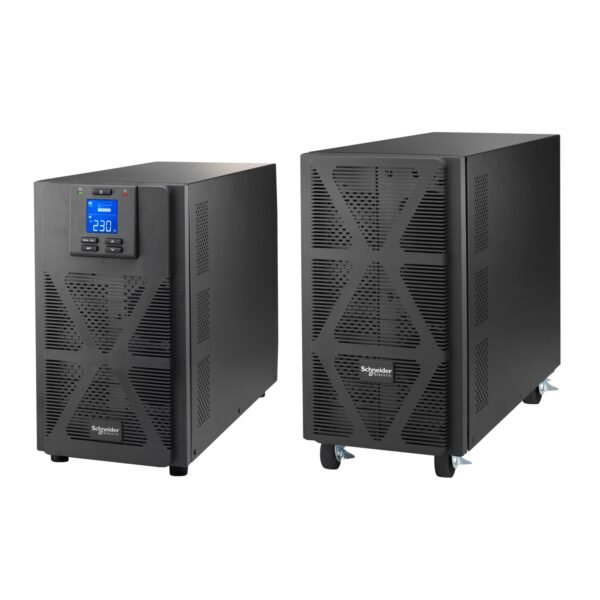

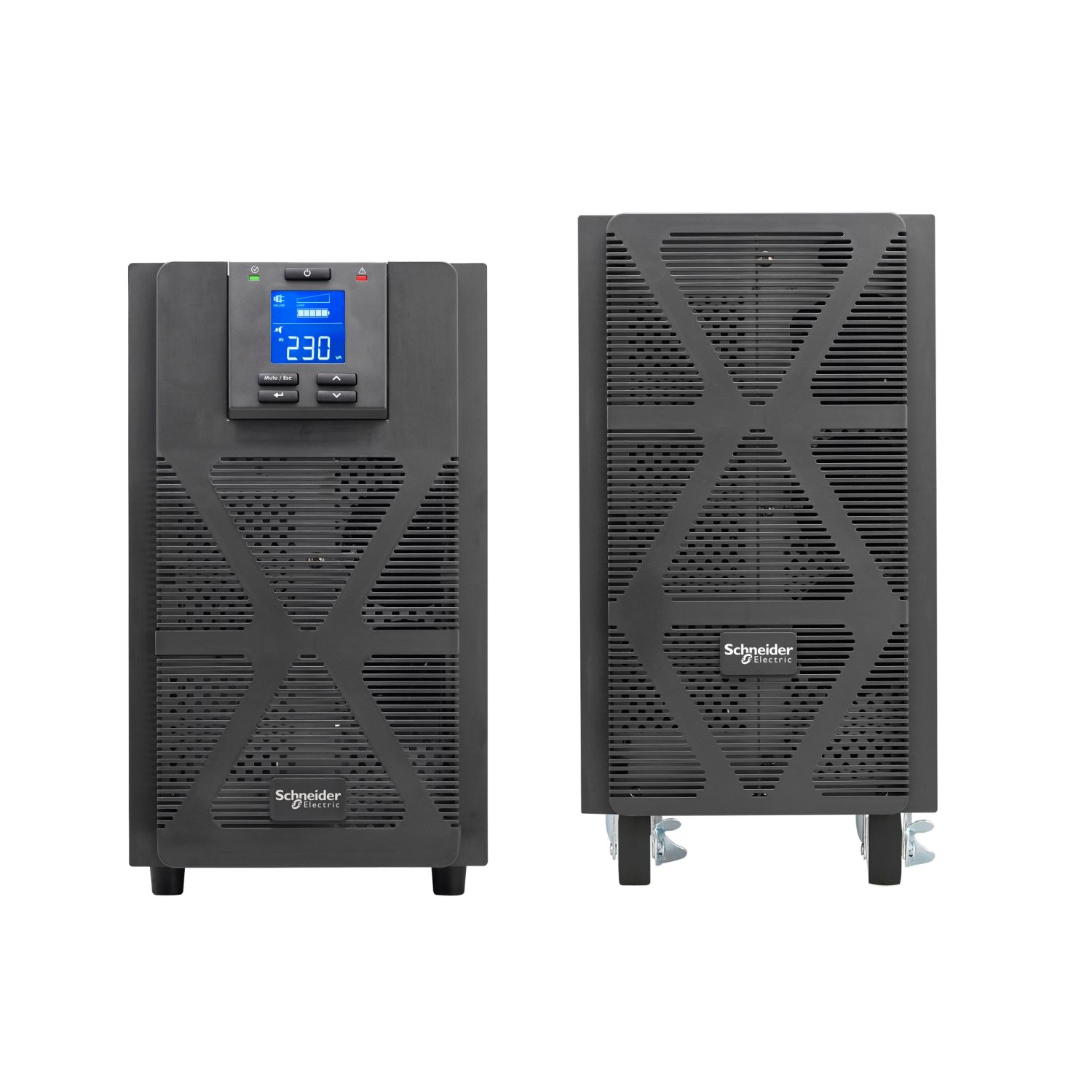

Schneider SRVS6KIL UPS

Introduction

In today’s technology-driven world, where uninterrupted power supply is crucial for the smooth operation of businesses and critical infrastructure, having a reliable it(Uninterruptible Power Supply) system is essential. One such itsystem that stands out is it.

Features of it

it boasts a range of features designed to ensure high efficiency, reliable performance, and scalability.

Firstly, its high efficiency ensures optimal power delivery, minimizing energy wastage and reducing operational costs. Secondly, it offers reliable performance, safeguarding sensitive equipment against power fluctuations and outages.

Lastly, its scalability allows for easy expansion to meet growing power demands, making it a versatile solution for various applications.

Benefits of it

The benefits of deploying it are manifold. Firstly, it provides enhanced power protection, ensuring that critical equipment remains operational even during power disturbances. This not only safeguards against data loss but also protects valuable assets from damage.

Secondly, it helps reduce downtime by seamlessly switching to battery power during outages, thereby minimizing disruptions to operations.

Applications of it

The versatility of it makes it suitable for various applications across different industries. In data centers, where uninterrupted power is essential to maintain server uptime and data integrity, it ensures continuous operation, protecting against potential revenue loss due to downtime. Similarly,

in healthcare facilities, where critical medical equipment relies on a steady power supply, it system provides peace of mind, ensuring patient safety and continuity of care.

Moreover, in industrial environments where power fluctuations can cause equipment damage and production delays, it system offers robust protection, keeping operations running smoothly.

Installation and Maintenance

To maximize the benefits of it, professional installation by certified technicians is recommended. Proper installation ensures optimal performance and reliability, minimizing the risk of system failures.

Additionally, regular maintenance checks are crucial to ensure it system remains in peak condition. Routine inspections, battery replacements, and firmware updates help prolong the lifespan of it and prevent potential issues before they escalate.

Conclusion

In conclusion, it is a reliable solution for businesses and organizations seeking uninterrupted power supply and enhanced power protection.

With its high efficiency, reliable performance, and scalability, it meets the diverse needs of various applications, from data centers to healthcare facilities and industrialsettings.

By investing in a it, businesses can mitigate the risks associated with power outages, reduce downtime, and ultimately, ensure continuity of operations.

Additional information

brands

Schneider Electric

Specifications

Overview
Presentation For small to medium businesses, Easy UPS 1 Ph On-Line provides essential power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
Lead time Usually in Stock
Main
Run time for load
W
information_stroke
Min-max: 600-6000 W
6min 49s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage 230 V
product or component type Uninterruptible power supply (UPS)
Other Input Voltage 220 V 240 V
Main Output Voltage 230 V
Other Output Voltage 220 V 240 V
Rated power in W 6000 W
Rated power in VA 6000 VA
Output connector type Hard wire 3-wire (1P + N + E) 1
Provided equipment 1 USB cable 1 RS-232 configuration cable 1 external battery pack 1 battery cable 1 user manual
Range of product Easy UPS 1Ph On-Line
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Battery type Lead-acid battery
Battery voltage 240 V
Number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 5 h
Battery life 3…5 year(s)
Battery charger power 1170 W rated
General
Number of power module filled slots 0
Number of power module free slots 0
Redundant No
Physical
Colour Black (RAL 7010)
Height 36.8 cm
Width 38 cm
Depth 48.5 cm
Net weight 73 kg
Mounting location Front
Mounting preference No preference
Mounting mode Not rack-mountable
USB compatible Yes
Mounting position Vertical
Input
Input voltage limits 110...300 V half load 176...300 V full load
Number of input connectors 1 hard wire 3-wire (1P + N + E)
Network frequency 40...70 Hz auto sensing
Output
Maximum configurable power in VA 6000 VA
Maximum configurable power in W 6000 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
UPS type Double conversion online
Wave type Sine wave
Efficiency 94 % (full load)
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Bypass type Internal bypass (automatic and manual)
Crest factor 3 : 1
Conformance
Product certifications CE UKCA
Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Environmental
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...3000 m
Ambient air temperature for storage -15…60 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…15000 m
Acoustic level 55 dBA
Heat dissipation 1172 Btu/h
IP degree of protection IP20
Communications & Management
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power off Yes
Free slots 1
Control panel Multifunction LCD status and control console
Surge Protection and Filtering
Surge energy rate 600 J
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 47.000 cm
Package 1 Width 57.500 cm
Package 1 Length 60.000 cm
Package 1 Weight 85.500 kg
Contractual warranty
Warranty 2 years repair or replace
