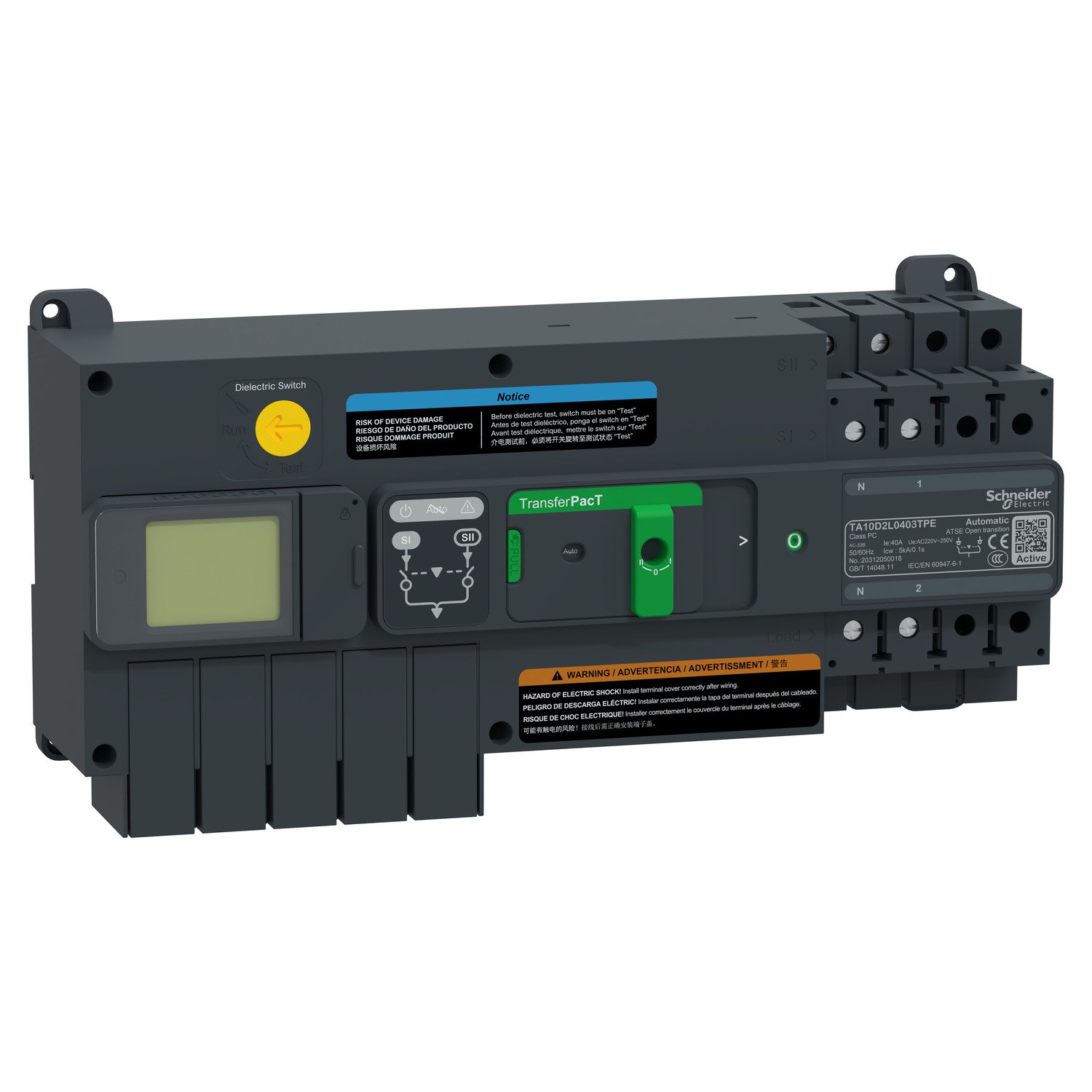

Schneider TA10D2L0403TPE | active automatic transfer switch, TransferPacT Active automatic, 40A, 2P, LCD, frame 100A

Technical Specifications Schneider TA10D2L0403TPE

• Manufacturer: Schneider Electric

• Model Number: TA10D2L0403TPE

• Series: TransferPacT Active Automatic

• Rated Current (In): 40 Amps

• Rated Operational Voltage (Ue): 400V AC

• Number of Poles: 2 Poles (L-N or L-L depending on system type)

• Frame Size: 100A

• Frequency: 50/60 Hz

• Switching Mode: Active automatic with intelligent monitoring

• Display Interface: Integrated LCD screen

• Control Modes: Fully automatic operation with manual override

• Installation Type: DIN rail or panel-mounted

• Operating Temperature: -5°C to +40°C

• Ingress Protection (IP): IP30 (can vary with enclosure)

• Standards Compliance: IEC 60947-6-1

• Communication (optional): Modbus RTU / Ethernet via external modules

Key Features

1. Intelligent Active Switching
   Continuously monitors voltage, frequency, and phase status of two power sources and automatically transfers the load based on pre-configured parameters.

2. 2-Pole Switching
   Ideal for single-phase systems or where neutral switching is not mandatory. Suitable for both L-N and L-L configurations.

3. LCD Display Interface
   Provides real-time status updates, alarms, and diagnostics. Enables easy parameter setting and event logging for local control.

4. 100A Frame for Enhanced Safety
   Though rated at 40A, the oversized frame allows superior heat dissipation and makes future upgrades easy without hardware replacement.

5. Compact and Modular Design
   Space-saving structure fits into tight control panels, distribution boards, or backup systems. Flexible mounting supports various environments.

6. Built-in Fault Detection and Alarming
   Includes monitoring for over/under voltage, phase loss, abnormal frequency, and source failure to ensure safe and reliable operation.

7. Optional Remote Communication
   Easily integrates into remote control systems via Modbus or Ethernet modules for status monitoring and control.

Applications

• Residential Buildings
  Automatically switches between utility and generator to maintain critical services like lighting, security, and refrigeration.

• Retail and Small Businesses
  Keeps essential equipment like POS systems, lighting, and communication systems operational during power disruptions.

• Telecommunication Cabinets
  Maintains power to small base stations and remote network units with automatic switching and real-time alerts.

• Medical Clinics & Labs
  Supports essential tools and devices such as medical refrigerators, analyzers, and diagnostic equipment.

• Access Control & Security Systems
  Ensures reliability of surveillance cameras, intercoms, alarm systems, and electric locks during power outages.
