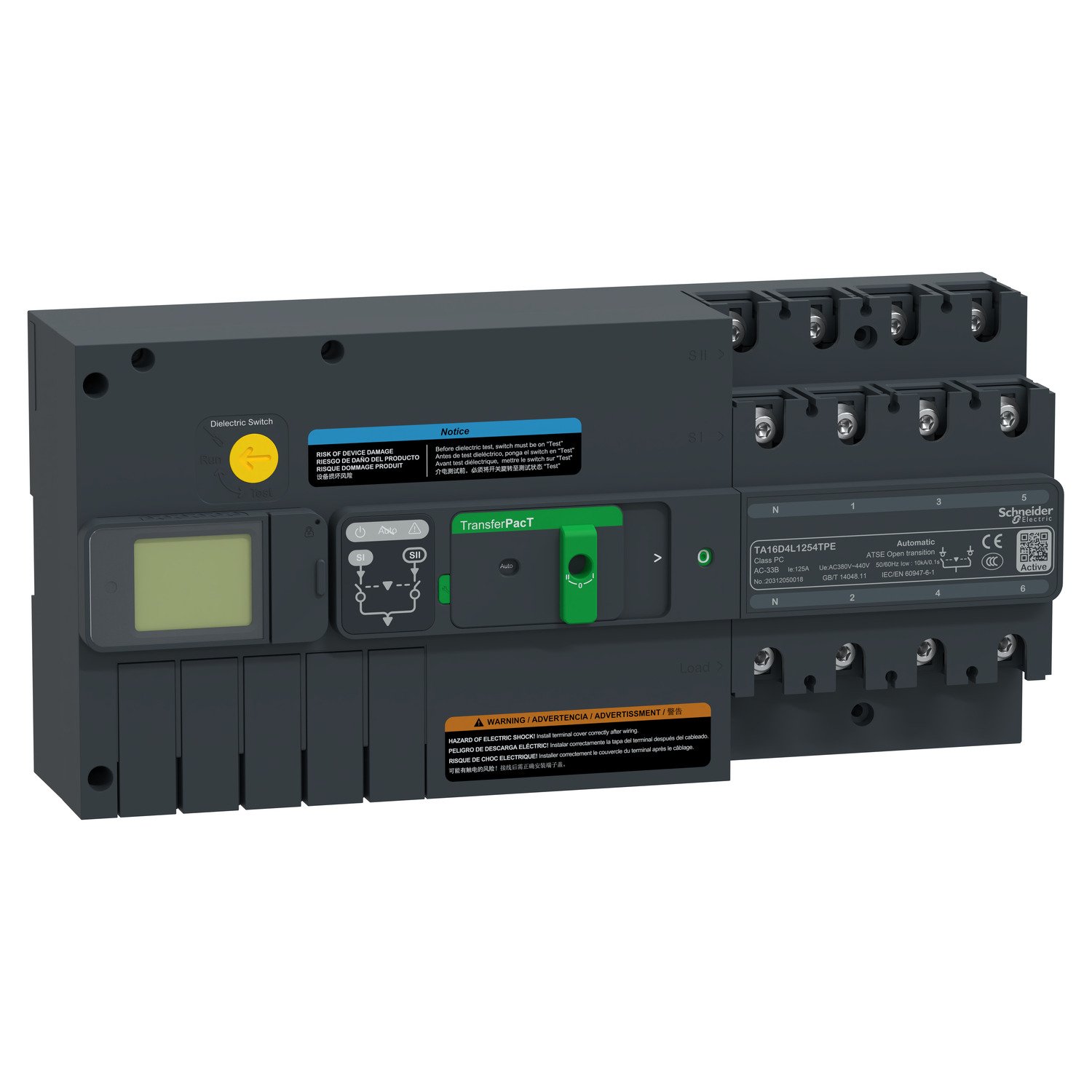

Schneider TA16D4L1254TPE | active automatic transfer switch, TransferPacT Active automatic, 125A, 4P, LCD, frame 160A

Technical Specifications:

• Product Type: Active Automatic Transfer Switch (ATS)

• Series: TransferPacT

• Model: TA16D4L1254TPE

• Rated Current: 125 Amps

• Number of Poles: 4 poles (4P), designed for systems that require four conductors, including the neutral (ideal for three-phase systems).

• Voltage Compatibility: Typically supports 400V or standard industrial voltage systems.

• Frame Size: 160A rated frame, providing flexibility to handle larger current requirements if necessary.

• Switching Mechanism: Active automatic, allowing for seamless power transfer between primary and backup sources without manual intervention.

• Display: LCD screen for real-time monitoring of the ATS status and settings.

• Protection: Includes overload protection, short-circuit protection, and fault detection to ensure the safety of both the ATS and the connected systems.

• Control Type: Fully automatic operation, designed to ensure uninterrupted power to critical systems.

. Features:

• Active Automatic Switching: The TA16D4L1254TPE automatically detects power failures or disturbances and switches to the backup power source, ensuring that critical systems continue to operate without disruption. This functionality minimizes downtime and ensures operational continuity.

• 4-Pole Configuration: The 4-pole (4P) design is ideal for systems that require a neutral conductor, such as three-phase electrical systems. This configuration enhances safety, power balance, and reliability in complex electrical setups.

• 125A Rated Current: The ATS is designed for 125A current, making it suitable for medium to large applications that require reliable and uninterrupted power transfer.

• 160A Frame Size: Although the ATS operates at 125A, the 160A frame size allows for scalability, enabling the switch to accommodate higher current needs in the future or if system demand increases.

• LCD Display: The LCD screen provides clear and detailed real-time information about the operational status, settings, and parameters of the ATS, allowing for quick diagnostics and monitoring.

• Built-in Protection Features: The TA16D4L1254TPE is equipped with overload protection, short-circuit protection, and fault detection, ensuring the safety of both the switch and the connected equipment by preventing damage during power disturbances.

• Seamless Power Transfer: The active automatic switching feature ensures minimal downtime during power interruptions, making it perfect for critical applications that require continuous power supply.

• Durability: Designed for long-term use, the ATS can handle frequent switching cycles and operates in demanding industrial environments.

. Applications:

• Industrial Facilities: The TA16D4L1254TPE is ideal for manufacturing plants, production lines, and other industrial environments that require uninterrupted power for machinery, equipment, and automated systems. The ATS ensures minimal downtime during power failures.

• Commercial Buildings: In office buildings, retail spaces, and commercial complexes, the ATS ensures that essential systems like lighting, HVAC, and security continue to function during power outages.

• Healthcare Facilities: Hospitals, clinics, and laboratories require continuous power for medical equipment and patient care systems. The TA16D4L1254TPE provides seamless switching to backup power sources, ensuring critical equipment remains operational.

• Data Centers: In data centers, where uptime is critical for IT infrastructure, the TA16D4L1254TPE guarantees uninterrupted power supply, preventing potential service interruptions, data loss, or downtime.

• Telecommunications: For telecommunications and broadcasting systems, where a reliable power supply is crucial to maintain continuous communication, this ATS ensures that backup power is available when needed.

• Residential Backup Systems: In large homes or buildings with backup generators, the TA16D4L1254TPE ensures that essential systems like lighting, HVAC, and security stay operational during power outages.
