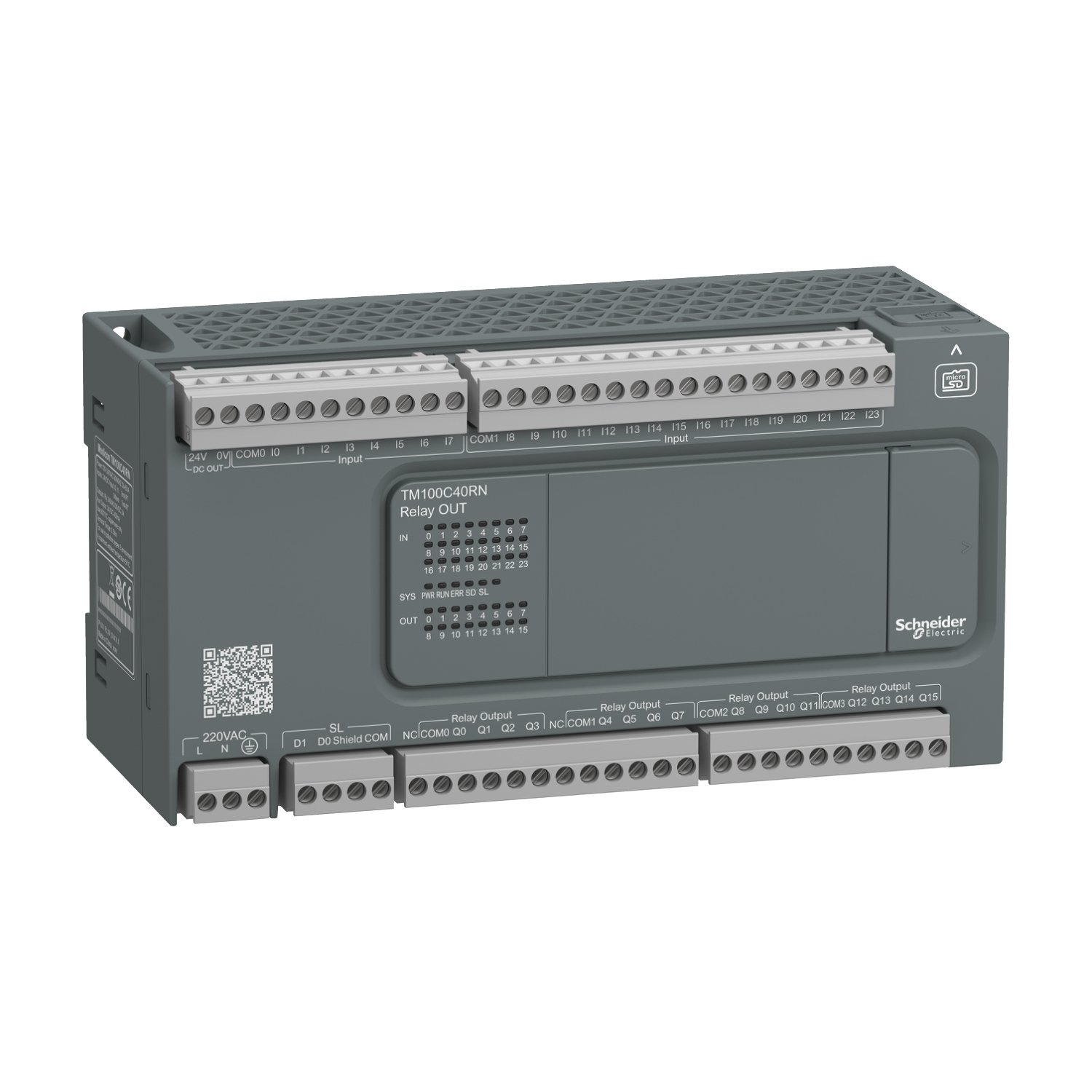

Schneider TM100C40RN | Controller M100 – 24I/16O relay – 220VAC
Schneider TM100C40RN | Controller M100 – 24I/16O relay – 220VAC
Original price was: EGP 279,072.00.EGP 15,349.00Current price is: EGP 15,349.00.
Description
Schneider TM100C40RN | Controller M100 – 24I/16O relay – 220VAC
The Schneider TM100C40RN is a programmable logic controller (PLC) from the Modicon M100 series, designed for more complex and demanding automation tasks. With 24 digital inputs and 16 relay outputs, this controller offers a higher degree of flexibility and control, making it suitable for a wide range of industrial applications. It operates with a 220V AC input power supply, ensuring compatibility with a variety of AC-powered devices.
Key Features
-
Product Type: Programmable Logic Controller (PLC)
-
Series: Modicon M100
-
I/O Configuration:
-
Inputs: 24 digital inputs
-
Outputs: 16 relay outputs (normally open)
-
-
Input Voltage: 220V AC
-
Output Voltage: 220V AC (relay-based)
-
Programming Software: Compatible with SoMachine or other Schneider Electric programming tools for easy configuration.
-
Relay Outputs: Provides control for AC devices, offering flexibility for various applications requiring relay-based switching.
-
Mounting: Compact and modular design for easy installation in control panels.
-
Protection Rating: IP20, making it suitable for installation in industrial control environments.
-
Operating Temperature: 0°C to 55°C
-
Dimensions: Designed to fit standard control panel sizes, optimizing space utilization.
Applications
The TM100C40RN is suitable for a wide range of applications, particularly in industries where multiple inputs and outputs are required for controlling devices. Key applications include:
-
Industrial Automation: Managing machines, conveyors, and automated equipment.
-
HVAC Systems: Control of heating, ventilation, and air conditioning in large buildings or industrial plants.
-
Water Treatment: Managing pumps, valves, and other equipment in water and waste management systems.
-
Manufacturing and Production Lines: Overseeing processes that require more complex control with multiple inputs and outputs.
-
Lighting and Energy Management: Controlling lighting systems, energy distribution, and optimization in industrial or commercial settings.
-
Elevator Systems: Managing the operation of lifts, escalators, and other elevator systems.
-
Pump Stations: Automating the operation of pumps and fluid management systems.
Advantages
-
High I/O Capacity: With 24 digital inputs and 16 relay outputs, the TM100C40RN can handle more complex automation tasks and control multiple devices simultaneously.
-
Flexibility: The relay outputs provide the ability to control various AC-powered devices, offering versatility in different applications.
-
Compact Design: The small footprint makes it ideal for integration into existing control panels without requiring excessive space.
-
Robust Performance: It’s built to work in demanding industrial environments, ensuring reliability and long-term operation.
-
Easy Programming: Schneider Electric’s SoMachine software simplifies the configuration and programming process, making it easier to set up and maintain the controller.
-
Wide Voltage Range: The 220V AC operation ensures that this PLC can directly control devices that run on standard AC power, reducing the need for additional converters or adapters.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| range of product | Easy Modicon M100 |
|---|---|
| Product or component type | Logic controller |
| [Us] rated supply voltage | 100...240 V AC |
| Discrete I/O number | 40 |
| Discrete input number | I2...I5: 4 fast input I0...I1: 2 high speed input I6...I23: 18 regular input |
| Discrete output number | 16 relay |
| Discrete input voltage | 24 V |
| discrete input voltage type | DC |
| Discrete input current | 7 mA for regular input 7 mA for fast input 9 mA for high speed input |
| Discrete output voltage | 24 V DC 220 V AC |
| Discrete output current | 2 A |
| discrete output type | Relay normally open |
| Power consumption in VA | 35…45 VA at 100...240 V AC (with max I/O) |
| Supply voltage limits | 85…264 V |
|---|---|
| Voltage state 1 guaranteed | >= 15 V for input |
| Voltage state 0 guaranteed | <= 5 V for input |
| Network frequency | 50/60 Hz |
| Inrush current | 50 A |
| Input impedance | 3.3 kOhm for regular input 3.3 kOhm for fast input 2.81 kOhm for high speed input |
| Response time | 35 µs turn-on, I2...I5 terminal(s) for fast input 100 µs turn-off, I2...I5 terminal(s) for fast input 5 µs turn-on, I0...I1 terminal(s) for high speed input 5 µs turn-off, I0...I1 terminal(s) for high speed input 35 µs turn-on, I6...I13 terminal(s) for regular input 100 µs turn-off, I6...I13 terminal(s) for regular input 10 ms turn-on, Q0...Q15 terminal(s) for relay output 10 ms turn-off, Q0...Q15 terminal(s) for relay output 55 µs turn-on, I14...I23 terminal(s) for regular input 125 µs turn-off, I14...I23 terminal(s) for regular input |
| Configurable filtering time | 0 ms for input 3 ms for input 12 ms for input |
| Output voltage limits | 30 V DC 250 V AC |
| Maximum current per output common | 4 A at COM 0 4 A at COM 1 4 A at COM 2 4 A at COM 3 |
| Electrical durability | 100000 cycles AC-12, 240 V, 480 VA, resistive 100000 cycles DC-12, 24 V, 48 W, resistive |
| Switching frequency | 0.1 Hz with maximum load 5 Hz without maximum load |
| Mechanical durability | 20000000 cycles for relay output |
| Minimum load | 10 mA at 5 V DC for relay output |
| Memory capacity | 1024 kB internal flash with 10000 instructions for backup of programs |
| Data storage equipment | 32 GB micro SD card (optional) |
| Execution time for 1 KInstruction | 0.3 ms for event and periodic task |
| Execution time per instruction | 0.2 µs Boolean |
| Exct time for event task | 60 µs response time |
| Clock drift | <= 90 s/month at 25 °C |
| Regulation loop | Adjustable PID regulator up to 14 simultaneous loops |
| Control signal type | Quadrature (x1, x2, x4) at 60 kHz for fast input (HSC mode) Pulse/direction at 60 kHz for fast input (HSC mode) Single phase at 60 kHz for fast input (HSC mode) CW/CCW at 60 kHz for fast input (HSC mode) |
| Counting input number | 2 fast input (HSC mode) at 60 kHz 32 bits |
| Integrated connection type | USB port with mini B USB 2.0 connector Non isolated serial link serial 1 with terminal block connector and RS485 interface Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface |
| Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232 12 Mbit/s for USB |
| Communication port protocol | USB port: USB - SoMachine-Network Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network |
| Local signalling | 1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (green) for SD card access (SD) 1 LED (green) for SL1 1 LED per channel (green) for I/O state |
| Electrical connection | Removable screw terminal blockfor inputs removable screw terminal blockfor outputs removable screw terminal block, 4 terminal(s) for connecting the serial link1 Mini B USB 2.0 connectorfor a programming terminal removable screw terminal block, 3 terminal(s) for connecting the 100-240 V AC power supply |
| Maximum cable distance between devices | Shielded cable: <10 m for fast input Shielded cable: <10 m for high speed input Unshielded cable: <150 m for output Unshielded cable: <50 m for regular input |
| Insulation | Between input and internal logic at 560 V AC Between fast input and internal logic at 560 V AC Between input groups at 560 V AC Non-insulated between inputs Between output and internal logic at 1780 V AC Between output groups at 1780 V AC Between supply and internal logic at 1780 V AC |
| Sensor power supply | 24 V DC |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715 |
| height | 90 mm |
| Depth | 70 mm |
| Width | 175 mm |
| Net weight | 0.409 kg |
| IP degree of protection | IP20 with protective cover in place |
|---|---|
| product certifications | CE |
| Standards | EN/IEC 61131-2 EN/IEC 61010-2-201 |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to EN/IEC 61000-4-2 Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to EN/IEC 61000-4-3 Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to EN/IEC 55011 Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to EN/IEC 55011 Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to EN/IEC 55011 Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to EN/IEC 55011 Magnetic field at power frequency - test level: 30 A/m (I/O) conforming to EN/IEC 61000-4-8 Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to EN/IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to EN/IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to EN/IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to EN/IEC 61000-4-4 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to EN/IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to EN/IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to EN/IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to EN/IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to EN/IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 0.5 kV class A (power lines (DC)) conforming to EN/IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV class A (power lines (AC)) conforming to EN/IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (relay output) conforming to EN/IEC 61000-4-5 Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6 |
| Shock resistance | 15 gn for 11 ms 30 gn for 6 ms |
| Immunity to microbreaks | 10 ms |
| Vibration resistance | 3.5 mm at 5…8.4 Hz on symmetrical rail 1 gn at 8.4…150 Hz on symmetrical rail 3.5 mm at 5…8.4 Hz on panel mounting 3 gn at 8.4…150 Hz on panel mounting |
| Relative humidity | 10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage) |
| Ambient air temperature for operation | 0…55 °C (horizontal installation) |
| Ambient air temperature for storage | -25…70 °C |
| Pollution degree | <= 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.6 cm |
| Package 1 Width | 9.0 cm |
| Package 1 Length | 18.3 cm |
| Package 1 Weight | 658.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 8.396 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 288 |
| Package 3 Height | 105.0 cm |
| Package 3 Width | 80.0 cm |
| Package 3 Length | 120.0 cm |
| Package 3 Weight | 140.0 kg |
