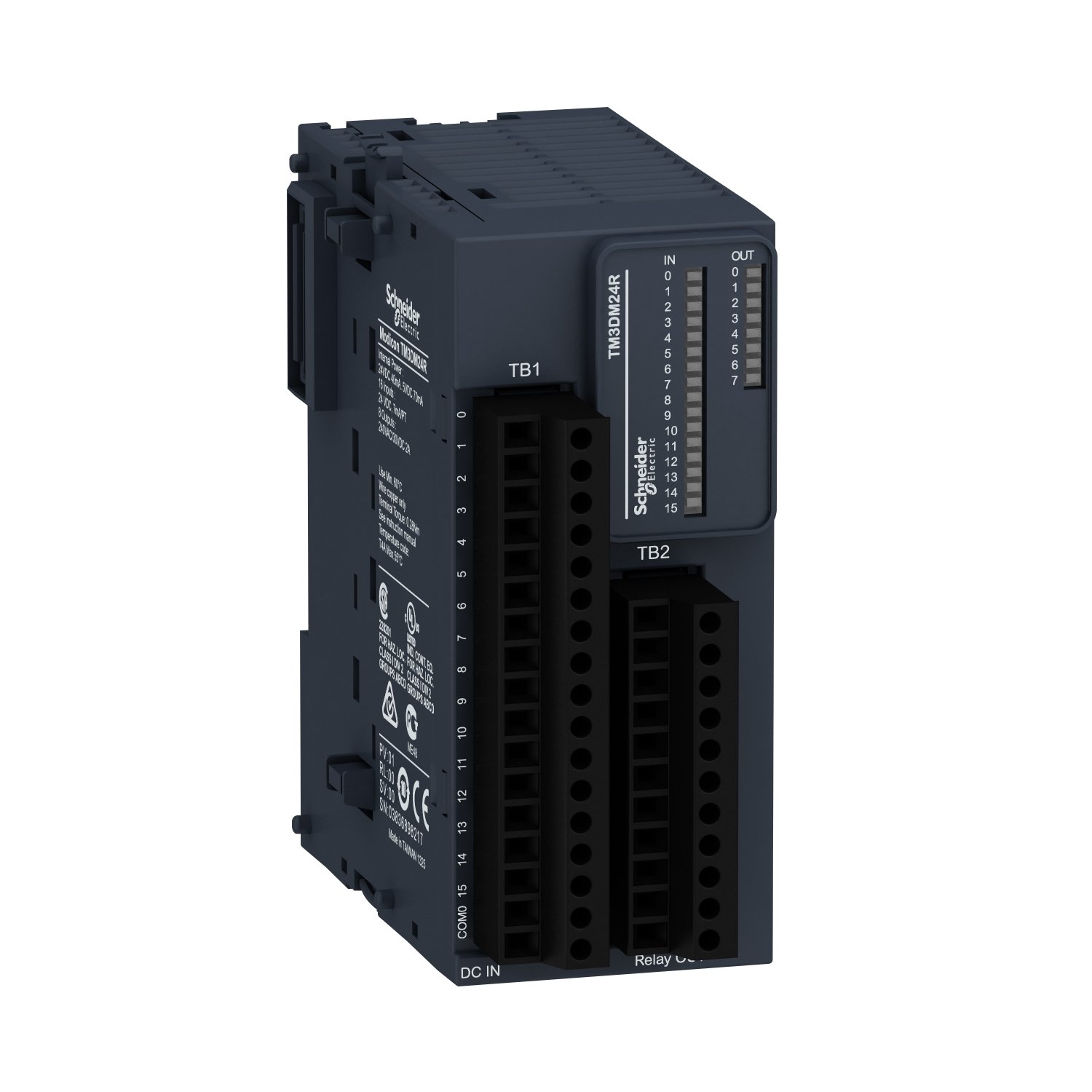

Schneider TM3DM24R | Modicon TM3 – 24 IO (16 inputs, 8 relay outputs, screw) 24Vdc
Schneider TM3DM24R | Modicon TM3 – 24 IO (16 inputs, 8 relay outputs, screw) 24Vdc
Original price was: EGP 147,402.00.EGP 85,494.00Current price is: EGP 85,494.00.
Description
Schneider TM3DM24R | Modicon TM3 – 24 IO (16 inputs, 8 relay outputs, screw) 24Vdc
Technical Specifications of Schneider TM3DM24R
- Model: TM3DM24R
- Series: Modicon TM3
- Inputs: 16 digital inputs (24V DC)
- Outputs: 8 relay outputs (supports up to 250V AC or 30V DC)
- Output Type: Relay (NO/NC contacts) for versatile load control
- Connection Type: Screw terminals for secure and easy installation
- Power Supply: 24V DC
- Compatibility: Works with Modicon M221, M241, M251 PLCs
- Mounting Type: DIN rail
Key Features
1. Expandable I/O for Increased Control
- Adds 16 digital inputs and 8 relay outputs, enhancing the capabilities of the PLC.
- Supports 24V DC input signals, ensuring compatibility with most industrial sensors and switches.
2. Versatile Relay Outputs
- The 8 relay outputs can switch AC loads up to 250V and DC loads up to 30V, making them suitable for controlling motors, valves, lighting, and other industrial equipment.
3. Easy Installation and Secure Wiring
- Equipped with screw terminals for safe and easy wiring connections.
- Supports DIN rail mounting, ensuring quick and efficient installation in industrial control panels.
4. Seamless Integration with Modicon PLCs
- Fully compatible with Modicon M221, M241, and M251 PLCs, allowing seamless expansion of control systems.
- Easily configurable using EcoStruxure Machine Expert – Basic software for simplified programming and setup.
5. Reliable Performance in Industrial Environments
- Operates on 24V DC, providing low power consumption and high safety.
- Built-in electrical isolation between inputs and outputs enhances system protection and stability.
Applications
The Schneider TM3DM24R expansion module is ideal for industrial applications requiring additional input and output capacity, such as:
Automated Production Lines – Enhances control over conveyors, sorting systems, and robotic operations.
Motor Control Systems – Manages electric motors and actuators efficiently.
Industrial Lighting Control – Controls large-scale lighting systems in warehouses and factories.
Pumping and Valve Systems – Regulates water pumps, hydraulic, and pneumatic valves.
Building Automation – Integrates into smart building management systems for enhanced efficiency.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Modicon TM3 |
|---|---|
| Product or component type | Discrete I/O module |
| Range compatibility | Modicon M241 Modicon M251 Modicon M221 Modicon M262 |
| Discrete input number | 16 for input conforming to IEC 61131-2 Type 1 |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input voltage | 24 V |
| Discrete input current | 7 mA for input |
| Discrete output type | Relay normally open |
| Discrete output number | 8 |
| Discrete output logic | Positive or negative |
| Discrete output voltage | 24 V DC for relay output 240 V AC for relay output |
| Discrete output current | 2000 mA for relay output |
| Discrete I/O number | 24 |
|---|---|
| Current consumption | 5 mA at 5 V DC via bus connector (at state off) 0 mA at 24 V DC via bus connector (at state on) 0 mA at 24 V DC via bus connector (at state off) 65 mA at 5 V DC via bus connector (at state on) |
| Discrete input voltage type | DC |
| Voltage state 1 guaranteed | 15...28.8 V for input |
| Current state 1 guaranteed | >= 2.5 mA (input) |
| Voltage state 0 guaranteed | 0...5 V for input |
| Current state 0 guaranteed | <= 1 mA (input) |
| Input impedance | 3.4 kOhm |
| Response time | 4 ms (turn-on) 4 ms (turn-off) |
| Maximum current per output common | 7 A |
| Mechanical durability | 20000000 cycles |
| Minimum load | 10 mA at 5 V DC for relay output |
| Local signalling | 1 LED per channel (green) for I/O state |
| Electrical connection | 17 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs 11 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs |
| Maximum cable distance between devices | Unshielded cable: <30 m for regular input |
| Insulation | Between input and internal logic at 500 V AC Non-insulated between inputs Between input groups and output groups at 1500 V AC Between open contact at 750 V AC Between output and internal logic at 500 V AC Non-insulated between outputs |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| Height | 90 mm |
| Depth | 84.6 mm |
| Width | 42.9 mm |
| Standards | IEC 61131-2 |
|---|---|
| Product certifications | cULus CE UKCA RCM EAC cULus HazLoc |
| Resistance to electrostatic discharge | 8 kV in air conforming to IEC 61000-4-2 4 kV on contact conforming to IEC 61000-4-2 |
| Resistance to electromagnetic fields | 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3 |
| Resistance to magnetic fields | 30 A/m 50/60 Hz conforming to IEC 61000-4-8 |
| Resistance to fast transients | 1 kV for I/O conforming to IEC 61000-4-4 2 kV for relay output conforming to IEC 61000-4-4 |
| Surge withstand | 2 kV output common mode conforming to IEC 61000-4-5 1 kV input common mode conforming to IEC 61000-4-5 |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011 |
| Ambient air temperature for operation | -10…35 °C vertical installation -10…55 °C horizontal installation |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage) |
| IP degree of protection | IP20 with protective cover in place |
| pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 3.5 mm at 5…8.4 Hz on DIN rail 3 gn at 8.4…150 Hz on DIN rail 3.5 mm at 5…8.4 Hz on panel 3 gn at 8.4…150 Hz on panel |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.551 cm |
| Package 1 Width | 10.686 cm |
| Package 1 Length | 12.849 cm |
| Package 1 Weight | 281.0 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 42 |
| Package 2 Height | 30.6 cm |
| Package 2 Width | 40.1 cm |
| Package 2 Length | 57.6 cm |
| Package 2 Weight | 12.61 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 504 |
| Package 3 Height | 105 cm |
| Package 3 Width | 120 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 144 kg |
