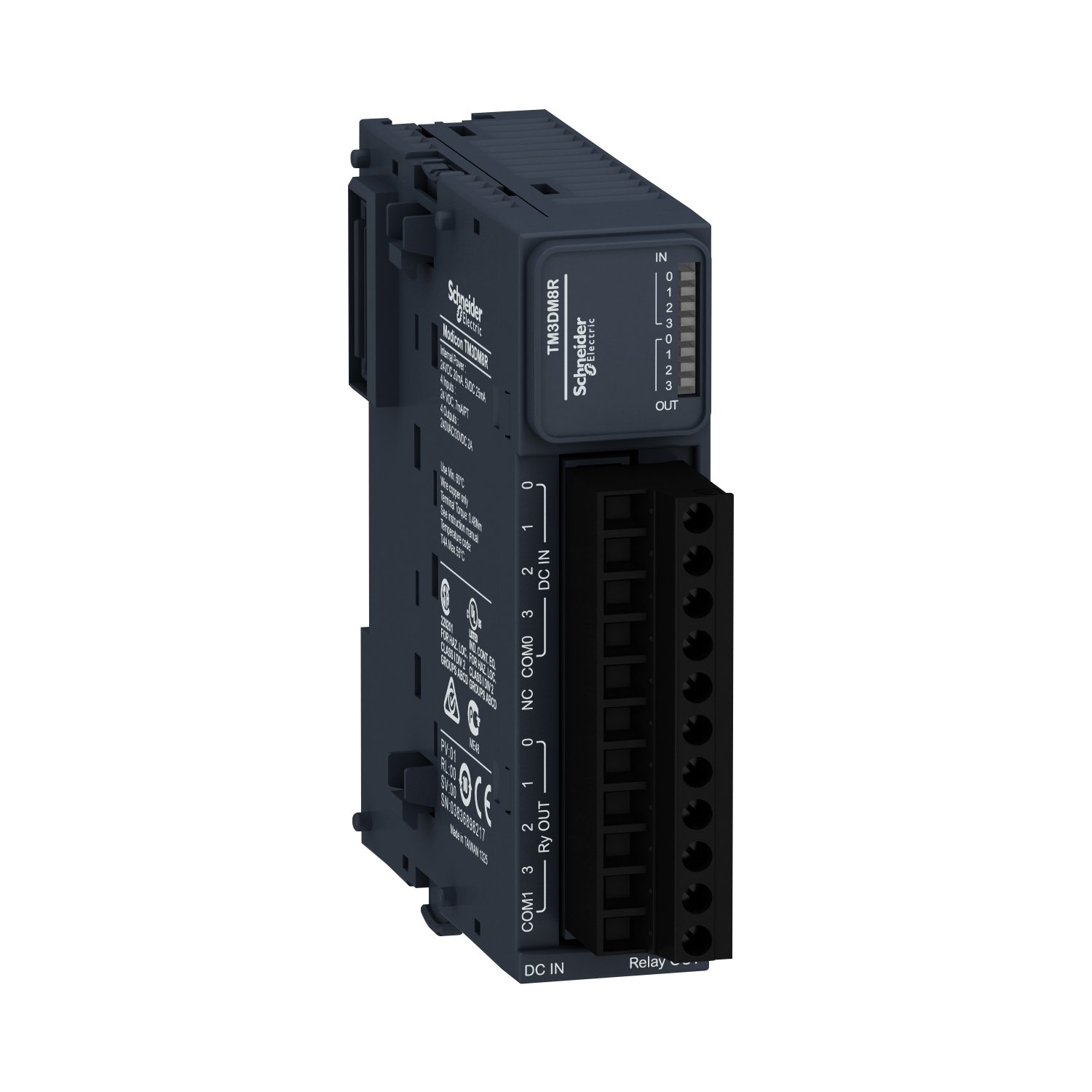

Schneider TM3DM8R | Modicon TM3 – 8 IO (4 inputs, 4 relay outputs, screw) 24Vdc
Schneider TM3DM8R | Modicon TM3 – 8 IO (4 inputs, 4 relay outputs, screw) 24Vdc
EGP 11,457.00
Description
Schneider TM3DM8R | Modicon TM3 – 8 IO (4 inputs, 4 relay outputs, screw) 24Vdc
Technical Specifications:
-
Number of I/O Channels: The module has a total of 8 I/O channels, which include:
-
4 digital inputs
-
4 relay outputs
-
-
Input Voltage: It operates with a 24V DC voltage for both inputs and outputs.
-
Relay Outputs: The relay outputs are designed to handle external devices, enabling the switching of electrical circuits, motors, or other equipment as part of a control system. These outputs are particularly useful when interfacing with devices that require more robust switching capabilities than typical transistor outputs.
-
Connection Type: The module uses screw terminals for easy and secure wiring connections, ensuring a reliable connection to external devices.
-
Input Type: The module is equipped with digital inputs, allowing it to read signals from a variety of industrial sensors or switches. These inputs are ideal for monitoring binary signals (on/off or high/low states) from devices in automation systems.
-
Operating Voltage: It operates on a 24V DC supply voltage, which is common in industrial control systems.
-
Compact Design: Like other modules in the TM3 series, the TM3DM8R has a compact design, making it suitable for installations where space is limited.
Features:
-
Flexibility in Industrial Control: The combination of 4 digital inputs and 4 relay outputs allows for versatile control and monitoring of industrial equipment. This is especially beneficial in systems where both sensing and switching operations are required.
-
Relay Output Control: The relay outputs provide reliable switching capabilities for controlling heavy-duty devices, such as motors, solenoids, or lighting, while providing electrical isolation between the control and output circuits.
-
Simple Integration: The TM3DM8R module integrates seamlessly with Modicon PLC systems, making it easy to expand or enhance the functionality of existing automation systems.
-
Reliable Screw Terminals: The use of screw terminals ensures a solid and secure connection, which is important for industrial environments where vibrations or other factors might affect the integrity of the wiring.
-
Space-Saving Design: The module is compact, making it ideal for control panels with limited space. This can help optimize panel layouts and reduce the overall footprint of the system.
-
Wide Application Range: It is suitable for use in a wide range of industrial applications, including small-scale automation, machine control, and monitoring systems.
Applications:
The Schneider TM3DM8R module is suitable for various industrial automation applications where both digital inputs and relay outputs are needed. Some common uses include:
-
Control Systems: Ideal for use in PLC-based control systems to monitor sensors and control devices like motors, actuators, or relays.
-
Process Automation: Can be used in process control systems for handling discrete signals from sensors and switching control circuits.
-
Monitoring and Control: Useful for small machine automation systems where monitoring of on/off states is required, and relay outputs are used for activating external devices.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Modicon TM3 |
|---|---|
| Product or component type | Discrete I/O module |
| Range compatibility | Modicon M241 Modicon M251 Modicon M221 Modicon M262 |
| Discrete input number | 4 for input conforming to IEC 61131-2 Type 1 |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input voltage | 24 V |
| Discrete input current | 7 mA for input |
| Discrete output type | Relay normally open |
| Discrete output number | 4 |
| Discrete output logic | Positive or negative |
| Discrete output voltage | 24 V DC for relay output 240 V AC for relay output |
| Discrete output current | 2000 mA for relay output |
| Discrete I/O number | 8 |
|---|---|
| Current consumption | 5 mA at 5 V DC via bus connector (at state off) 0 mA at 24 V DC via bus connector (at state on) 0 mA at 24 V DC via bus connector (at state off) 25 mA at 5 V DC via bus connector (at state on) |
| Discrete input voltage type | DC |
| Voltage state 1 guaranteed | 15...28.8 V for input |
| Current state 1 guaranteed | >= 2.5 mA (input) |
| Voltage state 0 guaranteed | 0...5 V for input |
| Current state 0 guaranteed | <= 1 mA (input) |
| Input impedance | 3.4 kOhm |
| Response time | 4 ms (turn-on) 4 ms (turn-off) |
| Maximum current per output common | 7 A |
| Mechanical durability | 20000000 cycles |
| Minimum load | 10 mA at 5 V DC for relay output |
| Local signalling | 1 LED per channel (green) for I/O state |
| Electrical connection | 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs and outputs |
| Maximum cable distance between devices | Unshielded cable: <30 m for regular input |
| Insulation | Between input and internal logic at 500 V AC Non-insulated between inputs Between input groups and output groups at 1500 V AC Between open contact at 750 V AC Between output and internal logic at 500 V AC Non-insulated between outputs |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| Height | 90 mm |
| Depth | 84.6 mm |
| Width | 27.4 mm |
| Net weight | 0.95 kg |
| Standards | IEC 61131-2 |
|---|---|
| Product certifications | cULus CE UKCA RCM EAC cULus HazLoc |
| Resistance to electrostatic discharge | 8 kV in air conforming to IEC 61000-4-2 4 kV on contact conforming to IEC 61000-4-2 |
| Resistance to electromagnetic fields | 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3 |
| Resistance to magnetic fields | 30 A/m 50/60 Hz conforming to IEC 61000-4-8 |
| Resistance to fast transients | 1 kV for I/O conforming to IEC 61000-4-4 2 kV for relay output conforming to IEC 61000-4-4 |
| Surge withstand | 2 kV output common mode conforming to IEC 61000-4-5 1 kV input common mode conforming to IEC 61000-4-5 |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011 |
| Ambient air temperature for operation | -10…35 °C vertical installation -10…55 °C horizontal installation |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage) |
| IP degree of protection | IP20 with protective cover in place |
| Pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 3.5 mm at 5…8.4 Hz on DIN rail 3 gn at 8.4…150 Hz on DIN rail 3.5 mm at 5…8.4 Hz on panel 3 gn at 8.4…150 Hz on panel |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.5 cm |
| Package 1 Width | 12.5 cm |
| Package 1 Length | 10.5 cm |
| Package 1 Weight | 230.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 42 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 10.643 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 504 |
| Package 3 Height | 105 cm |
| Package 3 Width | 120 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 138 kg |
