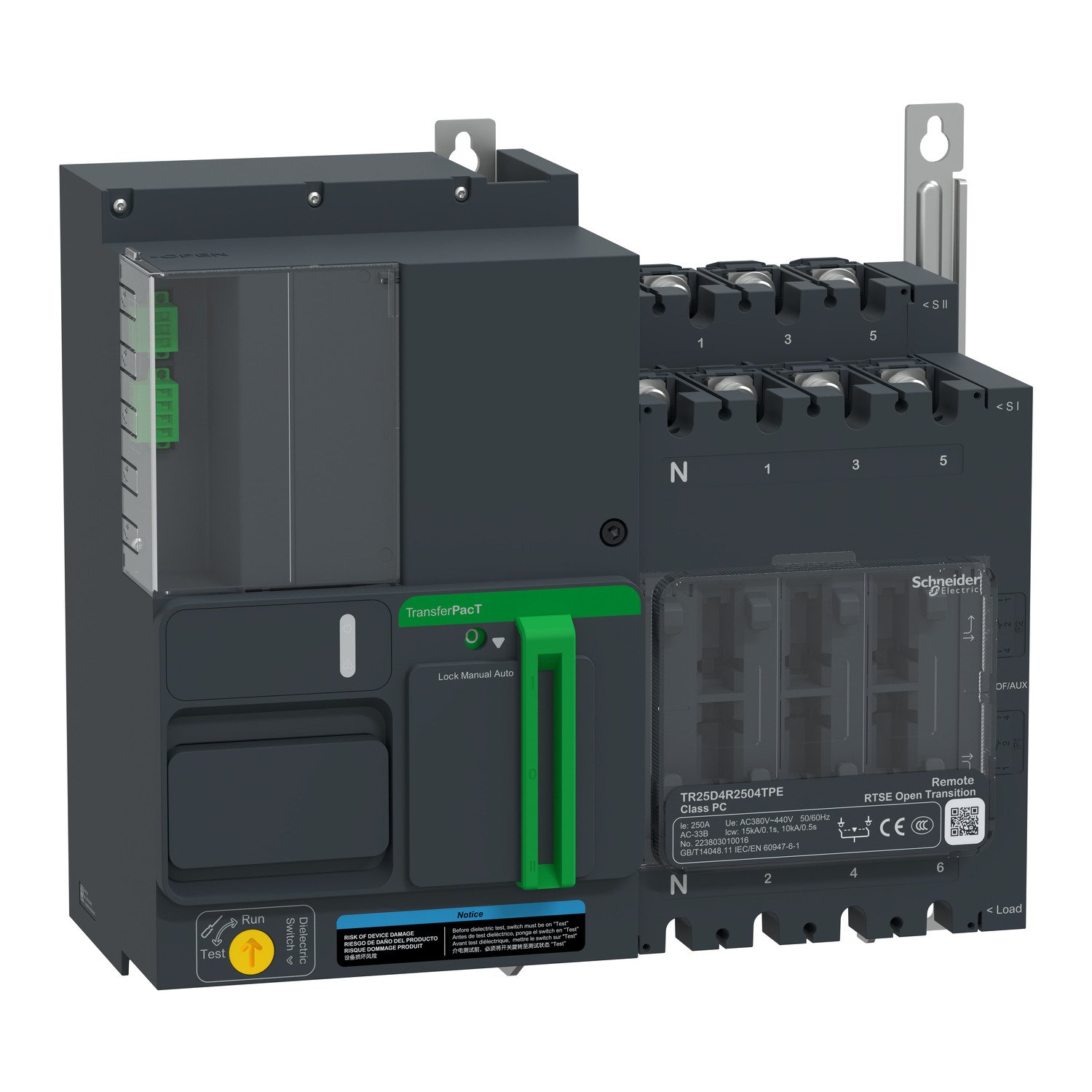

Schneider TR25D4R2504TPE | TransferPacT Remote, 250A, 400V, 4P, Remote, frame 250A

Product Code:

TR25D4R2504TPE

Brand: Schneider Electric

4-Pole Switching
Fully isolates the three-phase conductors and neutral, providing a safe and reliable switch for both balanced and unbalanced loads in multi-phase systems.
Remote Operation
Remote control ensures smooth transfer without the need for manual intervention, improving both safety and operational efficiency.
Automatic Power Transfer
Automatically transfers loads between two power sources (e.g., utility and backup generator) to ensure continuous and reliable power supply.
250A Frame Size
Offers a compact design suitable for installation in control panels while maintaining a high electrical capacity, ensuring durability and reliability in heavy-duty applications.
Safety Interlocks
Designed with mechanical interlocks and status indicators to avoid accidental switching and provide clear operational visibility.

Industrial Facilities: Keeps critical machinery and production lines operational by ensuring automatic transfer to backup power when needed.
Data Centers: Guarantees uninterrupted power supply to servers and IT equipment, preventing downtime.
Healthcare Institutions: Ensures continuous operation of life-critical medical devices and hospital infrastructure.
Commercial Buildings: Ideal for office complexes, retail centers, and other commercial spaces requiring uninterrupted power for essential services.
Remote Installations: Perfect for locations requiring remote operation and monitoring, minimizing the need for onsite intervention.

brands	Schneider Electric

Main
Range of product	TransferPacT
Product or component type	Remote transfer switch
Device application	Change source of supply
poles description	4P
Network type	AC
Network frequency	50/60 Hz
downside connection	Screwed
mounting mode	Fixed
Upside connection	Screwed
Contact position indicator	Yes
[Icm] rated short-circuit making capacity	30 kA switch-disconnector alone 400 V AC at 50 Hz 330 kA with upstream protection circuit breaker 400 V AC at 50 Hz
Suitability for isolation	Yes

Complementary
transfer switch class	PC
Number of contact position	3
Signal contacts composition	1 NO + 2 NC 1 NC + 2 NO 2 NO
Utilization category	AC-33B
[Ue] rated operational voltage	400 V AC 50/60 Hz
Control type	Remote control
Operating mode	Manual Remote
Display type	Alarm indicator
Mounting support	Plate
Locking options description	Padlock in OFF position Padlock in SI / SII position
Rated duty	Uninterrupted
[Ui] rated insulation voltage	Switch: 800 V Controller: 500 V
[Uimp] rated impulse withstand voltage	Switch: 8 kV Controller: 6 kV
[Ie] rated operational current	250 A
mechanical interlocking	With mechanical interlocking
Mechanical durability	10000 cycles
Connection pitch	35 mm
Local signalling	LED indicator (green) for power ON LED indicator (red) for alarm
[Icw] rated short-time withstand current	10 kA during 0.5 s 15 kA during 0.1 s
Height	341 mm
Width	370 mm
Depth	185.8 mm
Net weight	13.3 kg
[Ith] conventional free air thermal current	250 A at 60 °C

Environment
Standards	IEC 60947-6-1
product certifications	CE CB CCC
IP degree of protection	Front face: IP40 running Inside the enclosure: IP20 manual mode
Ambient air temperature for operation	-25…70 °C
Ambient air temperature for storage	-40…85 °C
Pollution degree	3
