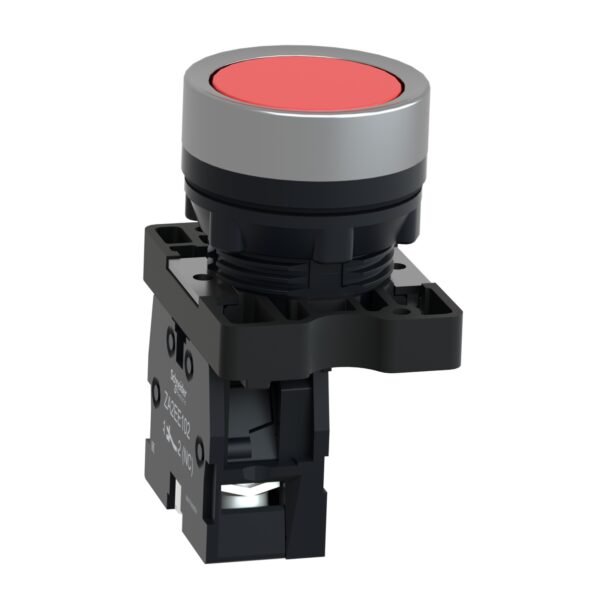

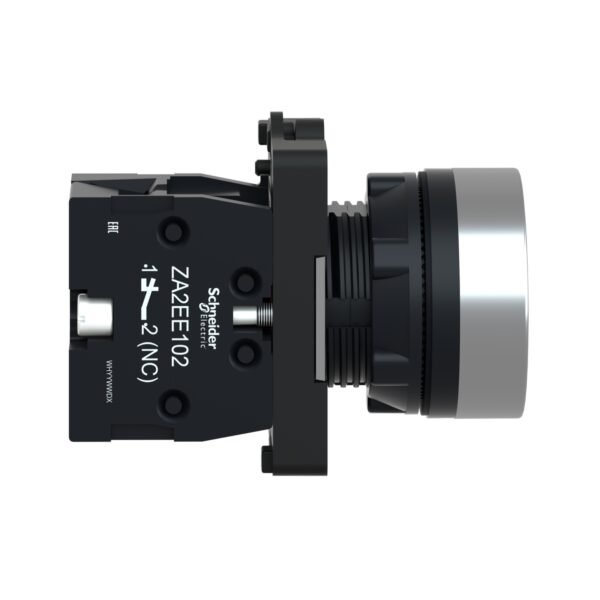

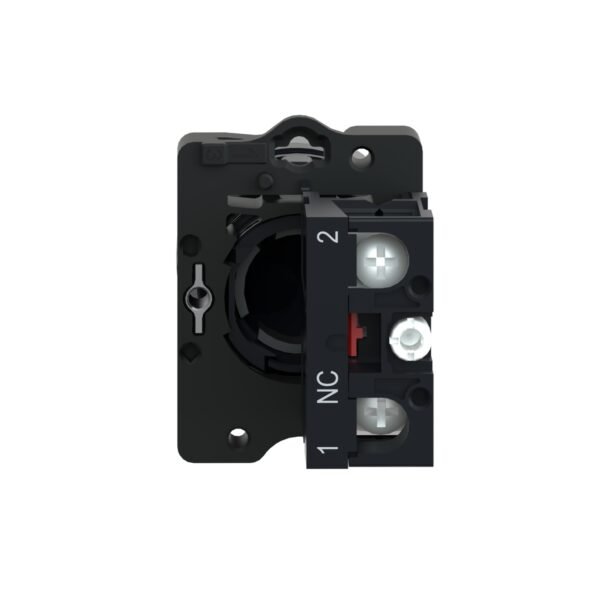

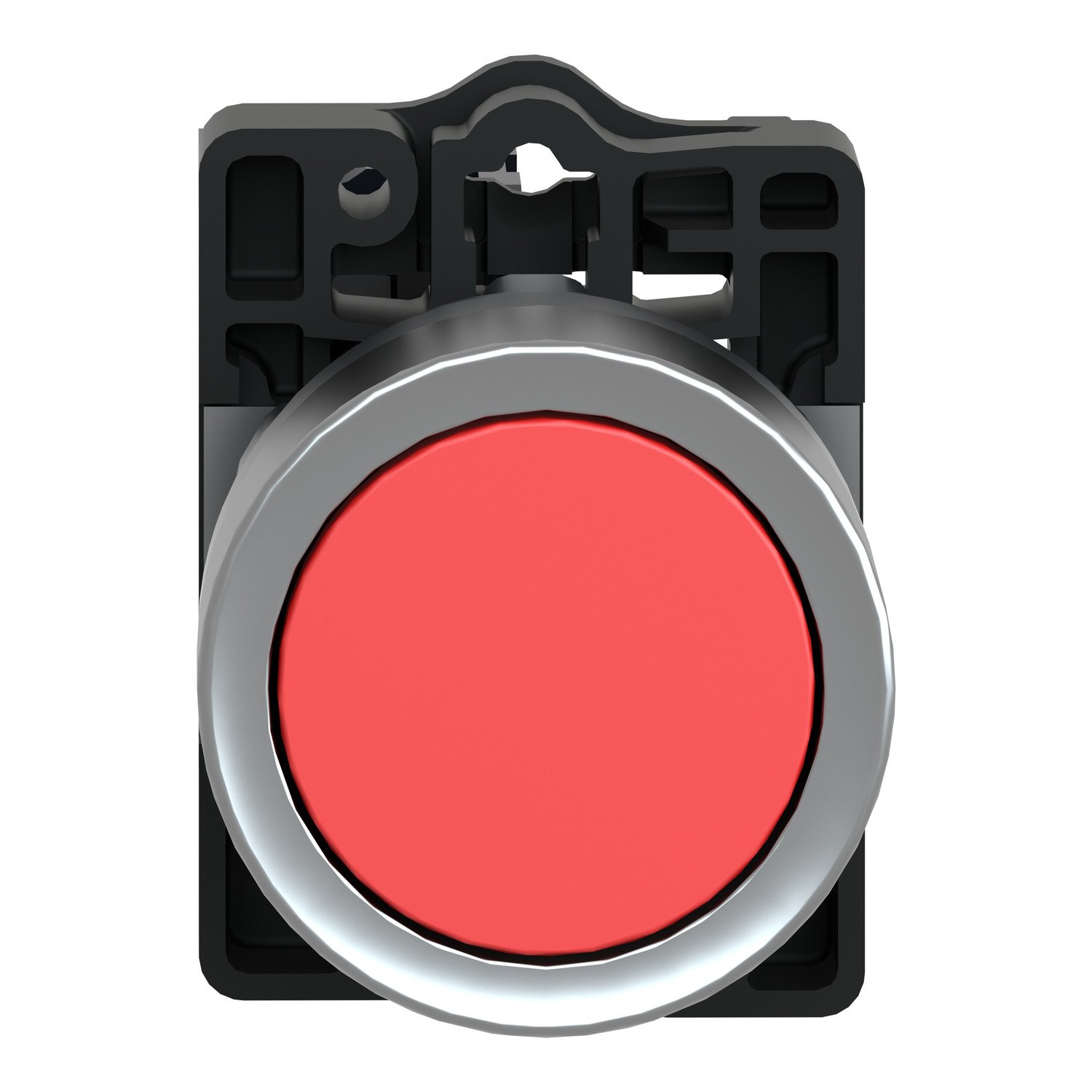

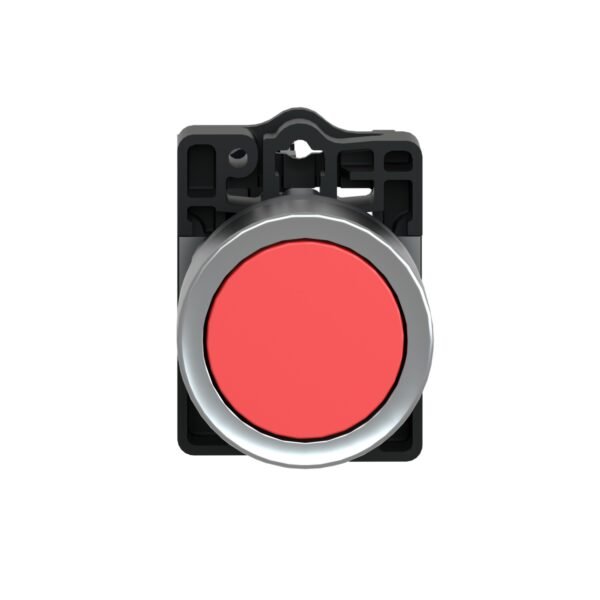

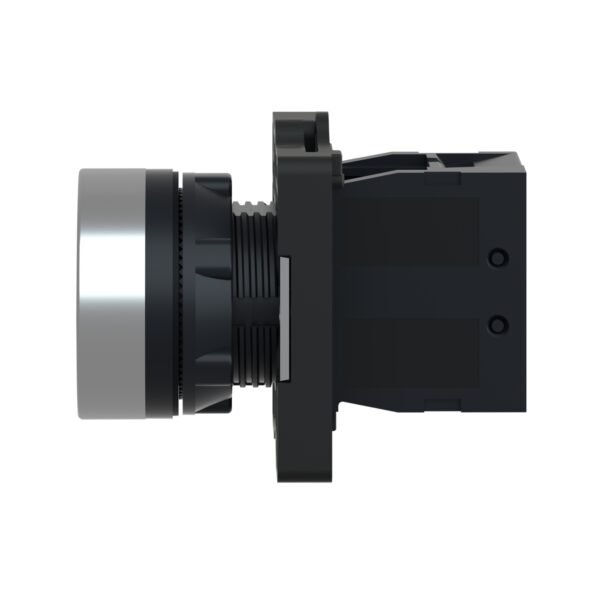

Schneider XA2EA42 Harmony | Round red push-button Ø 22 – flush spring return – 1NC
Schneider XA2EA42 Harmony
EGP 164.00
Description
Schneider XA2EA42 Harmony | Round Red Push-Button Ø22 – Flush Spring Return – 1NC
1. Overview
The Schneider XA2EA42 is a round red push-button from the Harmony XA2 series, designed for industrial and automation control applications. It features a flush spring return mechanism and a 1NC (Normally Closed) contact, ensuring reliable operation for control panels and machinery.
2. Key Features
- Model: XA2EA42
- Series: Harmony XA2
- Button Type: Push-button
- Color: Red
- Mounting Diameter: 22mm
- Operation Type: Spring return (momentary)
- Contact Configuration: 1NC (Normally Closed)
- Material: High-quality plastic for durability
- Connection Type: Screw clamp terminals for secure wiring
3. Technical Specifications
- Voltage Rating: Up to 600V
- Current Rating: Typically 10A at 600V (varies by application)
- Mechanical Durability: High endurance for industrial environments
- Electrical Lifespan: Long-lasting operation
- Protection Rating: IP65 (Dust and water-resistant)
- Operating Temperature Range: -25°C to +70°C
- Certifications & Compliance: CE, RoHS, IEC standards
4. Applications
- Machine start/stop control panels
- Industrial automation and process control systems
- Safety and emergency shutdown operations
- Electrical and mechanical safety circuits
5. Benefits
- Reliable Performance: Ensures secure operation in industrial environments
- Easy Installation: Standard 22mm mounting for quick panel integration
- Durable and Safe: Built for long-term use in harsh conditions
- Ergonomic Design: Flush button for smooth operation
6. Conclusion
The Schneider XA2EA42 Harmony red push-button is a high-quality control device, ideal for automation, safety, and industrial applications. With its flush spring return mechanism, 1NC contact, and robust design, it provides efficiency and reliability in various industrial settings.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| range of product | Easy Harmony XA2 |
|---|---|
| product or component type | Complete push-button |
| Device short name | XA2 |
| Bezel material | Plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
|---|---|
| Sale per indivisible quantity | 1 |
| Protective treatment | TC |
| Operating position | Any position |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Red flush |
| Contacts type and composition | 1 NC |
| Contact operation | Slow-break |
| Positive opening | With NC contact conforming to IEC 60947-5-1 appendix K |
| Mechanical durability | 1500000 cycles |
| Connections - terminals | Screw clamp terminal, <= 2 x 1.5 mm² Screw clamp terminal, <= 1 x 2.5 mm² Screw clamp terminal, >= 1 x 0.5 mm² Faston terminals, connection size: 6.3 mm |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600 |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 |
| Electrical reliability | Λ < 10exp(-8) at 24 V |
| Width | 30 mm |
| Height | 42 mm |
| Depth | 54.7 mm |
| net weight | 0.032 kg |
| cap/operator or lens colour | Red |
| Type of operator | Spring return |
| Ambient air temperature for storage | -40…70 °C |
|---|---|
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK03 conforming to IEC 60529 |
| Standards | IEC 60947-5-1 GB 14048.5 IEC 60947-1 GB 14048.1 |
| Product certifications | CCC CE |
| Vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.300 cm |
| Package 1 Width | 3.300 cm |
| Package 1 Length | 6.350 cm |
| Package 1 Weight | 34.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 5.000 cm |
| Package 2 Width | 5.000 cm |
| Package 2 Length | 15.000 cm |
| Package 2 Weight | 170.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 3.737 kg |
