Schneider XA2EC21 | Push-button Ø22 – mushroom head Ø40 – black – 1NO

Schneider XA2EC21 | Mushroom Head Push-Button

1. Overview

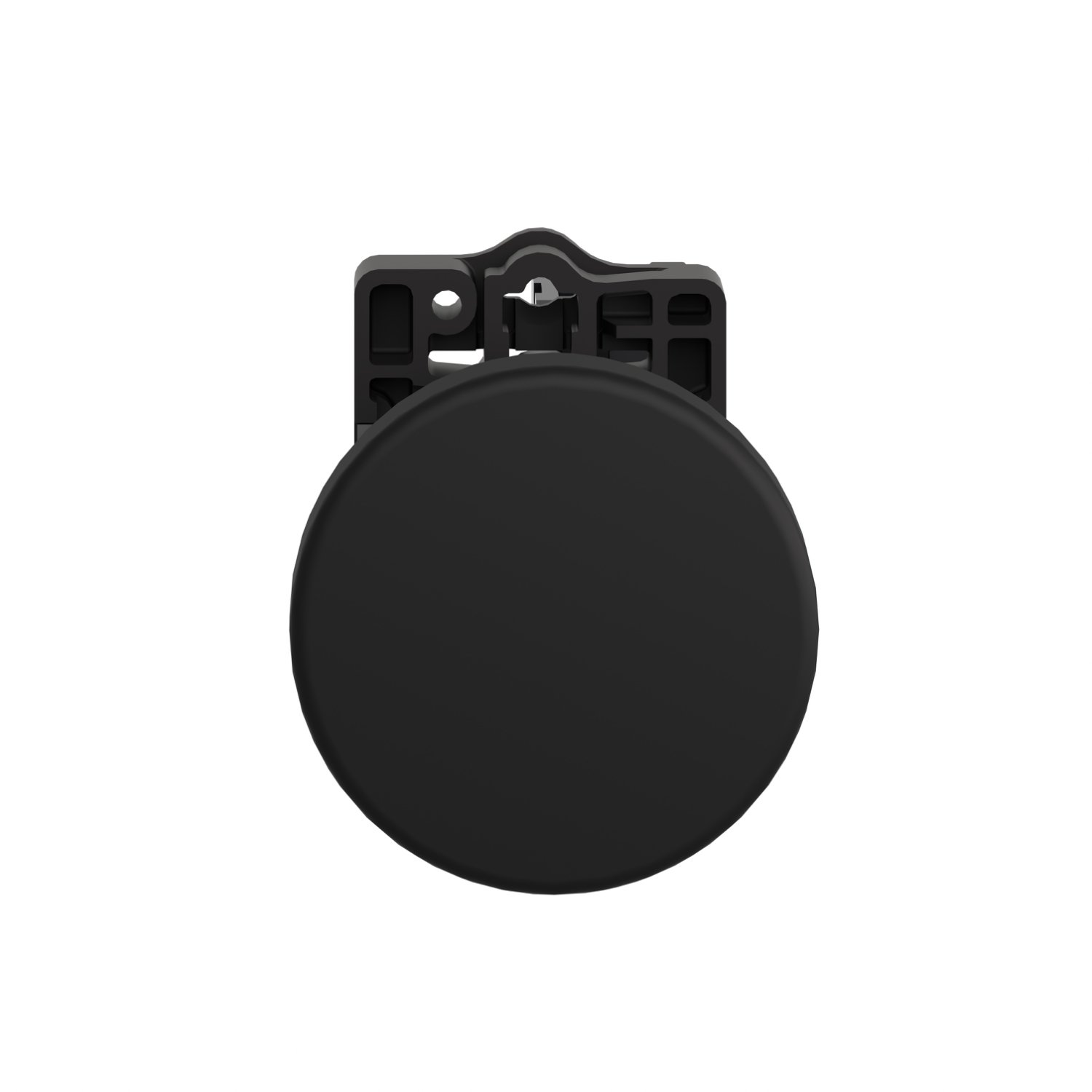

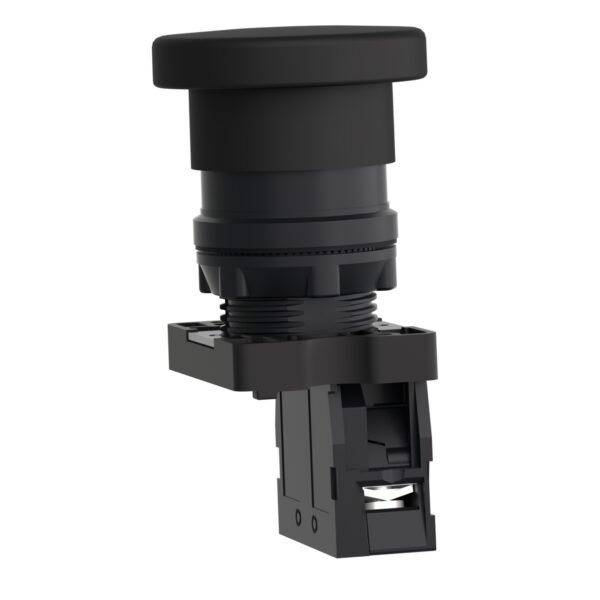

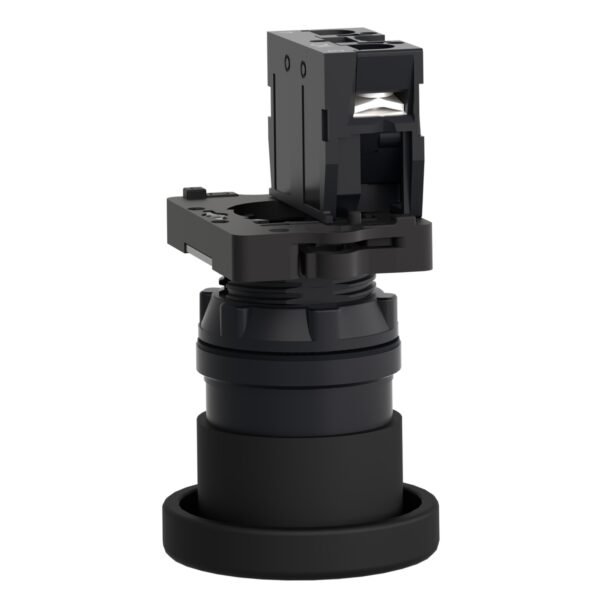

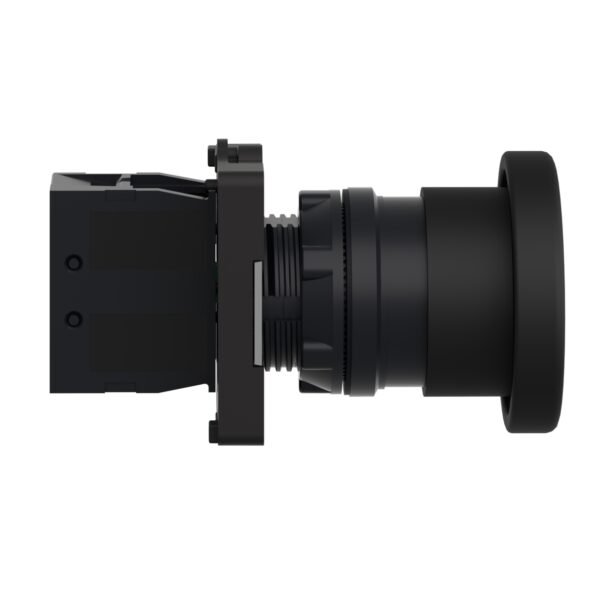

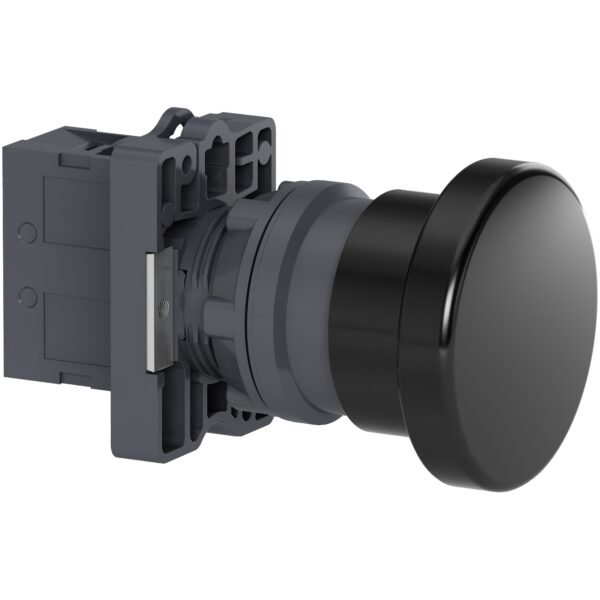

The Schneider XA2EC21 is a mushroom head push-button from the Easy Harmony XA2 series, designed for industrial and control applications. This push-button features a Ø22 mounting size, but with a Ø40 mushroom-shaped head for enhanced visibility and ease of operation. It is designed with a 1NO (Normally Open) contact configuration, making it ideal for initiating actions in various control and automation systems. The button is black in color, offering a clear and practical design suitable for emergency or stop functions in industrial settings.

2. Key Features

• Type: Mushroom head push-button, often used for emergency stop or control functions.

• Size: The push-button has a 22mm mounting diameter with a larger 40mm mushroom-shaped head, ensuring that it is easy to locate and press in urgent situations.

• Material: Constructed from durable materials suitable for industrial environments, providing long-lasting reliability.

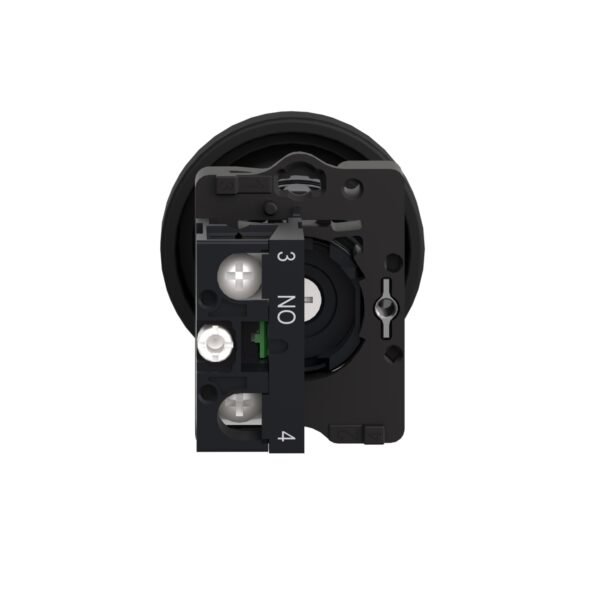

• Contact Configuration: 1NO (Normally Open), which means the button closes the circuit when pressed, commonly used for triggering actions like stopping or starting machinery.

• Design: Black color with a distinctive mushroom shape, making it more visible and easier to operate, especially in emergency scenarios.

• Operation: The button functions with a spring return, meaning it returns to its original state once released, ensuring the system resets after activation.

3. Applications

• Emergency Stop: The mushroom head design makes it perfect for use in emergency stop circuits where quick and easy access is crucial.

• Control Panels: Suitable for integration into control panels, especially in environments where clear visibility and simple operation are essential.

• Industrial Machinery: Ideal for controlling large machinery or automated systems, allowing for immediate shutdown or start-up functions.

• Automation Systems: Used in automation where a prominent push-button is required for initiating or halting automated processes.

4. Benefits

• Increased Visibility: The mushroom head design ensures that the button is easily noticeable, helping operators quickly locate it in emergency situations.

• Durability: The robust construction ensures long-term performance in harsh industrial conditions.

• Reliability: 1NO contact configuration provides dependable operation for activating systems.

• User-Friendly: The design of the push-button, combined with its large mushroom shape, makes it easy to operate even under stressful or emergency conditions.

• Versatility: Suitable for a wide range of industrial applications, particularly those requiring emergency stop functionality.

5. Conclusion

The Schneider XA2EC21 mushroom head push-button offers a reliable and visible control solution for industrial settings. Its large Ø40 mushroom head combined with Ø22 mounting size ensures ease of use and visibility, making it an excellent choice for emergency stop and control operations. The 1NO configuration is perfect for triggering critical actions, while the durable materials and black color ensure its resilience and professional appearance in demanding environments. This push-button is a key component in any system requiring quick, easy access to control functions.
