Schneider XA2EC31 | Push-button Ø22 – mushroom head Ø40 – black – 1NO

Schneider XA2EC31: Push-Button Ø22 – Mushroom Head Ø40 – Black – 1NO

1. Overview

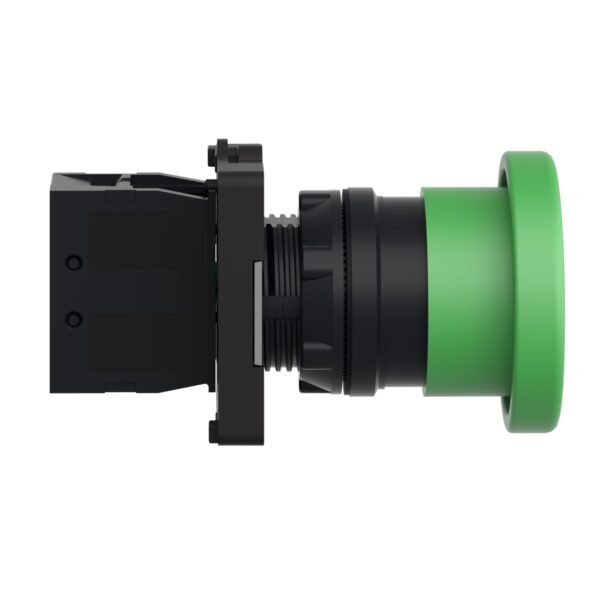

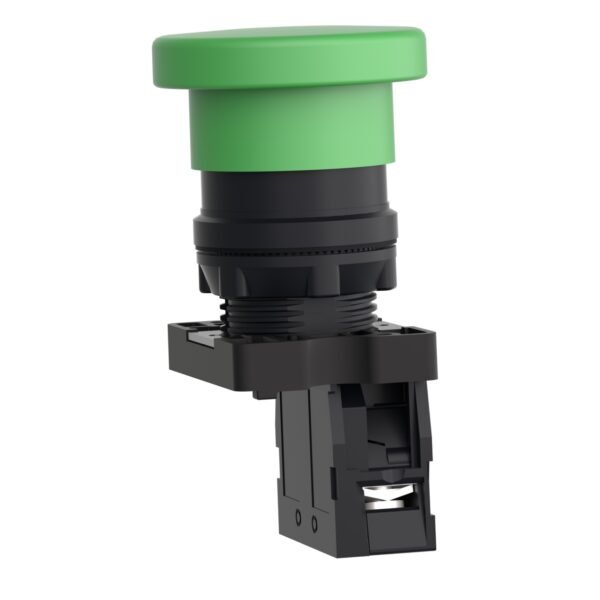

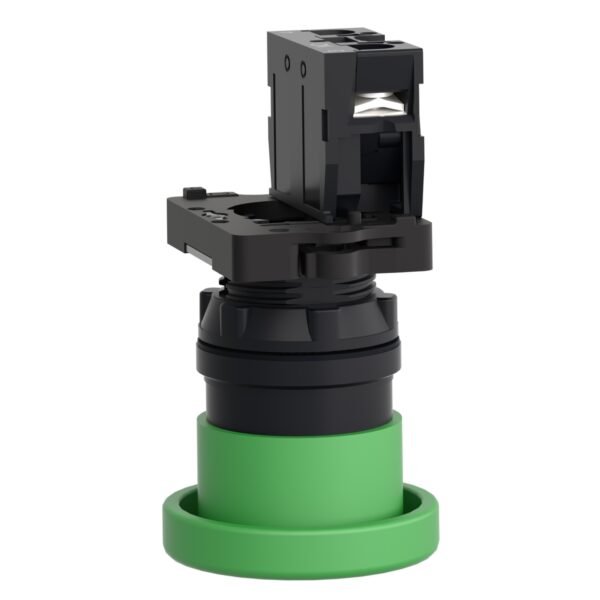

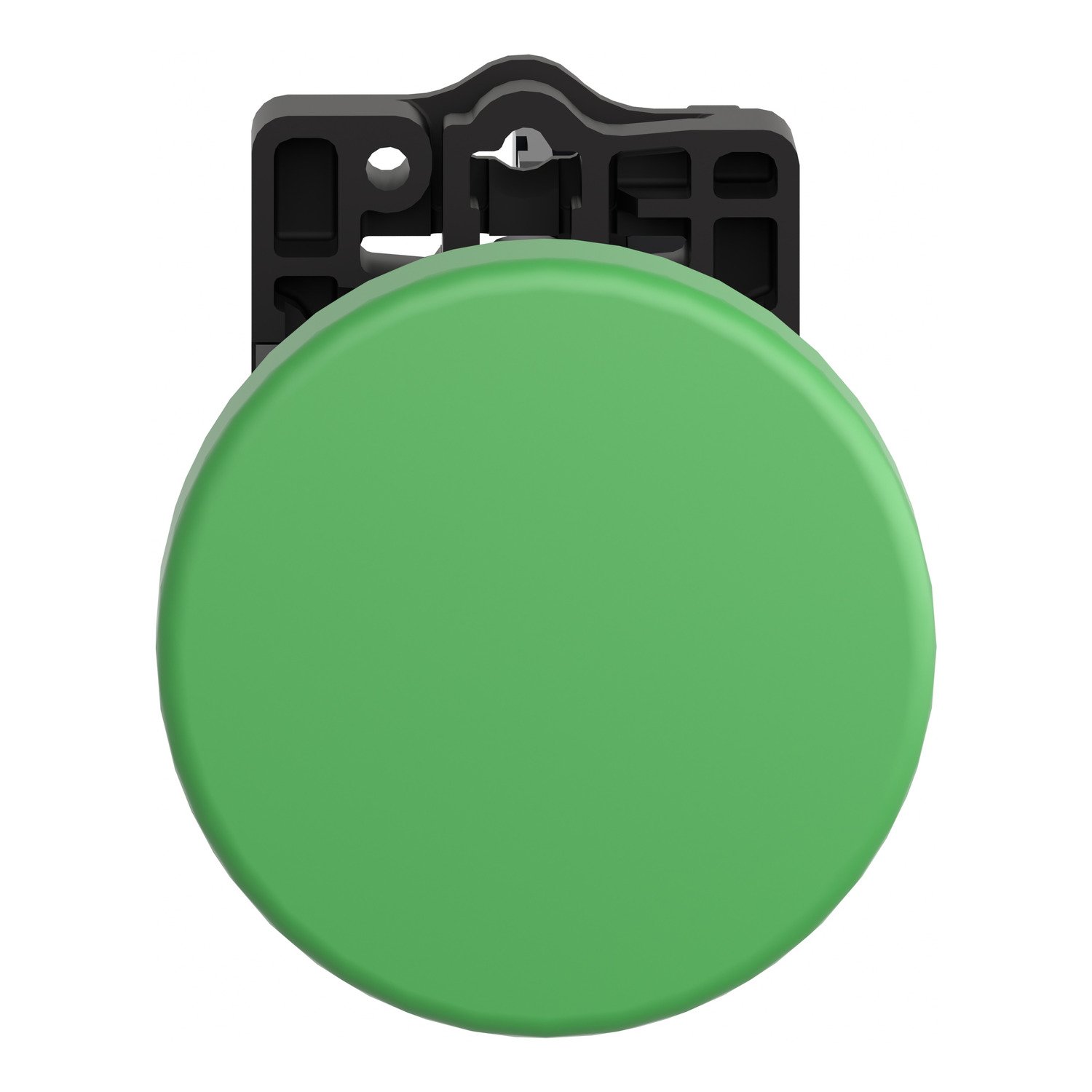

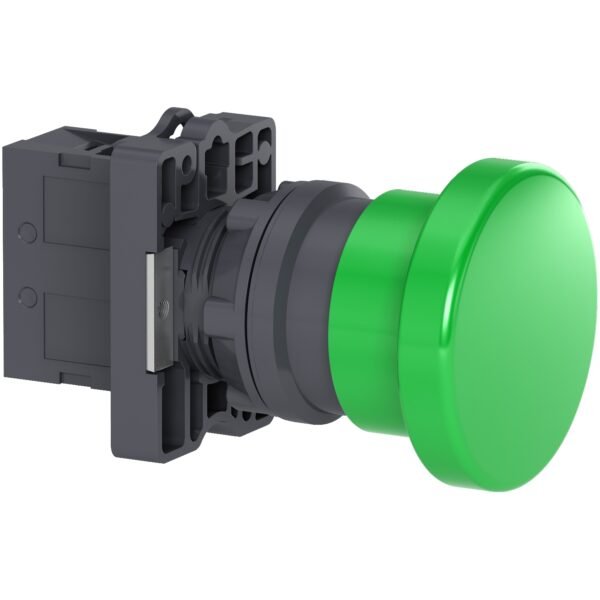

The Schneider XA2EC31 is a black mushroom head push-button designed for industrial and commercial control applications. It features a 40 mm diameter mushroom head, providing easy operation, and a 1 Normally Open (1NO) contact for control circuit integration.

2. Technical Specifications

• Model: XA2EC31

• Product Type: Push-button with mushroom head

• Button Color: Black

• Head Diameter: Ø40 mm

• Mounting Diameter: Ø22 mm

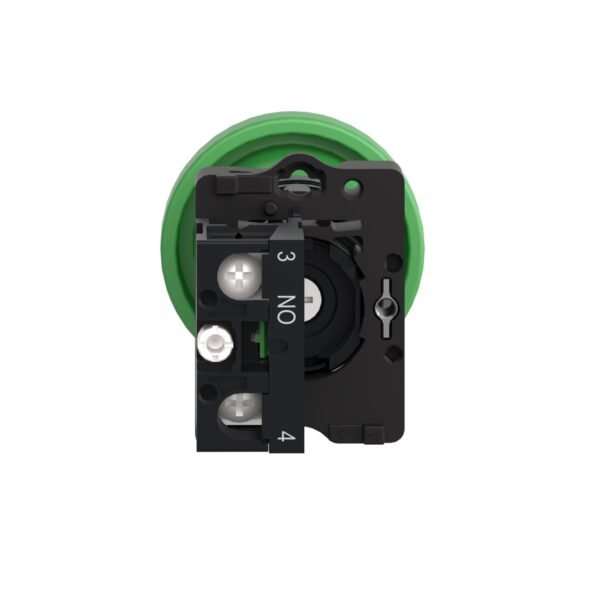

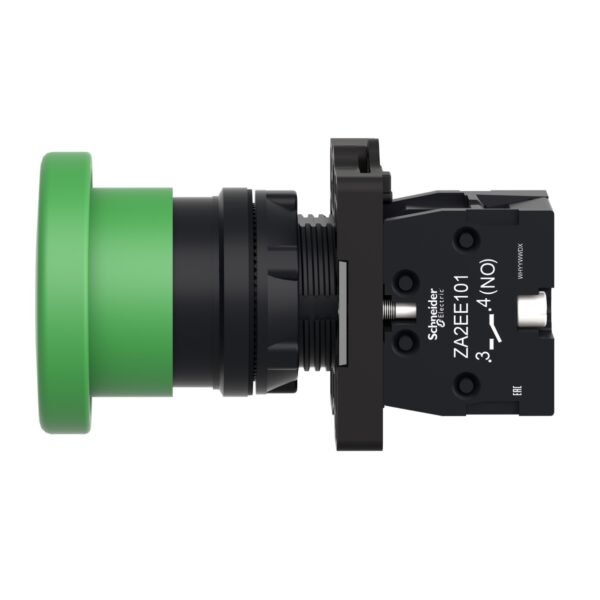

• Contact Type: 1 Normally Open (1NO)

• Operation Mode: Momentary

• Mechanical Durability: Up to 1,000,000 operations

• Electrical Durability: Up to 100,000 operations at full load

• Operating Temperature: -25°C to +55°C

• Storage Temperature: -40°C to +70°C

• Ingress Protection (IP Rating): IP65 (dust-tight and water-resistant)

• Front Material: High-strength plastic

• Base Material: Metal

• Mounting Type: Panel mounting

• Connection Type: Screw terminals

• Standards Compliance: IEC 60947-5-1

3. Applications

• Machinery control panels

• Emergency and stop/start operations

• Industrial automation systems

• Electrical enclosures and cabinets

4. Features

• Large Ø40 mm mushroom head for easy pressing

• Compact design for Ø22 mm panel mounting

• Durable construction suitable for industrial environments

• Easy integration into control circuits

• IP65 protection for dust and water resistance
