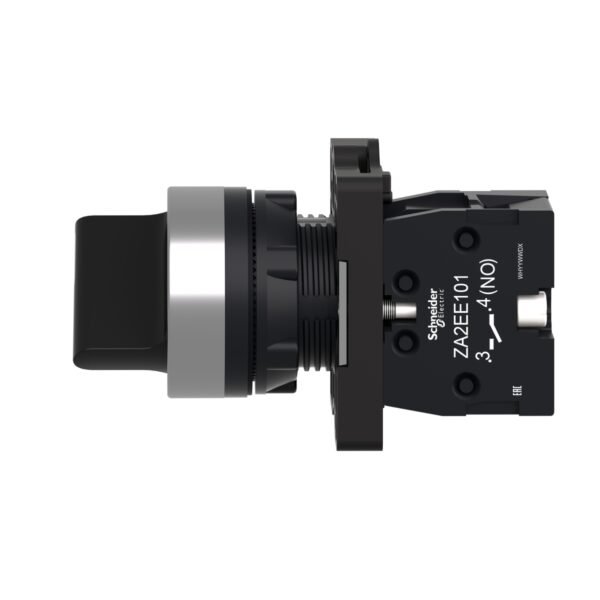

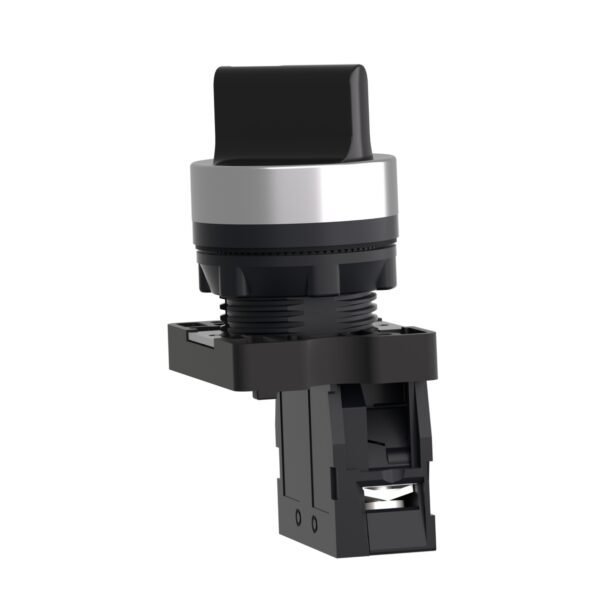

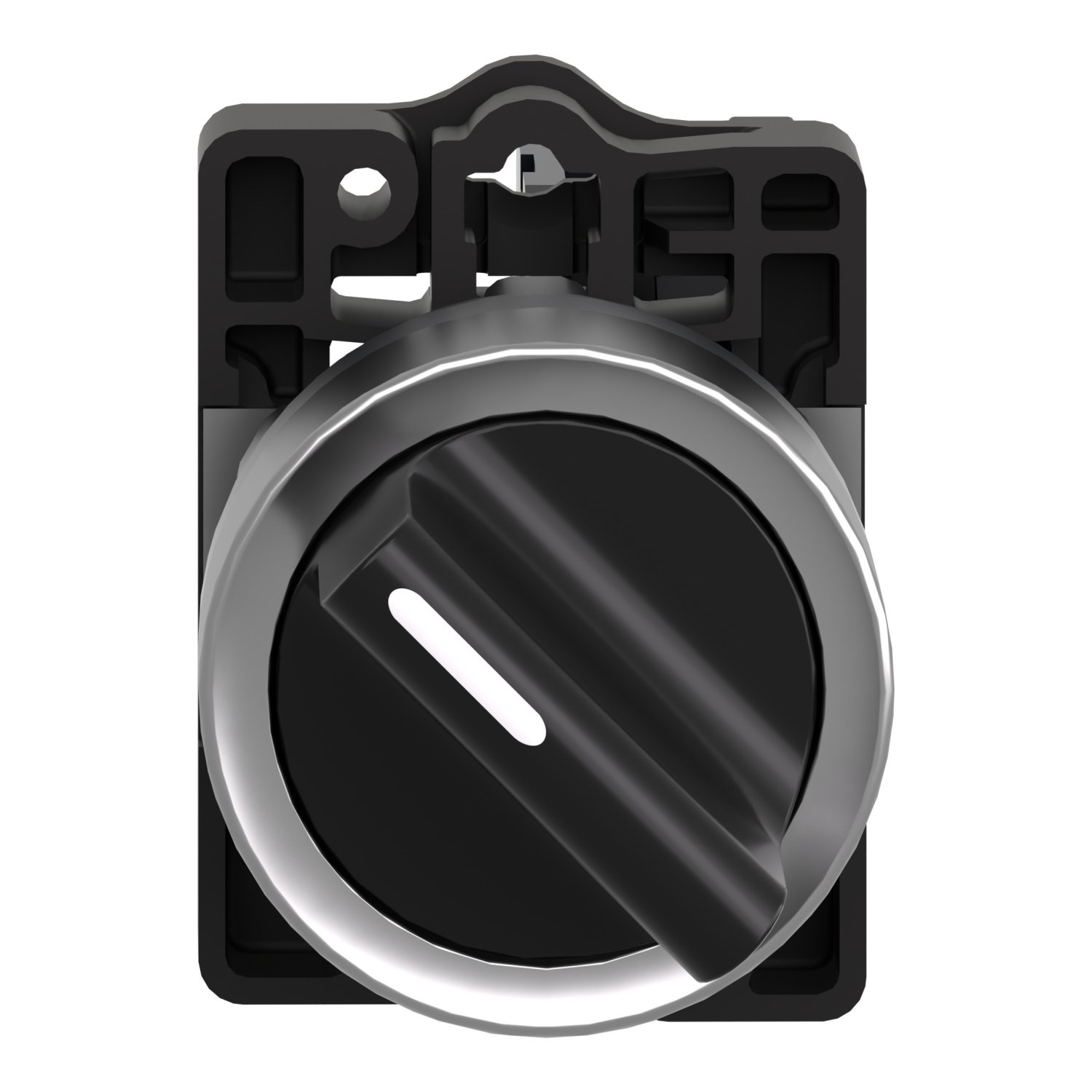

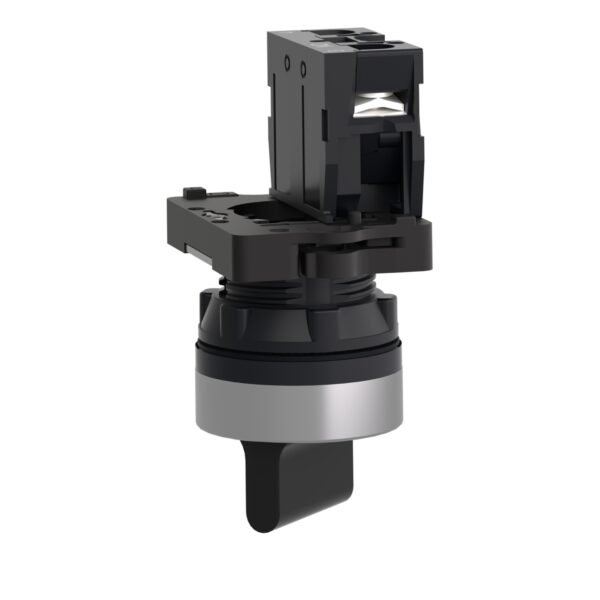

Schneider XA2ED21 Harmony | Selector switch – Ø22 – standard handle – 2 positions – 1NO
Schneider XA2ED21 Harmony
Original price was: EGP 2,086.00.EGP 121.00Current price is: EGP 121.00.
Description
Schneider XA2ED21 Harmony | Selector Switch – Ø22 – Standard Handle – 2 Positions – 1NO
1. Overview
The Schneider XA2ED21 is a selector switch from the Harmony XA2 series, designed for industrial and automation control applications. It features a Ø22mm mounting diameter, a standard handle, and two positions for easy operation. With one normally open (1NO) contact, this selector switch is ideal for machine control panels, electrical enclosures, and operator stations.
2. Key Features
- Model: XA2ED21
- Series: Harmony XA2
- Mounting Diameter: Ø22 mm
- Switch Type: Selector switch
- Handle Type: Standard handle
- Positions: 2 positions (maintained)
- Contact Type: 1 Normally Open (1NO)
- Rotation Angle: 90°
- Material: High-durability plastic with metal components
- Color: Black handle with a silver mounting ring
3. Technical Specifications
- Rated Operating Voltage: Up to 240V AC/DC
- Electrical Durability: 1,000,000 operations
- Mechanical Durability: 300,000 cycles
- Connection Type: Screw clamp terminals
- IP Rating: IP65 (dustproof and water-resistant)
- Operating Temperature: -25°C to +70°C
- Compliance: CE, RoHS, IEC, and UL standards
4. Applications
- Industrial Automation & Machine Control
- Electrical Panels & Operator Stations
- HVAC & Building Management Systems
- Process Control & Conveyor Systems
- Energy & Utility Sector Equipment
5. Benefits
- Durable & Reliable: Long-lasting operation in industrial environments
- Easy Installation: Standard Ø22mm mounting for quick setup
- Ergonomic Design: Smooth selector movement for effortless operation
- High Protection Rating: IP65 ensures resistance to dust and water
- Flexible Usage: Suitable for various control and selection functions
6. Conclusion
The Schneider XA2ED21 Harmony selector switch is a high-quality, durable, and efficient control device designed for industrial and automation applications. Its compact design, high durability, and reliable performance make it an ideal choice for machine operators and panel builders.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Easy Harmony XA2 |
|---|---|
| Product or component type | Complete selector switch |
| Device short name | XA2 |
| Bezel material | Plastic |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
|---|---|
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Shape of signaling unit head | Round |
| Type of operator | stay put |
| Operator profile | Black standard handle |
| Operator position information | 2 positions 90° |

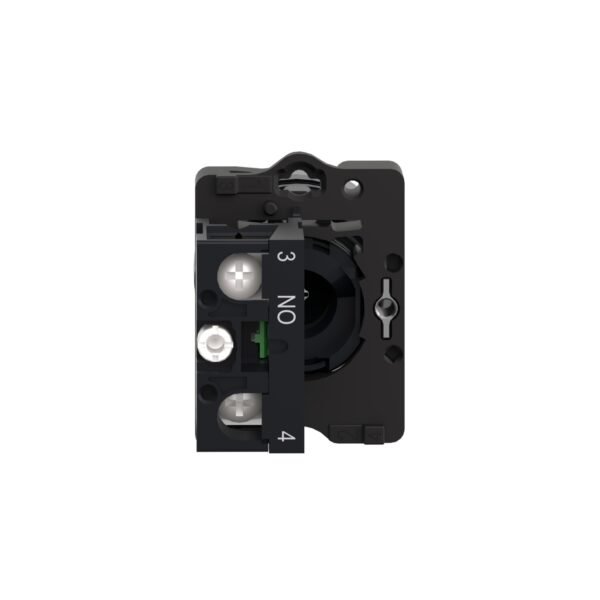

| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Mechanical durability | 300000 cycles |
| Connections - terminals | , clamping capacity: <= 2 x 1.5 mm² , clamping capacity: <= 1 x 2.5 mm² , clamping capacity: >= 1 x 0.5 mm² Faston terminals, connection size: 6.3 mm |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A fuse type gL conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A (screw-clamp terminals) |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600 |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| Electrical reliability | Λ < 10exp(-8) at 24 V |
| Width | 30 mm |
| Height | 42 mm |
| Depth | 68.2 mm |
| Net weight | 0.04 kg |
| Type of operator | Stay put |
| Operator profile | Standard handle |
| Head type | Standard |
| Cap/operator or lens colour | Black |
| Protective treatment | TC |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK06 conforming to IEC 60529 |
| Standards | GB 14048.1 IEC 60947-1 GB 14048.5 IEC 60947-5-1 |
| Product certifications | CCC CE |
| Vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 120 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.300 cm |
| Package 1 Width | 3.300 cm |
| Package 1 Length | 6.350 cm |
| Package 1 Weight | 40.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 7.800 cm |
| Package 2 Width | 18.500 cm |
| Package 2 Length | 18.400 cm |
| Package 2 Weight | 470.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.338 kg |
