Schneider XA2ED25 | Selector switch – Ø22 – standard handle – 2 positions – 1NO+1NC

Schneider XA2ED25 | Selector Switch

1. Overview

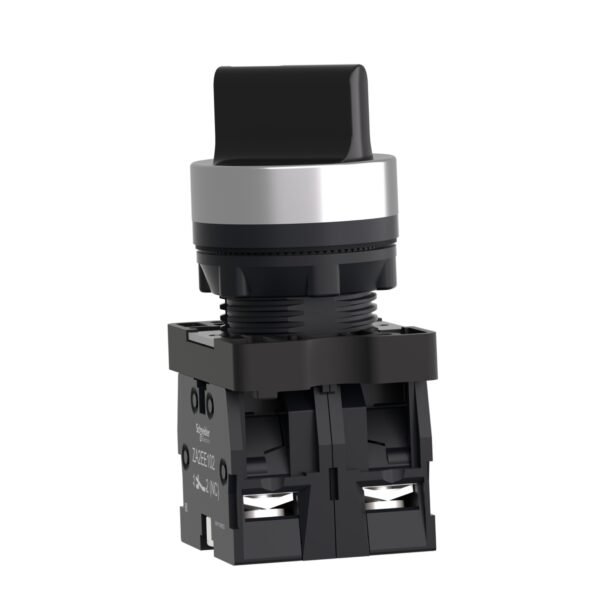

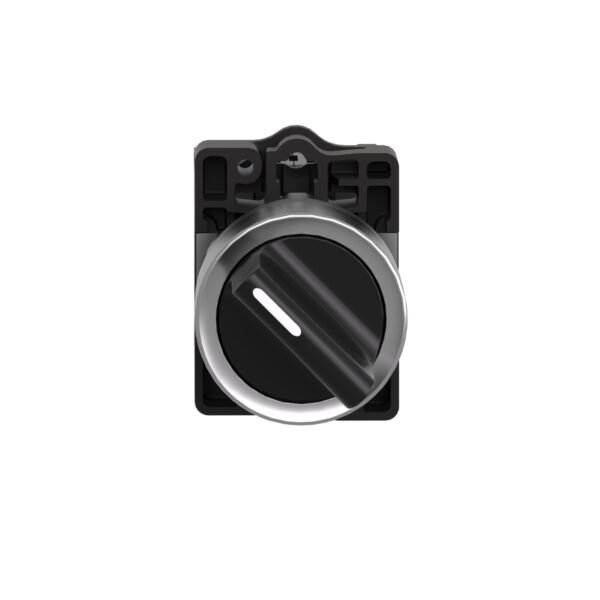

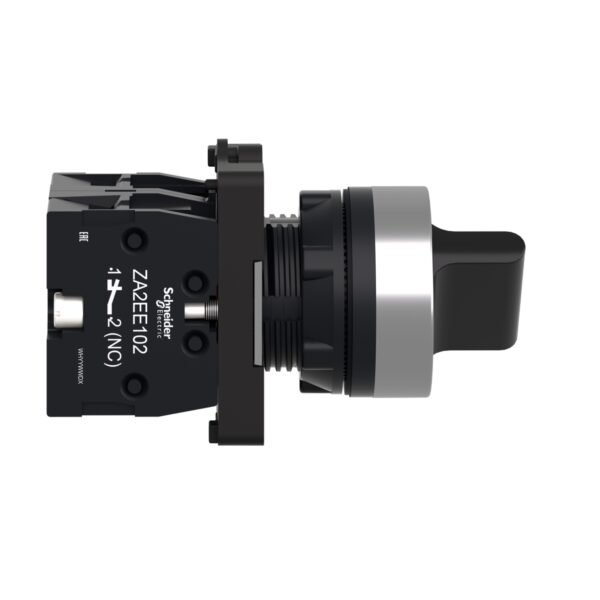

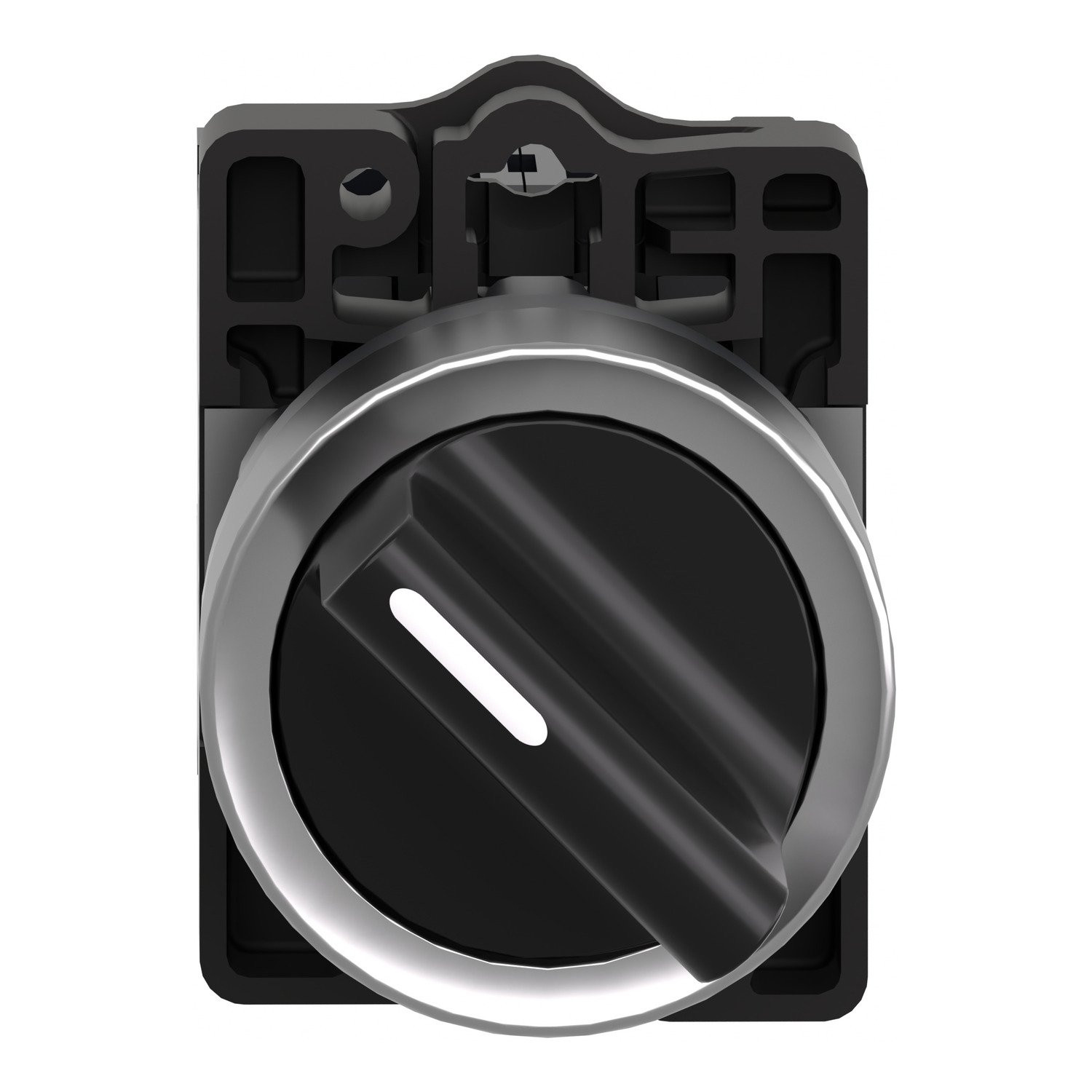

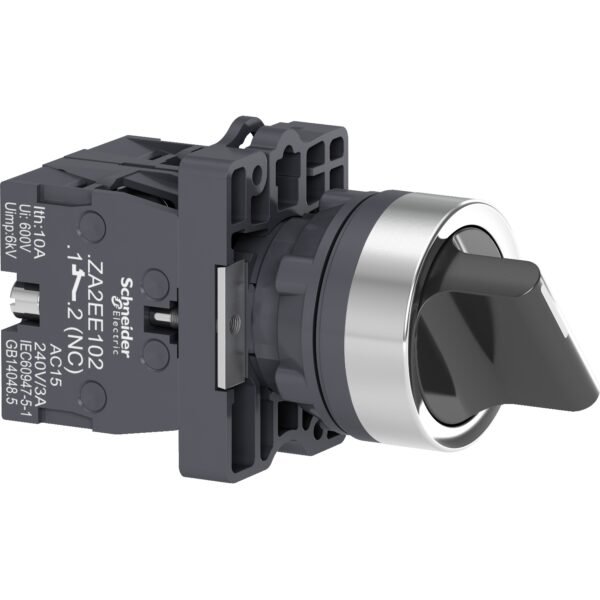

The Schneider XA2ED25 is a 22 mm selector switch from the Easy Harmony XA2 series, designed for industrial control applications. It features a standard handle and offers two positions, allowing operators to switch between different circuit functions. With 1 NO + 1 NC contacts, it provides both normally open and normally closed switching options.

2. Key Features

• Type: Selector switch, commonly used in industrial control panels.

• Diameter: Ø22 mm, fits standard panel cutouts.

• Positions: 2 positions, allowing selection between two circuit states.

• Handle Type: Standard handle for easy manual operation.

• Contacts: 1 NO + 1 NC, providing flexibility in circuit control.

• Construction: Made from durable plastic, ensuring longevity in demanding environments.

3. Applications

• Machinery Control – Used for switching between operation modes (e.g., manual/automatic).

• Electrical Panels – Common in control panels for power distribution and machine operation.

• Industrial Automation – Integrated into PLC systems to provide manual control options.

• HVAC Systems – Used in heating, ventilation, and air conditioning control circuits.

4. Benefits

✔ Reliable switching with 1 NO + 1 NC configuration.
✔ Durable plastic construction ensures long life in industrial settings.
✔ Easy installation with standard Ø22 mm mounting size.
✔ Smooth operation with a standard handle for comfortable use.
✔ Versatile usage in machines, automation, and power control systems.

5. Conclusion

The Schneider XA2ED25 is a robust and reliable selector switch, ideal for industrial applications requiring manual control of circuits. With 2 positions, 1 NO + 1 NC contacts, and a standard handle, it provides ease of use, durability, and flexibility for a variety of control system applications.
