Schneider XA2ED41 | Selector switch – Ø22 – standard handle – 2 positions – 1NO

Schneider XA2ED41: Selector Switch – Ø22 mm – Standard Handle – 2 Positions – 1NO

1. Overview

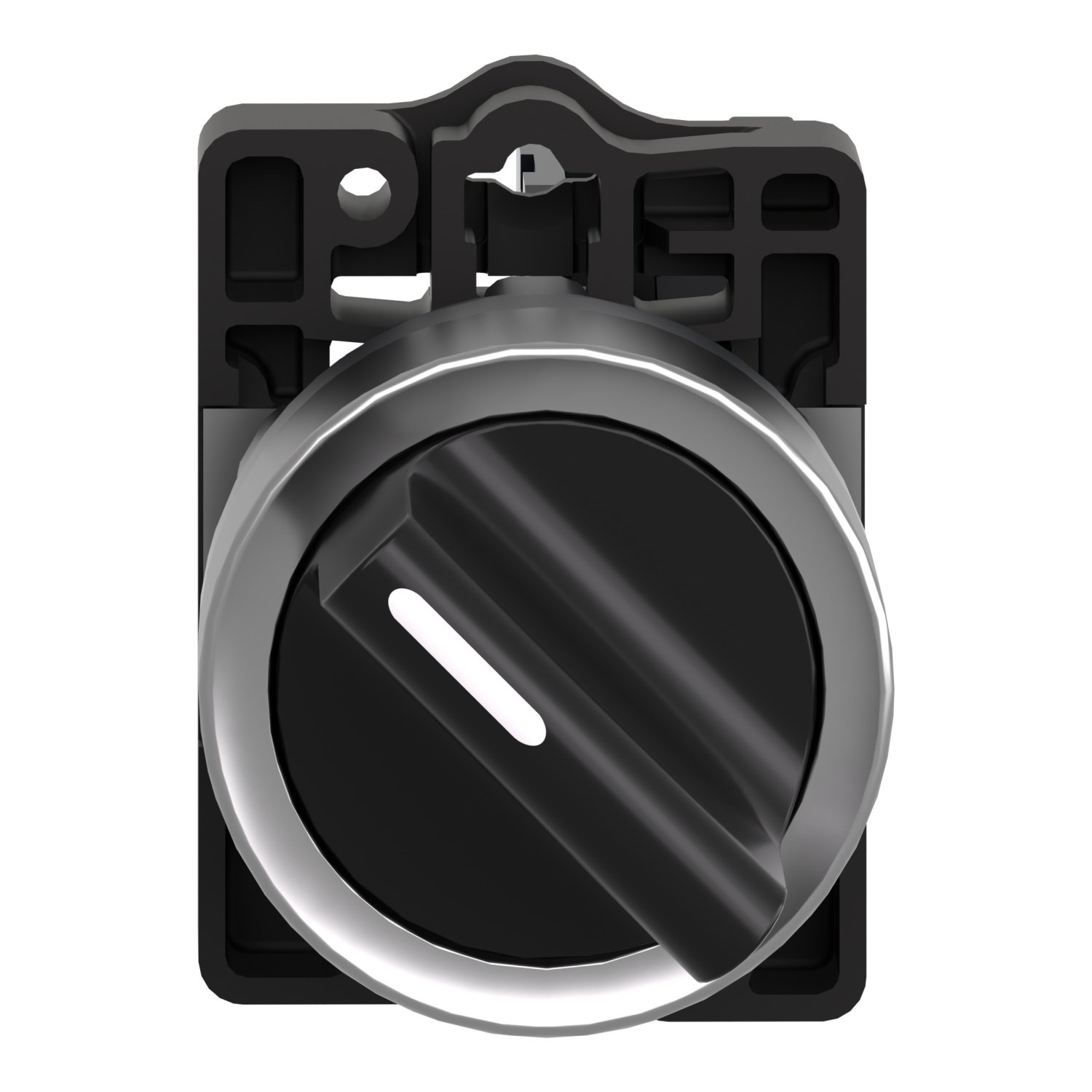

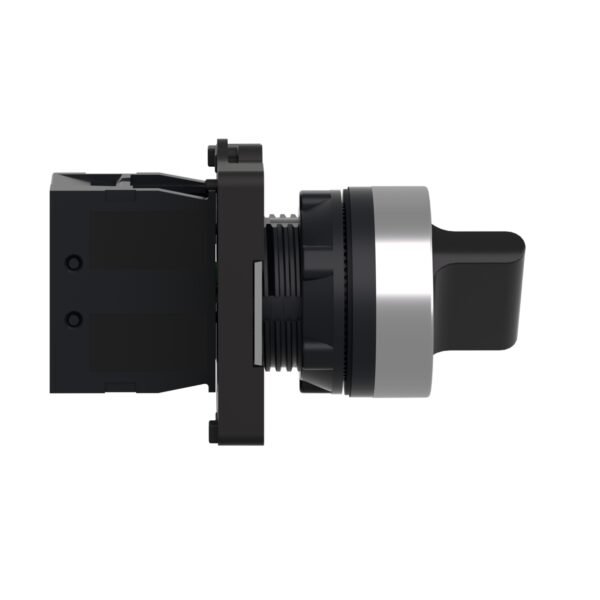

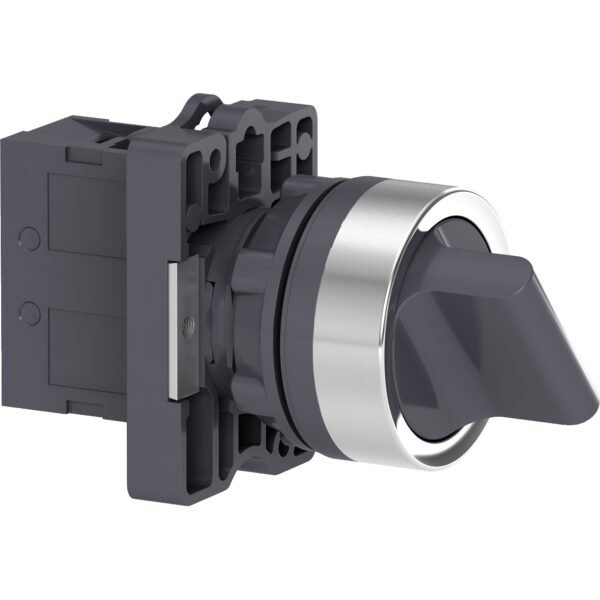

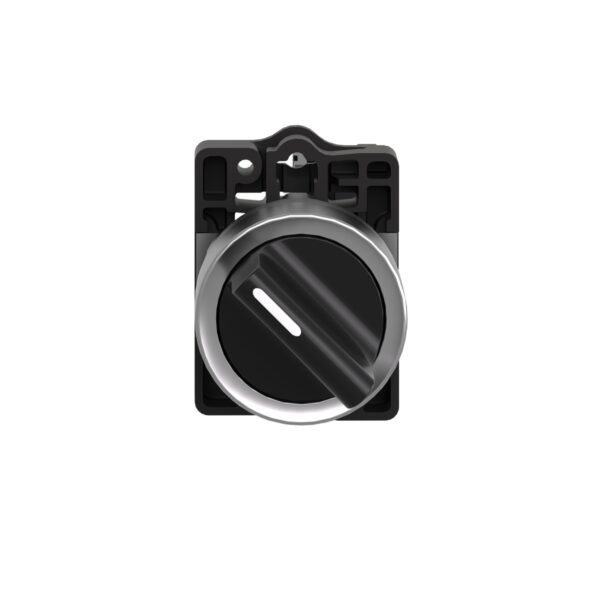

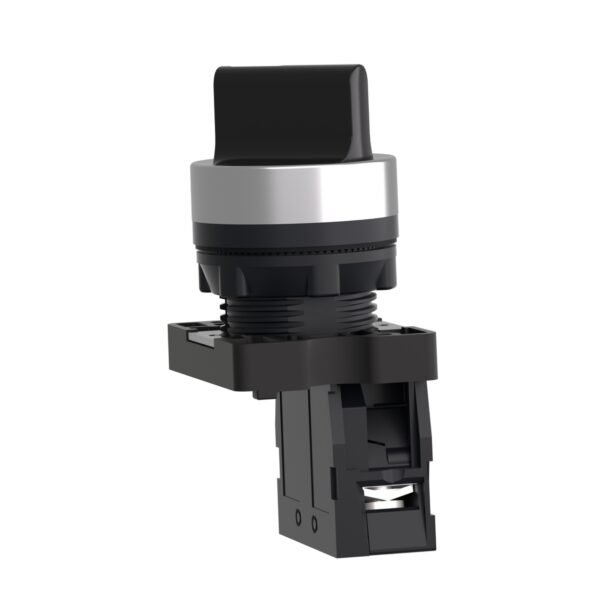

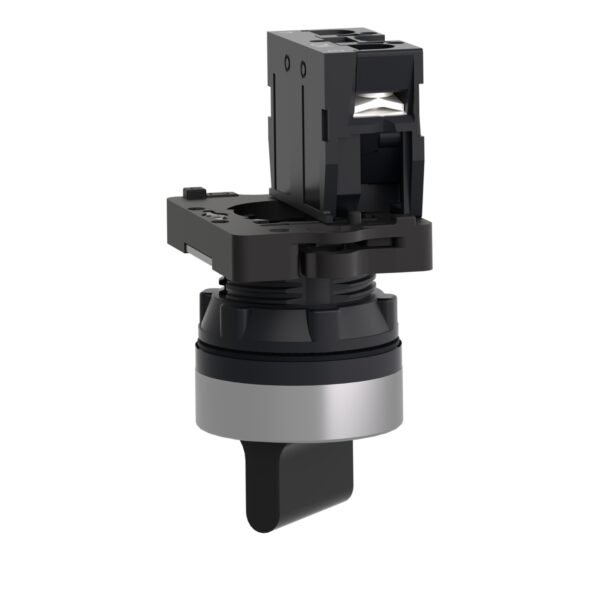

The Schneider XA2ED41 is a selector switch with a 22 mm mounting diameter, featuring a standard handle and offering 2 positions for versatile control in various industrial applications. It is equipped with a 1NO (Normally Open) contact, allowing for precise and reliable control within electrical circuits.

2. Technical Specifications

• Model: XA2ED41

• Product Type: Selector switch

• Mounting Diameter: Ø22 mm

• Handle Type: Standard handle

• Positions: 2 positions

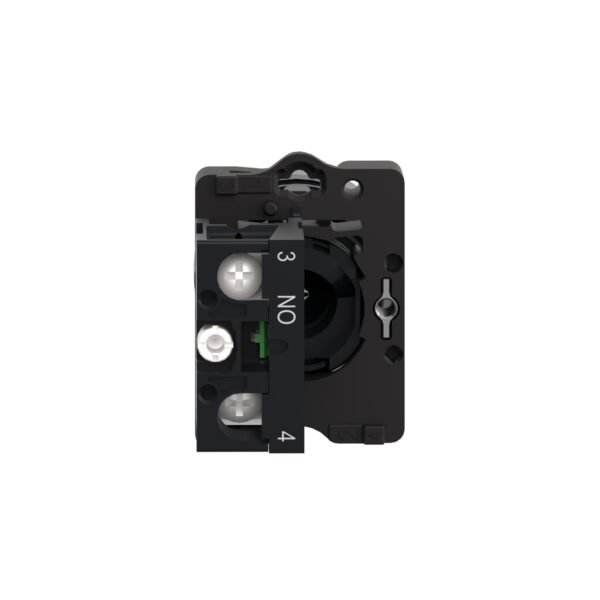

• Contact Configuration: 1NO (Normally Open)

• Operating Voltage: Suitable for AC and DC circuits (specific voltage rating may vary depending on the configuration).

• Mechanical Durability: Up to 1,000,000 operations

• Electrical Durability: Up to 100,000 operations at full load

• Operating Temperature: -25°C to +55°C

• Storage Temperature: -40°C to +70°C

• Ingress Protection (IP Rating): IP65 (dust-tight and water-resistant)

• Front Material: High-strength plastic

• Base Material: Metal

• Mounting Type: Panel mounting

• Connection Type: Screw terminals

• Standards Compliance: IEC 60947-5-1

3. Applications

The Schneider XA2ED41 selector switch is commonly used in the following applications:

• Control Panels: Allows users to select between different operational states in electrical systems.

• Industrial Machinery: Provides manual control over machine functions with clear position feedback.

• Automation Systems: Ideal for use in systems where position-based control is required.

• Power Distribution Boards: Facilitates the switching between different power sources or system states.

• Safety Systems: Ensures controlled operation of critical equipment with secure position selection.

• Elevators & Lifts: Used for position-based control in lift systems.

4. Features

• Two position selector switch for simple, reliable control.

• 1NO contact configuration for efficient control of the circuit.

• Standard handle for easy operation.

• Durable construction with IP65 rating for protection against dust and water.

• Easy integration with Schneider Electric control components.

• Compact design for Ø22 mm panel mounting.
