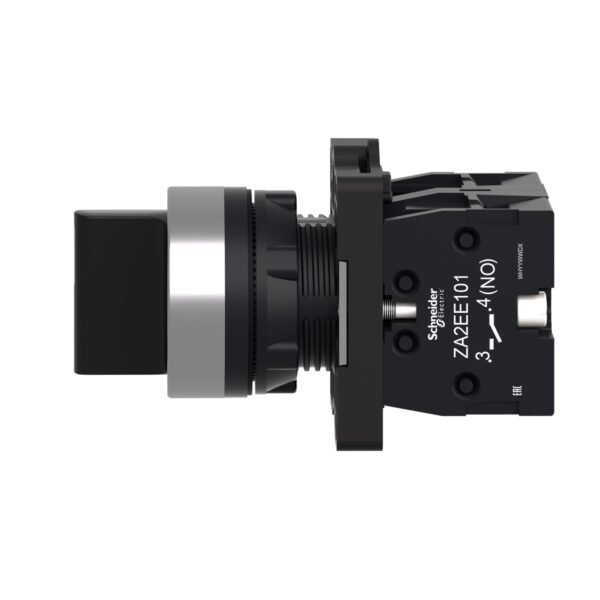

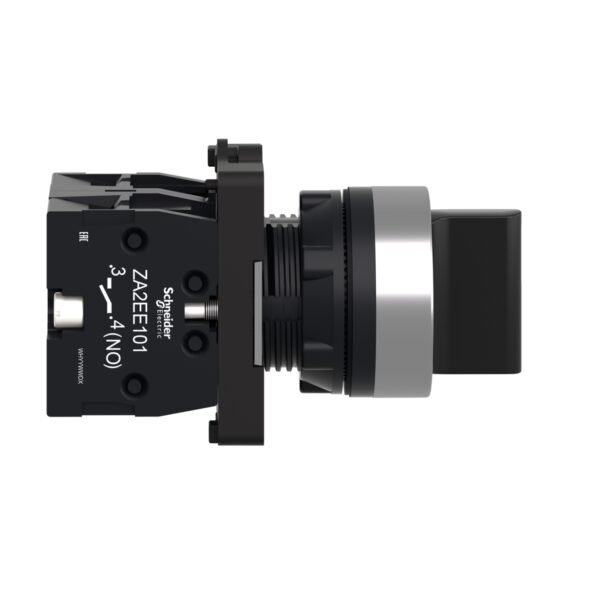

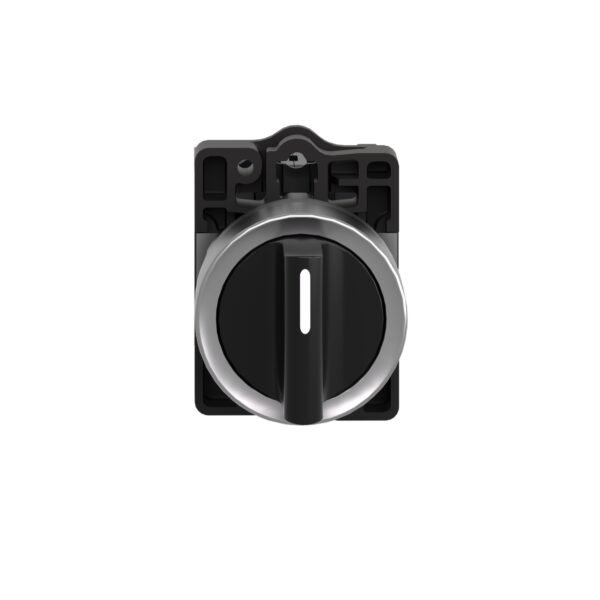

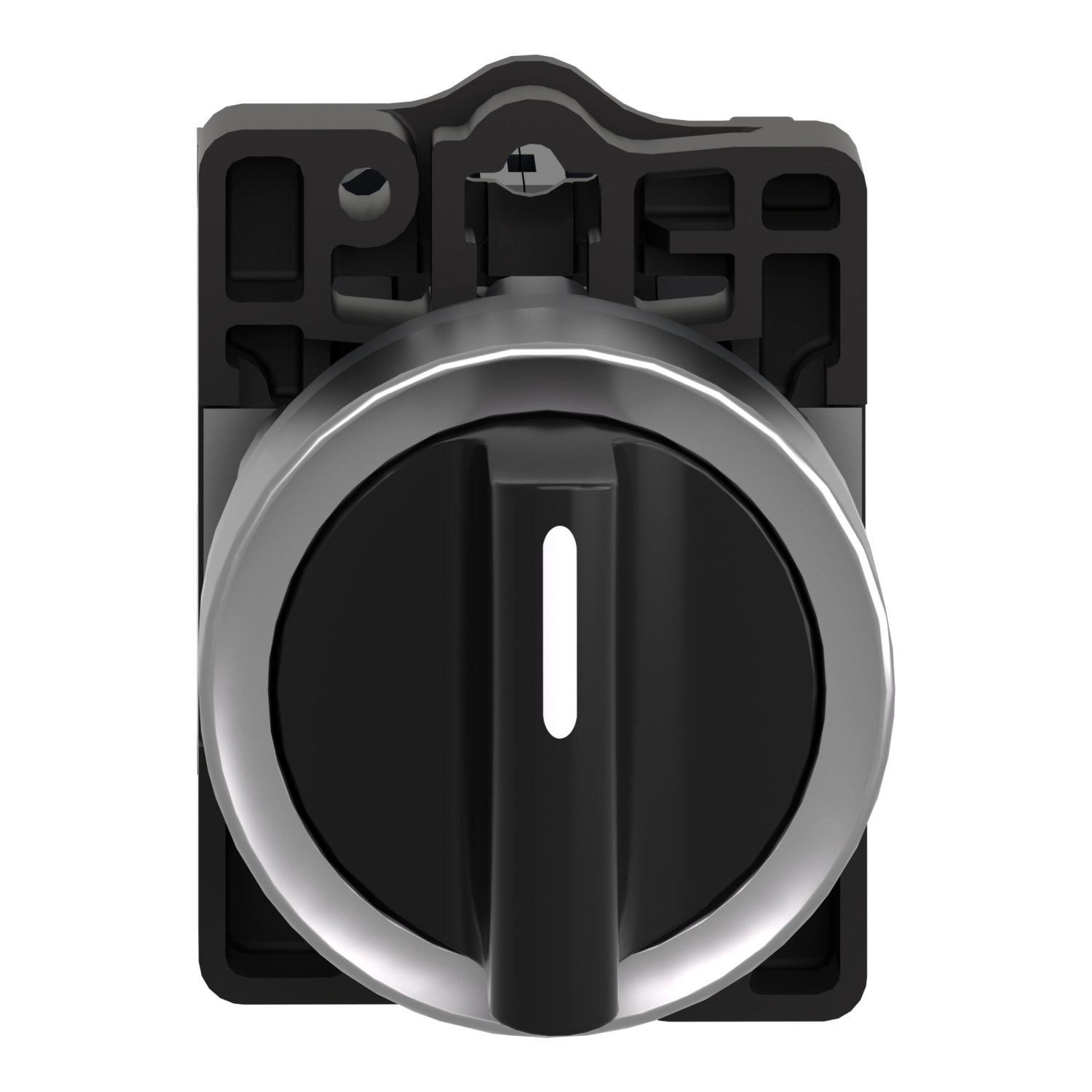

Schneider XA2ED53 Harmony | Selector switch – Ø22 – standard handle – 3 positions – 2NO
Schneider XA2ED53 Harmony
Original price was: EGP 3,121.00.EGP 181.00Current price is: EGP 181.00.
Description
Schneider XA2ED53 Harmony | Selector Switch – Ø22mm – Standard Handle – 3 Positions – 2NO
1. Overview
The Schneider XA2ED53 is a three-position selector switch from the Harmony XA2 series, designed for industrial control and automation applications. It features a standard handle, a 22mm mounting diameter, and a 2NO (Normally Open) contact configuration for reliable switching operations.
2. Key Features
- Model: XA2ED53
- Series: Harmony XA2
- Switch Type: Selector switch
- Positions: 3 (Left – Center – Right)
- Handle Type: Standard handle
- Contact Configuration: 2NO (2 Normally Open contacts)
- Mounting Diameter: 22mm
- Material: High-durability plastic and metal construction
3. Technical Specifications
- Voltage Rating: Suitable for industrial control circuits
- Electrical Lifespan: Designed for extended operational cycles
- Mechanical Durability: High mechanical endurance for frequent switching
- Protection Rating: IP65 (Dust and water-resistant)
- Operating Temperature Range: -25°C to +70°C
- Certifications & Compliance: CE, RoHS, IEC safety standards
4. Applications
- Industrial machinery control panels
- Process automation and manufacturing systems
- Mode selection in electrical control stations
- Operator consoles for machine operation control
- Switching between multiple operational states
5. Benefits
- Versatile Control: Three-position design allows flexible machine operation modes
- Reliable Performance: Industrial-grade durability ensures long-term functionality
- User-Friendly Operation: Standard handle provides easy switching between positions
- Easy Installation: Standard 22mm mounting fits most industrial control panels
- High Protection Rating: IP65 ensures resistance to dust and moisture in harsh environments
6. Conclusion
The Schneider XA2ED53 Harmony selector switch is an essential control device for industrial automation, providing a three-position switching mechanism with 2NO contacts. It is ideal for machine control, mode selection, and operator control stations, offering durability, reliability, and ease of use.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Easy Harmony XA2 |
|---|---|
| Product or component type | Complete selector switch |
| Device short name | XA2 |
| Bezel material | Plastic |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
|---|---|
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Black standard handle |
| Operator position information | 3 positions 45° |

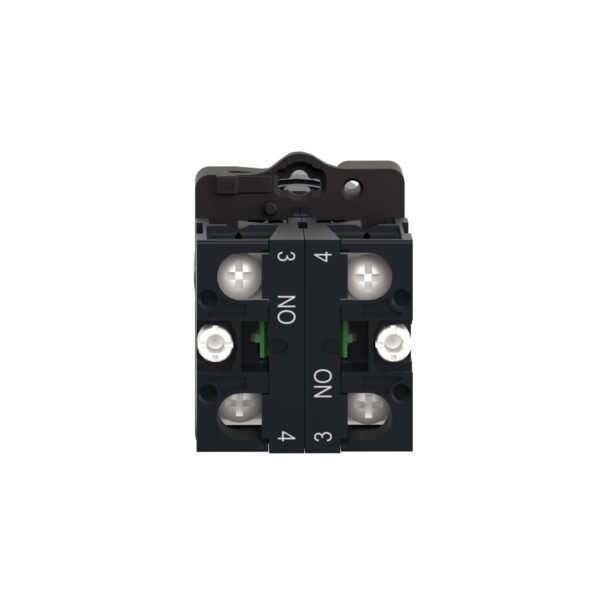

| Contacts type and composition | 2 NO |
| Contact operation | Slow-break |
| Mechanical durability | 300000 cycles |
| Connections - terminals | , clamping capacity: <= 2 x 1.5 mm² , clamping capacity: <= 1 x 2.5 mm² , clamping capacity: >= 1 x 0.5 mm² Faston terminals, connection size: 6.3 mm |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A fuse type gL conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A (screw-clamp terminals) |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600 |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| Electrical reliability | Λ < 10exp(-8) at 24 V |
| Width | 30 mm |
| Height | 42 mm |
| Depth | 68.2 mm |
| Net weight | 0.054 kg |
| Type of operator | Spring return |
| Operator profile | Standard handle |
| Head type | Standard |
| Cap/operator or lens colour | Black |
| Protective treatment | TC |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK06 conforming to IEC 60529 |
| Standards | GB 14048.1 IEC 60947-1 GB 14048.5 IEC 60947-5-1 |
| Product certifications | CE CCC |
| Vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 120 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.000 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 53.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 5.000 cm |
| Package 2 Width | 5.000 cm |
| Package 2 Length | 15.000 cm |
| Package 2 Weight | 265.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.636 kg |
