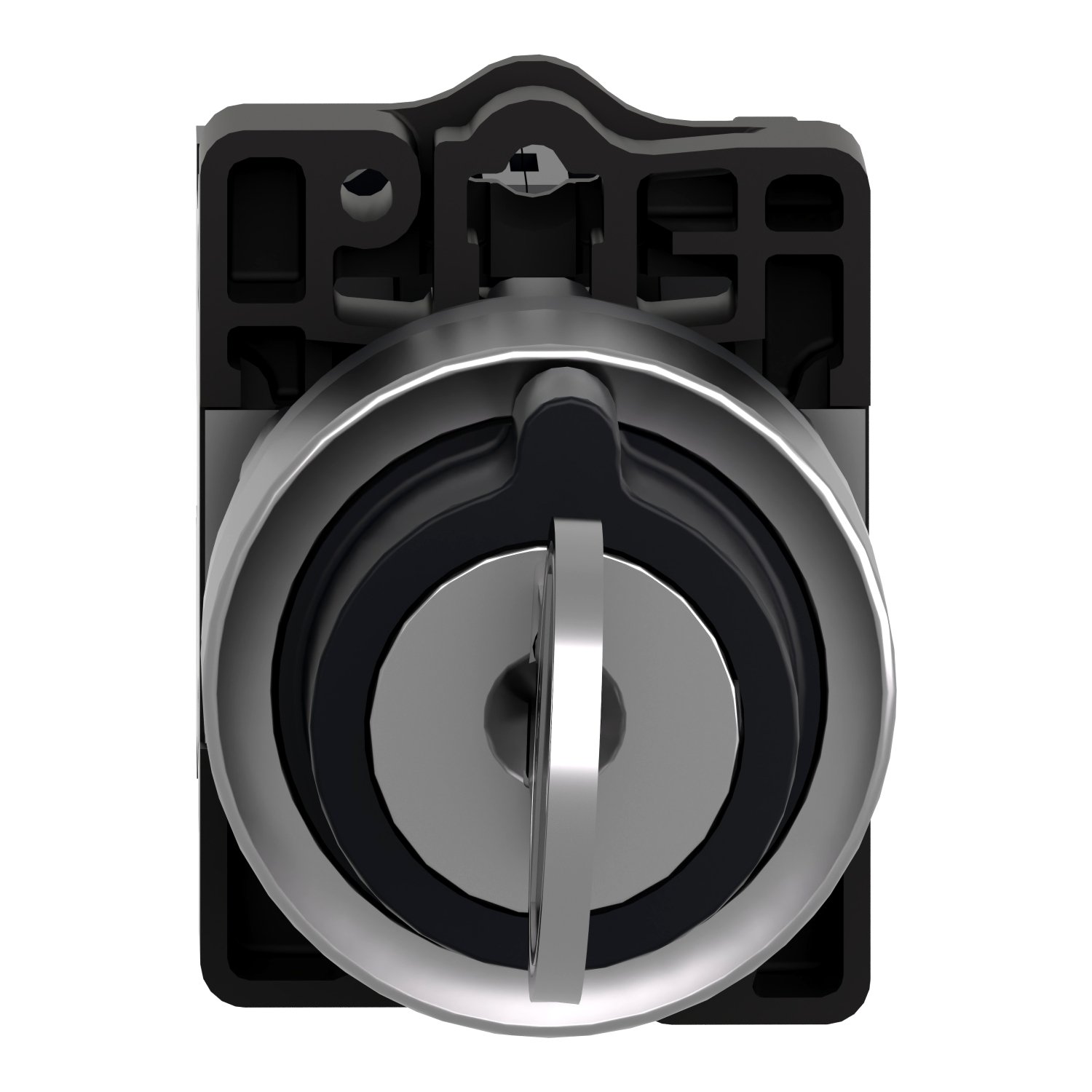

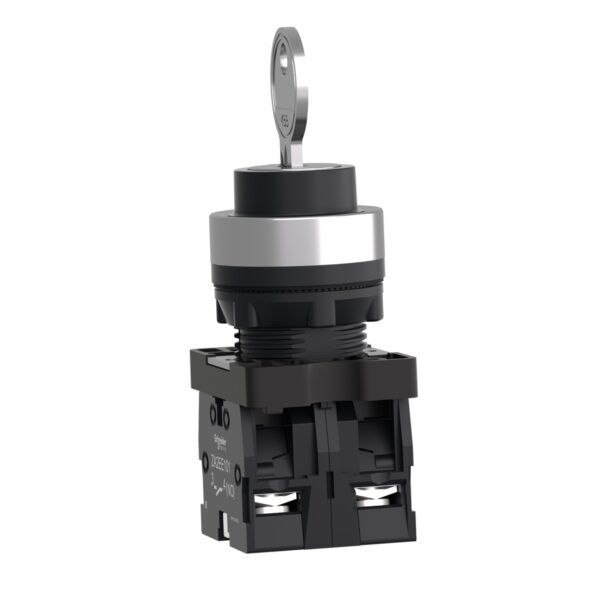

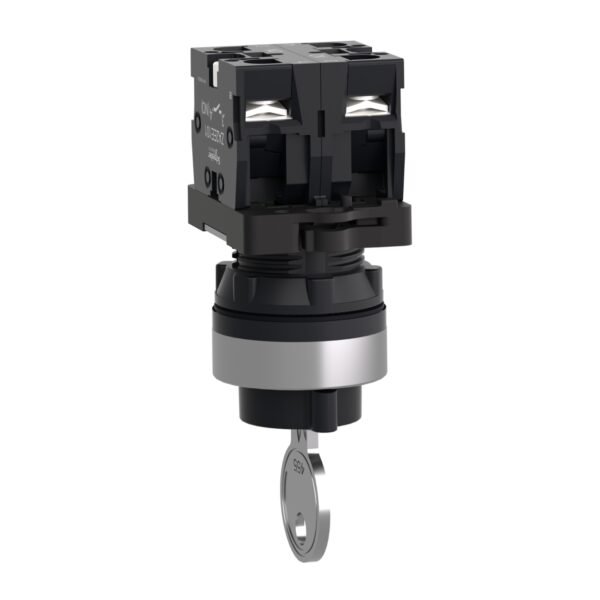

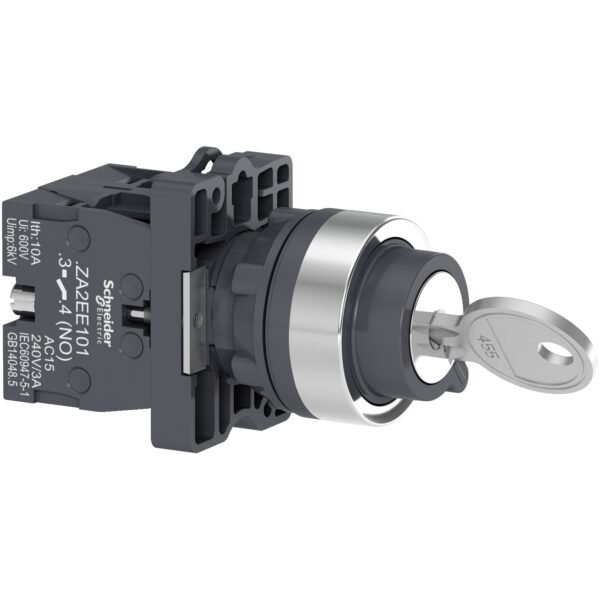

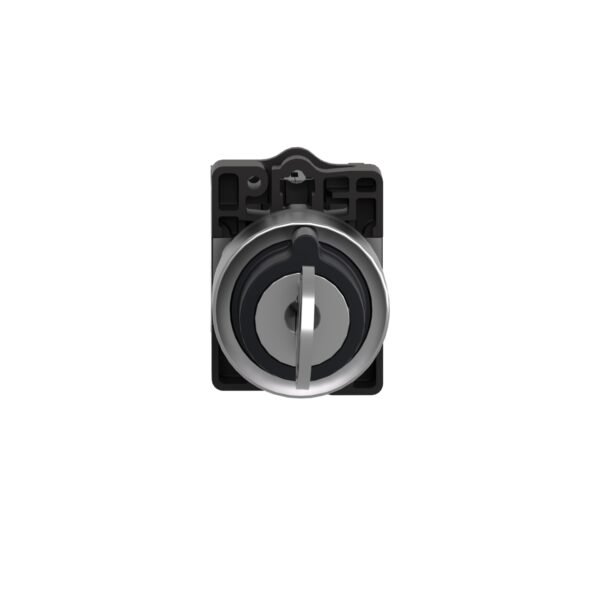

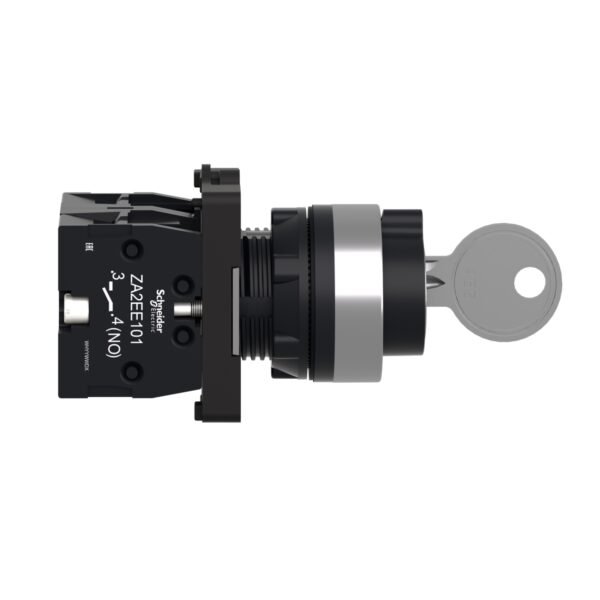

Schneider XA2EG33 | Key selector switch – Ø22 – 3 positions – stay put – 2NO
Original price was: EGP 6,084.00.EGP 3,529.00Current price is: EGP 3,529.00.
Description
Schneider XA2EG33 | Key selector switch – Ø22 – 3 positions – stay put – 2NO
Schneider XA2EG33: Key Selector Switch – Ø22 – 3 Positions – Stay Put – 2NO
1. Overview
The Schneider XA2EG33 is a key-operated selector switch designed for industrial and commercial control applications. It features a 22 mm mounting diameter, a 3-position stay-put mechanism, and two Normally Open (2NO) contacts. The key operation ensures restricted access to authorized personnel, enhancing security and control in electrical systems.
2. Technical Specifications
-
Model: XA2EG33
-
Product Type: Key selector switch
-
Mounting Diameter: Ø22 mm
-
Positions: 3 (Left – Center – Right)
-
Operation Type: Stay-put (Maintained in position)
-
Key Type: Removable key (depends on position setting)
-
Contact Type: 2 Normally Open (2NO)
-
Mechanical Durability: Up to 1,000,000 operations
-
Electrical Durability: Up to 100,000 operations at full load
-
Operating Temperature: -25°C to +55°C
-
Storage Temperature: -40°C to +70°C
-
Ingress Protection (IP Rating): IP65 (dust-tight and water-resistant)
-
Front Material: High-strength plastic
-
Base Material: Metal
-
Mounting Type: Panel mounting
-
Connection Type: Screw terminals
-
Standards Compliance: IEC 60947-5-1
3. Applications
The Schneider XA2EG33 key selector switch is ideal for various industrial and security applications, including:
-
Machine Control Panels: Allows authorized personnel to switch between different machine modes.
-
Security & Access Control: Restricts access to critical control functions.
-
Factory Automation: Used for mode selection in automated systems.
-
Power Distribution Panels: Controls and isolates different power circuits.
-
Conveyor Systems: Enables switching between manual, automatic, or maintenance modes.
-
Lift & Hoist Controls: Ensures secure operation of industrial lifting systems.
4. Features
-
3-position stay-put operation for stable control.
-
Key operation ensures access restriction.
-
Compact design for Ø22 mm panel mounting.
-
Durable construction for industrial environments.
-
IP65 protection against dust and water.
-
Easy integration with Schneider Electric control components.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Easy Harmony XA2 |
|---|---|
| Product or component type | Complete selector switch |
| Device short name | XA2 |
| Bezel material | Plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
|---|---|
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Type of operator | stay put |
| Operator profile | key switch |
| Operator position information | 3 positions 45° |
| Key number | 455 |
| Key withdrawal position | Center |

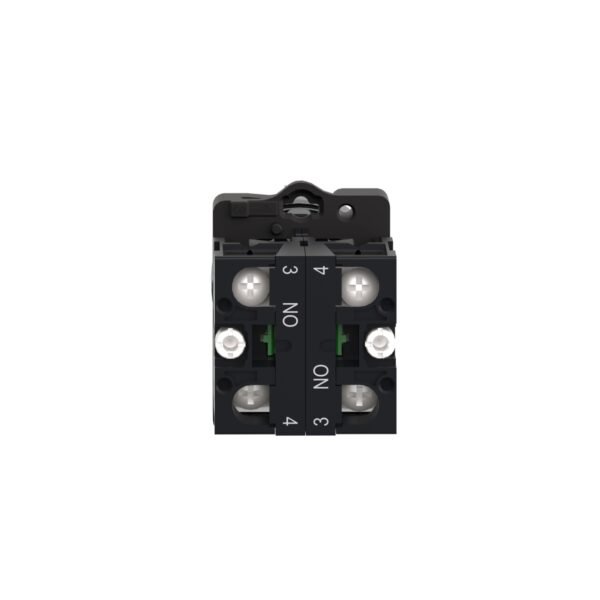

| Contacts type and composition | 2 NO |
| Contact operation | Slow-break |
| Mechanical durability | 100000 cycles |
| Connections - terminals | , clamping capacity: <= 2 x 1.5 mm² , clamping capacity: <= 1 x 2.5 mm² , clamping capacity: >= 1 x 0.5 mm² Faston terminals, connection size: 6.3 mm |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A fuse type gL conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600 |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| Electrical reliability | Λ < 10exp(-8) at 24 V |
| Width | 30 mm |
| Height | 42 mm |
| Depth | 85.7 mm |
| Net weight | 0.078 kg |
| Type of operator | Stay put |
| Operator profile | Key switch |
| Head type | Standard |
| Protective treatment | TC |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -20…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP54 conforming to IEC 60529 |
| IK degree of protection | IK03 conforming to IEC 60529 |
| Standards | IEC 60947-1 GB 14048.5 IEC 60947-5-1 GB 14048.1 |
| Product certifications | CE CCC |
| Vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.0 cm |
| Package 1 Width | 11.0 cm |
| Package 1 Length | 16.0 cm |
| Package 1 Weight | 93.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 9.4 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1600 |
| Package 3 Height | 75.0 cm |
| Package 3 Width | 60.0 cm |
| Package 3 Length | 80.0 cm |
| Package 3 Weight | 155.4 kg |
