Schneider XA2EG63 | Key selector switch – Ø22 – 2 positions – spring return – 2NO

Schneider XA2EG63 | Key Selector Switch

1. Overview

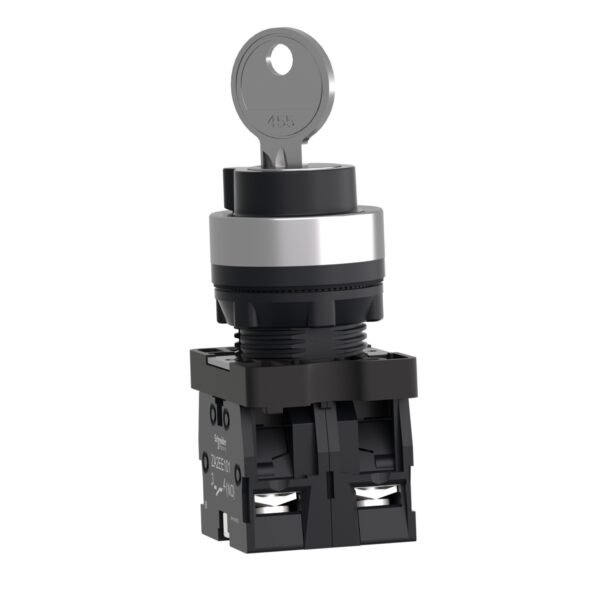

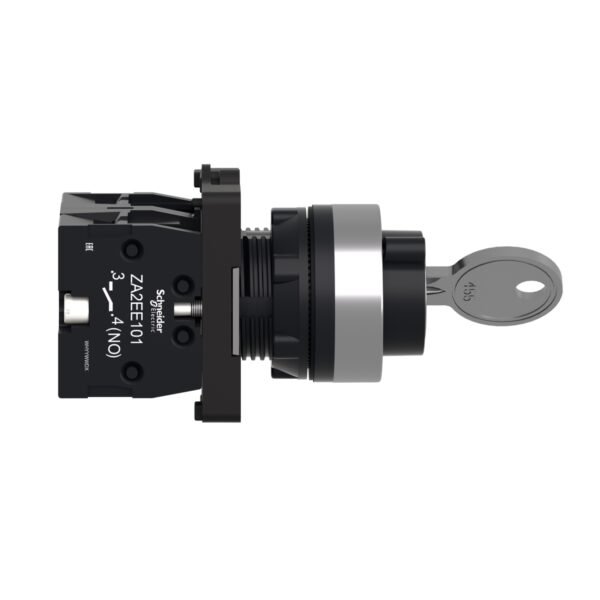

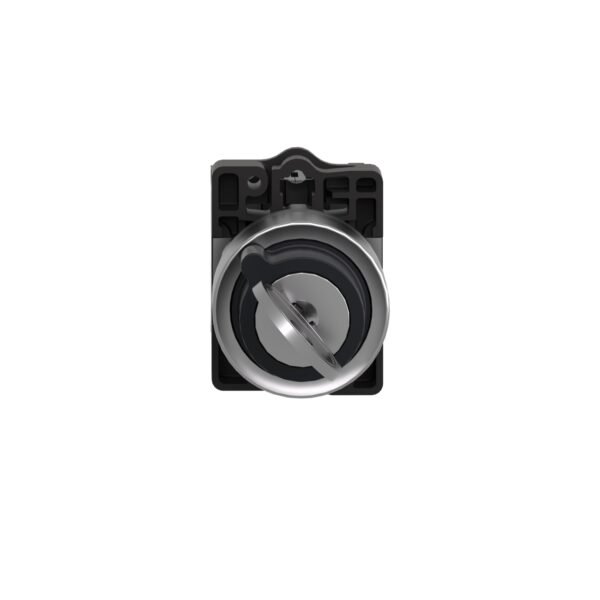

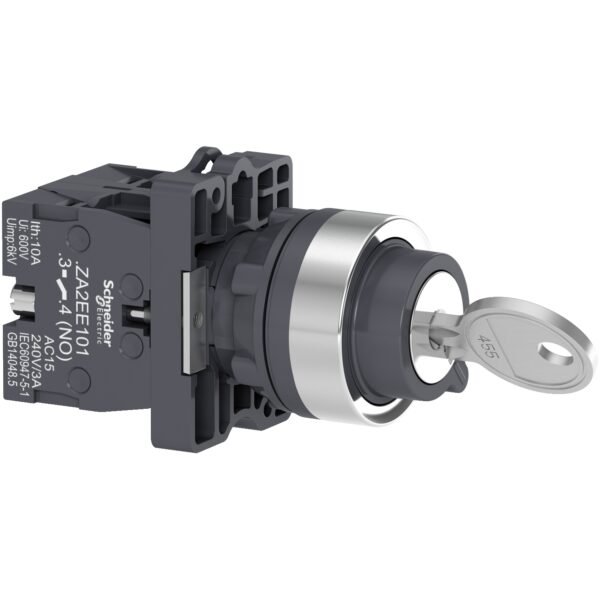

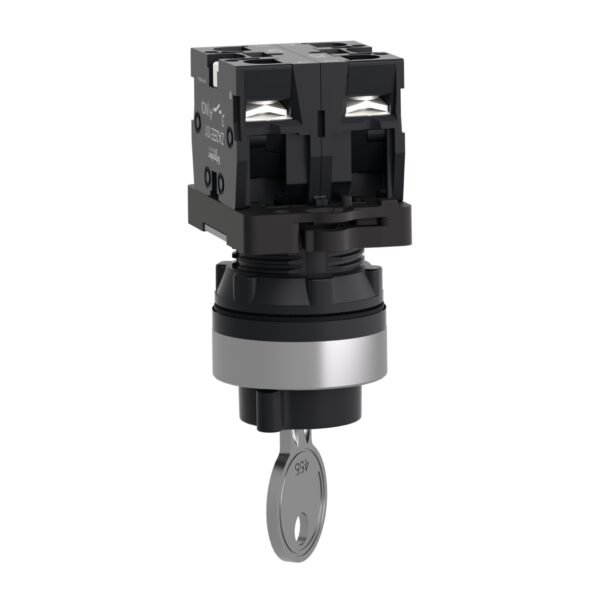

The Schneider XA2EG63 is a key selector switch from the Easy Harmony XA2 series, designed for use in various industrial and automation applications. This selector switch has a 22mm diameter, operates with 2 positions, and features a spring return mechanism. It includes a 2NO (two normally open) contact configuration, making it suitable for controlling circuits where two separate contacts are required.

2. Key Features

• Type: Key selector switch for secure and reliable circuit control.

• Diameter: 22mm, compatible with standard control panel cutouts.

• Positions: 2 positions, providing toggle functionality between two settings.

• Action Type: Spring return, automatically returning to its initial position after being rotated.

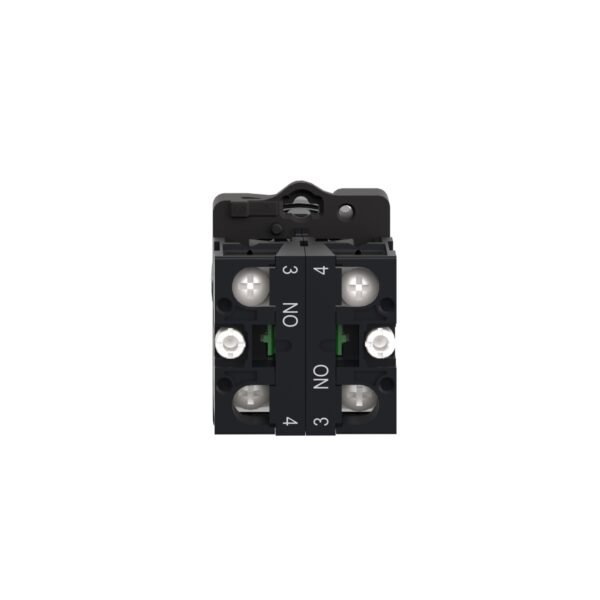

• Contact Configuration: 2 NO (normally open), enabling the activation of two independent circuits or contacts when in the selected position.

• Material: Typically made of high-quality plastic or metal to ensure durability and resistance to wear in industrial environments.

• Security: Key-operated, offering enhanced security and preventing unauthorized operation by requiring a key for activation.

3. Applications

• Industrial Control Panels: Ideal for applications where a secure and reliable method of switching between two states or operations is needed.

• Machinery Control: Often used for controlling machinery functions where different modes or settings need to be selected securely.

• Automation Systems: Common in automation systems where the operation requires a specific key for switching between modes or processes.

• Access Control: Ideal for situations where only authorized personnel can control certain machine operations or systems.

4. Benefits

• Security and Safety: The key selector design ensures that only authorized personnel can operate the switch, enhancing the safety of operations.

• Durable Construction: Built to withstand industrial environments, providing long-lasting performance.

• Spring Return Action: The spring return feature allows the switch to automatically return to its default position, reducing the chances of leaving it in an unintended state.

• Flexible Contact Configuration: The 2 NO contacts are perfect for circuits that require independent control of two components or systems.

5. Conclusion

The Schneider XA2EG63 key selector switch is an excellent choice for secure, reliable, and versatile circuit control. Its 22mm size, 2-position functionality, spring return action, and 2 NO contact configuration make it ideal for industrial control panels, automation systems, and machinery that require specific mode selection with added security. The key-operated mechanism ensures that only authorized personnel can change settings, enhancing operational safety.
