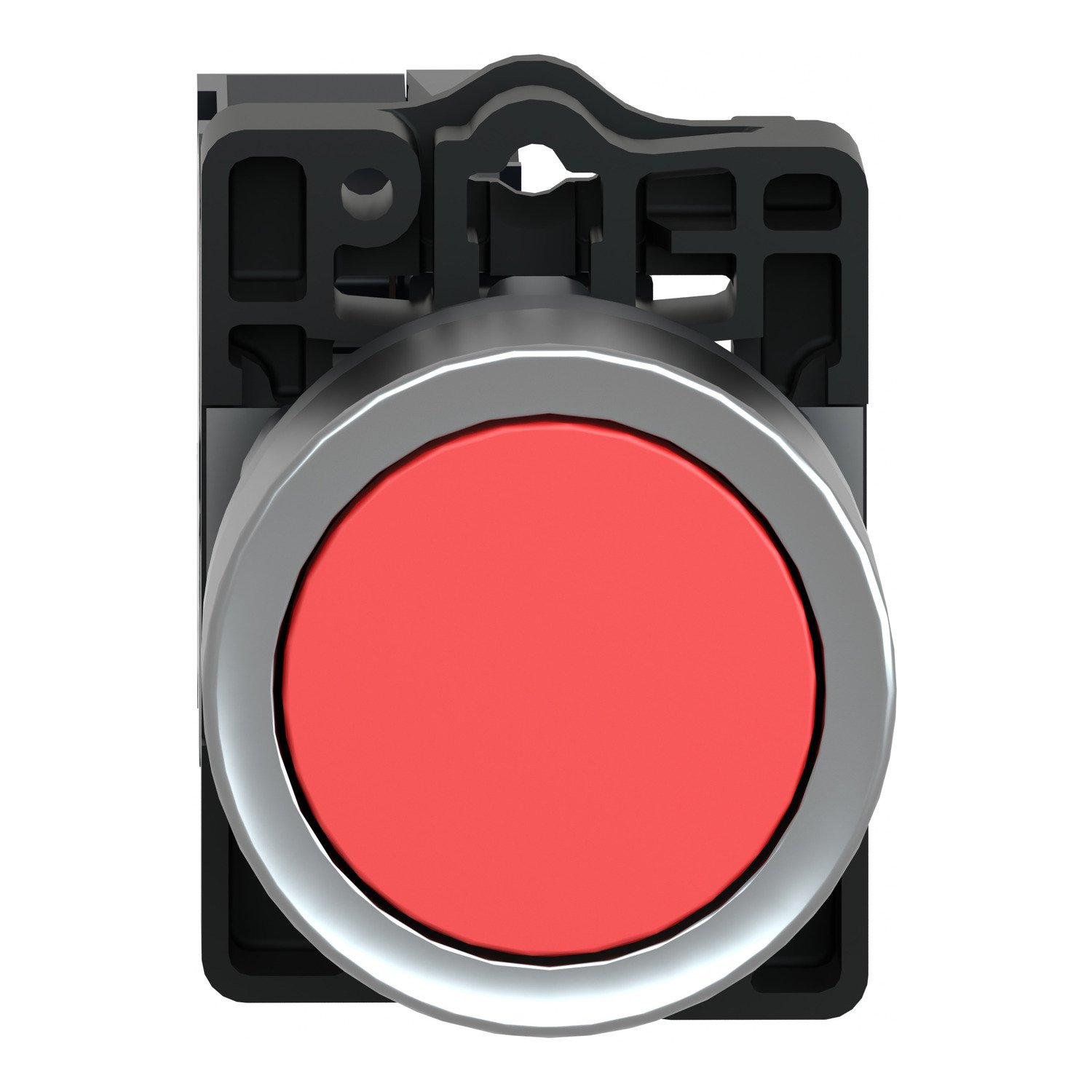

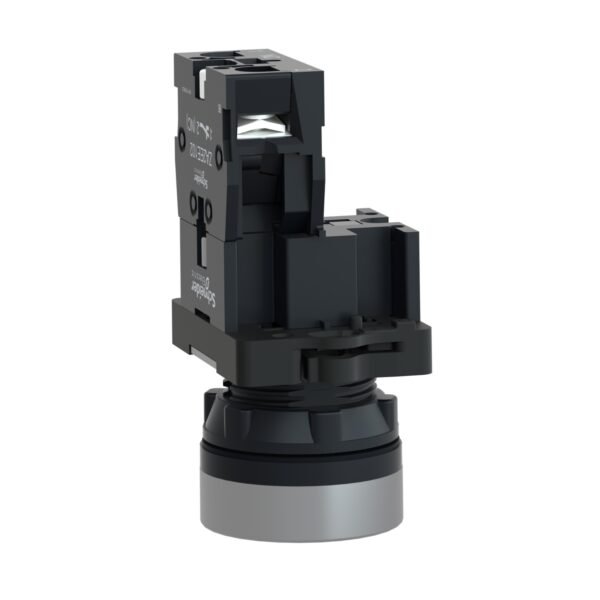

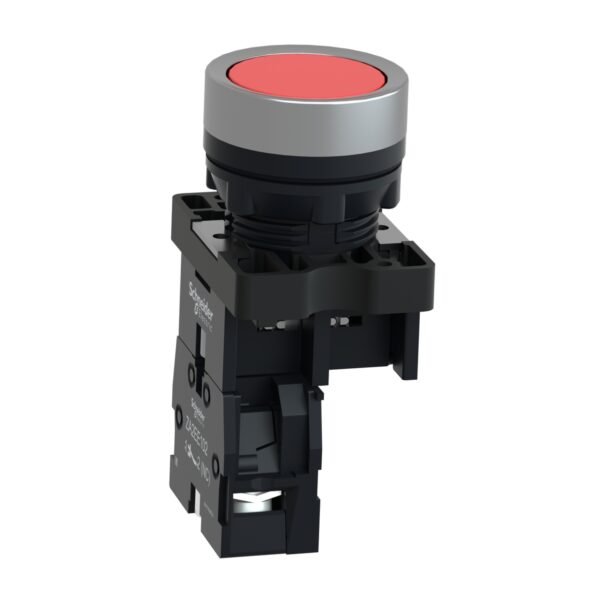

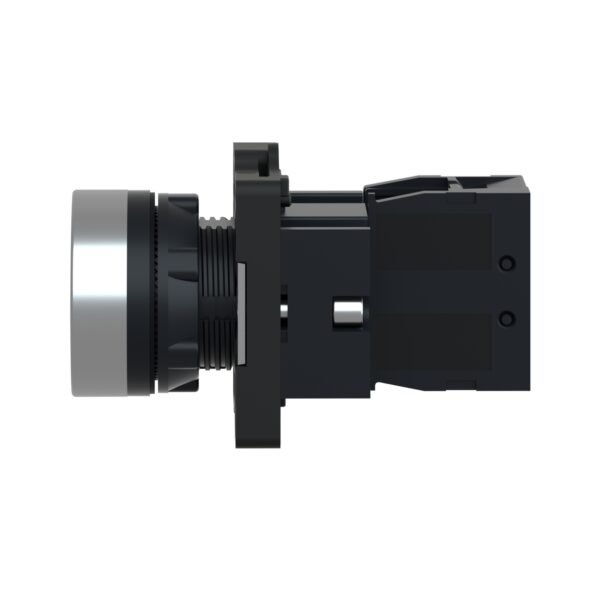

Schneider XA2EH042 Harmony | Round red push-button Ø 22 -push push – 1NO
Schneider XA2EH042 Harmony
Original price was: EGP 2,243.00.EGP 1,301.00Current price is: EGP 1,301.00.
Description
Schneider XA2EH042 Harmony | Round red push-button Ø 22 -push push – 1NO
1. Overview
The Schneider XA2EH042 is a high-quality push-button switch from the Harmony XA2 range. It features a 22mm diameter, a push-push mechanism, and a 1NO (normally open) contact configuration. This push-button is designed for industrial and commercial applications, ensuring durability and reliability.
2. Key Features
- Model: XA2EH042
- Series: Harmony XA2
- Color: Red
- Button Type: Round push-button
- Mechanism: Push-Push (Latching)
- Contact Type: 1NO (Normally Open)
- Mounting Diameter: 22mm
- Material: High-quality plastic and metal for durability
3. Technical Specifications
- Rated Operational Voltage: Up to 230V
- Electrical Durability: Long-lasting operation cycles
- Mechanical Endurance: High mechanical lifespan
- Protection Rating: IP65 (Dust and water resistance)
- Operating Temperature Range: -25°C to +70°C
- Compliance: CE, RoHS, IEC standards
4. Applications
- Industrial control panels
- Machinery operation
- Automation systems
- Emergency stop or start functions
- General electrical control systems
5. Benefits
- Durable & Reliable: High-quality materials ensure long-term usage
- User-Friendly: Easy installation with a standard 22mm mounting size
- Safety & Compliance: Meets international safety and performance standards
- Versatile Use: Suitable for various electrical and industrial control applications
6. Conclusion
The Schneider XA2EH042 Harmony push-button is an excellent choice for industrial and commercial control applications. With its push-push latching mechanism, robust design, and compliance with international standards, it provides reliability, safety, and ease of use in various environments.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Easy Harmony XA2 |
|---|---|
| product or component type | Complete push-button |
| Device short name | XA2 |
| Bezel material | Plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
|---|---|
| Sale per indivisible quantity | 1 |
| Protective treatment | TC |
| Operating position | Any position |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Shape of signaling unit head | Round |
| Type of operator | push-push |
| Operator profile | Red flush |

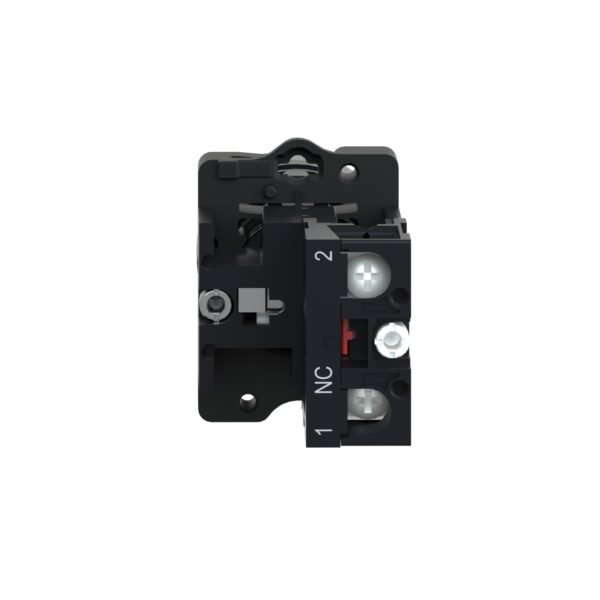

| Contacts type and composition | 1 NC |
| Contact operation | Slow-break |
| Mechanical durability | 1000000 cycles |
| Connections - terminals | Screw clamp terminal, <= 2 x 1.5 mm² Screw clamp terminal, <= 1 x 2.5 mm² Screw clamp terminal, >= 1 x 0.5 mm² Faston terminals, connection size: 6.3 mm |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600 |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 |
| Electrical reliability | Λ < 10exp(-8) at 24 V |
| Width | 30 mm |
| Height | 42 mm |
| Depth | 67.7 mm |
| Net weight | 0.04 kg |
| cap/operator or lens colour | Red |
| Type of operator | Push-push |
| Ambient air temperature for storage | -40…70 °C |
|---|---|
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK03 conforming to IEC 60529 |
| Standards | GB 14048.1 GB 14048.5 IEC 60947-1 IEC 60947-5-1 |
| Product certifications | CCC CE |
| Vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.0 cm |
| Package 1 Width | 4.0 cm |
| Package 1 Length | 7.0 cm |
| Package 1 Weight | 56.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.65 kg |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 2000 |
| Package 3 Height | 60.0 cm |
| Package 3 Width | 80.0 cm |
| Package 3 Length | 90.0 cm |
| Package 3 Weight | 112.2 kg |
