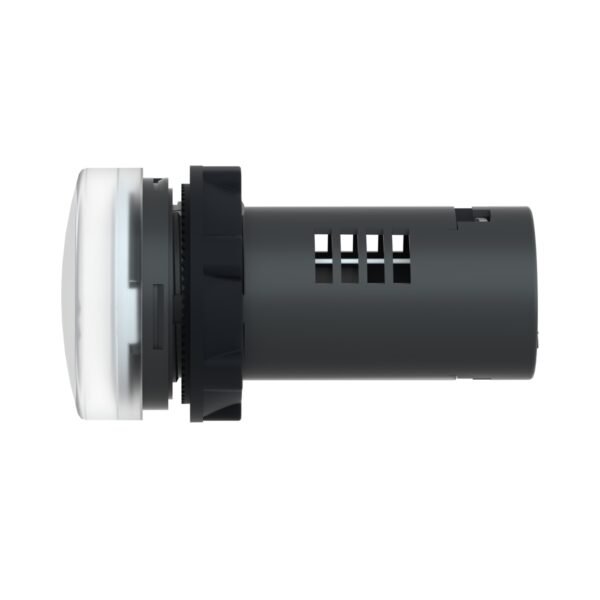

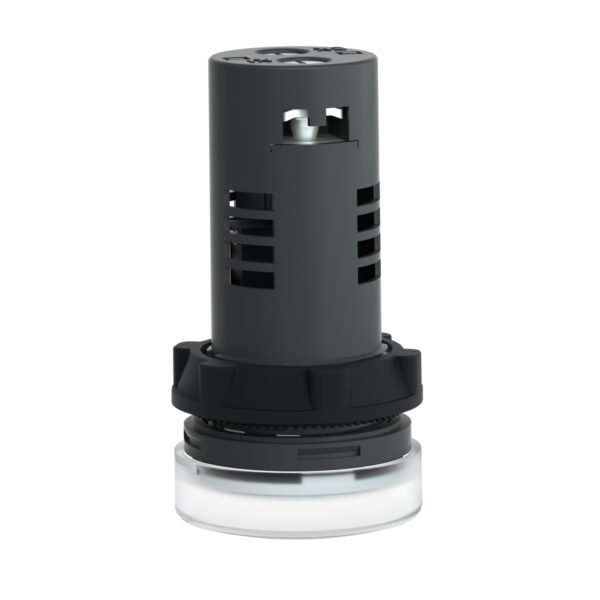

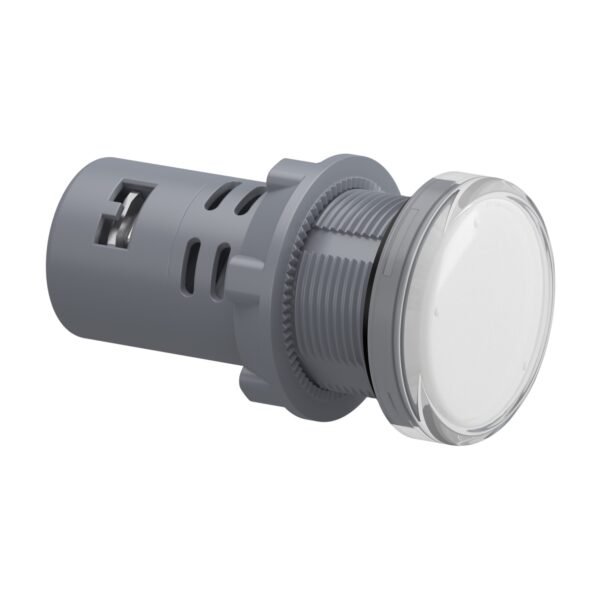

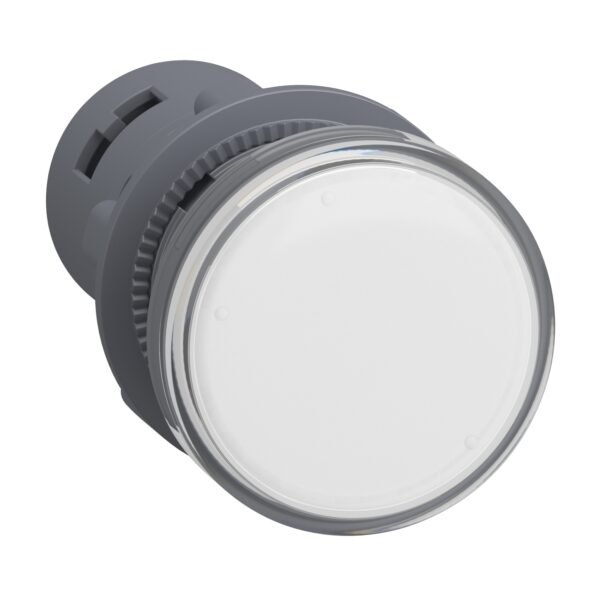

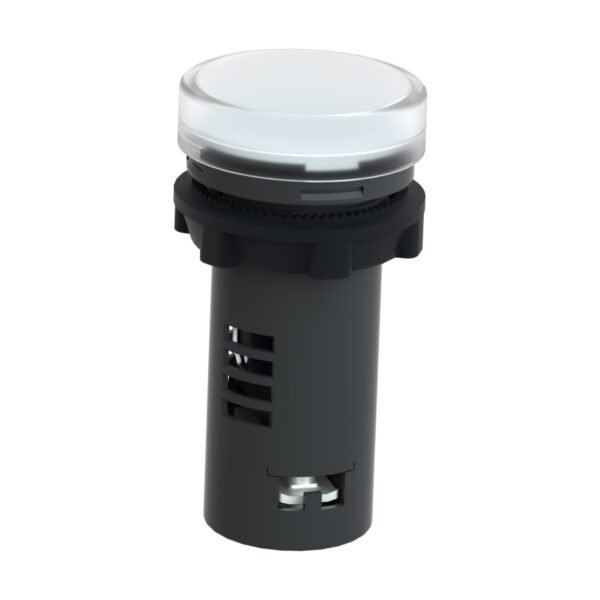

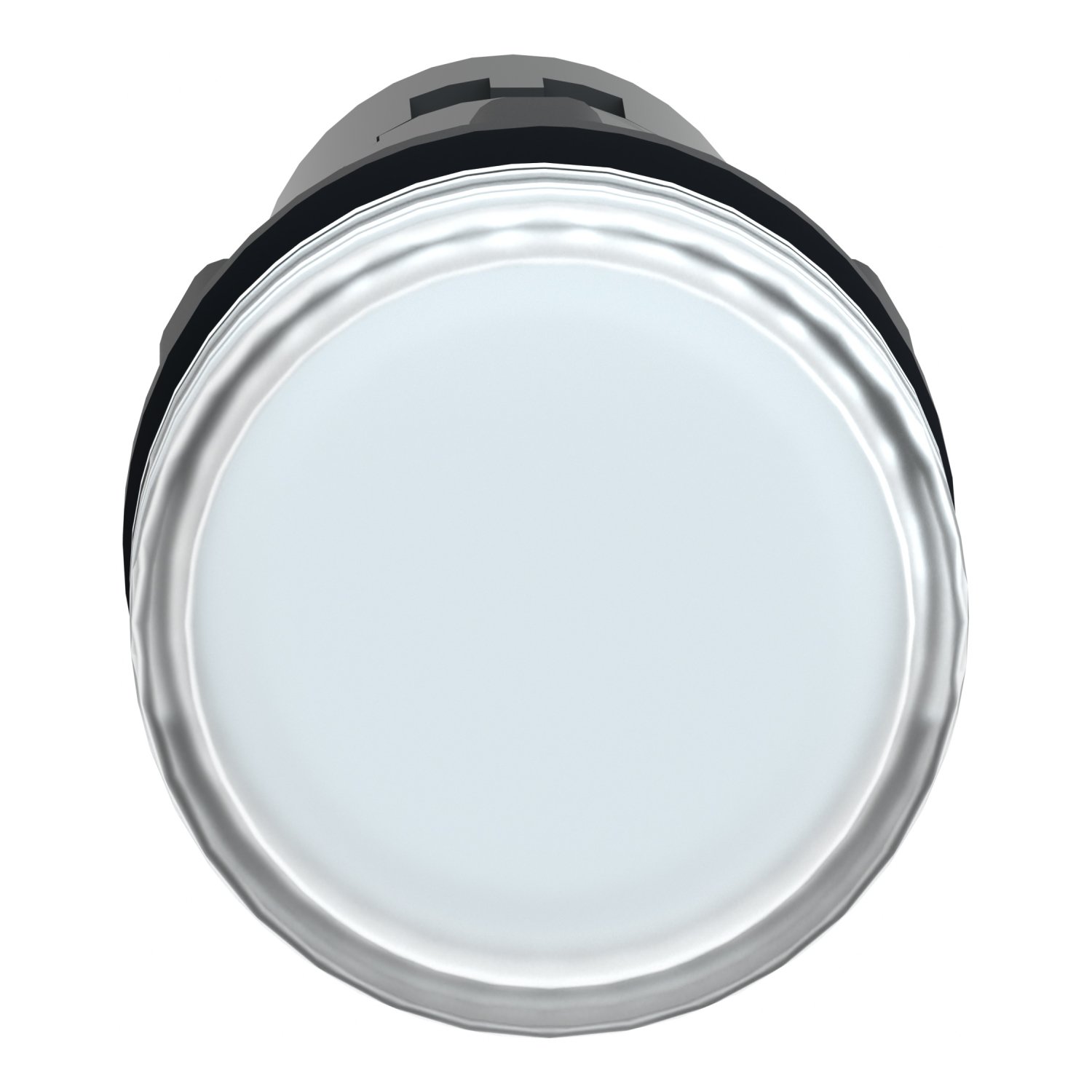

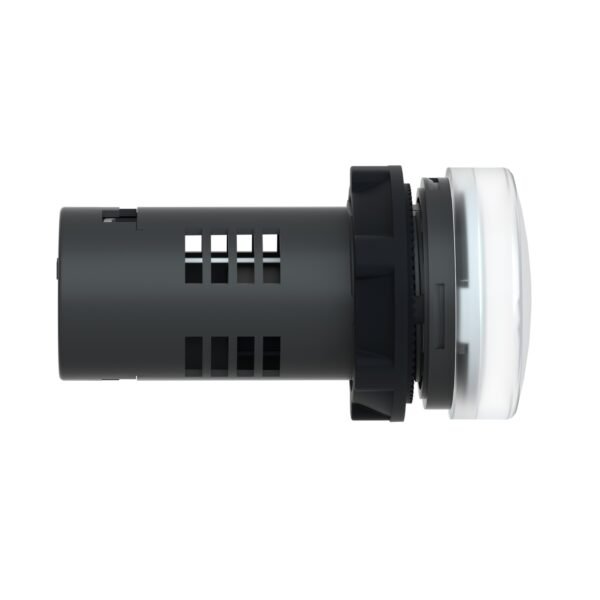

Schneider XA2EVB1LC | Round pilot light Ø 22 – white – integral LED- 24 V AC/DC- screw clamp terminals

Schneider XA2EVB1LC: Round Pilot Light – Ø22 mm – White – Integral LED – 24V AC/DC – Screw Clamp Terminals

1. Overview

The Schneider XA2EVB1LC is a white pilot light designed for industrial and commercial control applications. It features a 22 mm mounting diameter, an integral LED, and operates at 24V AC/DC. The screw clamp terminals ensure secure and easy installation, making it a reliable choice for various applications requiring clear visual indication.

2. Technical Specifications

• Model: XA2EVB1LC

• Product Type: Pilot light

• Color: White

• Mounting Diameter: Ø22 mm

• Illumination Type: Integral LED

• Voltage Rating: 24V AC/DC

• Luminous Intensity: High visibility in different lighting conditions

• Mechanical Durability: Up to 1,000,000 operations

• Electrical Durability: Up to 100,000 operations at full load

• Operating Temperature: -25°C to +55°C

• Storage Temperature: -40°C to +70°C

• Ingress Protection (IP Rating): IP65 (dust-tight and water-resistant)

• Front Material: High-strength plastic

• Base Material: Metal

• Mounting Type: Panel mounting

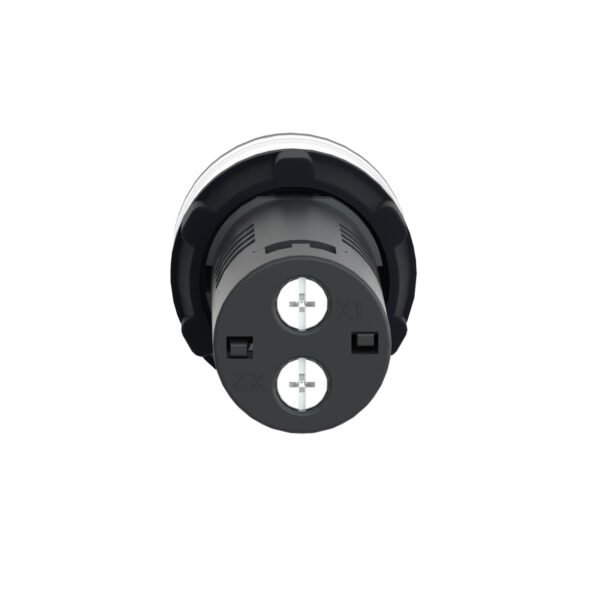

• Connection Type: Screw clamp terminals

• Standards Compliance: IEC 60947-5-1

3. Applications

The Schneider XA2EVB1LC pilot light is suitable for various industrial and commercial applications, including:

• Control Panels: Provides clear status indication for electrical circuits.

• Industrial Machinery: Indicates operational states such as power on, standby, or faults.

• Automation Systems: Used for status feedback in automated processes.

• Power Distribution Boards: Displays circuit activity and power availability.

• Safety Systems: Alerts operators about equipment status in hazardous environments.

• Elevators & Lifts: Used for visual indication of system status.

4. Features

• Bright white LED for clear visibility.

• Integral LED for long-lasting illumination.

• Compact design for Ø22 mm panel mounting.

• Durable construction for industrial environments.

• IP65 protection against dust and water.

• Screw clamp terminals for secure wiring.

• Easy integration with Schneider Electric control components.
