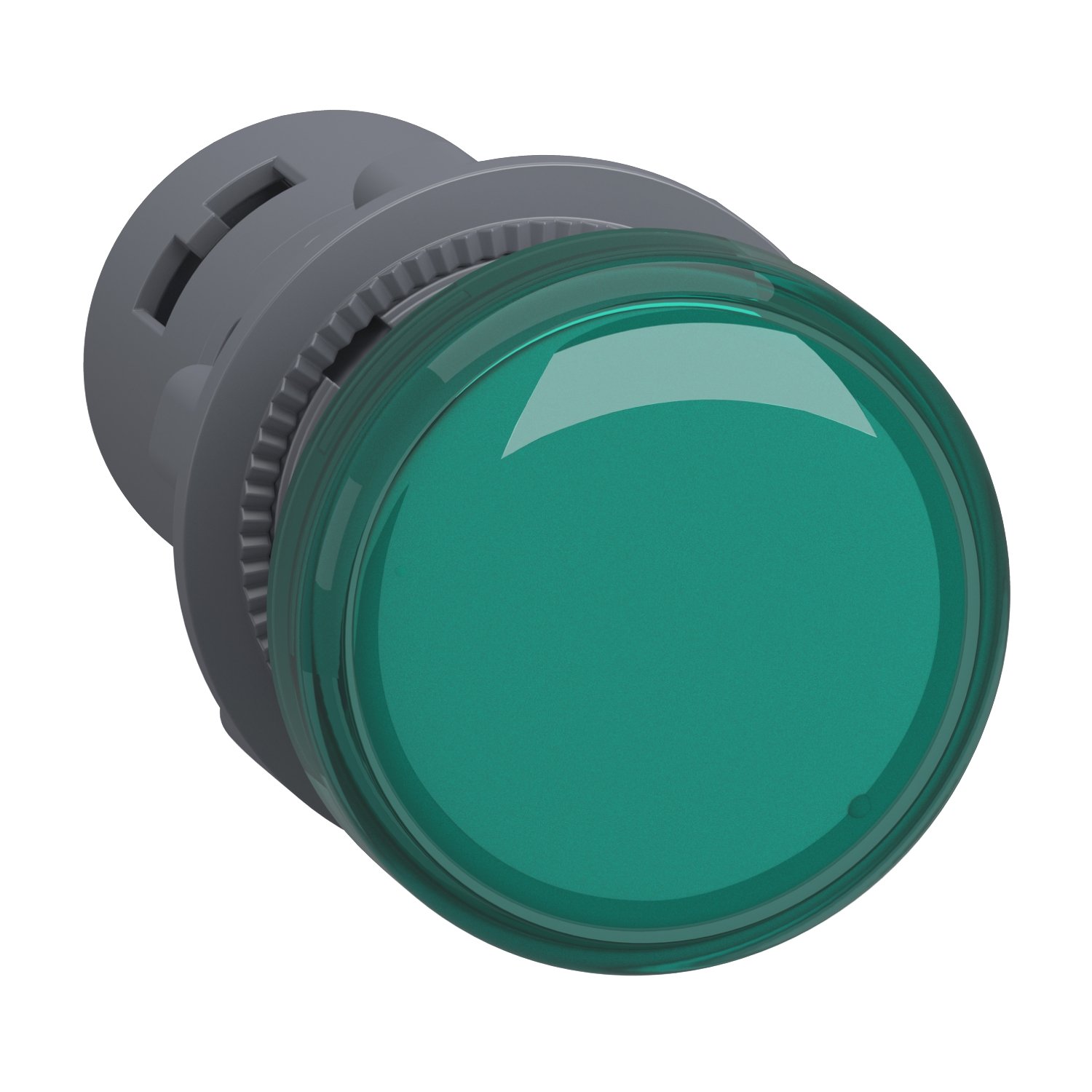

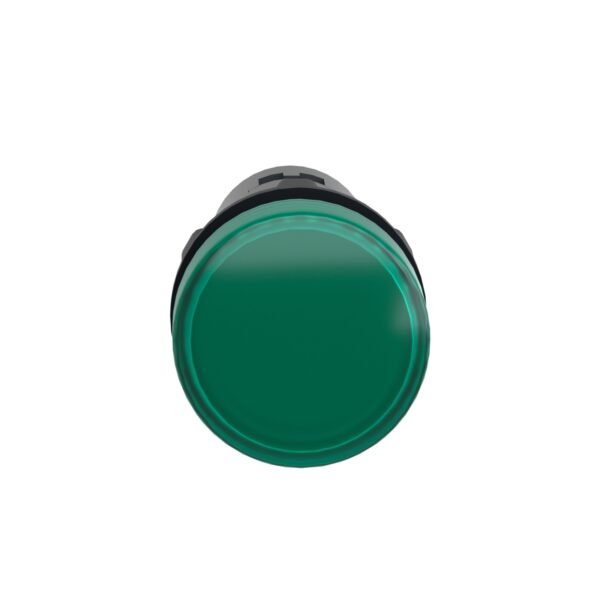

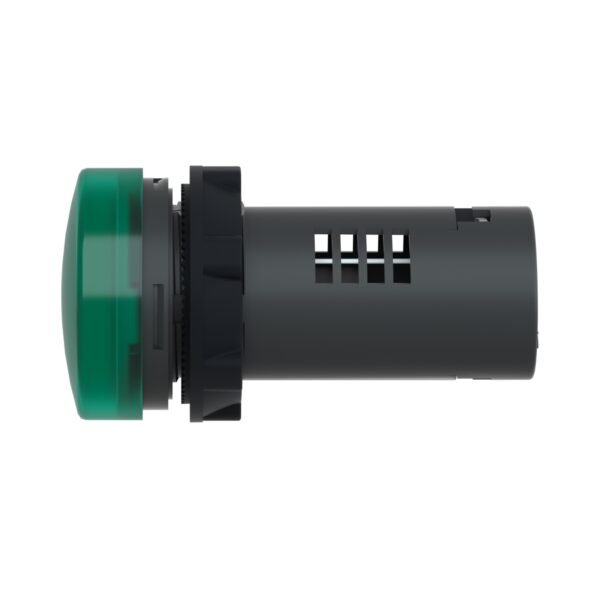

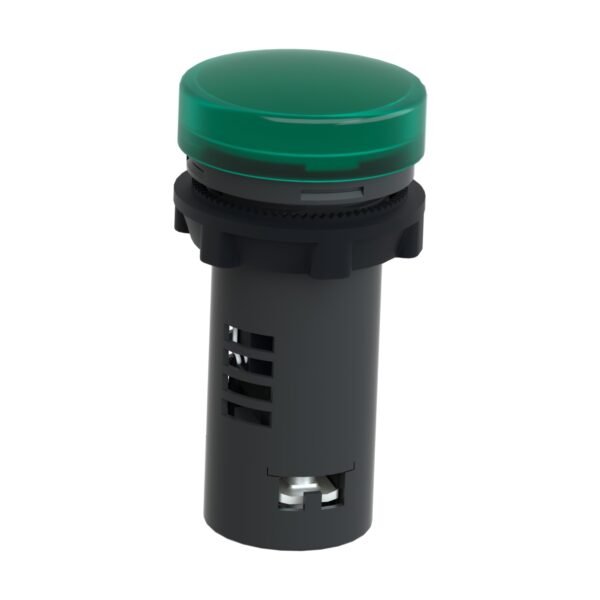

The Schneider XA2EVB3LC Harmony is a high-quality pilot light from the Easy Harmony XA2 series, designed for industrial and automation control applications. It features a green illuminated indicator with an integral LED, ensuring high visibility in various environments. With a 22mm mounting diameter and a 24V AC/DC voltage rating, it is a reliable choice for industrial signaling and control panels.
2. Key Features
Illuminated Green Lens: Provides clear visual indication of system status.
Integral LED: Ensures energy efficiency and long-lasting operation.
Standard Ø22mm Mounting: Compatible with most industrial control panels.
Durable Plastic Housing: Lightweight yet robust for demanding environments.
Low Voltage Operation: Works with 24V AC/DC for enhanced safety and flexibility.
Screw Clamp Terminals: Ensures secure and easy wiring connections.
3. Technical Specifications
Series: Easy Harmony XA2
Type: Pilot Light
Material: Plastic
Mounting Diameter: Ø22mm
Lens Color: Green
Illumination Type: Integral LED
Operating Voltage: 24V AC/DC
Connection Type: Screw Clamp Terminals
4. Benefits
Enhanced Visibility: Green LED ensures clear signaling in all conditions.
Energy Efficient: Integral LED technology for long-lasting illumination.
Compact & Sleek Design: Flush mount for a neat panel appearance.
Reliable & Durable: Built for industrial environments with consistent performance.
Easy Installation: Standard Ø22mm size for quick and hassle-free panel integration.
5. Applications
Industrial Control Panels
Manufacturing & Automation Systems
Machine & Process Status Indication
Electrical Distribution & Safety Signaling
6. Conclusion
The Schneider XA2EVB3LC Harmony is a reliable and efficient pilot light that enhances control system visibility with its integral green LED. Designed for 24V AC/DC operation, this compact, durable, and easy-to-install pilot light is an ideal choice for industrial signaling applications.
Additional information
brands
Schneider Electric
Specifications
Main
Range of product
Easy Harmony XA2
Product or component type
Monolithic pilot light
Device short name
XA2
Mounting diameter
22.5 mm
Shape of signaling unit head
Round
Cap/operator or lens colour
Green
Light source
LED
Bulb base
Integral LED
[Us] rated supply voltage
24 V AC/DC 50/60 Hz
Complementary

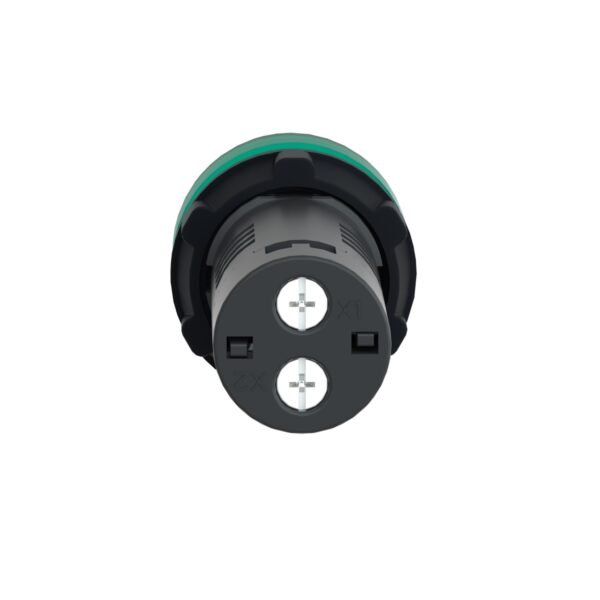

Terminals description ISO n°1
(X1-X2)PL
Device mounting
Fixing hole 22.3 +0.4/0 conforming to IEC 60947-5-1
Fixing center
>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
>= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1
Shape of screw head
Cross compatible with Philips No 2 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
[Ui] rated insulation voltage
400 V (pollution degree 3) conforming to IEC 60947-1
