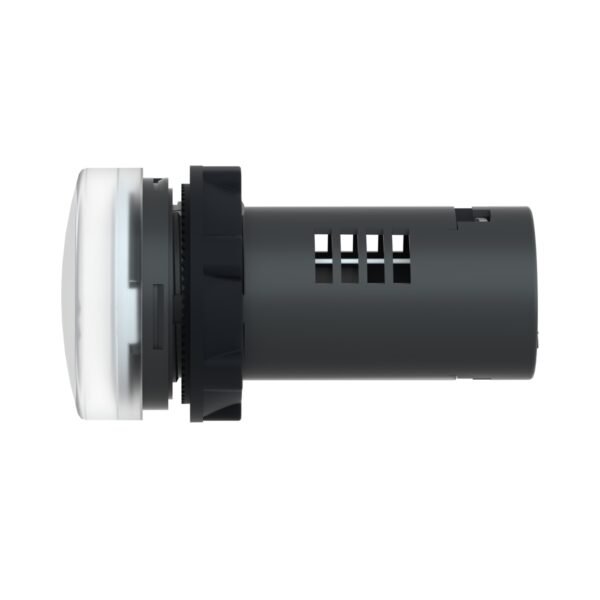

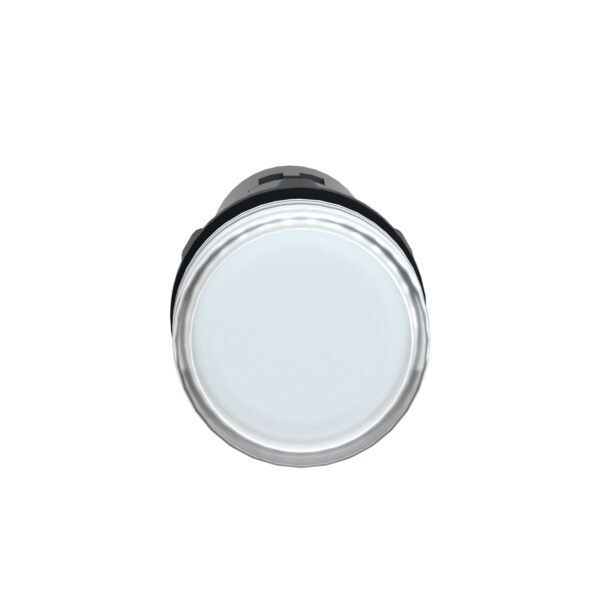

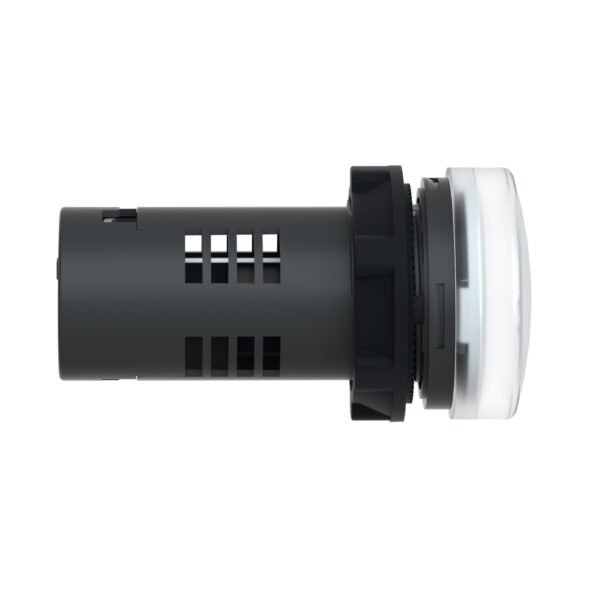

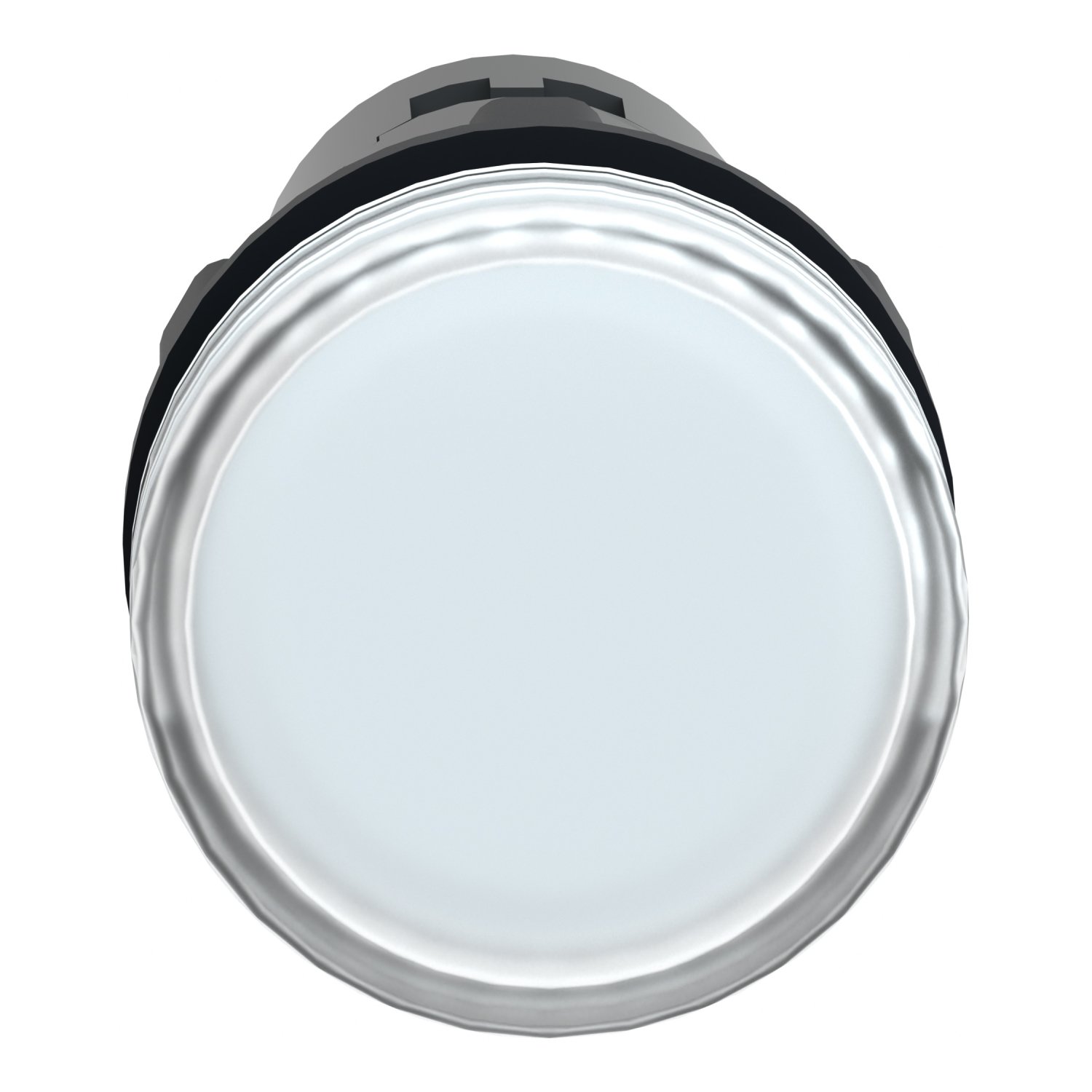

Schneider XA2EVM1LC Harmony | Easy Harmony XA2E, Monolithic pilot light, plastic, white, Ø22, integral LED, screw clamp terminals, 220…230 V AC, anti interference
Schneider XA2EVM1LC Harmony
Original price was: EGP 181.00.EGP 105.00Current price is: EGP 105.00.
Description
Schneider XA2EVM1LC Harmony | White Pilot Light – Ø22mm – Integral LED – 220…230V AC – Anti-Interference
1. Overview
The Schneider XA2EVM1LC is a monolithic pilot light from the Easy Harmony XA2E series, designed for industrial and automation signaling applications. It features a white integral LED, operates at 220–230V AC, and incorporates anti-interference technology, ensuring stable performance even in electrically noisy environments.
2. Key Features
- Model: XA2EVM1LC
- Series: Easy Harmony XA2E
- Type: Pilot light
- Color: White
- Illumination: Integral LED for bright and uniform lighting
- Operating Voltage: 220–230V AC
- Mounting Diameter: 22mm
- Terminal Type: Screw clamp terminals for secure and easy wiring
- Material: Durable plastic housing
- Anti-Interference Technology: Ensures stable operation in environments with electrical noise
3. Technical Specifications
- Voltage Rating: 220–230V AC
- Current Consumption: Low power LED design
- Electrical Lifespan: Long-lasting operation
- Mechanical Durability: Designed for industrial and heavy-duty environments
- Protection Rating: IP65 (Dust and water-resistant)
- Operating Temperature Range: -25°C to +70°C
- Certifications & Compliance: CE, RoHS, IEC standards
4. Applications
- Industrial control panels for machine and system status indication
- Automation and process control systems
- Electrical distribution boards
- Operator stations for visual signaling
- Environments requiring anti-interference technology for stable operation
5. Benefits
- Clear and Bright Indication: White LED provides a neutral and clear signal
- Energy-Efficient: Low power consumption while maintaining optimal brightness
- Reliable and Durable: Anti-interference design ensures consistent operation
- Easy Installation: Standard 22mm mounting for seamless integration into control panels
- Secure Wiring: Screw clamp terminals offer strong electrical connections
6. Conclusion
The Schneider XA2EVM1LC Harmony white pilot light is an efficient and reliable signaling device designed for industrial automation and control applications. With its integral LED, 220–230V AC operation, and anti-interference design, it ensures stable performance and clear status indication in demanding environments.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| range of product | Easy Harmony XA2 |
|---|---|
| product or component type | Monolithic pilot light |
| Device short name | XA2 |
| Mounting diameter | 22.5 mm |
| Shape of signaling unit head | Round |
| cap/operator or lens colour | White |
| Light source | LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 220...230 V AC 50/60 Hz |

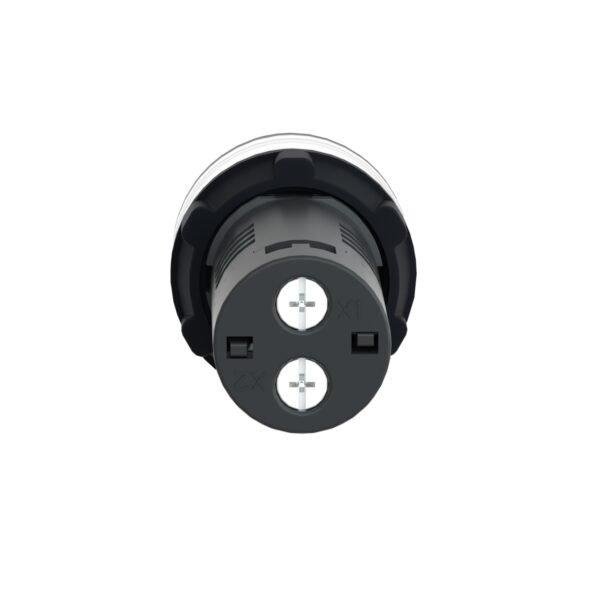

| Terminals description ISO n°1 | (X1-X2)PL |
|---|---|
| Device mounting | Fixing hole 22.3 +0.4/0 conforming to IEC 60947-5-1 |
| Fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| Fixing mode | Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m) |
| marking | CCC CE |
| [Us] rated supply voltage | 220...230 V |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips No 2 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| [Ui] rated insulation voltage | 400 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Signalling type | Steady |
| Supply voltage limits | 0.8…1.2 V AC |
| current consumption | <= 20 mA |
| Service life | 40000 h at rated voltage and 25 °C |
| Height | 29 mm |
| Width | 29 mm |
| Depth | 53 mm |
| net weight | 0.02 kg |
| Ambient air temperature for storage | -40…70 °C |
|---|---|
| Ambient air temperature for operation | -25…70 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK05 |
| Standards | GB 14048.5 IEC 60947-5-1 IEC 60947-1 GB 14048.1 IEC 60529 IEC 50102 |
| Product certifications | CE CCC |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.300 cm |
| Package 1 Width | 2.900 cm |
| Package 1 Length | 2.900 cm |
| Package 1 Weight | 21.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 8.000 cm |
| Package 2 Width | 22.000 cm |
| Package 2 Length | 29.500 cm |
| Package 2 Weight | 216.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 160 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.800 kg |
