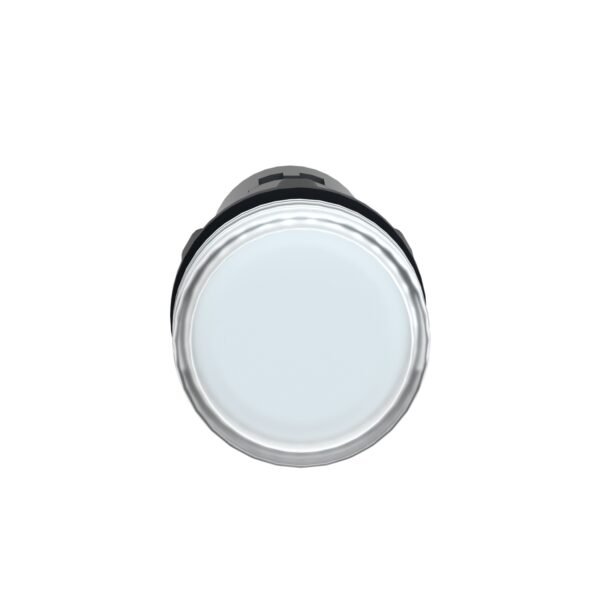

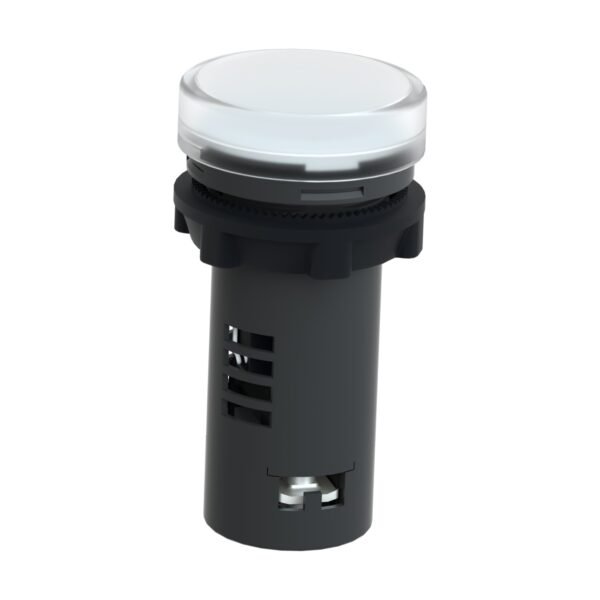

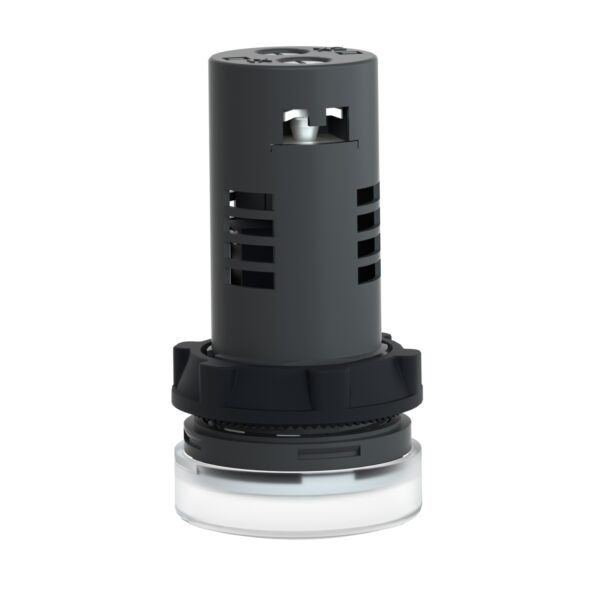

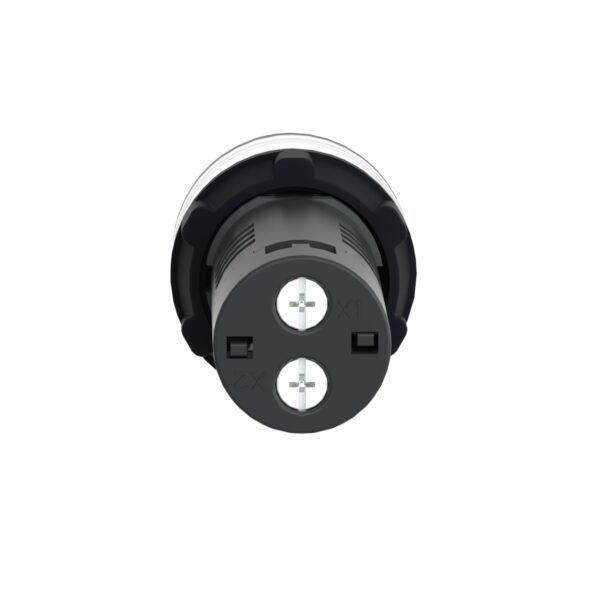

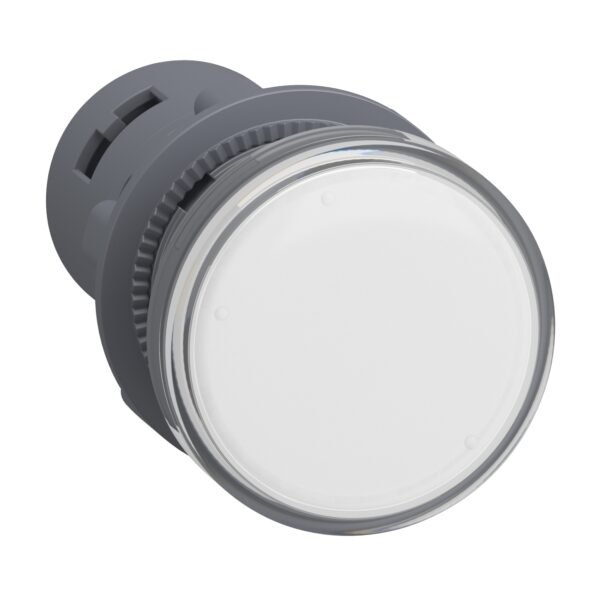

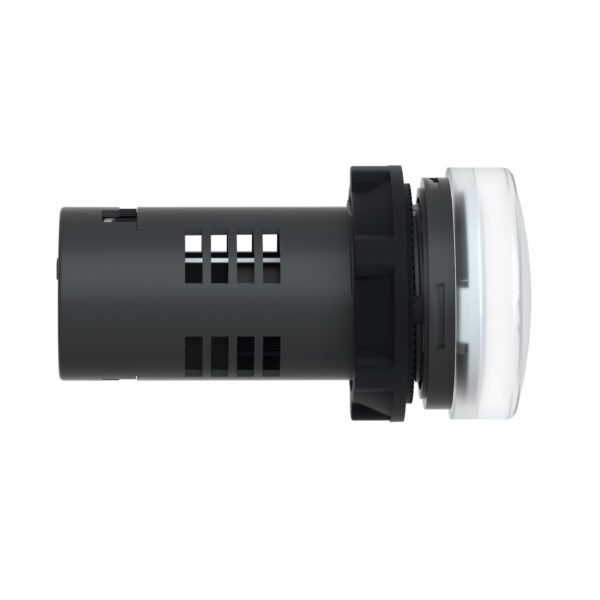

Schneider XA2EVM34LC | Pilot light, plastic, bi-color, green/red, Ø 22 mm, with integral LED, 220…230V AC

Schneider XA2EVM34LC | Bi-Color Pilot Light

1. Overview

The Schneider XA2EVM34LC is a bi-color pilot light designed for industrial control applications. With its green/red color options, it provides clear visual indication of system statuses, such as “ON” (green) and “OFF” (red) or other status indicators in a single device. This pilot light is equipped with an integral LED for enhanced visibility and long-term durability. The device is designed for a 22mm mounting diameter and operates within the 220-230V AC voltage range, making it suitable for various industrial environments and control panels.

2. Key Features

• Type: Bi-color pilot light (green and red), allowing for dual-state indication in a single device.

• Size: Ø22 mm mounting size, compatible with standard control panel cutouts.

• Material: Constructed from plastic for durability and lightweight design.

• LED Technology: Integral LED provides energy-efficient, long-lasting lighting with minimal maintenance.

• Voltage Rating: Designed for 220-230V AC operation, suitable for a wide range of industrial applications.

• Color Indicators: Green and red colors, ideal for signaling operational states, such as “active” (green) and “inactive” or “fault” (red).

• Applications: Can be used in control panels, machinery, and automation systems to signal various operational states or alarms.

3. Applications

• Industrial Control Panels: The bi-color indicator is perfect for indicating different states or conditions within industrial control panels, such as operational readiness or system fault.

• Machinery Monitoring: Ideal for machinery where multiple status indicators are required to convey operational information clearly.

• Automation Systems: Used to signal specific operational or error conditions in automated systems, allowing operators to quickly assess the state of the system.

• Process Control: Can be integrated into process control systems to show various conditions like active or fault states.

4. Benefits

• Clear Status Indication: The green/red bi-color design provides instant recognition of system statuses, helping operators make quick decisions.

• Energy-Efficient: The integral LED technology ensures long-term, energy-efficient performance with minimal power consumption.

• Durability: Constructed from high-quality plastic, the pilot light is built to last in industrial environments, offering reliable performance over time.

• Easy Integration: The Ø22 mm mounting size makes it compatible with a wide range of industrial control panels, simplifying installation and maintenance.

• Enhanced Visibility: The bright LED lights make the pilot light highly visible, even from a distance, ensuring that operators can quickly recognize system status.

5. Conclusion

The Schneider XA2EVM34LC bi-color pilot light is an essential tool for indicating the operational status of machinery and systems in industrial settings. Its green and red colors, powered by integral LED technology, offer a reliable, energy-efficient solution for signaling system conditions. With a standard Ø22 mm mounting and 220-230V AC operation, it is compatible with a wide range of industrial applications. This pilot light ensures clear visual communication, enhancing operator awareness and helping to ensure smooth, error-free operations.
