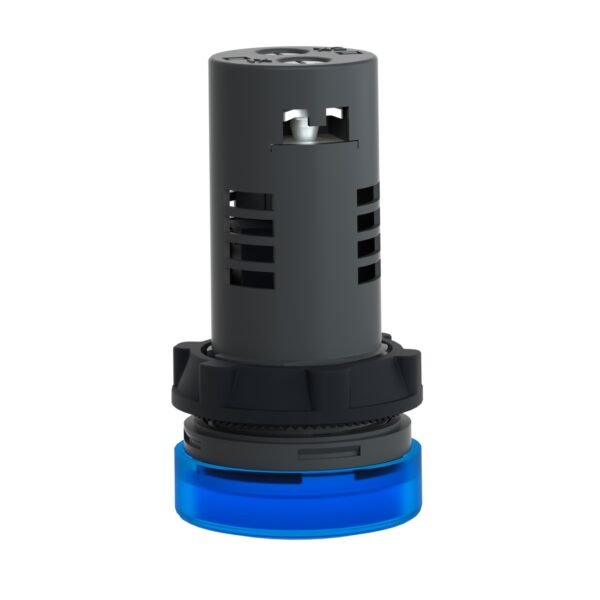

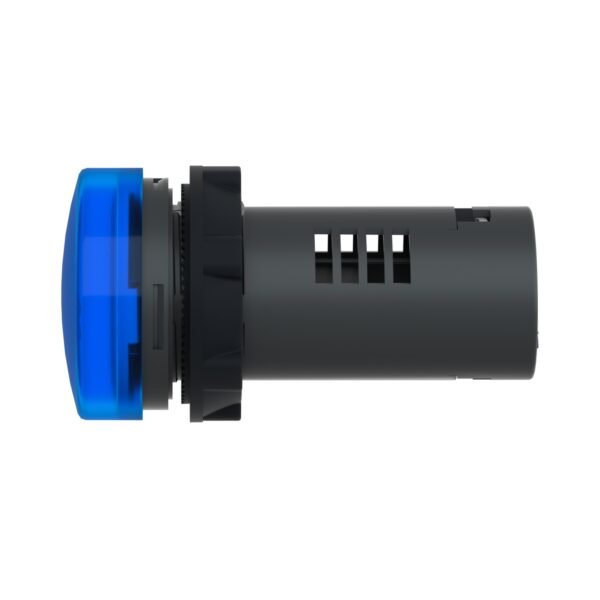

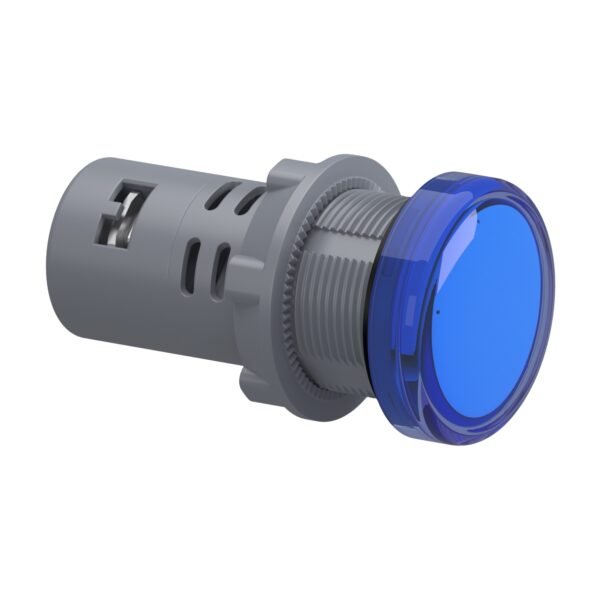

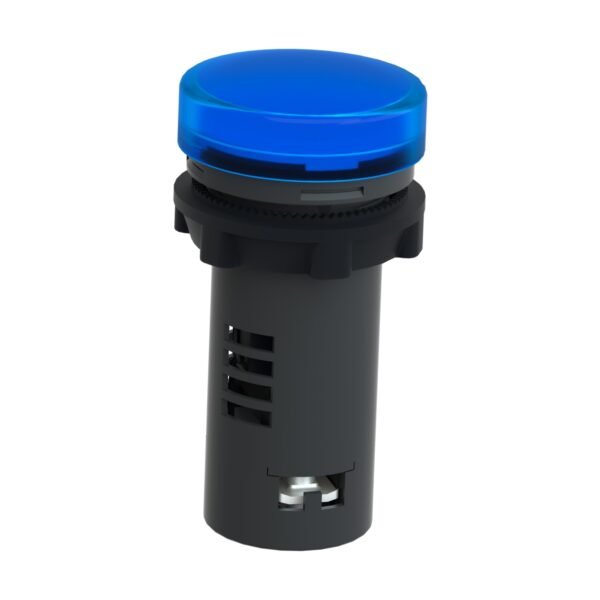

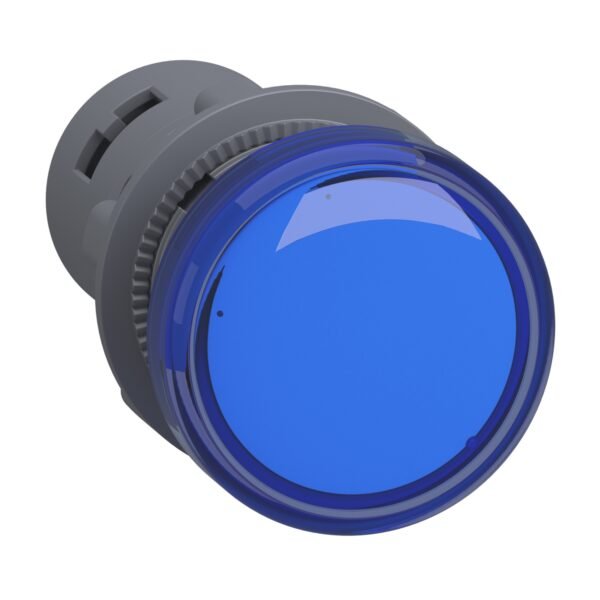

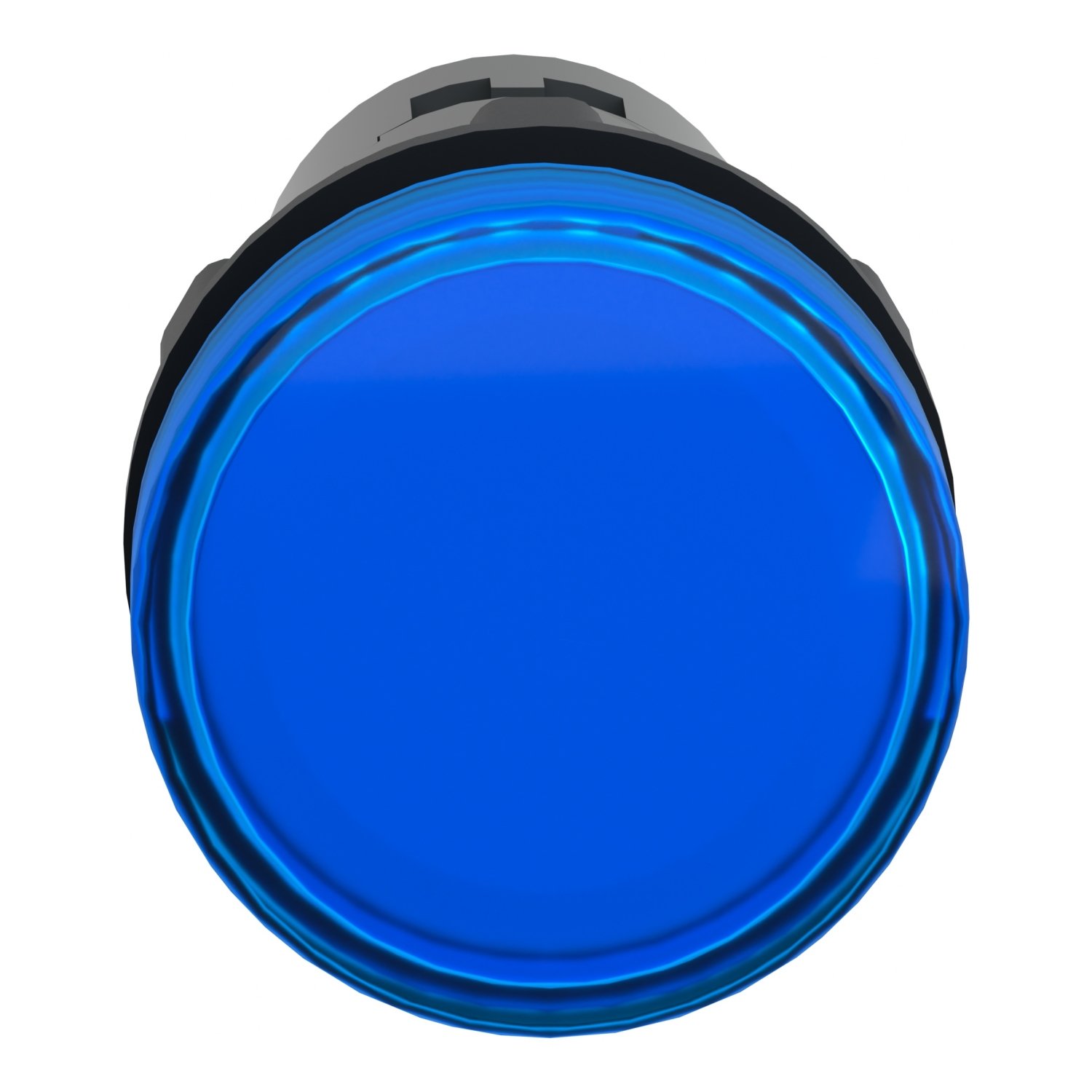

Schneider XA2EVM6LC | Pilot light, plastic, blue, Ø 22 mm, with integral LED, 220…230V AC, Anti-interference

Schneider XA2EVM6LC: Pilot Light – Plastic – Blue – Ø22 mm – Integral LED – 220…230V AC – Anti-Interference

1. Overview

The Schneider XA2EVM6LC is a blue pilot light designed for industrial and commercial control applications. It features a 22 mm mounting diameter, an integrated LED, and operates at 220–230V AC. This model includes anti-interference protection, ensuring stable operation in environments with electrical noise.

2. Technical Specifications

• Model: XA2EVM6LC

• Product Type: Pilot light

• Color: Blue

• Mounting Diameter: Ø22 mm

• Illumination Type: Integral LED

• Voltage Rating: 220–230V AC

• Anti-Interference Feature: Yes

• Luminous Intensity: High visibility in various lighting conditions

• Mechanical Durability: Up to 1,000,000 operations

• Electrical Durability: Up to 100,000 operations at full load

• Operating Temperature: -25°C to +55°C

• Storage Temperature: -40°C to +70°C

• Ingress Protection (IP Rating): IP65 (dust-tight and water-resistant)

• Front Material: High-strength plastic

• Base Material: Metal

• Mounting Type: Panel mounting

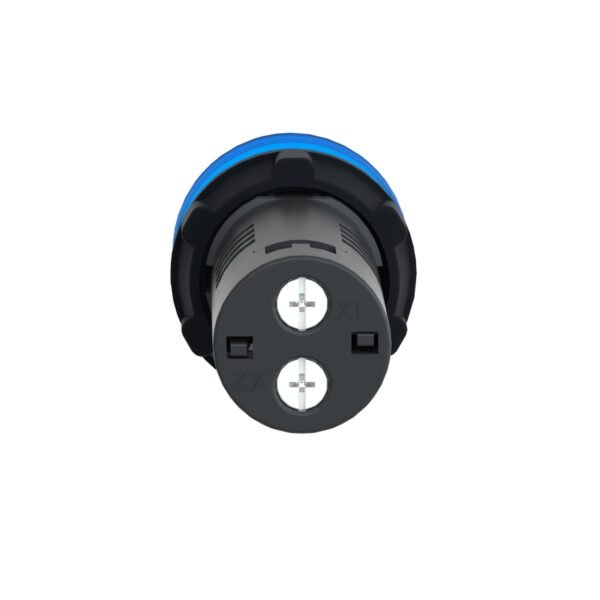

• Connection Type: Screw terminals

• Standards Compliance: IEC 60947-5-1

3. Applications

The Schneider XA2EVM6LC pilot light is ideal for various industrial and commercial applications, including:

• Control Panels: Provides status indication for electrical circuits.

• Industrial Machinery: Signals operational states such as power on, standby, or error conditions.

• Automation Systems: Used for visual feedback in automated processes.

• Power Distribution Boards: Indicates circuit activity and power availability.

• Safety Systems: Alerts operators about equipment status in hazardous environments.

• Elevators & Lifts: Provides indication of operation status.

4. Features

• Bright blue LED for clear visibility.

• Integrated LED for long-lasting illumination.

• Anti-interference technology for stable operation.

• Compact design for Ø22 mm panel mounting.

• Durable construction for industrial environments.

• IP65 protection against dust and water.

• Easy integration with Schneider Electric control components.
