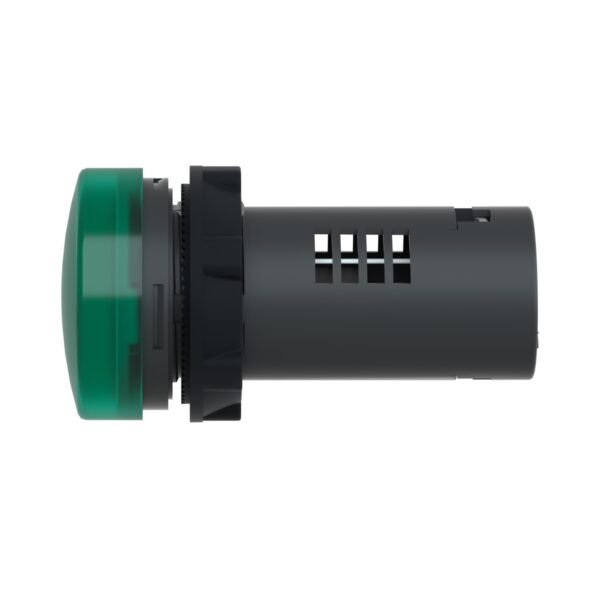

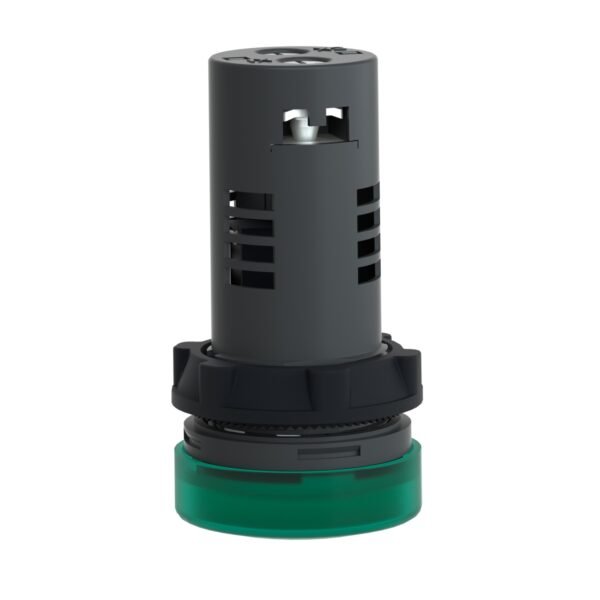

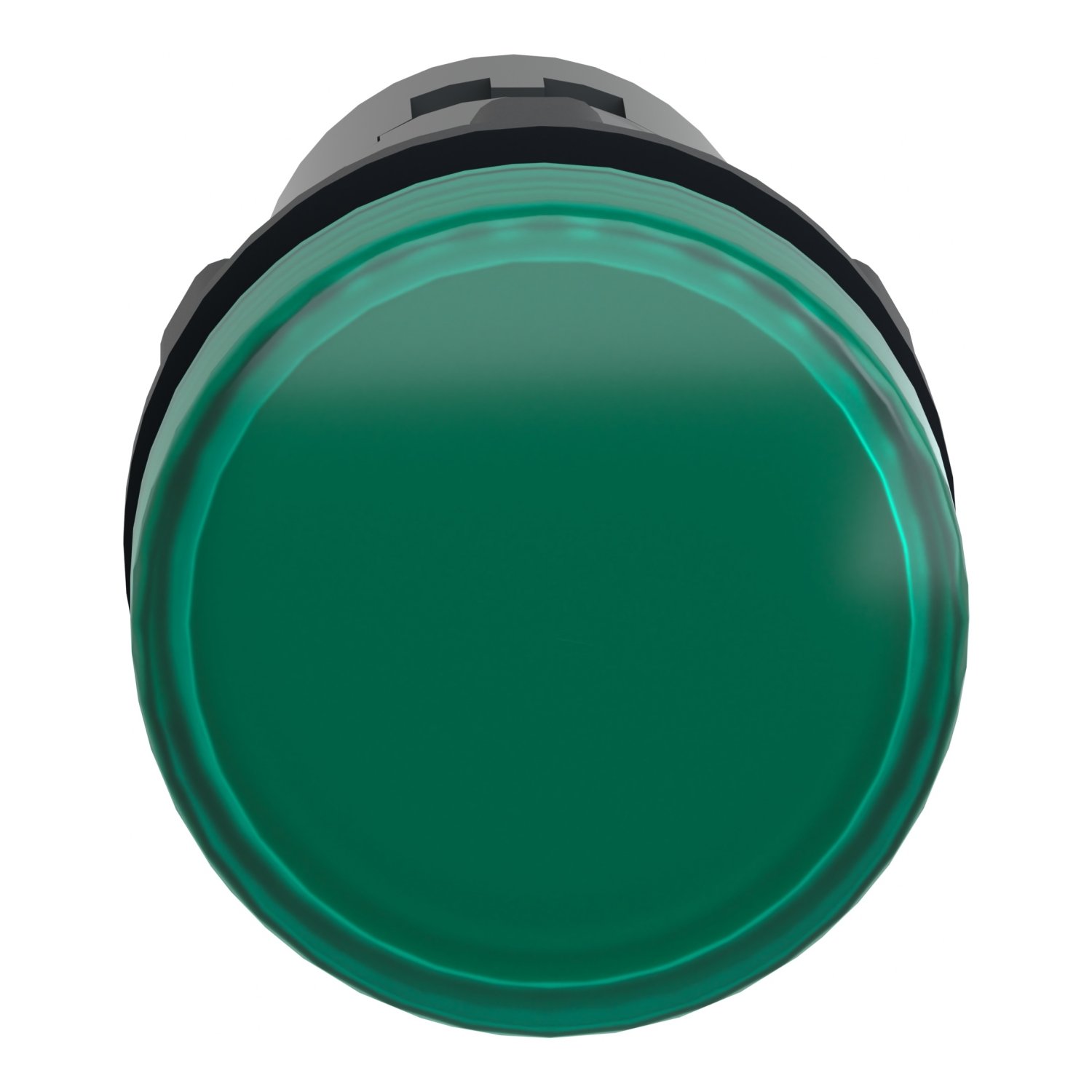

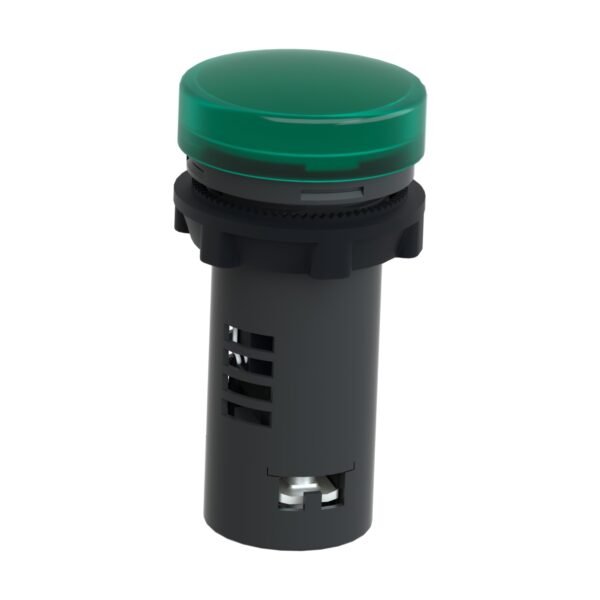

Schneider XA2EVMD3LC Harmony | Pilot light, plastic, green, Ø 22 mm, with integral LED, 220 V DC, Anti-interference
Schneider XA2EVMD3LC Harmony
Original price was: EGP 181.00.EGP 105.00Current price is: EGP 105.00.
Description
Schneider XA2EVMD3LC Harmony | Green Pilot Light – Ø22mm – Integral LED – 220V DC – Anti-Interference
1. Overview
The Schneider XA2EVMD3LC is a monolithic pilot light from the Easy Harmony XA2E series, designed for industrial and automation applications. It features a green integral LED, operates at 220V DC, and includes anti-interference technology to ensure stable performance in high-noise electrical environments.
2. Key Features
- Model: XA2EVMD3LC
- Series: Easy Harmony XA2E
- Type: Pilot light
- Color: Green
- Illumination: Integral LED for high brightness
- Operating Voltage: 220V DC
- Mounting Diameter: 22mm
- Terminal Type: Screw clamp terminals for secure and easy wiring
- Material: High-quality plastic housing
- Anti-Interference Technology: Ensures stable operation in electrically noisy environments
3. Technical Specifications
- Voltage Rating: 220V DC
- Current Consumption: Low power consumption LED
- Electrical Lifespan: Long-lasting operation
- Mechanical Durability: Designed for industrial environments
- Protection Rating: IP65 (Dust and water-resistant)
- Operating Temperature Range: -25°C to +70°C
- Certifications & Compliance: CE, RoHS, IEC standards
4. Applications
- Industrial control panels for status indication
- Automation and process control systems
- Machine operation monitoring
- Electrical distribution boards
- Environments with high electrical noise requiring interference-resistant components
5. Benefits
- Bright and Clear Indication: Green LED ensures clear status visibility
- Energy-Efficient: Low power consumption with high efficiency
- Reliable and Durable: Anti-interference design prevents signal disruptions
- Easy Installation: Standard 22mm mounting for compatibility with most control panels
- Secure Wiring: Screw clamp terminals provide strong electrical connections
6. Conclusion
The Schneider XA2EVMD3LC Harmony green pilot light is a highly reliable and efficient signaling device for industrial automation and control applications. Its integral LED, 220V DC operation, and anti-interference design make it an ideal choice for environments requiring stable and clear status indication.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Easy Harmony XA2 |
|---|---|
| Product or component type | Monolithic pilot light |
| Device short name | XA2 |
| Mounting diameter | 22.5 mm |
| Shape of signaling unit head | Round |
| cap/operator or lens colour | Green |
| Light source | LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 220 V DC |
| Terminals description ISO n°1 | (X1-X2)PL |
|---|---|
| Device mounting | Fixing hole 22.3 +0.4/0 conforming to IEC 60947-5-1 |
| Fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| Fixing mode | Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m) |
| Marking | CCC CE |
| [Us] rated supply voltage | 220 V |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips No 2 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| [Ui] rated insulation voltage | 400 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Signalling type | Steady |
| Supply voltage limits | 0.8…1.2 V DC |
| Current consumption | <= 20 mA |
| Service life | 40000 h at rated voltage and 25 °C |
| Height | 29 mm |
| Width | 29 mm |
| Depth | 53 mm |
| Net weight | 0.02 kg |
| Ambient air temperature for storage | -40…70 °C |
|---|---|
| Ambient air temperature for operation | -25…70 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK05 |
| Standards | IEC 60947-1 GB 14048.1 GB 14048.5 IEC 60947-5-1 IEC 60529 IEC 50102 |
| Product certifications | CE CCC |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.0 cm |
| Package 1 Width | 3.0 cm |
| Package 1 Length | 5.5 cm |
| Package 1 Weight | 20.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 160 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.556 kg |
