Schneider XA2EVMD4LC Harmony | Red Pilot Light – Ø22mm – Integral LED – 220V DC – Anti-Interference

1. Overview

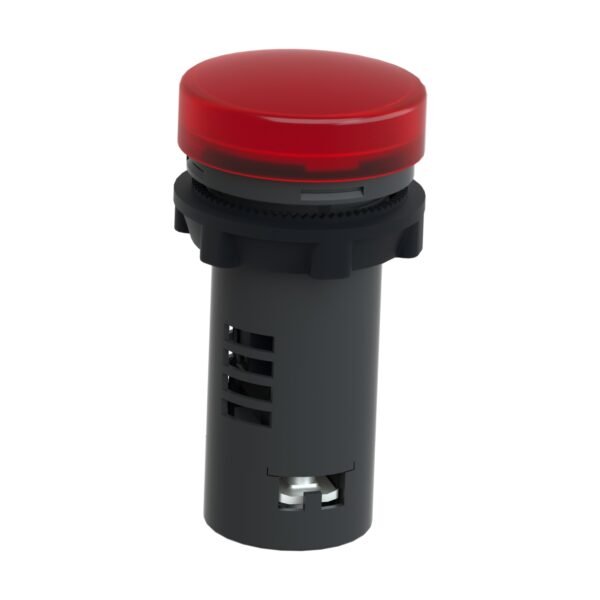

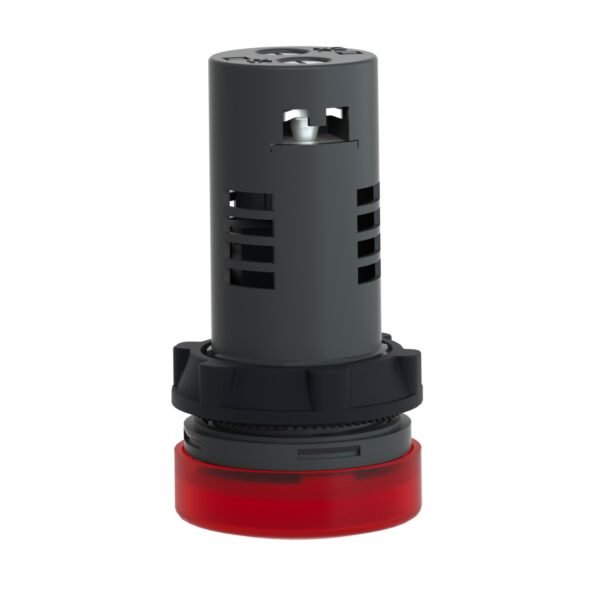

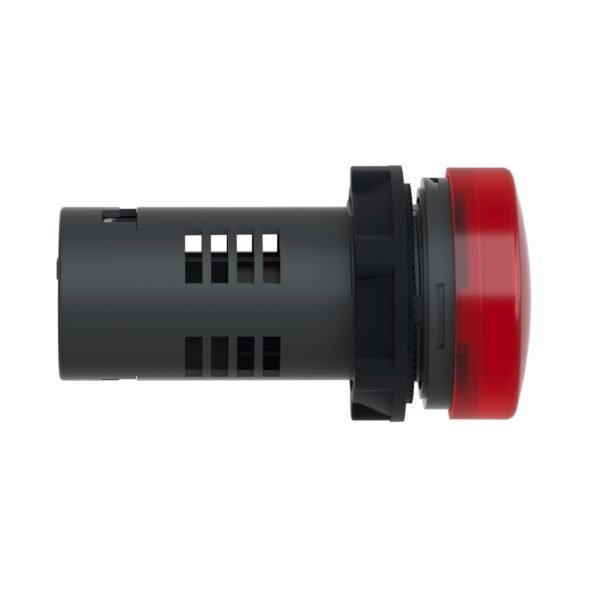

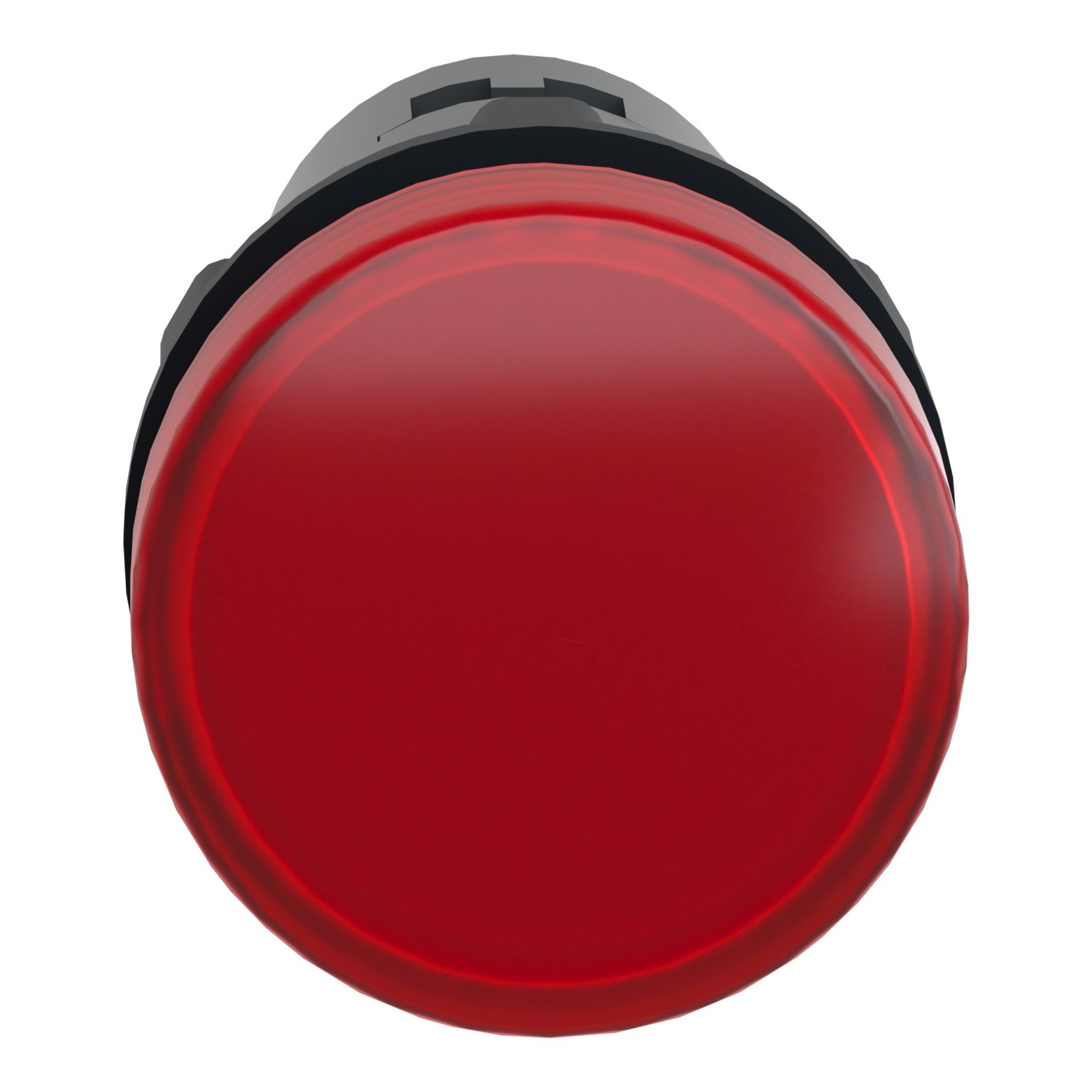

The Schneider XA2EVMD4LC is a monolithic pilot light from the Easy Harmony XA2E series, designed for industrial signaling applications. It features a red integral LED, operates at 220V DC, and is equipped with anti-interference technology to ensure stable and reliable performance in electrically noisy environments.

2. Key Features

• Model: XA2EVMD4LC
• Series: Easy Harmony XA2E
• Type: Pilot light
• Color: Red
• Illumination: Integral LED for high visibility
• Operating Voltage: 220V DC
• Mounting Diameter: 22mm

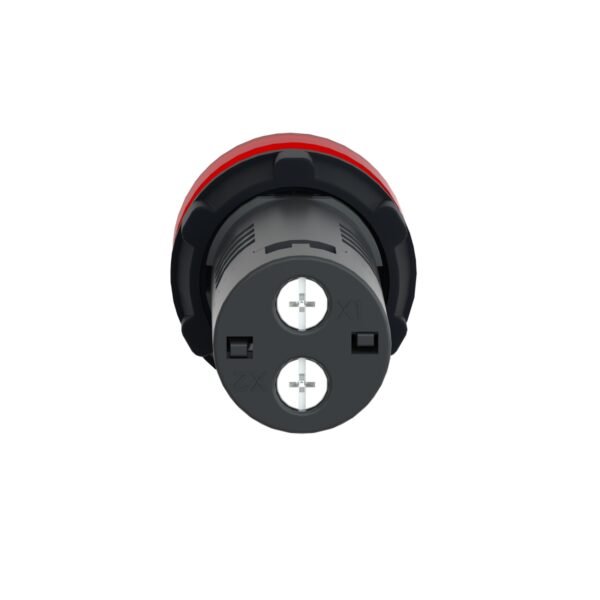

• Terminal Type: Screw clamp terminals for secure wiring
• Material: High-quality plastic housing
• Anti-Interference Design: Ensures stable operation in high-noise environments

3. Technical Specifications

• Voltage Rating: 220V DC
• Current Consumption: Low-power LED design
• Electrical Lifespan: Long-lasting operation
• Mechanical Durability: Designed for industrial environments
• Protection Rating: IP65 (Dust and water-resistant)
• Operating Temperature Range: -25°C to +70°C
• Certifications & Compliance: CE, RoHS, IEC standards

4. Applications

• Industrial control panels for status indication
• Electrical distribution boards
• Automation and process control systems
• Operator stations requiring visual feedback
• Environments with high electrical noise, requiring interference-resistant components

5. Benefits

• High Visibility: Red LED ensures clear status indication
• Energy-Efficient: Integral LED consumes low power while providing bright illumination
• Reliable Performance: Anti-interference design ensures stable operation in electrically noisy environments
• Easy Installation: Standard 22mm mounting for compatibility with most control panels
• Secure Wiring: Screw clamp terminals ensure firm electrical connections

6. Conclusion

The Schneider XA2EVMD4LC Harmony red pilot light is a durable and efficient signaling device for industrial automation and control applications. With integral LED technology, 220V DC operation, and anti-interference protection, it ensures clear and stable status signaling, even in environments with electrical noise.
