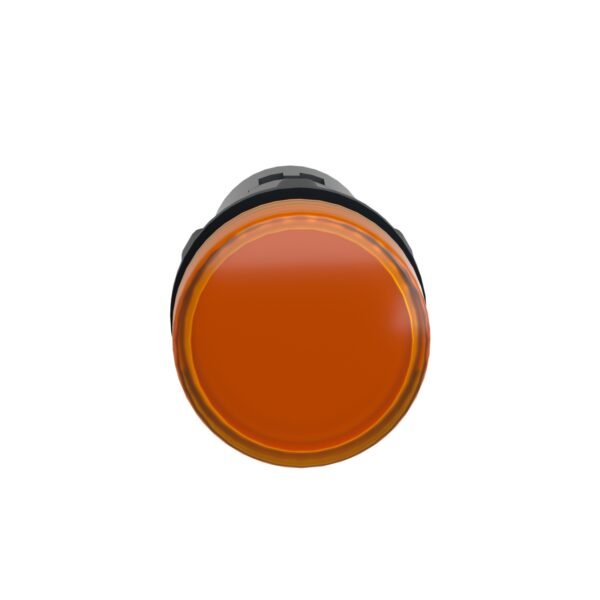

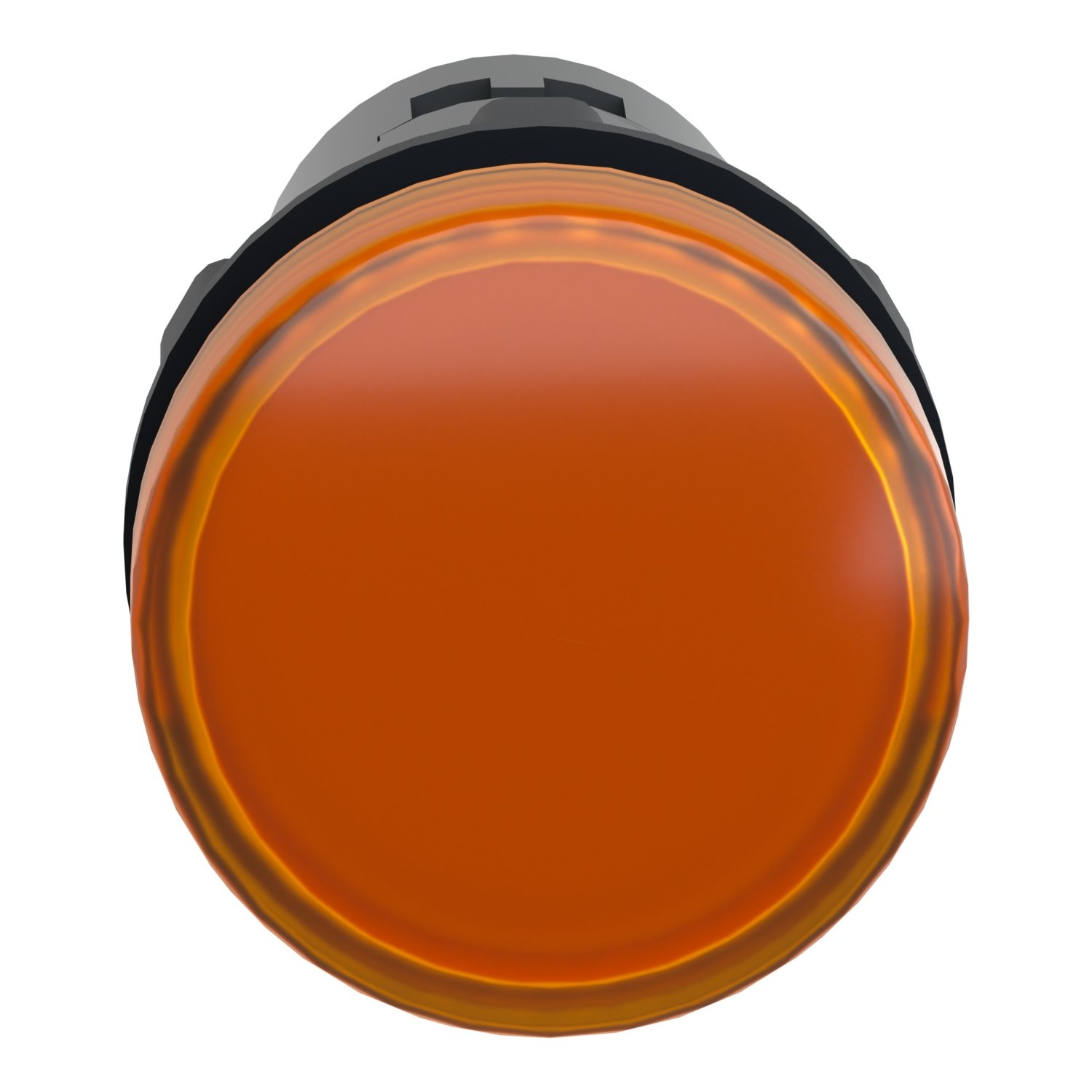

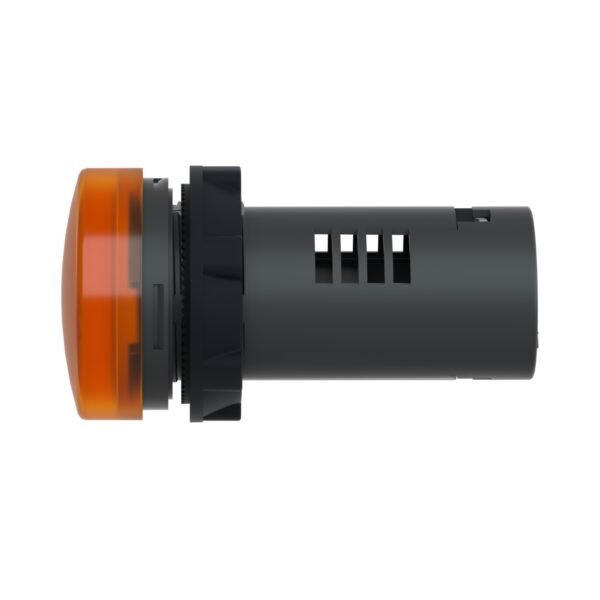

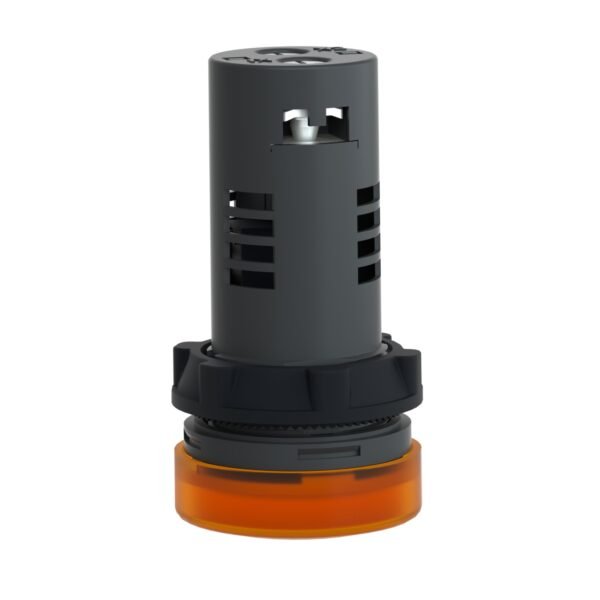

Schneider XA2EVMD5LC Harmony | Easy Harmony XA2E, Monolithic pilot light, plastic, amber, Ø22, integral LED, screw clamp terminals, 220 V DC
Schneider XA2EVMD5LC Harmony
Original price was: EGP 181.00.EGP 105.00Current price is: EGP 105.00.
Description
Schneider XA2EVMD5LC Harmony | Monolithic Pilot Light – Ø22mm – Amber – Integral LED – 220V DC
1. Overview
The Schneider XA2EVMD5LC is a monolithic pilot light from the Easy Harmony XA2E series, designed for industrial signaling applications. It features an amber-colored integral LED, operates at 220V DC, and has a compact 22mm mounting diameter for easy installation in control panels.
2. Key Features
- Model: XA2EVMD5LC
- Series: Easy Harmony XA2E
- Type: Pilot light
- Color: Amber
- Illumination: Integral LED for high visibility
- Operating Voltage: 220V DC
- Mounting Diameter: 22mm
- Terminal Type: Screw clamp terminals for secure wiring
- Material: High-quality plastic housing
3. Technical Specifications
- Voltage Rating: 220V DC
- Current Consumption: Low-power LED design
- Electrical Lifespan: Long-lasting operation
- Mechanical Durability: Robust construction for industrial environments
- Protection Rating: IP65 (Dust and water-resistant)
- Operating Temperature Range: -25°C to +70°C
- Certifications & Compliance: CE, RoHS, IEC standards
4. Applications
- Industrial control panels for status indication
- Machine operation signaling
- Electrical distribution boards
- Automation and process control systems
- Operator stations requiring visual feedback
5. Benefits
- Energy-Efficient LED: Consumes low power while providing bright illumination
- Reliable and Durable: Designed for industrial environments with high operational lifespan
- Easy Installation: Standard 22mm mounting for compatibility with most control panels
- High Visibility: Amber color enhances status indication clarity
- Secure Wiring: Screw clamp terminals ensure firm electrical connections
6. Conclusion
The Schneider XA2EVMD5LC Harmony monolithic pilot light is a reliable and efficient signaling device for industrial automation and control applications. With integral LED technology, 220V DC operation, and an amber color indicator, it ensures clear and consistent status signaling in various electrical and industrial setups.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| range of product | Easy Harmony XA2 |
|---|---|
| product or component type | Monolithic pilot light |
| Device short name | XA2 |
| Mounting diameter | 22.5 mm |
| Shape of signaling unit head | Round |
| cap/operator or lens colour | Amber |
| Light source | LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 220 V DC |

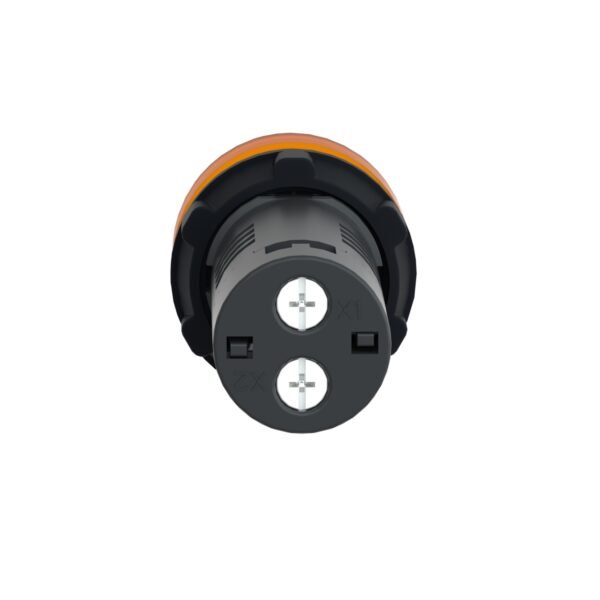

| Terminals description ISO n°1 | (X1-X2)PL |
|---|---|
| Device mounting | Fixing hole 22.3 +0.4/0 conforming to IEC 60947-5-1 |
| Fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| Fixing mode | Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m) |
| marking | CE CCC |
| [Us] rated supply voltage | 220 V |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips No 2 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| [Ui] rated insulation voltage | 400 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Signalling type | Steady |
| Supply voltage limits | 0.8…1.2 V DC |
| current consumption | <= 20 mA |
| Service life | 40000 h at rated voltage and 25 °C |
| Height | 29 mm |
| Width | 29 mm |
| Depth | 53 mm |
| net weight | 0.02 kg |
| Ambient air temperature for storage | -40…70 °C |
|---|---|
| Ambient air temperature for operation | -25…70 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK05 |
| Standards | GB 14048.1 IEC 60947-5-1 GB 14048.5 IEC 60947-1 IEC 60529 IEC 50102 |
| Product certifications | CCC CE |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.9 cm |
| Package 1 Width | 2.9 cm |
| Package 1 Length | 5.3 cm |
| Package 1 Weight | 21.6 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 5.8 cm |
| Package 2 Width | 6.4 cm |
| Package 2 Length | 15.8 cm |
| Package 2 Weight | 0.3 kg |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 160 |
| Package 3 Height | 15 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 5.8 kg |
