Schneider XA2EVMD6LC Harmony | Monolithic Blue Pilot Light Ø22mm
1. Overview

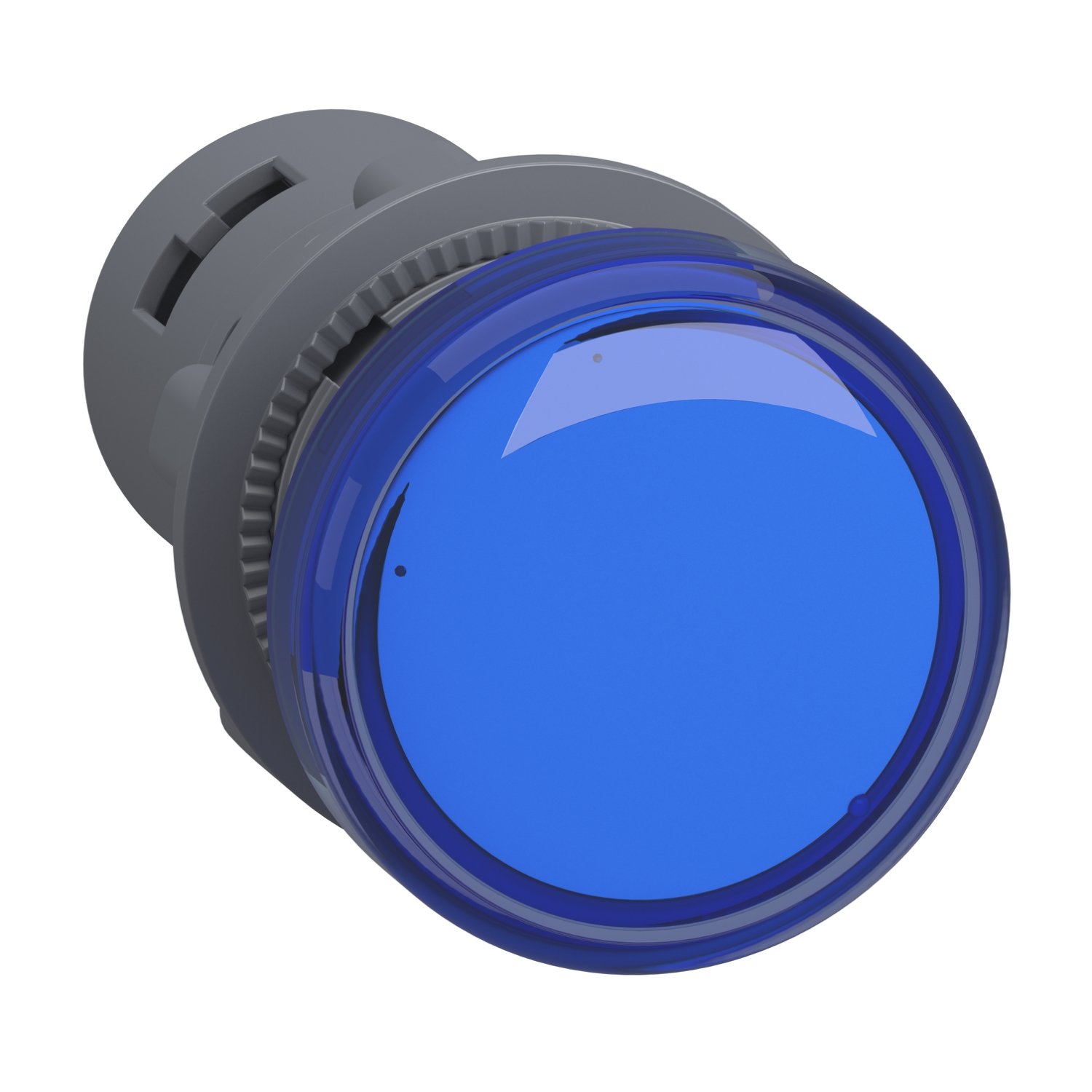

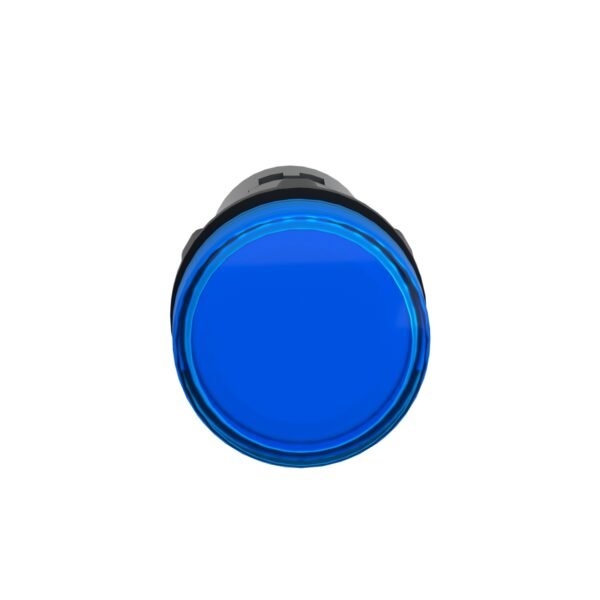

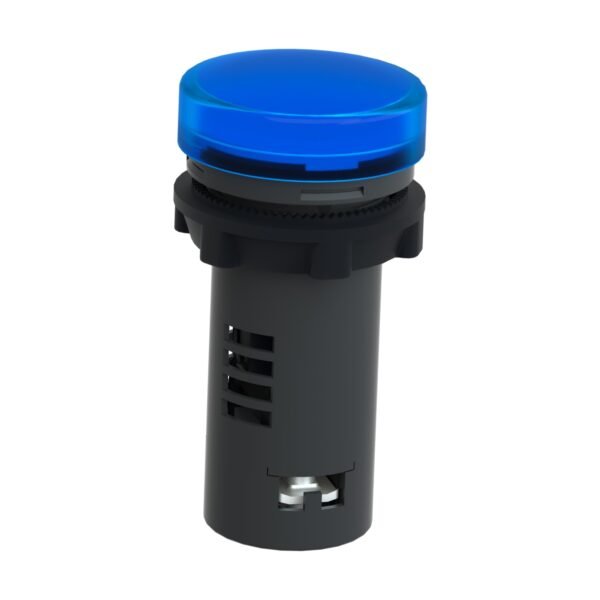

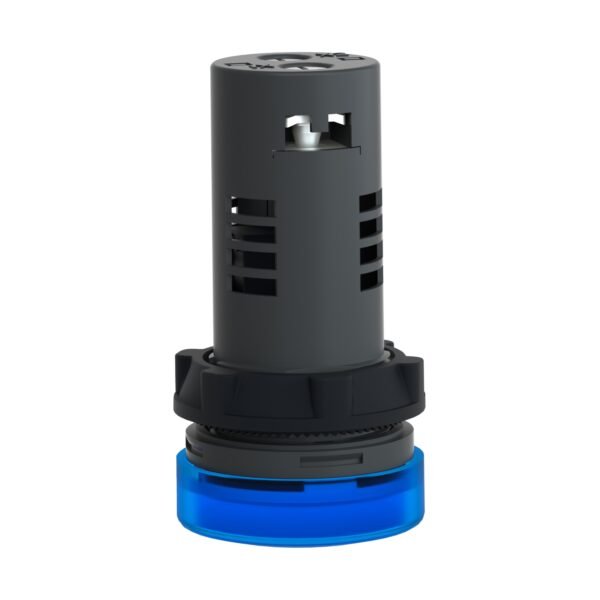

The Schneider XA2EVMD6LC Harmony is a monolithic blue pilot light from the Easy Harmony XA2E series, designed for industrial signaling applications. It features a 22mm plastic housing, an integral blue LED, and screw clamp terminals for secure and efficient wiring. Operating at 220V DC, this pilot light provides a reliable and bright visual indication for various control systems.
2. Key Features
Compact & Durable Design: Integrated LED with a robust plastic enclosure.
Standard Ø22mm Mounting: Ensures compatibility with most industrial panels.
Bright Blue LED Indicator: Provides clear signaling for operational status.
Reliable Construction: Designed to withstand industrial environments.
Easy Wiring: Screw clamp terminals for secure and quick installation.
Voltage Compatibility: Operates efficiently at 220V DC.
3. Technical Specifications
Series: Easy Harmony XA2E
Type: Monolithic Pilot Light
Material: Plastic
Mounting Diameter: Ø22mm
Lens Color: Blue
Illumination Type: Integral LED
Operating Voltage: 220V DC
Connection Type: Screw clamp terminals
4. Benefits
Clear & Reliable Signaling: The blue LED ensures a strong visual indication.
Energy-Efficient & Long-Lasting: LED technology minimizes power consumption and maintenance.
Industrial-Grade Performance: Built for demanding environments.
Quick & Secure Installation: Standard size with easy wiring setup.
5. Applications
Industrial Control Panels
Machine Status Indication
Electrical Distribution Systems
Process Control & Automation
6. Conclusion
The Schneider XA2EVMD6LC Harmony is a high-quality blue pilot light that offers clear visibility, energy efficiency, and industrial-grade durability at 220V DC. Its integral LED, monolithic structure, and secure wiring terminals make it an ideal solution for automation and control applications.
Additional information
brands
Schneider Electric
Specifications
Main
range of product
Easy Harmony XA2
product or component type
Monolithic pilot light
Device short name
XA2
Mounting diameter
22.5 mm
Shape of signaling unit head
Round
cap/operator or lens colour
Blue
Light source
LED
Bulb base
Integral LED
[Us] rated supply voltage
220...230 V AC 50/60 Hz
Complementary
Terminals description ISO n°1
(X1-X2)PL
Device mounting
Fixing hole 22.3 +0.4/0 conforming to IEC 60947-5-1
Fixing center
>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
>= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm

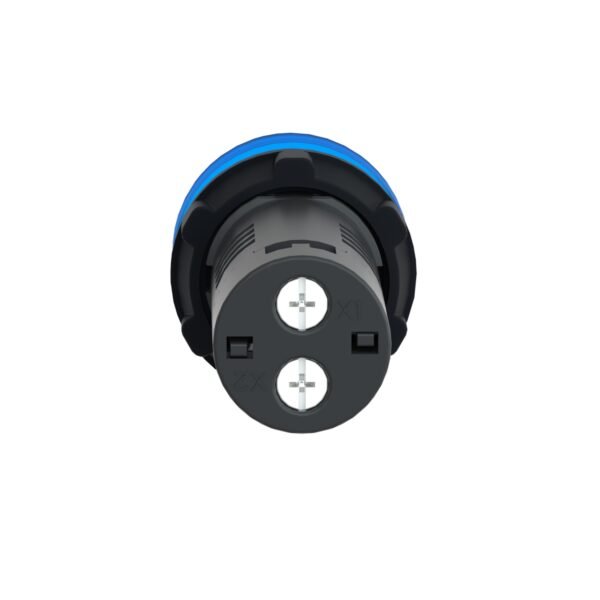

Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1
Shape of screw head
Cross compatible with Philips No 2 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
[Ui] rated insulation voltage
400 V (pollution degree 3) conforming to IEC 60947-1
