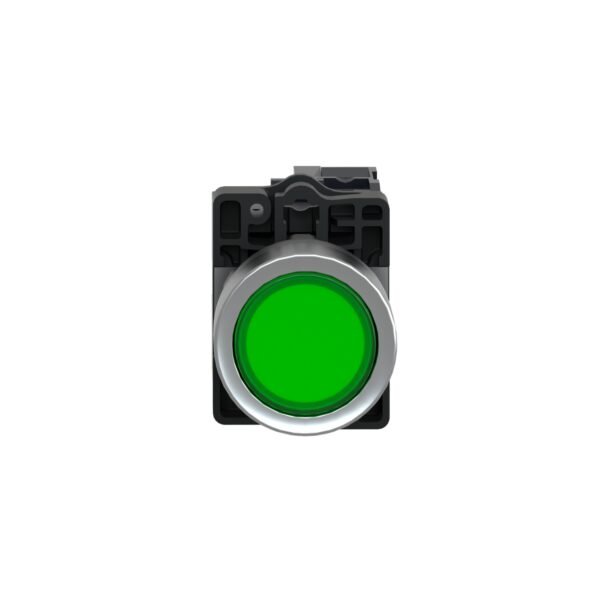

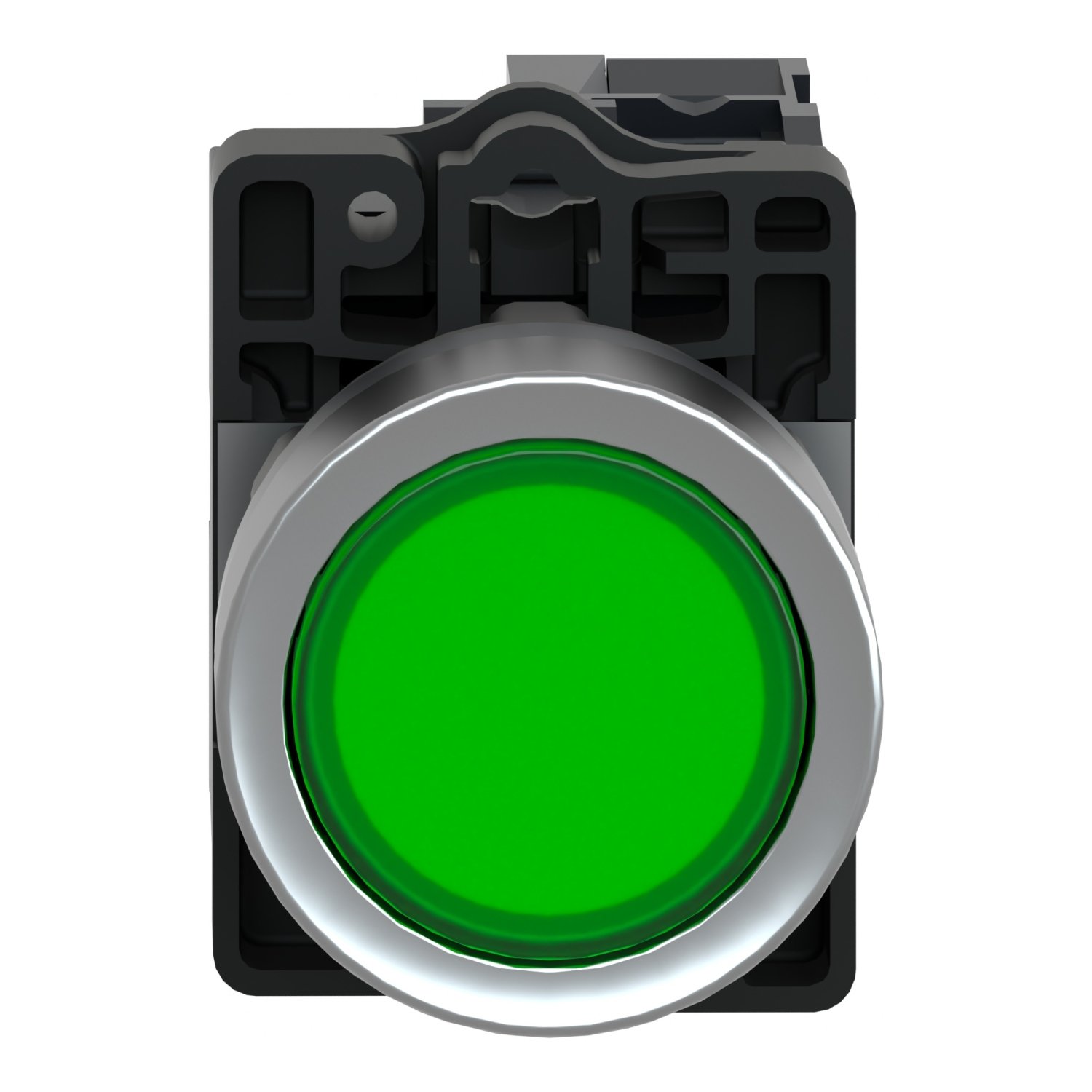

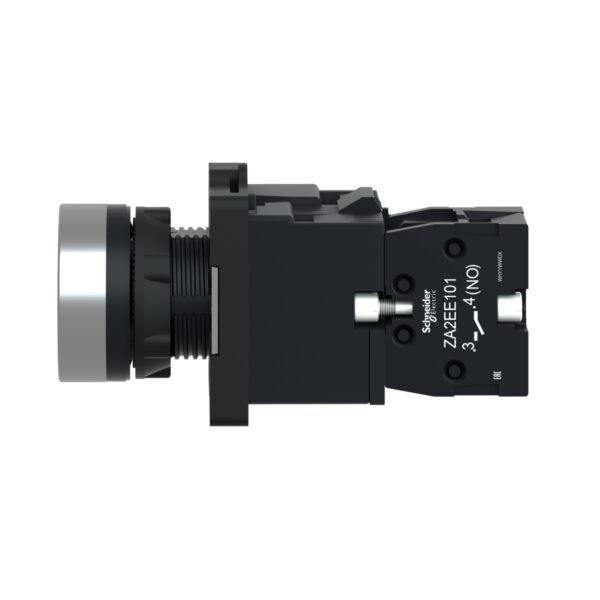

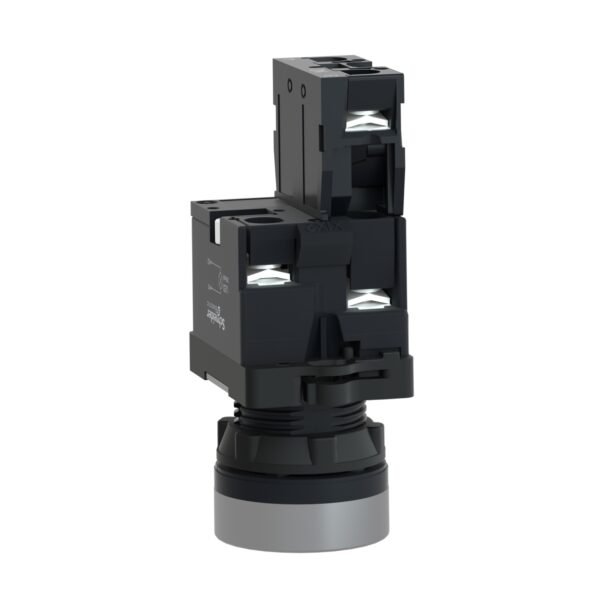

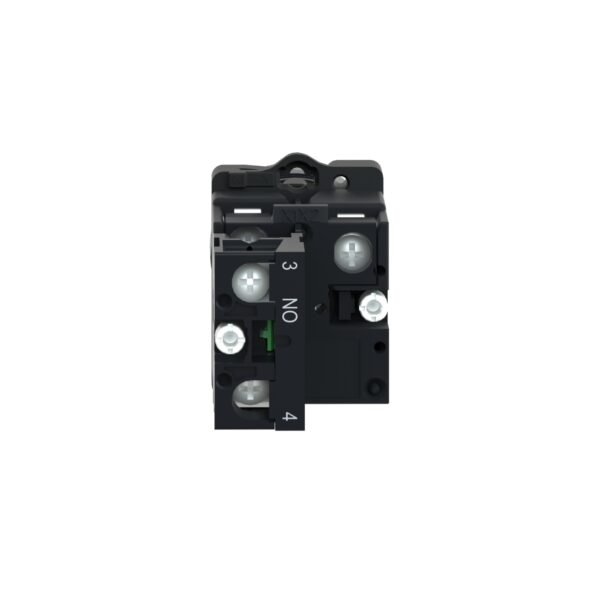

Schneider XA2EW33B1 Harmony | Green Flush Complete Illuminated Push-Button – Ø22 – 24V AC/DC – 1NO

1. Overview

The Schneider XA2EW33B1 is a complete illuminated push-button from the Harmony XA2 series, designed for industrial and commercial control applications. It features a green flush button, operates at 24V AC/DC, and has a 1NO (normally open) contact configuration. With its 22mm diameter, it is a reliable and durable choice for control systems requiring illuminated push-button functionality.

2. Key Features

• Model: XA2EW33B1
• Series: Harmony XA2
• Color: Green
• Button Type: Flush illuminated push-button
• Contact Type: 1NO (Normally Open)
• Operating Voltage: 24V AC/DC
• Mounting Diameter: 22mm
• Illumination Type: LED-based illumination for energy efficiency
• Material: Durable plastic and metal construction

3. Technical Specifications

• Voltage Rating: 24V AC/DC
• Electrical Durability: Designed for long operating cycles
• Mechanical Lifespan: High mechanical endurance
• Protection Rating: IP65 (Dust and water-resistant)
• Operating Temperature Range: -25°C to +70°C
• Certifications & Compliance: CE, RoHS, IEC standards

4. Applications

• Industrial control panels
• Automation and process control
• Machine start/stop operations
• Electrical control systems
• Operator consoles requiring illuminated feedback

5. Benefits

• Enhanced Visibility: LED illumination provides clear status indication
• Durable & Reliable: Built for industrial-grade performance
• User-Friendly Installation: Standard 22mm mounting for compatibility with various panels
• Energy Efficient: Low power consumption LED technology
• Safety & Compliance: Meets international standards for industrial use

6. Conclusion

The Schneider XA2EW33B1 Harmony illuminated green push-button is a high-quality, reliable solution for control panel applications. With LED illumination, a flush design, and a 1NO contact, it ensures efficient operation and clear visibility in industrial environments.
