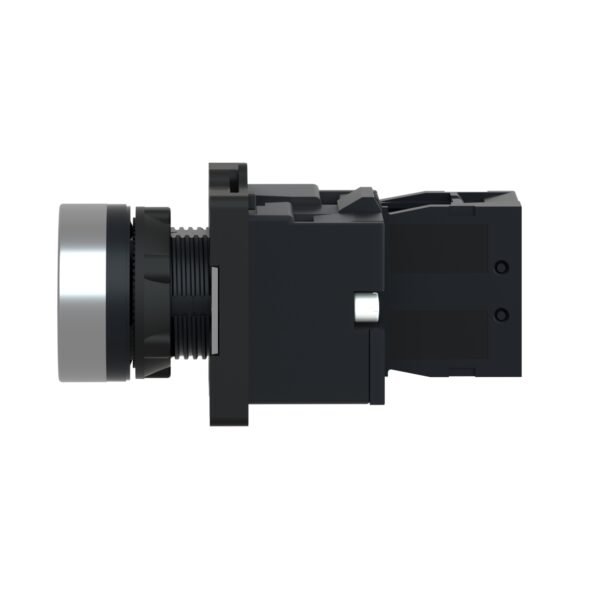

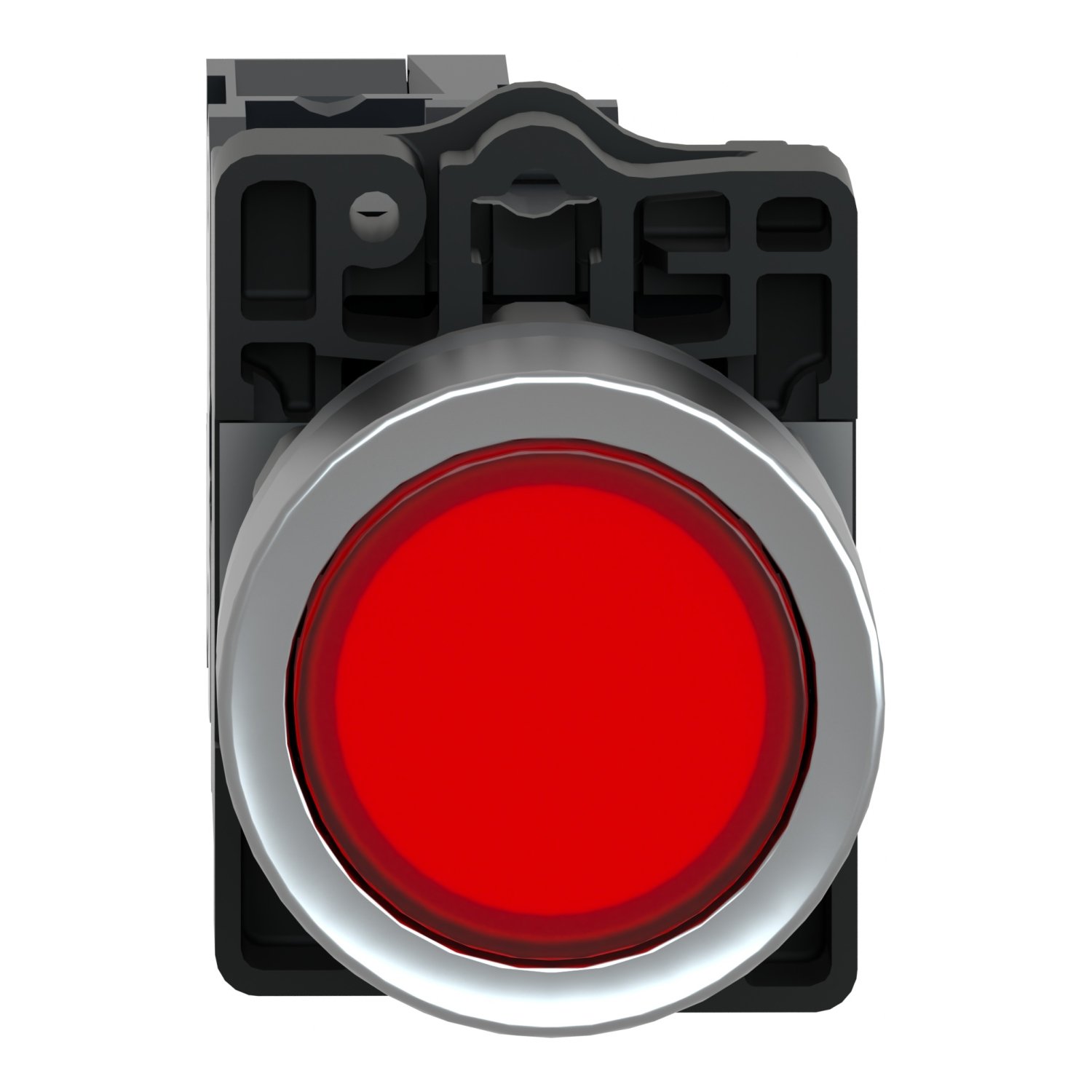

The Schneider XA2EW34M2 Harmony is a complete illuminated push button designed for industrial control applications. It features a red flush actuator with an integral LED, operating at 220V AC. With a 22mm mounting diameter, a normally closed (1NC) contact, and a spring return mechanism, it ensures reliable control and signaling in demanding environments.
2. Key Features
Illuminated Red Flush Button: Enhances visibility for machine control and signaling.
Integrated LED Lighting: Provides efficient and long-lasting illumination.
Flush Design: Sleek, space-saving installation.
Standard Ø22mm Mounting: Compatible with most industrial panels.
1NC Contact Configuration: Suitable for stop or emergency stop functions.
Spring Return Mechanism: Ensures the button returns to its default position after use.
Operates at 220V AC: Designed for high-voltage industrial applications.
3. Technical Specifications
Series: Easy Harmony XA2
Type: Complete Illuminated Push Button
Material: Plastic
Mounting Diameter: Ø22mm
Actuator Color: Red
Illumination Type: Integral LED
Operating Voltage: 220V AC
Contact Type: 1 Normally Closed (1NC)
Action Type: Momentary (Spring Return)
Connection Type: Screw Clamp Terminals
4. Benefits
High Visibility: Bright red illumination for clear signaling.
Durable & Compact: Robust design for industrial environments.
Energy-Efficient: Long-lasting LED illumination.
Reliable Performance: Secure and responsive push-button operation.
Easy Panel Integration: Standard Ø22mm size for quick installation.
5. Applications
Industrial Control Panels
Machine Stop & Safety Systems
Process Automation & Control
Electrical Signaling & Safety Applications
6. Conclusion
The Schneider XA2EW34M2 Harmony is a versatile and high-quality illuminated push button, offering reliable performance, durable construction, and clear visual indication. Its flush design, integrated LED, and 1NC contact configuration make it an ideal choice for industrial automation and safety applications.
