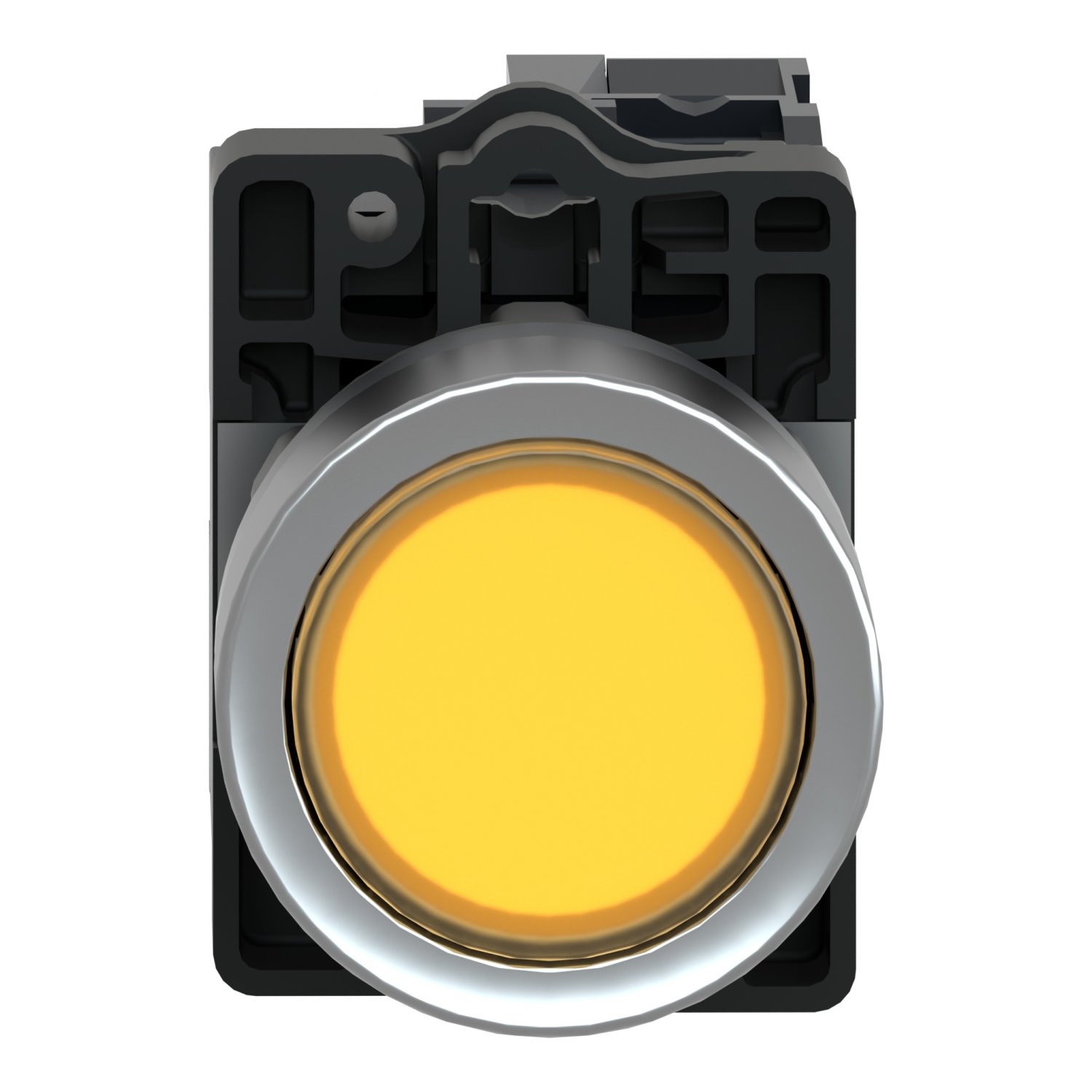

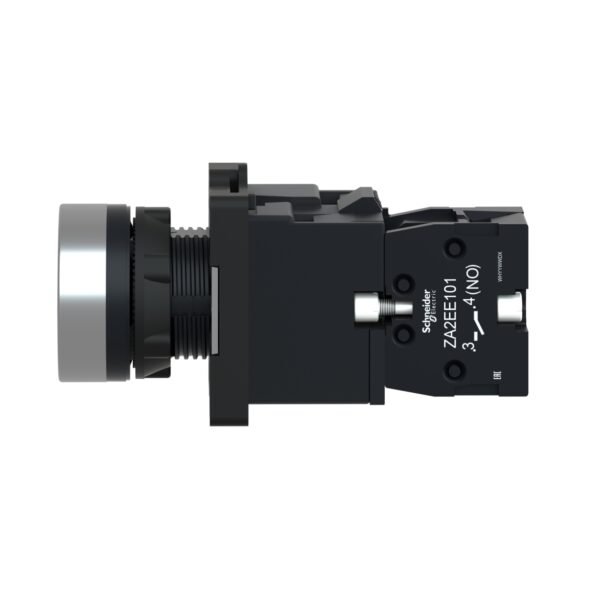

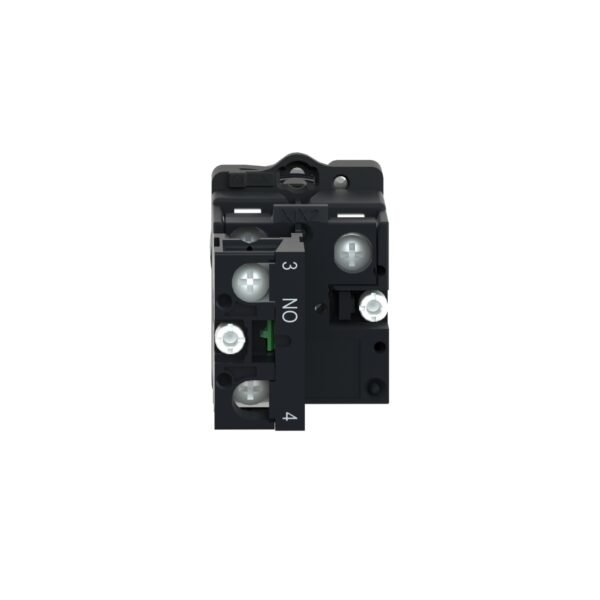

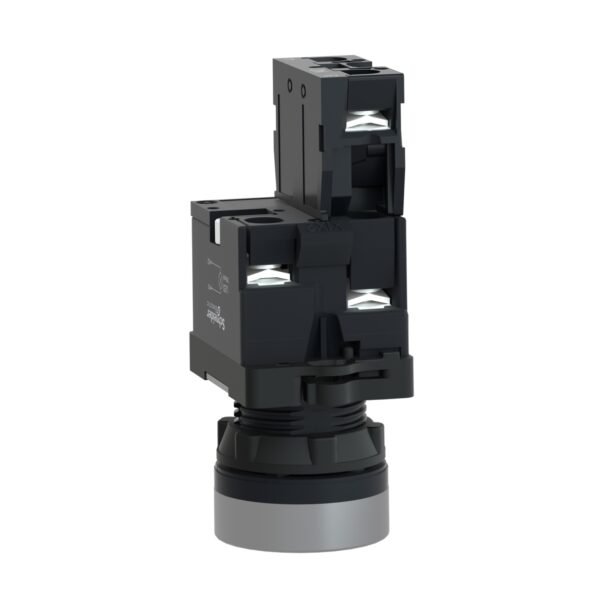

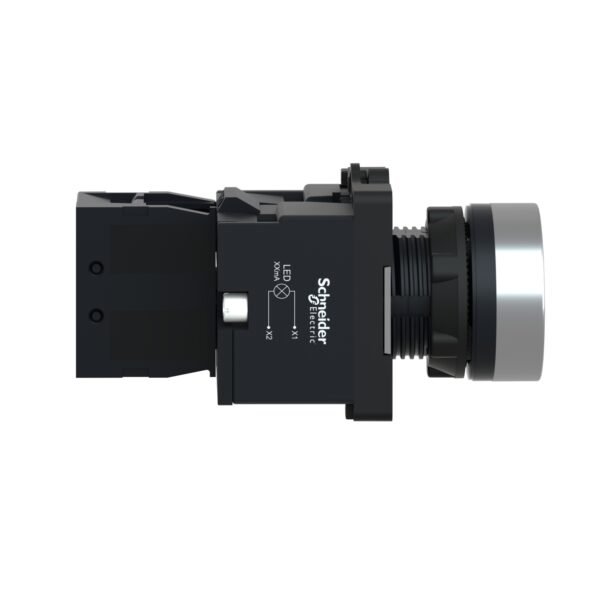

Schneider XA2EW35B1 Harmony | Yellow flush complete illum push-button – Ø22 – flush – 24V AC/DC – 1NO
Schneider XA2EW35B1 Harmony
Original price was: EGP 3,068.00.EGP 178.00Current price is: EGP 178.00.
Description
Schneider XA2EW35B1 Harmony | Yellow Flush Complete Illuminated Push-Button – Ø22 – 24V AC/DC – 1NO
1. Overview
The Schneider XA2EW35B1 is a complete illuminated push-button from the Harmony XA2 series, designed for industrial and commercial applications. It features a yellow flush button, operates at 24V AC/DC, and includes a 1NO (normally open) contact configuration. With its 22mm mounting diameter, it offers reliable performance and easy integration into control systems.
2. Key Features
- Model: XA2EW35B1
- Series: Harmony XA2
- Color: Yellow
- Button Type: Flush illuminated push-button
- Contact Type: 1NO (Normally Open)
- Operating Voltage: 24V AC/DC
- Mounting Diameter: 22mm
- Illumination Type: LED for energy efficiency and durability
- Material: High-quality plastic and metal construction
3. Technical Specifications
- Voltage Rating: 24V AC/DC
- Electrical Durability: Designed for long operational life
- Mechanical Lifespan: High mechanical endurance
- Protection Rating: IP65 (Dust and water-resistant)
- Operating Temperature Range: -25°C to +70°C
- Certifications & Compliance: CE, RoHS, IEC standards
4. Applications
- Industrial automation control panels
- Machinery start/stop functions
- Process control systems
- Operator consoles requiring illuminated status indication
- General electrical control applications
5. Benefits
- Enhanced Visibility: LED illumination provides clear operational feedback
- Durable & Reliable: Industrial-grade construction ensures long-term performance
- Easy Installation: Standard 22mm mounting for compatibility with various panels
- Energy Efficient: Low power consumption due to LED technology
- Safety & Compliance: Meets international standards for industrial use
6. Conclusion
The Schneider XA2EW35B1 Harmony illuminated yellow push-button is an excellent choice for industrial and commercial control applications. Its LED illumination, flush design, and 1NO contact configuration provide efficiency, durability, and ease of operation in demanding environments.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| range of product | Easy Harmony XA2 |
|---|---|
| product or component type | Complete illuminated push-button |
| Device short name | XA2 |
| Bezel material | Plastic |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
|---|---|
| Protective treatment | TC |
| Operating position | Any position |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut recommended torque: 2.2 N.m (Us +/- 10 %) |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Amber flush |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Mechanical durability | 1500000 cycles |
| Connections - terminals | Screw clamp terminals, clamping capacity: 2 x 1.5 mm² Screw clamp terminals, clamping capacity: 1 x 2.5 mm² Faston terminals, connection size: 6.3 mm Screw clamp terminals, clamping capacity: 1 x 0.5 mm² |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 0.27 A at 250 V, DC-13, Q600 3 A at 240 V, AC-15, A600 |
| Electrical durability | 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| Signalling type | Steady |
| Light source | LED |
| Bulb base | BA 9s |
| [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
| Supply voltage limits | 19…26 V AC/DC |
| current consumption | < 20 mA |
| Service life | 10000 h |
| Width | 30 mm |
| Height | 42 mm |
| Depth | 74.5 mm |
| net weight | 0.056 kg |
| cap/operator or lens colour | Yellow |
| Type of operator | Spring return |
| [Us] rated supply voltage | 24 V |
| Ambient air temperature for storage | -40…70 °C |
|---|---|
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 |
| IK degree of protection | IK03 conforming to IEC 60529 |
| Standards | IEC 60947-5-1 GB 14048.5 IEC 60947-1 GB 14048.1 |
| Product certifications | CE CCC |
| Vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.0 cm |
| Package 1 Width | 11.0 cm |
| Package 1 Length | 16.0 cm |
| Package 1 Weight | 60.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 40.0 cm |
| Package 2 Width | 160.0 cm |
| Package 2 Length | 110.0 cm |
| Package 2 Weight | 600.0 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 70 |
| Package 3 Height | 15.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 4.3 kg |
