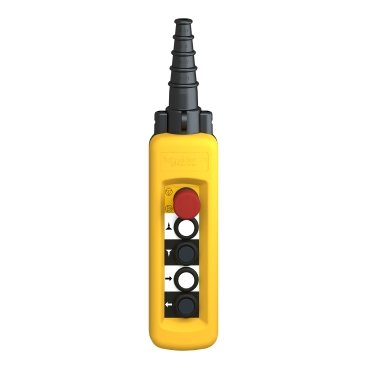

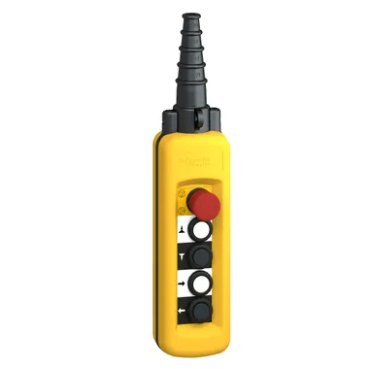

Schneider XACA4913 | Pendant control station, plastic, yellow, 4 push buttons, 1 emergency stop
EGP 10,273.00
Description
Schneider XACA4913 | Pendant control station, plastic, yellow, 4 push buttons, 1 emergency stop
Schneider XACA4913 Description
The Schneider Electric XACA4913 is a part of the Harmony XAC range of pendant control stations, specifically designed for industrial hoisting and material handling applications. This control station is recognized for its robust construction, ergonomic design, and user-friendly interface, making it a reliable choice for various industrial environments.
Key Features
- Durable Construction: Built to withstand tough industrial conditions, ensuring long-term performance and reliability.
- Ergonomic Design: Provides a comfortable grip to reduce operator fatigue during extended use.
- Intuitive Layout: Features a clear and straightforward button arrangement for easy and efficient operation.
- Comprehensive Control: Equipped with multiple buttons to handle a variety of control functions.
- High Protection Rating: Offers excellent resistance to dust and water, suitable for harsh environments.
- Pre-Wired Setup: Simplifies installation and reduces setup time, allowing for quick deployment.
Technical Specifications
- Enclosure Material: Polypropylene
- Number of Buttons: 4
- Function: Typically includes up/down and left/right control functions
- Contact Configuration: 1 NO (Normally Open)
- Cable Entry: Gland
- Protection Rating: IP65
- Operating Temperature: -25°C to +70°C (-13°F to +158°F)
- Dimensions: 85 mm x 315 mm x 85 mm (H x W x D)
- Standards Compliance: IEC 60947-5-1, UL, CSA
Applications
- Hoisting Equipment: Ideal for controlling hoists, cranes, and other lifting equipment with precision and reliability.
- Material Handling: Suitable for conveyor systems and other material handling applications, ensuring efficient control.
- Industrial Machinery: Perfect for various industrial machines, providing simple and reliable control over different functions.
- Construction Sites: Durable and rugged enough for use in construction environments where robust control solutions are essential.
Conclusion
The Schneider Electric XACA4913 pendant control station is an excellent choice for controlling hoisting and material handling equipment in industrial settings. Its durable construction, ergonomic design, and high protection rating make it an ideal solution for demanding applications. With its pre-wired convenience and compliance with international standards, the XACA4913 ensures efficient and reliable operation, enhancing safety and productivity.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony XAC |
|---|---|
| Product or component type | Pendant control station |
| Device short name | XACA |
| Control station type | Double insulated |
|---|---|
| Enclosure material | Polypropylene |
| Electrical circuit type | Control circuit |
| Enclosure type | Complete ready for use |
| Control station application | Control of 2-speed hoist motor |
| Control station composition | 4 push-buttons + 1 emergency stop |
| Control button type | First push-button 1 NC + 2 NO raise, slow-fast Second push-button 1 NC + 2 NO lower, slow-fast Stop push-button Ø 40 mm 1 NC latching Fourth push-button 1 NC + 2 NO left, slow-fast Third push-button 1 NC + 2 NO right, slow-fast |
| Product compatibility | ZB2BE102 for emergency stop XENG1191 for each direction |
| mechanical interlocking | With mechanical interlocking between pairs |
| Control station colour | Yellow |
| Connections - terminals | Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end |
| Standards | IEC 60204-32 IEC 60947-5-1 CSA C22.2 No 14 UL 508 |
| Product certifications | CCC GOST |
| protective treatment | TH |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Mechanical durability | 1000000 cycles |
| Cable entry | Rubber sleeve with stepped entry 8…26 mm |
| Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Contact operation | Staggered Slow-break |
| Maximum resistance across terminals | 25 MOhm |
| Operating force | 18 N push-button 8 N emergency stop |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| Rated operational power in W | 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| Terminals description ISO n°1 | (33-34)NO_CL (13-14)NO (21-22)NC |
| Terminals description ISO n°2 | (11-12)NC |
| Terminal identifier | (13-14)NO (11-12)NC |
| Net weight | 0.675 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.0 cm |
| Package 1 Width | 11.0 cm |
| Package 1 Length | 52.0 cm |
| Package 1 Weight | 895.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 6.121 kg |
| Warranty | 18 months |
|---|
