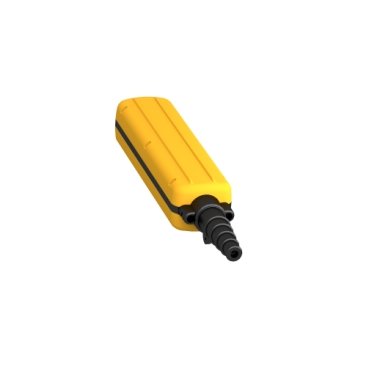

Schneider XACA691 | Pendant control station, Harmony XAC, plastic, yellow, 6 push buttons
Schneider XACA691 | Pendant control station, Harmony XAC, plastic, yellow, 6 push buttons
Original price was: EGP 1,291,859.00.EGP 710,523.00Current price is: EGP 710,523.00.
Description
Schneider XACA691 | Pendant control station, Harmony XAC, plastic, yellow, 6 push buttons
The Schneider Electric XACA691 is a robust and ergonomic pendant control station from the Harmony XAC range. Designed for use in industrial environments, it features six push buttons and is ideal for controlling hoists, cranes, or machinery in a safe and efficient manner.
General Specifications
-
Product name: XACA691
-
Product type: Pendant control station
-
Range: Harmony XAC
-
Material: Durable plastic enclosure
-
Color: Yellow body with black/colored push buttons
-
Number of push buttons: 6
-
Control type: Direct control through mechanical push buttons
-
Mounting: Handheld (pendant-type), suitable for hanging
Electrical and Mechanical Features
-
Contact type: Slow-break, 1 NO or 1 NC per button (depending on configuration)
-
Electrical rating: Typically suitable for low-voltage control circuits
-
Cable entry: Bottom cable gland entry
-
Protection rating: IP65 (dust-tight and water-jet resistant)
-
Shock resistance: High mechanical durability, suitable for rugged environments
-
Operating temperature: -25°C to +70°C
Design and Ergonomics
-
Compact and lightweight for easy handling
-
Clearly labeled buttons for intuitive operation
-
Enclosure made from high-quality thermoplastic for insulation and durability
-
Designed to reduce operator fatigue during extended use
-
Yellow color improves visibility and enhances safety
Applications
-
Overhead cranes
-
Hoisting and lifting equipment
-
Conveyor systems
-
Industrial machines requiring manual control
-
Material handling systems
Benefits
-
Easy and safe manual control for machinery
-
Durable construction for demanding industrial use
-
IP65 protection ensures reliable operation in dusty or wet environments
-
Simple wiring and maintenance
-
Customizable layout with various button functions
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of produc | Harmony XAC |
|---|---|
| Product or component type | Pendant control station |
| Device short name | XACA |
| Control station type | Double insulated |
|---|---|
| Enclosure material | Polypropylene |
| Electrical circuit type | Control circuit |
| enclosure type | Complete ready for use |
| Control station application | Control of 2-speed hoist motor |
| Mechanical interlocking | With mechanical interlocking between pairs |
| Control station colour | Yellow |
| Connections - terminals | Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end |
| Protective treatment | TH |
| ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 50102 |
| Mechanical durability | 1000000 cycles |
| Cable entry | Rubber sleeve with stepped entry 8…26 mm |
| Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| contact operation | Slow-break |
| Maximum resistance across terminals | 25 MOhm |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| Rated operational power in W | 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.500 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 57.000 cm |
| Package 1 Weight | 1.074 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 13.538 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 62.152 kg |
