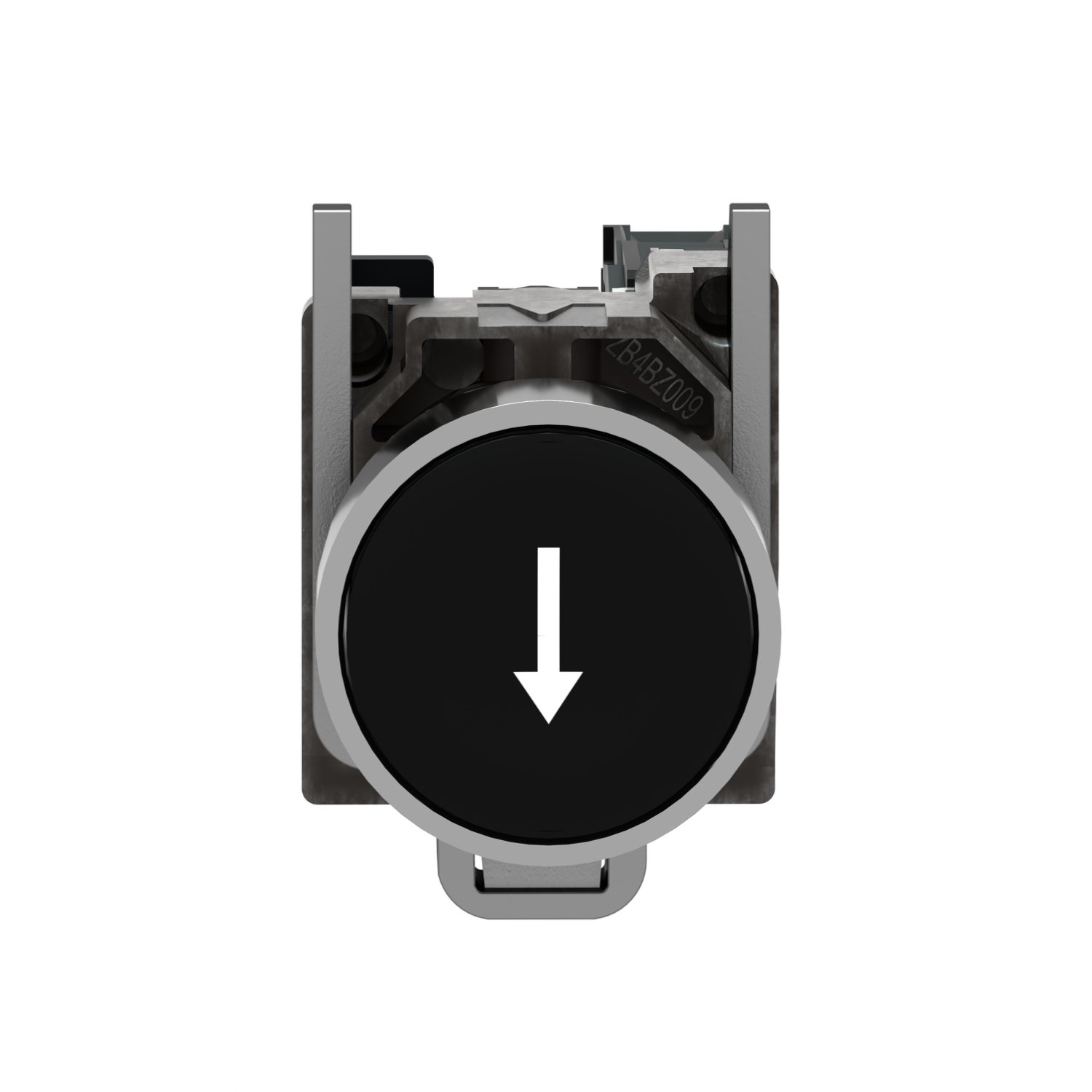

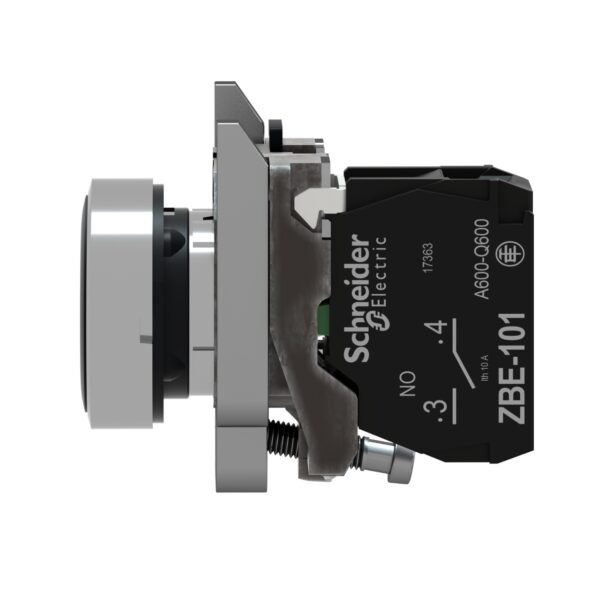

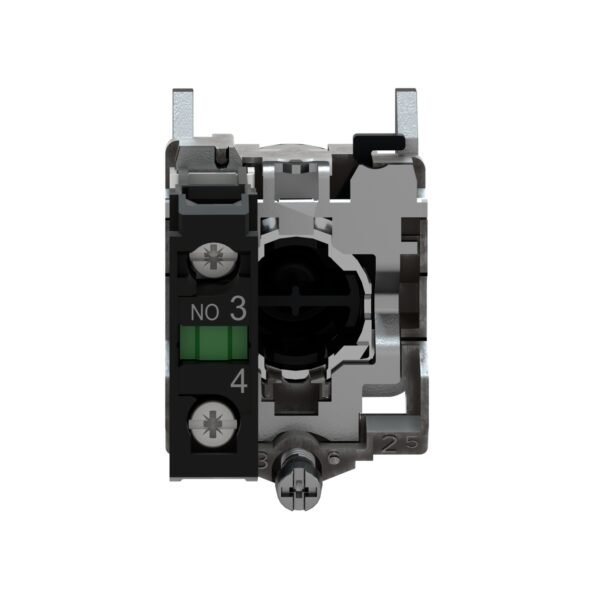

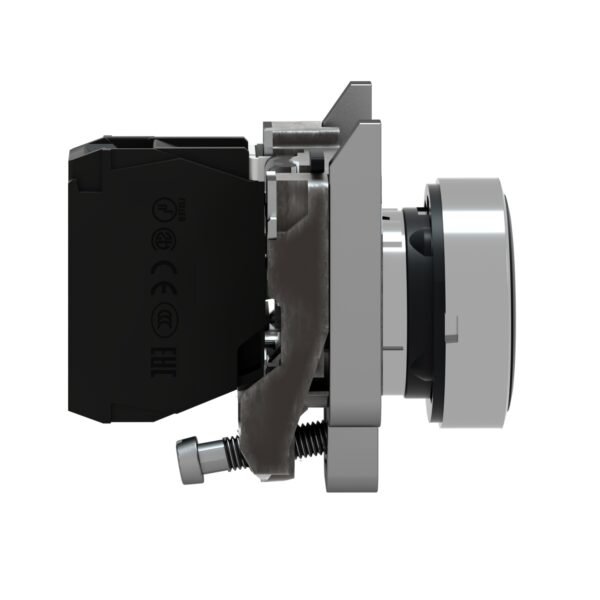

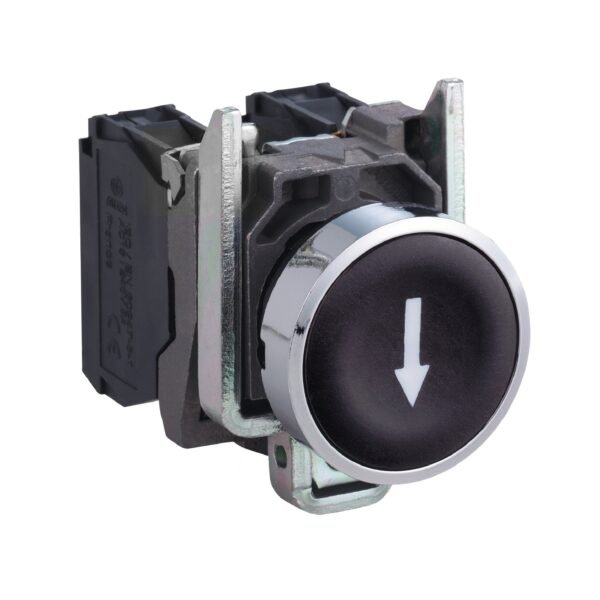

Schneider XB4BA3351 Harmony | Push button, metal, flush, black, Ø22, spring return, marked DOWN ARROW, 1 NO
Schneider XB4BA3351 Harmony
Original price was: EGP 10,017.00.EGP 581.00Current price is: EGP 581.00.
Description
1. Introduction
Welcome to our comprehensive guide on it. If you’re seeking detailed insights into this exceptional pushbutton switch, you’ve come to the right place. We’ll delve into its features, specifications, applications, and more to help you understand why the XB4BA3351 Harmony is a top choice in the industry.
2. Understanding Schneider XB4BA3351 Harmony
it is a high-quality pushbutton switch designed for a wide range of industrial and commercial applications. Renowned for its durability and user-friendly design, it’s a key component in ensuring reliable and efficient control systems.
3. Features of Schneider XB4BA3351 Harmony
3.1. Robust Construction
Built to last, the XB4BA3351 Harmony boasts a rugged construction that withstands the toughest industrial environments. Its robust design ensures long-term reliability and performance.
3.2. User-Friendly Design
Ergonomics play a significant role in the design of it. The pushbutton is easy to operate, reducing user fatigue and improving overall efficiency in control operations.
3.3. High Compatibility
The XB4BA3351 Harmony is compatible with various Schneider Electric components and systems, making it a versatile addition to any setup. Its standardized design facilitates seamless integration.
4. Technical Specifications
4.1. Electrical Ratings
The XB4BA3351 Harmony features impressive electrical ratings that support a wide range of applications. It operates effectively within specified voltage and current limits, ensuring safety and reliability.
4.2. Mechanical Durability
Designed for longevity, the XB4BA3351 Harmony can endure a high number of actuations, making it a durable choice for continuous use in demanding environments.
5. Applications of Schneider XB4BA3351 Harmony
5.1. Industrial Settings
In industrial settings, it is used to control machinery and equipment, providing reliable input signals for various processes. Its durability and reliability make it an ideal choice for these applications.
5.2. Commercial Uses
The XB4BA3351 Harmony also finds applications in commercial environments, such as building management systems, where reliable control switches are essential.
6. Installation and Setup
6.1. Step-by-Step Guide
Installing it is straightforward. Begin by turning off all power sources. Securely mount the switch in the designated panel cutout, connect the wiring according to the provided schematic, and test the functionality before full operation.
6.2. Safety Precautions
Always prioritize safety during installation. Wear appropriate protective gear and ensure all connections are secure to prevent electrical hazards.
7. Maintenance Tips
7.1. Routine Checks
Perform routine checks to maintain the functionality of the XB4BA3351 Harmony. Inspect for signs of wear and tear, ensure connections are tight, and clean the switch to prevent dust buildup.
7.2. Troubleshooting Tips
If issues arise, troubleshooting is essential. Common problems include unresponsive buttons or intermittent signals, often resolved by inspecting and tightening connections or replacing worn components.
8. Advantages of Using Schneider XB4BA3351 Harmony
8.1. Enhanced Efficiency
it boosts efficiency by providing reliable and responsive control in various applications, reducing downtime and improving productivity.
8.2. Cost Savings
With its robust features and long lifespan, it offers excellent value for money. Its low maintenance needs and durability translate to cost savings over time.
9. Comparing Schneider XB4BA3351 Harmony with Competitors
When compared to competitors, it stands out due to its superior durability, compatibility with other Schneider Electric products, and ergonomic design. These features make it a more reliable and user-friendly option.
10. Customer Reviews and Testimonials
Customers consistently praise it for its reliability and ease of use. Testimonials highlight its durable construction and how it has improved operational efficiency in various settings.
11. Where to Purchase Schneider XB4BA3351 Harmony
You can purchase it from authorized distributors or online marketplaces. Ensure you buy from reputable sources to get genuine products with valid warranties.
12. Conclusion
In conclusion, it is a top-tier pushbutton switch that excels in durability, design, and functionality. Whether you’re in an industrial or commercial setting, this device offers reliable performance and ease of use, making it a smart investment.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony XB4 |
|---|---|
| Device short name | XB4 |
| Product or component type | Push-button |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Black flush, down arrow (white) |
| Head type | Standard |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Net weight | 0.08 kg |
|---|---|
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | Without |
| Operating travel | 2.6 mm (NO changing electrical state) 4.3 mm (total travel) |
| Operating force | 3.8 N NO changing electrical state |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4 |
| Device presentation | Complete product |
| Protective treatment | TH |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | UL 508 IEC 60947-1 IEC 60947-5-5 IEC 60947-5-4 CSA C22.2 No 14 IEC 60947-5-1 JIS C8201-5-1 JIS C8201-1 |
| Product certifications | CSA LROS (Lloyds register of shipping) BV UL listed DNV |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.800 cm |
| Package 1 Width | 3.400 cm |
| Package 1 Length | 5.400 cm |
| Package 1 Weight | 80.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 8.800 cm |
| Package 2 Width | 3.400 cm |
| Package 2 Length | 26.700 cm |
| Package 2 Weight | 401.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 150 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 12.386 kg |
| Warranty | 18 months |
|---|
