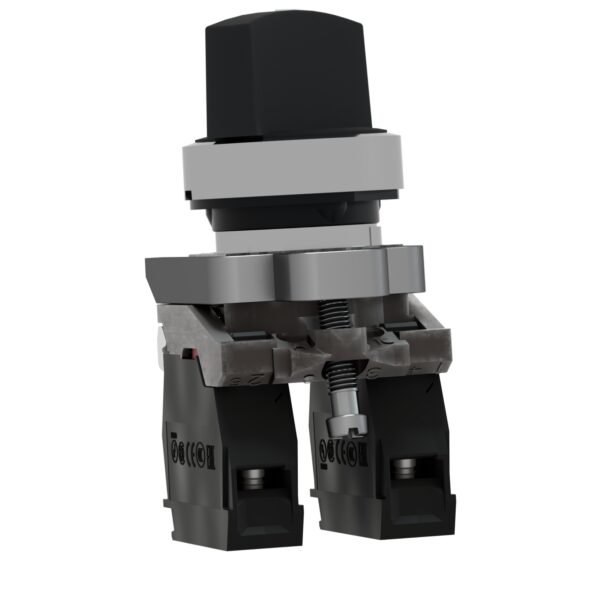

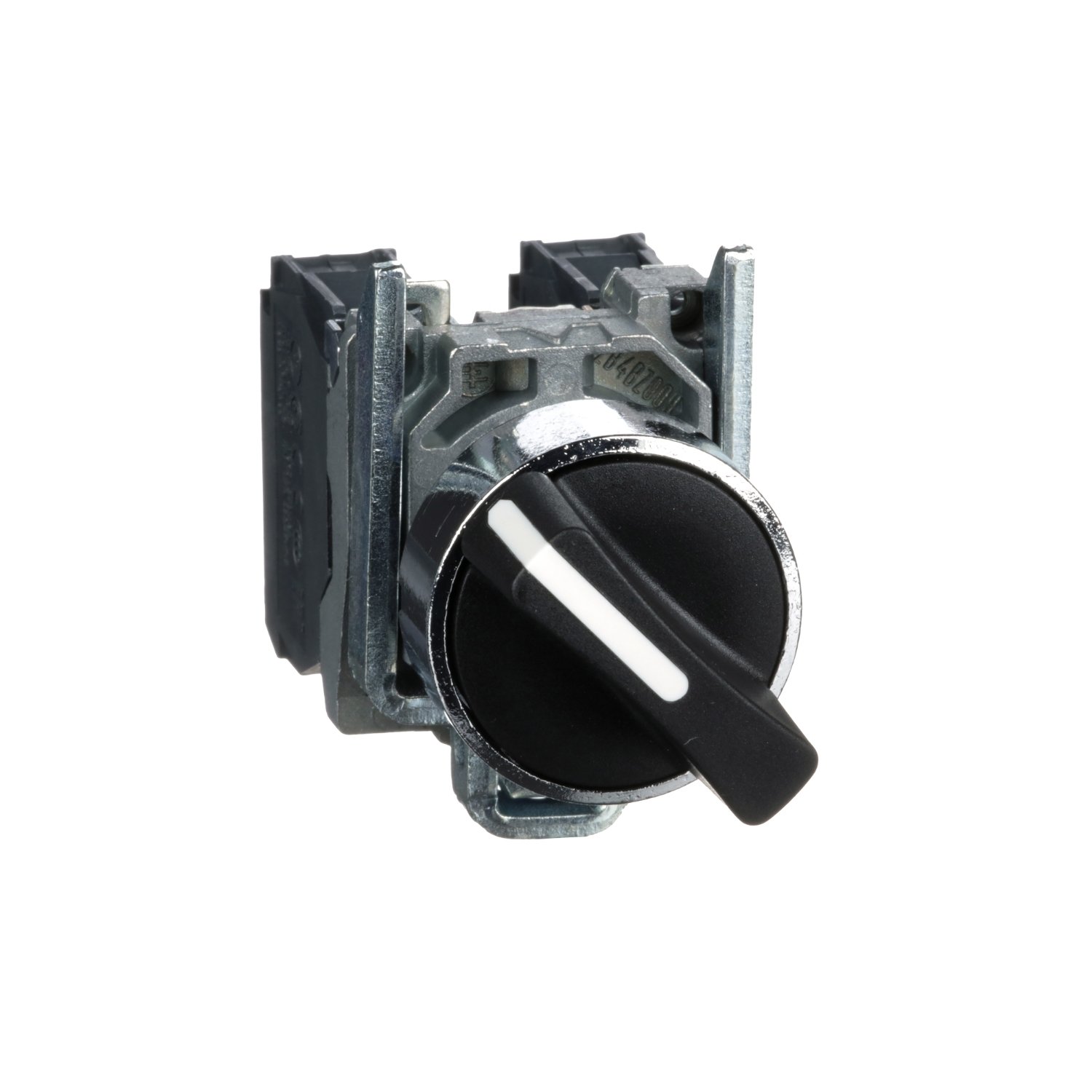

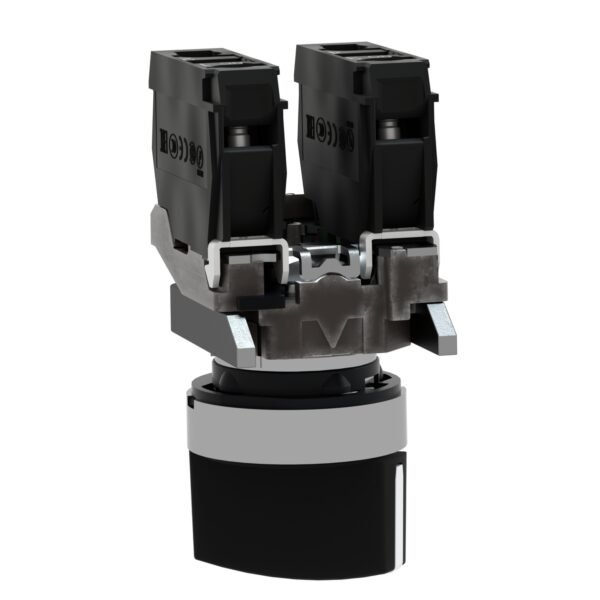

Schneider XB4BD25 Harmony | Selector switch, metal, black, Ø22, 2 positions, stay put, 1 NO+1 NC
Schneider XB4BD25 Harmony
Original price was: EGP 14,264.00.EGP 8,273.00Current price is: EGP 8,273.00.
Description
When it comes to industrial control devices, it stands out as a top choice for professionals across various sectors. Why is this device so popular, and what makes it essential for industrial applications? Let’s dive into the world of it and discover its remarkable features and benefits.
What is Schneider XB4BD25 Harmony?
it is a high-quality control device designed for a wide range of industrial applications. Known for its durability and user-friendly design, this device helps streamline operations, ensuring efficiency and reliability in demanding environments.
The Evolution of Control Devices
Control devices have come a long way from their rudimentary beginnings. Early models were often bulky and difficult to use. Over the years, advancements in technology have led to more sophisticated and user-friendly devices. The Schneider XB4BD25 Harmony represents the pinnacle of these advancements, offering features that cater to the needs of modern industries.
Key Features of Schneider XB4BD25 Harmony
Durability
One of the standout features of the Schneider XB4BD25 Harmony is its durability. Made from high-quality materials, this device is built to withstand harsh industrial environments, ensuring long-term reliability.
Design
The design of it is both functional and aesthetically pleasing. Its ergonomic shape makes it easy to handle, while its sleek design adds a touch of modernity to any industrial setup.
User-Friendliness
Ease of use is a critical factor in industrial settings. The Schneider XB4BD25 Harmony excels in this area, with intuitive controls and straightforward installation processes that save time and reduce the potential for errors.
Durability and Reliability
In industrial environments, equipment must be able to endure tough conditions. it is crafted from robust materials that ensure it can handle everything from high temperatures to heavy impacts, providing reliable performance over time.
Design and Aesthetics
Not only is the Schneider XB4BD25 Harmony built to last, but it also looks good doing its job. The ergonomic design ensures comfortable use, and its modern look means it can seamlessly fit into any control panel setup.
User-Friendliness
Installation is often a hassle with industrial devices, but not with the Schneider XB4BD25 Harmony. Its design simplifies the process, allowing for quick and easy setup. Additionally, the intuitive controls make operation straightforward, even for those new to the device.
Technical Specifications
Understanding the technical specs is crucial for making an informed decision. The Schneider XB4BD25 Harmony offers impressive electrical ratings, ensuring it meets the demands of various applications. It also boasts excellent environmental ratings, making it suitable for a wide range of conditions.
Applications of Schneider XB4BD25 Harmony
Manufacturing
In manufacturing, precision and reliability are key. The Schneider XB4BD25 Harmony helps maintain control over production processes, ensuring consistency and efficiency.
Automation
Automation relies heavily on reliable control devices. The Schneider XB4BD25 Harmony integrates seamlessly with automated systems, providing dependable control and monitoring.
Energy Management
Effective energy management is crucial for sustainability. The Schneider XB4BD25 Harmony supports energy-efficient operations, contributing to overall cost savings and environmental responsibility.
Advantages Over Competitors
In a competitive market, standing out is essential. The Schneider XB4BD25 Harmony offers several advantages over similar devices, including superior durability, user-friendly design, and robust performance, making it a top choice for industry professionals.
Installation and Maintenance
Step-by-Step Installation Guide
- Preparation: Ensure all necessary tools and components are available.
- Mounting: Secure the device in the designated spot.
- Wiring: Connect the electrical wires as per the instructions.
- Testing: Power up the device and conduct initial tests to ensure proper installation.
Maintenance Tips
- Regular Inspections: Periodically check for any signs of wear or damage.
- Cleaning: Keep the device clean to prevent dust and debris from affecting performance.
- Updates: Stay updated with any firmware or software updates provided by Schneider.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony XB4 |
|---|---|
| Product or component type | Selector switch |
| Device short name | XB4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Type of operator | stay put |
| Operator profile | Black standard handle |
| Operator position information | 2 positions 90° |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Height | 47 mm |
|---|---|
| Width | 30 mm |
| Depth | 68 mm |

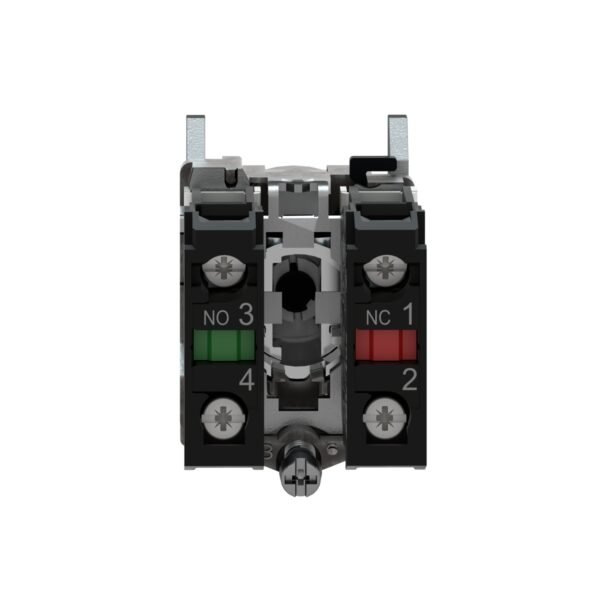

| Terminals description ISO n°1 | (13-14)NO (21-22)NC |
| Net weight | 0.105 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Torque value | 0.14 N.m NO changing electrical state |
| Mechanical durability | 1000000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4 |
| Device presentation | Complete product |
| Protective treatment | TH |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class I conforming to IEC 60536 |
| IP degree of protection | IP69 IP69K IP67 conforming to IEC 60529 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| Standards | IEC 60947-5-5 JIS C8201-5-1 UL 508 IEC 60947-5-4 IEC 60947-1 CSA C22.2 No 14 IEC 60947-5-1 JIS C8201-1 |
| Product certifications | BV UL CSA DNV LROS (Lloyds register of shipping) |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.200 cm |
| Package 1 Width | 5.200 cm |
| Package 1 Length | 8.200 cm |
| Package 1 Weight | 103.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 8.800 cm |
| Package 2 Width | 3.400 cm |
| Package 2 Length | 26.500 cm |
| Package 2 Weight | 518.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 10.910 kg |
| Warranty | 18 months |
|---|
