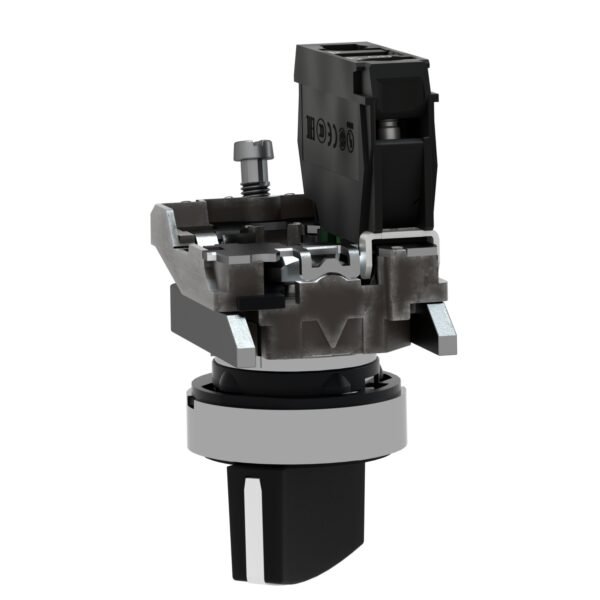

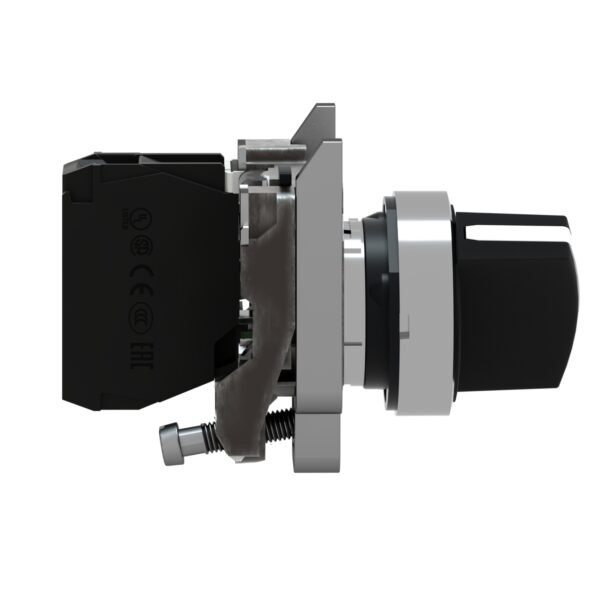

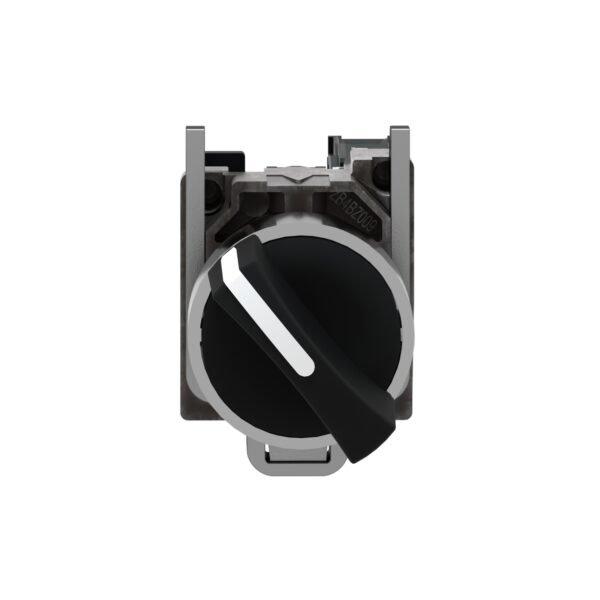

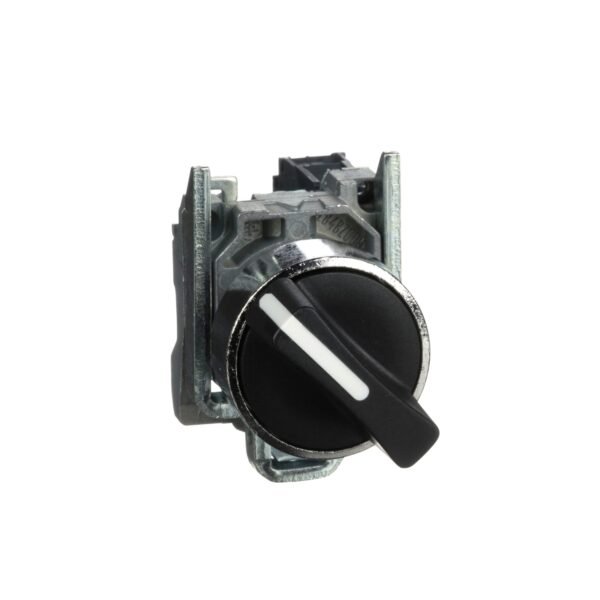

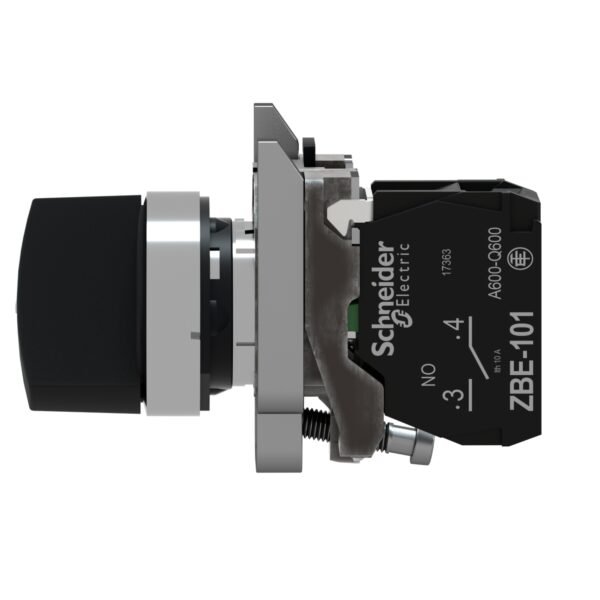

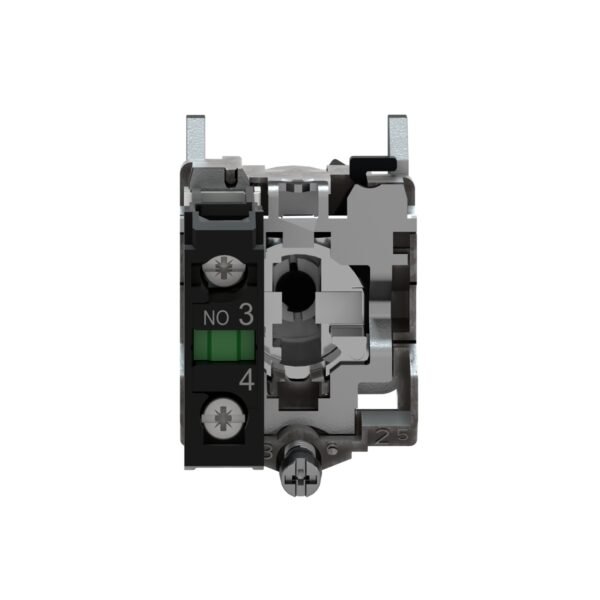

Schneider XB4BD41 Harmony | Selector switch, metal, black, Ø22, 2 positions, spring return from right to left, 1NO
Schneider XB4BD41 Harmony
Original price was: EGP 16,467.00.EGP 9,551.00Current price is: EGP 9,551.00.
Description
Schneider XB4BD41 Harmony
In the realm of industrial automation, efficiency and safety are paramount. Schneider Electric, a global leader in energy management and automation, stands at the forefront of providing innovative solutions to meet these demands. Among its array of industrial components, the Schneider XB4BD41 Harmony holds a prominent place, offering unparalleled functionality and reliability.
What is the XB4BD41 Harmony?
it is a versatile series of push buttons and indicators designed to streamline industrial operations. Engineered with precision and durability in mind, this component serves as a cornerstone in control and signaling applications across various industries.
Features and Specifications
it boasts a robust construction, capable of withstanding harsh environmental conditions common in industrial settings. Its ergonomic design ensures ease of use, while its modular nature allows for flexible configuration to suit specific requirements. With options for illuminated buttons and customizable labeling, users can easily differentiate between functions, enhancing operational efficiency.
Applications in Industrial Settings
From manufacturing plants to power distribution facilities, the XB4BD41 Harmony finds application in a myriad of scenarios. Whether it’s controlling machinery, signaling status updates, or initiating emergency protocols, this versatile component plays a crucial role in ensuring smooth and safe operations.
Key Components of the XB4BD41 Harmony
At the heart of the XB4BD41 Harmony are its push buttons and indicators, engineered to deliver precise feedback and control. Available in various sizes and colors, these buttons provide tactile response, aiding operators in navigating complex systems with ease.
Push Buttons and Indicators
The XB4BD41 Harmony offers a diverse range of push buttons and indicators, each serving a specific function. Whether it’s a start/stop command, an emergency shutdown, or a status indication, these components are designed to withstand repetitive use and maintain consistent performance over time.
Mounting and Installation Options
Flexibility in installation is another hallmark of the XB4BD41 Harmony series. With options for panel mounting, surface mounting, or flush mounting, users can integrate these components seamlessly into their existing infrastructure. Additionally, compatibility with standard wiring protocols simplifies installation procedures, reducing downtime and operational disruptions.
Durability and Reliability
In demanding industrial environments, reliability is non-negotiable. The XB4BD41 Harmony excels in this aspect, featuring rugged construction and adherence to stringent quality standards. With ingress protection ratings and resistance to shock and vibration, these components ensure uninterrupted operation even in the harshest conditions.
Benefits of Using the XB4BD41 Harmony
The adoption of the XB4BD41 Harmony offers a multitude of benefits for industrial operators and businesses alike.
Enhanced Functionality
By providing intuitive control interfaces and clear visual feedback, the XB4BD41 Harmony enhances operational efficiency and reduces the risk of errors. Its customizable features allow for tailored solutions to meet specific workflow requirements, empowering users to optimize their processes for maximum productivity.
Improved Safety Measures
Safety is a top priority in industrial environments, and the XB4BD41 Harmony prioritizes this aspect with features such as emergency stop buttons and illuminated indicators for hazard identification. By facilitating quick response times and clear communication, these components help mitigate risks and ensure the well-being of personnel and assets.
Cost-Effectiveness
Despite its advanced capabilities, it remains cost-effective, offering a high return on investment for businesses. By minimizing downtime, reducing maintenance costs, and improving overall efficiency, it contributes to long-term savings and operational sustainability.
How to Choose the Right Schneider XB4BD41 Harmony
Selecting the appropriate it variant requires careful consideration of various factors.
Assessing Industrial Needs
Understanding the specific requirements of your industrial operations is crucial in determining the suitable configuration of the XB4BD41 Harmony. Consider factors such as the type of machinery, environmental conditions, and regulatory compliance to ensure compatibility and optimal performance.
Compatibility with Existing Systems
Integration with existing automation systems and protocols is essential for seamless operation. Consult with Schneider Electric experts to assess compatibility and explore potential interoperability with other components or software solutions deployed in your facility.
Consulting with Experts
Schneider Electric offers comprehensive support and expertise to assist users in selecting the right XB4BD41 Harmony solution for their needs. Leverage their knowledge and experience to gain insights into best practices, installation guidelines, and troubleshooting techniques.
Installation and Maintenance Tips
Proper installation and regular maintenance are imperative to maximize the lifespan and performance of the XB4BD41 Harmony.
Proper Installation Procedures
Follow manufacturer-recommended installation procedures and safety guidelines to ensure optimal functionality and compliance with regulatory standards. Pay attention to factors such as wiring configurations, mounting techniques, and environmental considerations to avoid potential issues down the line.
Regular Maintenance Checks
Schedule periodic maintenance checks to inspect the condition of the XB4BD41 Harmony components and address any signs of wear or damage promptly. Cleanliness, proper alignment, and functional testing are essential aspects of routine maintenance that help prolong the lifespan and reliability of these components.
Troubleshooting Common Issues
In the event of operational anomalies or malfunctions, refer to the troubleshooting guidelines provided by Schneider Electric. Identify potential root causes, such as wiring faults, mechanical failures, or environmental factors, and follow established procedures to rectify the issue effectively.
Success Stories and Case Studies
Real-world examples demonstrate the tangible benefits of incorporating the XB4BD41 Harmony into industrial workflows.
Real-World Examples of XB4BD41 Harmony Usage
From automotive manufacturing plants to food processing facilities, businesses across diverse industries have leveraged the XB4BD41 Harmony to optimize their operations. Case studies highlight instances of improved efficiency, enhanced safety measures, and cost savings achieved through the deployment of these components.
Positive Outcomes and Efficiency Gains
By streamlining processes, reducing downtime, and ensuring regulatory compliance, the XB4BD41 Harmony contributes to tangible efficiency gains and operational excellence. Success stories underscore the transformative impact of Schneider Electric’s innovative solutions on businesses worldwide.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of Product | Harmony XB4 |
|---|---|
| Product or Component Type | Selector switch |
| Device short name | XB4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Type of operator | Right to left spring return |
| Operator profile | Black standard handle |
| Operator position information | 2 positions 90° |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
| Height | 1.9 in (47 mm) |
|---|---|
| Width | 1.2 in (30 mm) |
| Depth | 2.7 in (68 mm) |
| Terminals description ISO n°1 | (13-14)NO |
| Net Weight | 0.231 lb(US) (0.105 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | Without |
| Torque value | 1.24 lbf.in (0.14 N.m) NO changing electrical state |
| Mechanical durability | 1000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Device presentation | Complete product |
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class I conforming to IEC 60536 |
| IP degree of protection | IP69 IP69K IP67 IEC 60529 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| Standards | IEC 60947-1 CSA C22.2 No 14 IEC 60947-5-1 UL 508 IEC 60947-5-4 JIS C8201-5-1 IEC 60947-5-5 JIS C8201-1 |
| Product Certifications | DNV BV LROS (Lloyds register of shipping) CSA UL |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | US10CS222468 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389118124714 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.42 in (3.6 cm) |
| Package 1 Width | 2.13 in (5.4 cm) |
| Package 1 Length | 3.54 in (9 cm) |
| Package 1 Weight | 3.6 oz (102 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 11.81 in (30 cm) |
| Package 2 Width | 11.81 in (30 cm) |
| Package 2 Length | 15.75 in (40 cm) |
| Package 2 Weight | 23.285 lb(US) (10.562 kg) |
| Warranty | 18 months |
|---|
