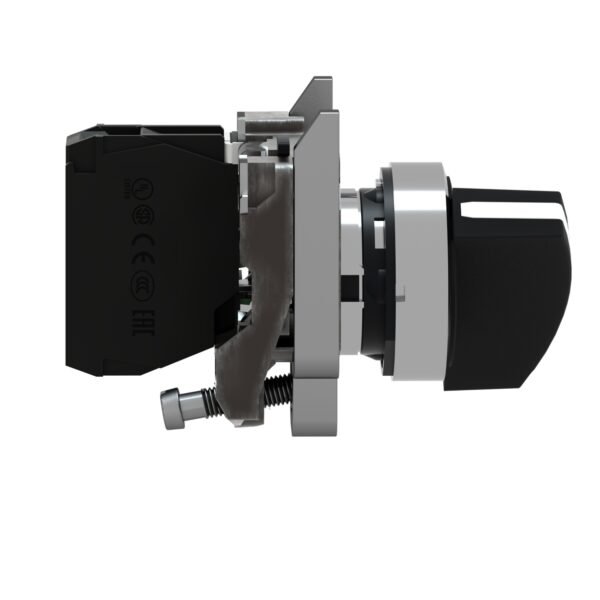

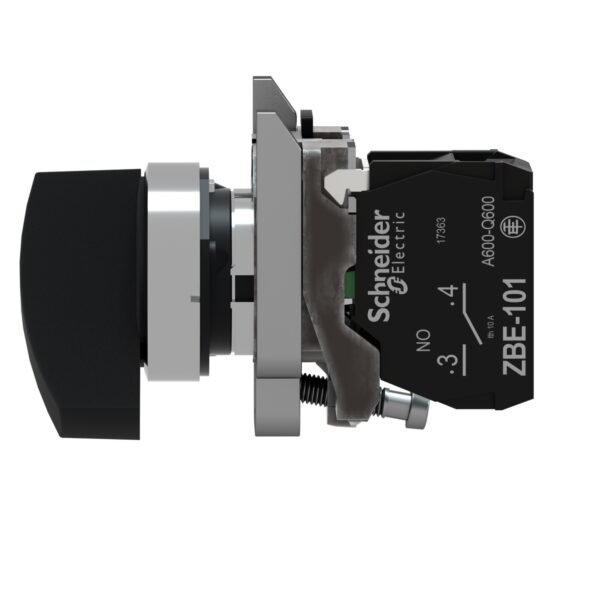

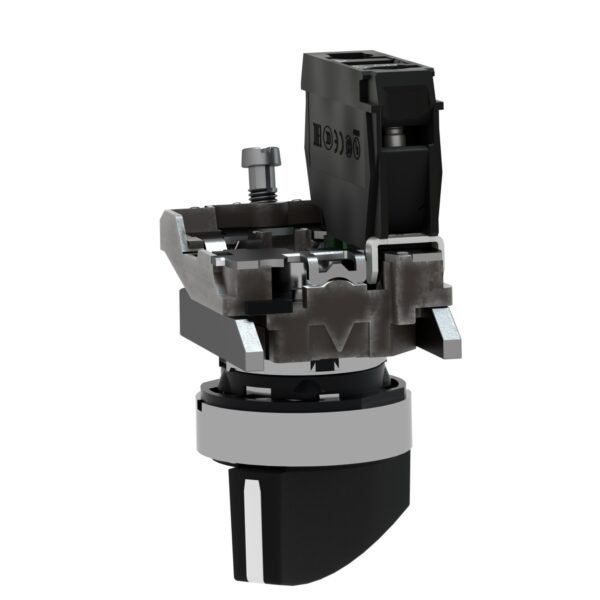

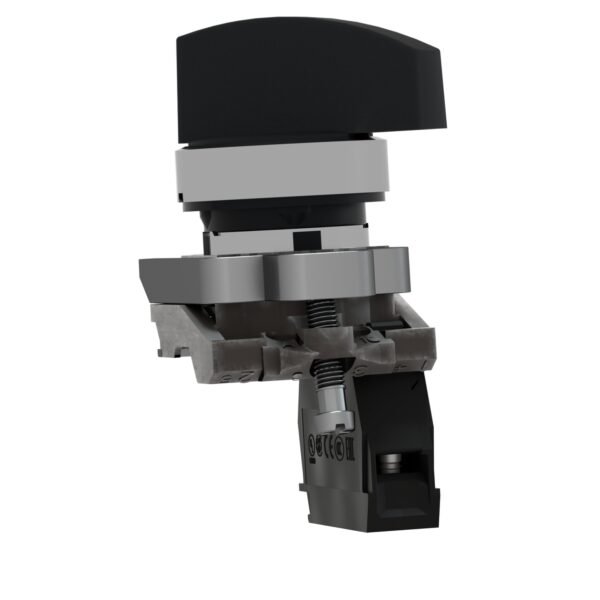

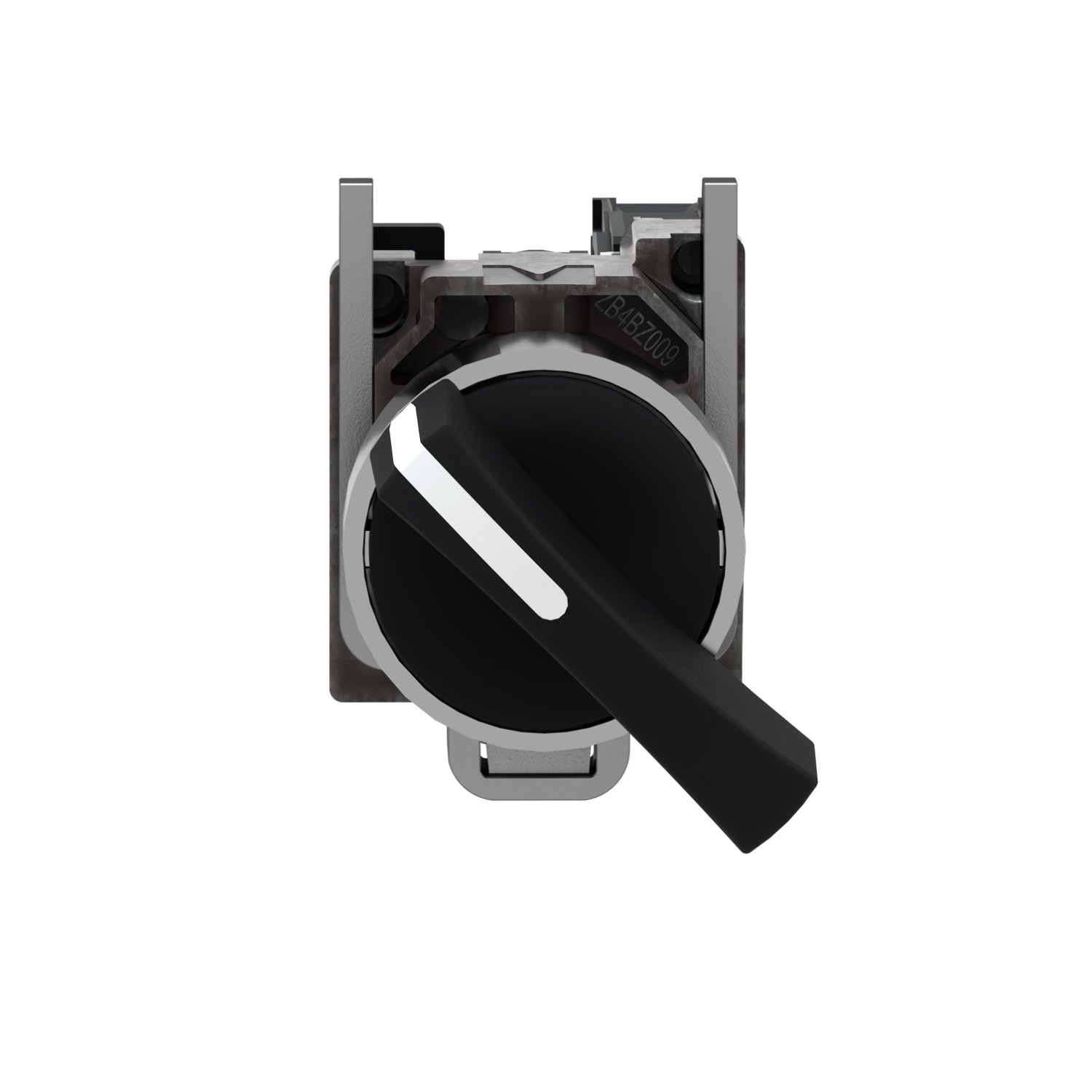

Schneider XB4BJ21 Harmony | Selector switch, metal ,black Ø22, long handle, 2 positions, stay put, 1 NO
Schneider XB4BJ21 Harmony
Original price was: EGP 13,006.00.EGP 7,543.00Current price is: EGP 7,543.00.
Description
Schneider XB4BJ21 Harmony
Introduction
What is the Schneider XB4BJ21 Harmony?
it is a premium industrial control and signaling device from Schneider Electric, known for its robust design and reliability. It is widely used in various industrial applications, ensuring seamless operation and control.
Importance in Industrial Applications
In industrial settings, having reliable control devices is crucial. it stands out due to its durability and efficiency, making it an essential component in manufacturing plants, energy sectors, and other industrial environments.
Understanding the Basics
Overview of Schneider Electric
Schneider Electric is a global leader in energy management and automation solutions. With a history of innovation and quality, Schneider’s products are trusted worldwide.
The Harmony Line of Products
The Harmony line by Schneider Electric includes a range of industrial control and signaling devices designed for high performance and reliability. it is one of the standout products in this series.
Key Features of XB4BJ21
it boasts several key features:
- Durable Construction: Made to withstand harsh industrial environments.
- Ease of Integration: Compatible with various systems.
- High Visibility: Clear signaling for improved safety and efficiency.
Technical Specifications
Physical Dimensions
it is compact yet sturdy, designed to fit seamlessly into different control panels without occupying too much space.
Electrical Ratings
It operates efficiently within a wide range of electrical ratings, ensuring compatibility with various industrial setups.
Environmental Ratings
The XB4BJ21 is designed to perform reliably under extreme conditions, including high temperatures and humidity.
Key Benefits
Durability
Built with high-quality materials, the XB4BJ21 offers exceptional durability, making it suitable for long-term use in industrial environments.
Ease of Use
The user-friendly design ensures easy installation and operation, reducing downtime and enhancing productivity.
Compatibility
The XB4BJ21 is compatible with a wide range of industrial systems, allowing for versatile applications.
Installation and Setup
Pre-Installation Checklist
Before installation, ensure you have all necessary tools and have read the installation manual thoroughly.
Step-by-Step Installation Guide
- Turn off Power: Ensure the system is powered down.
- Mounting: Secure the XB4BJ21 in the designated spot.
- Wiring: Connect the wires as per the manual.
- Testing: Power on the system and test the device.
Safety Precautions
Always follow safety guidelines to prevent accidents during installation.
Applications in Various Industries
Manufacturing
In manufacturing, the XB4BJ21 is used for controlling machinery, ensuring efficient and safe operations.
Energy and Utilities
In the energy sector, it plays a crucial role in managing electrical systems and ensuring consistent power supply.
Transportation
The transportation industry uses the XB4BJ21 for signaling and control in various applications, enhancing safety and efficiency.
Comparing with Competitors
Schneider vs. Siemens
While Siemens offers similar products, Schneider’s XB4BJ21 stands out for its superior build quality and ease of use.
Schneider vs. ABB
ABB is another major player, but the XB4BJ21’s compatibility and reliability give it an edge.
Unique Selling Points
The XB4BJ21’s unique selling points include its durability, user-friendly design, and wide compatibility.
User Reviews and Feedback
Positive Experiences
Users appreciate the XB4BJ21 for its reliability and ease of installation, highlighting its robust performance in various environments.
Common Issues
Some users have reported minor issues with connectivity, but these are generally resolved quickly with proper troubleshooting.
Expert Opinions
Experts in industrial automation recommend the XB4BJ21 for its innovative design and reliable performance.
Maintenance and Troubleshooting
Regular Maintenance Tips
Regularly check for wear and tear and ensure the device is clean and free from dust.
Common Problems and Solutions
Common issues include connectivity problems and wear. Solutions typically involve checking connections and replacing worn parts.
When to Call a Professional
If you encounter persistent issues that cannot be resolved through basic troubleshooting, it’s best to call a professional.
Future Developments
Upcoming Features
Schneider Electric continues to innovate, with future versions expected to include enhanced connectivity and more robust features.
Innovations in Industrial Controls
The future of industrial controls looks promising with advancements in IoT integration and automation, where the XB4BJ21 will play a significant role.
Conclusion
Summary of Key Points
The Schneider XB4BJ21 Harmony is a top-tier industrial control device known for its durability, ease of use, and compatibility. It plays a vital role in various industries, from manufacturing to transportation.
Final Thoughts
Investing in it ensures reliable and efficient control in your industrial applications, backed by Schneider Electric’s reputation for quality and innovation.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of Product | Harmony XB4 |
|---|---|
| Product or Component Type | Selector switch |
| Device short name | XB4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Type of operator | stay put |
| Operator profile | Black long handle |
| Operator position information | 2 positions 90° |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
| Height | 1.9 in (48 mm) |
|---|---|
| Width | 1.2 in (30 mm) |
| Depth | 2.7 in (68 mm) |
| Terminals description ISO n°1 | (13-14)NO |
| Net Weight | 0.212 lb(US) (0.096 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | Without |
| Torque value | 1.24 lbf.in (0.14 N.m) NO changing electrical state |
| Mechanical durability | 1000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Device presentation | Complete product |
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class I conforming to IEC 60536 |
| IP degree of protection | IP69 IP69K IP67 IEC 60529 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| Standards | IEC 60947-5-5 CSA C22.2 No 14 UL 508 IEC 60947-5-4 IEC 60947-5-1 IEC 60947-1 JIS C8201-5-1 JIS C8201-1 |
| Product Certifications | BV UL CSA DNV LROS (Lloyds register of shipping) |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | US10CS222468 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110887082 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.05 in (5.200 cm) |
| Package 1 Width | 1.34 in (3.400 cm) |
| Package 1 Length | 3.54 in (9.000 cm) |
| Package 1 Weight | 3.351 oz (95.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 22.068 lb(US) (10.010 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 800 |
| Package 3 Height | 29.53 in (75.000 cm) |
| Package 3 Width | 23.62 in (60.000 cm) |
| Package 3 Length | 31.50 in (80.000 cm) |
| Package 3 Weight | 198.866 lb(US) (90.204 kg) |
| Warranty | 18 months |
|---|
