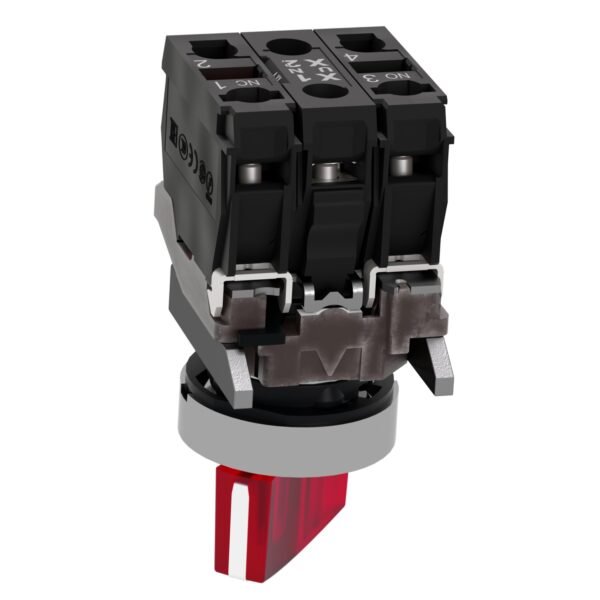

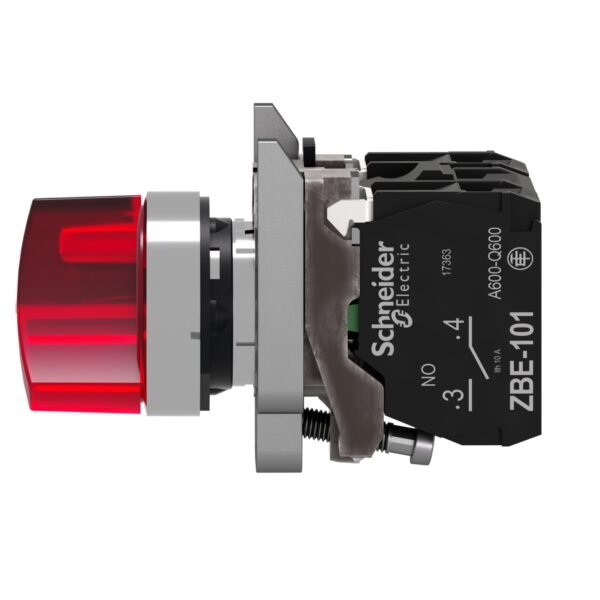

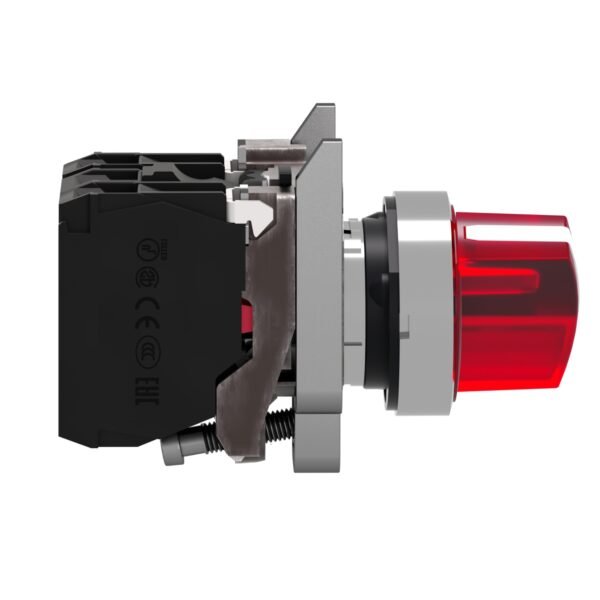

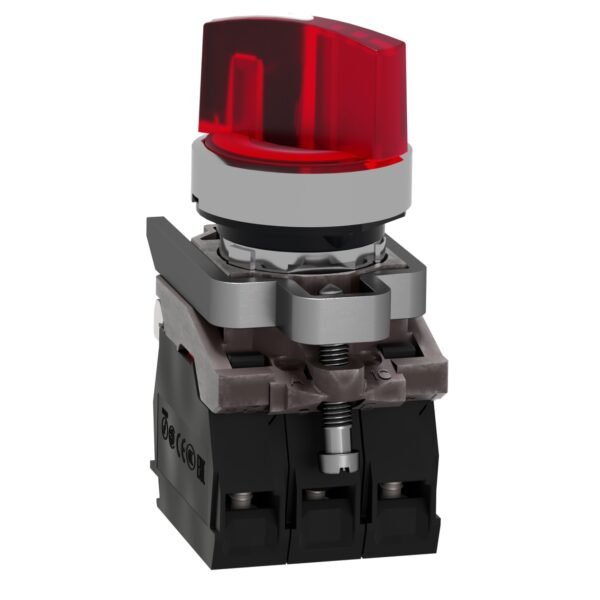

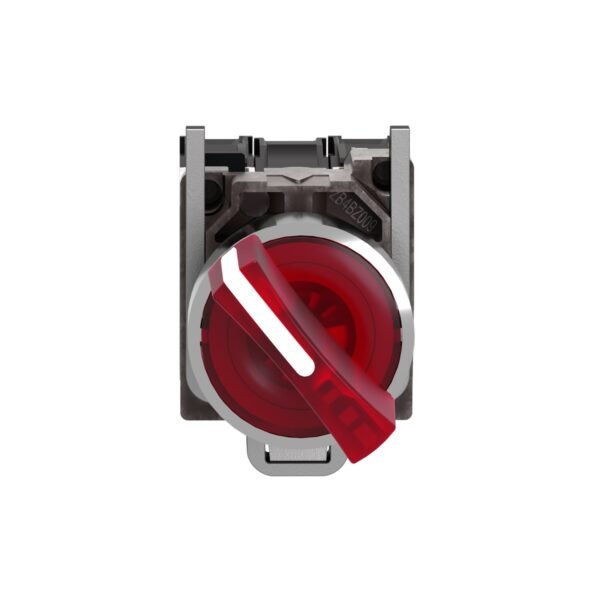

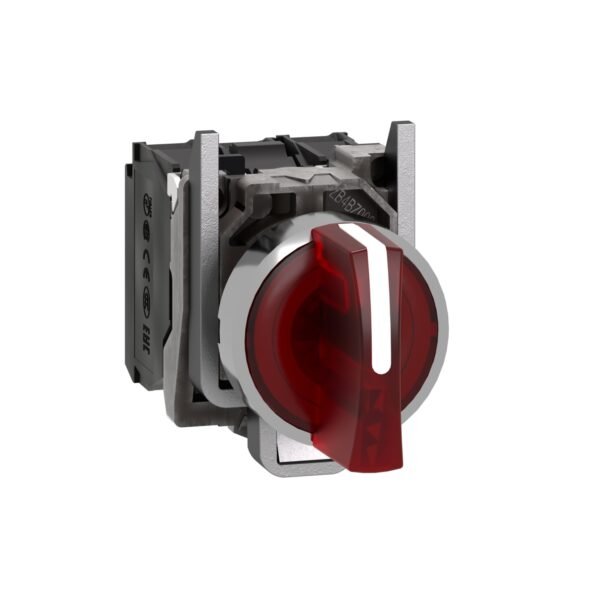

Schneider XB4BK124B5 | Illuminated selector switch, metal, red, Ø22, 2 positions, stay put, 24 V AC/DC, 1 NO + 1 NC
Original price was: EGP 26,876.00.EGP 15,588.00Current price is: EGP 15,588.00.
Description
Schneider XB4BK124B5 | Illuminated selector switch, metal, red, Ø22, 2 positions, stay put, 24 V AC/DC, 1 NO + 1 NC
Schneider XB4BK124B5 | Illuminated Selector Switch, Metal, Red, Ø22, 2 Positions, Stay Put, 24 V AC/DC, 1 NO + 1 NC Description
In the world of electrical components, the Schneider XB4BK124B5 illuminated selector switch stands out as a reliable and efficient device. This article dives deep into its features, specifications, installation process, benefits, and more.
Introduction
The Schneider XB4BK124B5 is a high-quality illuminated selector switch designed for industrial and commercial use. It offers precise control and durability, making it a preferred choice for various applications.
Features
One of the key features of this switch is its illuminated design, which enhances visibility in dimly lit environments. The metal construction ensures sturdiness, while the red color adds a distinctive touch.
Specifications
- Diameter: Ø22
- Positions: 2 (Stay Put)
- Voltage: 24 V AC/DC
- Contacts: 1 NO (Normally Open) + 1 NC (Normally Closed)
Installation
Installing the Schneider XB4BK124B5 switch is straightforward. Begin by ensuring power is turned off, then follow the manufacturer’s guidelines for wiring and mounting.
Usage
Once installed, users can easily toggle between the two positions to control different functions or systems. The illuminated feature aids in quick identification, improving operational efficiency.
Benefits
- Enhanced visibility with illuminated design
- Durable metal construction for longevity
- Precise control with 2-position functionality
- Suitable for various voltage requirements
Applications
This switch finds applications in machinery, control panels, industrial equipment, and automation systems where reliable and visible switching is crucial.
Comparison
Compared to similar switches in the market, the Schneider XB4BK124B5 offers a blend of quality, functionality, and affordability, making it a top choice for engineers and technicians.
Maintenance
Regular inspection and cleaning are recommended to ensure optimal performance and longevity. Follow maintenance guidelines provided by Schneider Electric.
Troubleshooting
For common issues like flickering lights or intermittent operation, check connections and voltage compatibility. Consult the user manual or contact Schneider Electric for assistance.
Safety Precautions
- Always follow electrical safety protocols during installation and maintenance.
- Use appropriate personal protective equipment (PPE) when working with electrical components.
- Keep the switch away from moisture and extreme temperatures.
Customer Reviews
Users praise the Schneider XB4BK124B5 for its reliability, ease of installation, and durability. Positive feedback highlights its performance in demanding industrial environments.
Conclusion
In conclusion, the Schneider XB4BK124B5 illuminated selector switch is a versatile and dependable choice for professionals seeking efficient control solutions. Its features, specifications, and user feedback reinforce its position as a leading product in the market.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of Product | Harmony XB4 |
|---|---|
| Product or Component Type | Illuminated selector switch |
| Device short name | XB4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Head type | Standard |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | stay put |
| Operator profile | Red standard handle |
| Operator position information | 2 positions 90° |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
| Light source | Universal LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
| Height | 1.9 in (47 mm) |
|---|---|
| Width | 1.2 in (30 mm) |
| Depth | 2.7 in (68 mm) |

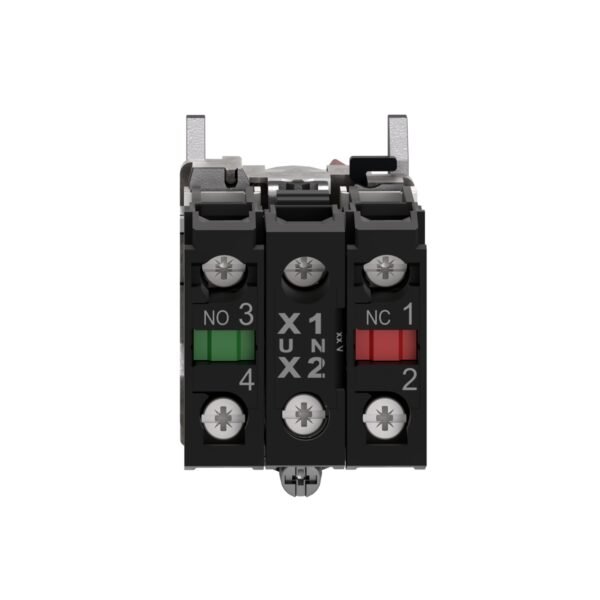

| Terminals description ISO n°1 | (13-14)NO (21-22)NC |
| Net Weight | 0.245 lb(US) (0.111 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | With IEC 60947-5-1 appendix K |
| Operating torque | 1.24 lbf.in (0.14 N.m) NO changing electrical state |
| Mechanical durability | 1000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Signalling type | Steady |
| Supply voltage limits | 19.2…30 V DC 21.6…26.4 V AC |
| current consumption | 18 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV IEC 61000-4-5 |
| Device presentation | Complete product |
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK04 conforming to IEC 50102 |
| Standards | IEC 60947-5-1 JIS C8201-5-1 IEC 60947-5-4 CSA C22.2 No 14 UL 508 IEC 60947-5-5 IEC 60947-1 JIS C8201-1 |
| Product Certifications | BV UL CSA DNV LROS (Lloyds register of shipping) |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
| Category | US10CS222467 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110892208 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.42 in (3.600 cm) |
| Package 1 Width | 2.13 in (5.400 cm) |
| Package 1 Length | 3.58 in (9.100 cm) |
| Package 1 Weight | 3.845 oz (109.000 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 3.39 in (8.600 cm) |
| Package 2 Width | 10.43 in (26.500 cm) |
| Package 2 Length | 1.30 in (3.300 cm) |
| Package 2 Weight | 19.577 oz (555.000 g) |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 11.81 in (30.000 cm) |
| Package 3 Width | 11.81 in (30.000 cm) |
| Package 3 Length | 15.75 in (40.000 cm) |
| Package 3 Weight | 25.499 lb(US) (11.566 kg) |
| Warranty | 18 months |
|---|
