Schneider XB4BL73415 | Double-headed push button, metal, Ø22, 1 green flush marked I + 1 red projecting marked O, 1 NO + 1 NC

Schneider XB4BL73415 | Double-Headed Push Button

1. Overview

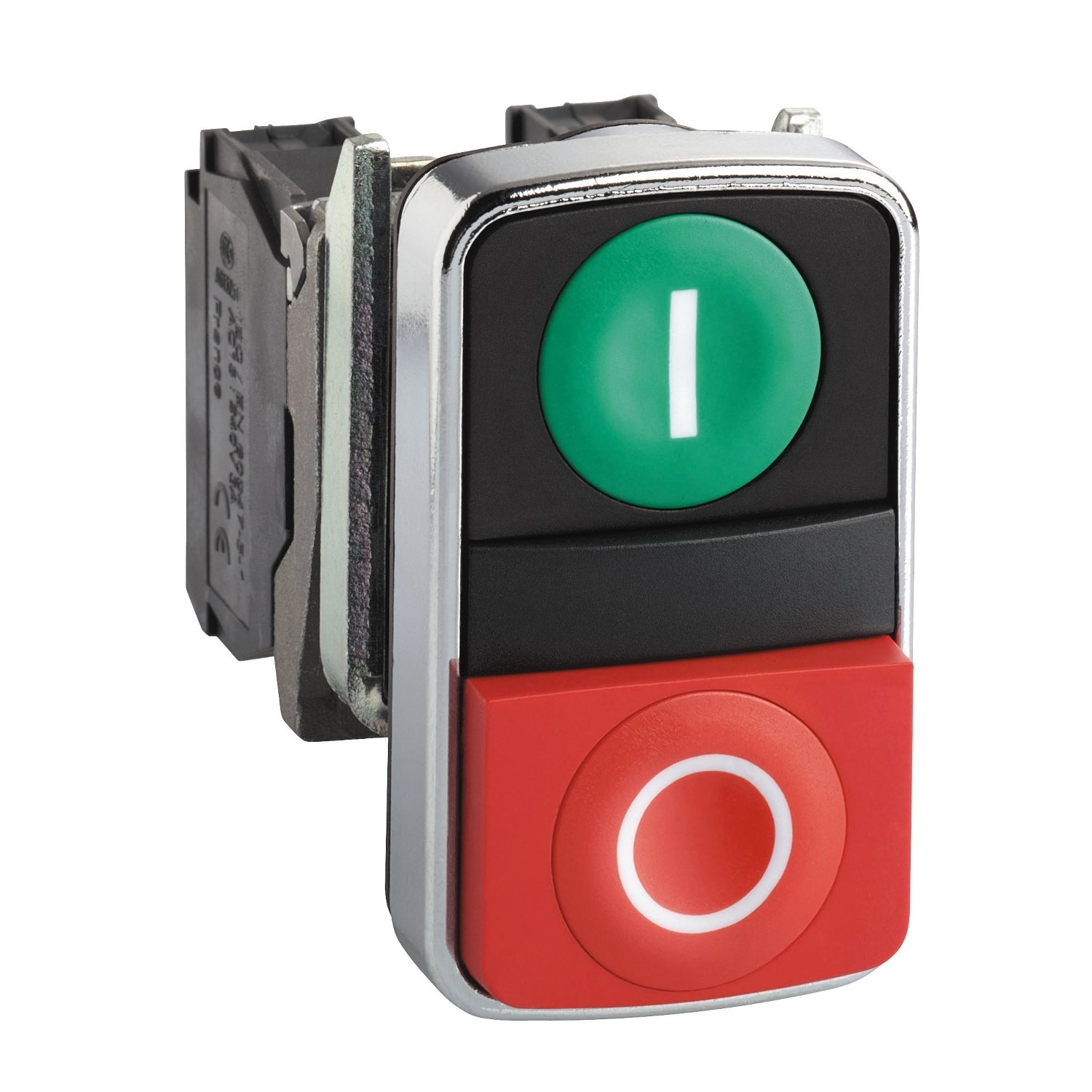

The Schneider XB4BL73415 is a metallic, double-headed push button designed for industrial control panels and automation systems. It features two buttons in a single unit: a green flush button marked “I” (ON) and a red projecting button marked “O” (OFF). This configuration ensures clear and intuitive control for operators.

2. Key Features

• Type: Double-headed push button for start/stop control.

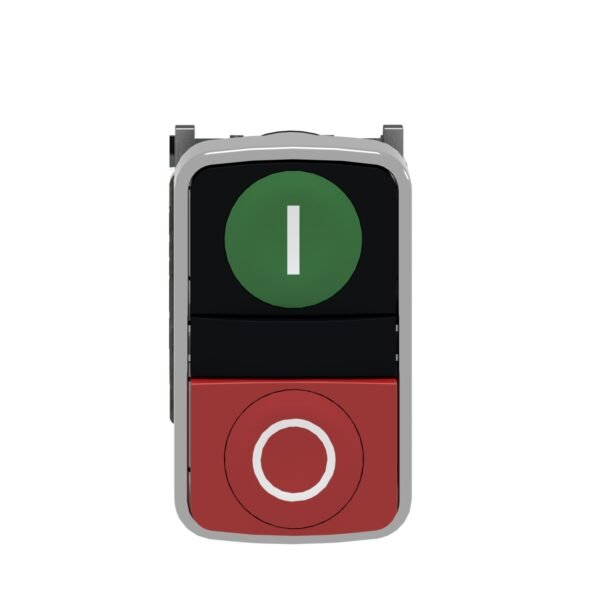

• Button Colors & Markings:

  • Green flush button labeled “I” (ON).

  • Red projecting button labeled “O” (OFF).

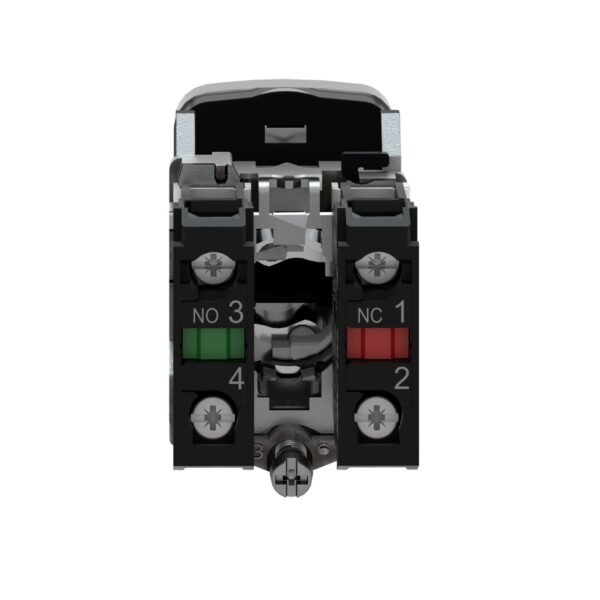

• Contact Configuration:

  • 1 Normally Open (1 NO) for the green button.

  • 1 Normally Closed (1 NC) for the red button.

• Mounting Diameter: Ø22mm, suitable for standard control panel installations.

• Material: Metal body, ensuring high durability and resistance to harsh environments.

• Ergonomic Design: The red button is slightly raised, making it easy to differentiate from the green button.

3. Applications

• Industrial machinery, used for start/stop control of motors and equipment.

• Automation systems, providing clear user interaction.

• Power control panels, for activating and deactivating circuits.

• Manufacturing lines, ensuring quick operation for machine control.

• Process control systems, where clear differentiation of ON/OFF functions is needed.

4. Benefits

• Enhanced safety, with separate ON/OFF buttons for quick and reliable operation.

• Durable metal construction, ensuring long service life in industrial environments.

• Standardized Ø22mm size, allowing easy installation in existing panels.

• Tactile feedback, providing a firm and precise response to operator input.

• Color-coded control, reducing operational errors and increasing efficiency.

5. Conclusion

The Schneider XB4BL73415 double-headed push button is a robust and ergonomic control device, perfect for start/stop operations in industrial automation and power control systems. Its clear labeling, metal body, and dual-button design make it a highly reliable choice for demanding industrial applications.
