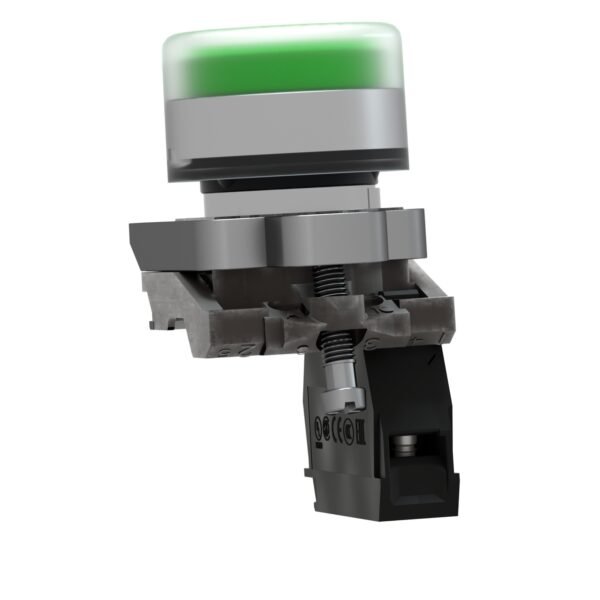

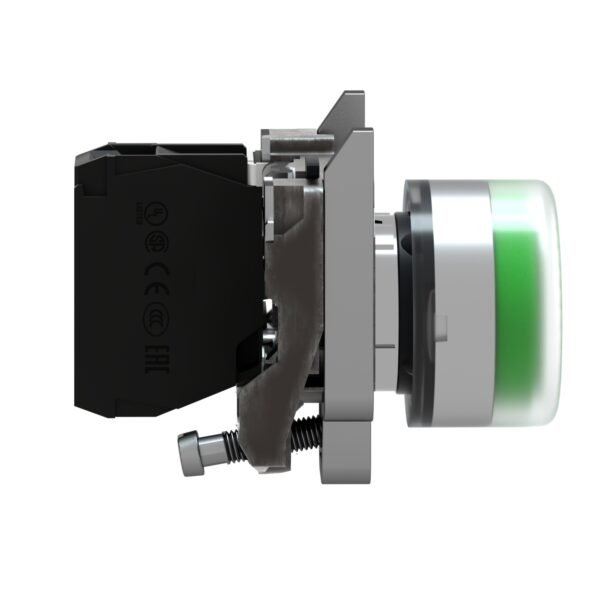

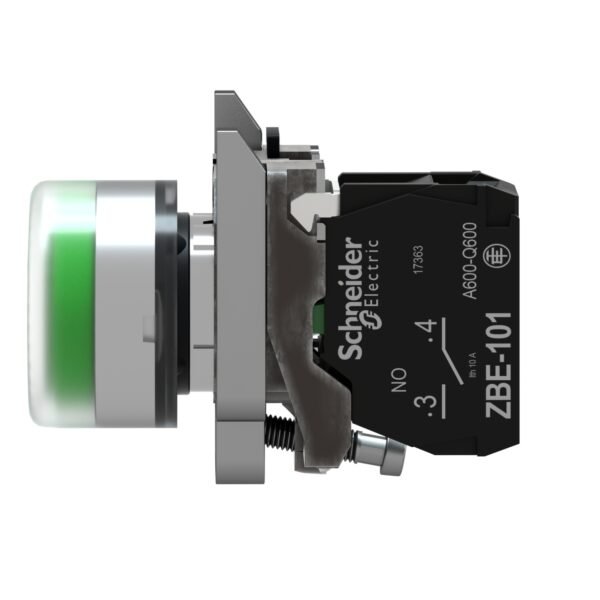

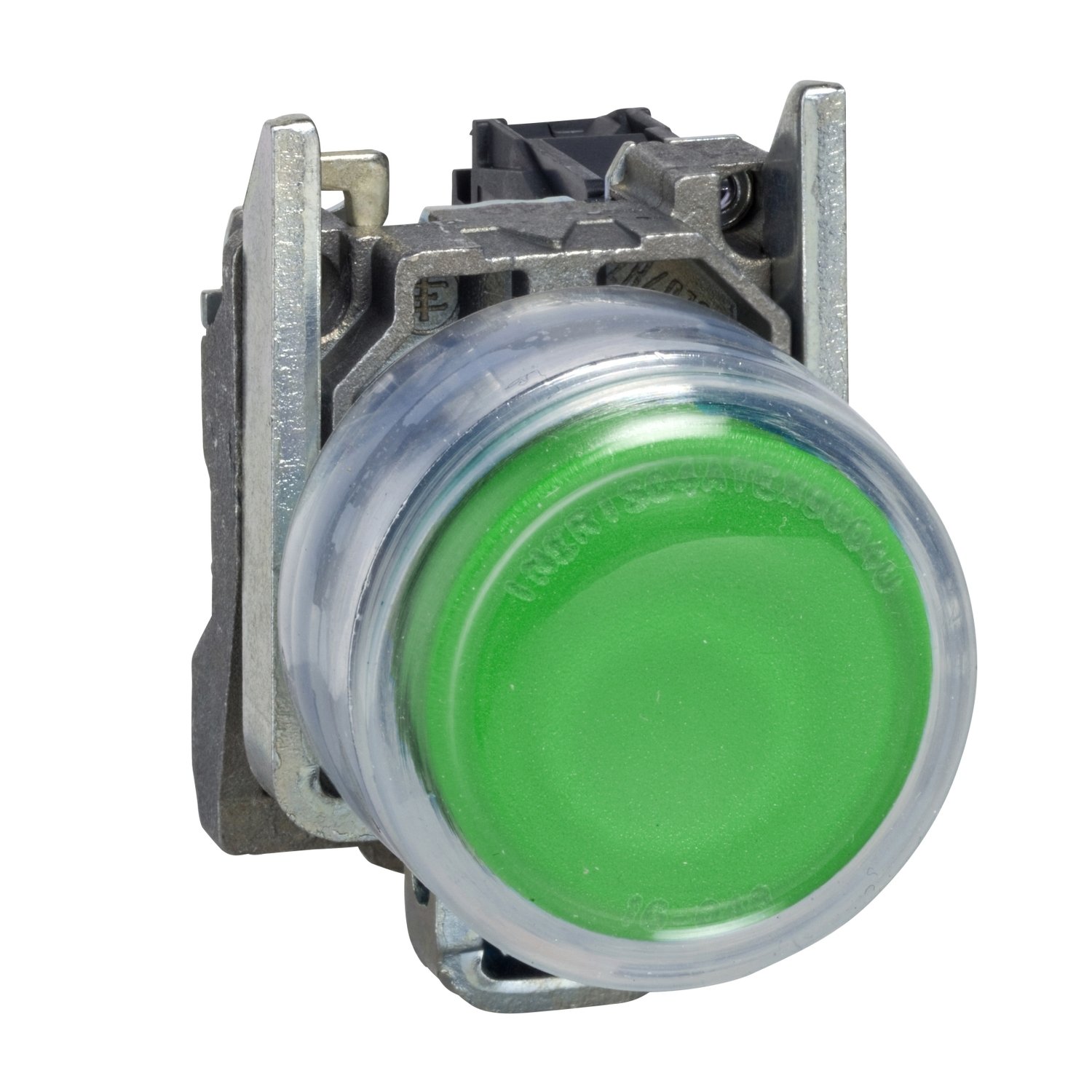

Name: Schneider XB4BP31 | Push button, metal, projecting, green, Ø22, spring return, booted, unmarked, 1 NO
Brand: Schneider Electric
SKU: XB4BP31
Availability: OutOfStock

Schneider XB4BP31 | Push button, metal, projecting, green, Ø22, spring return, booted, unmarked, 1 NO

Compare

Schneider XB4BP31 | Push button, metal, projecting, green, Ø22, spring return, booted, unmarked, 1 NO

Schneider XB4BP31 | Green Push Button

1. Overview

The Schneider XB4BP31 is a durable, high-performance push button designed for industrial and automation applications. It features a projecting green button with a protective boot, ensuring resistance to dust and moisture. The spring return mechanism allows momentary activation, making it ideal for start commands in control circuits.

2. Key Features

Type: Push button with spring return (momentary action).
Button Design: Projecting green button for clear identification.
Protection: Booted design, providing resistance to dust, oil, and water.
Mounting Diameter: Ø22mm, standard for industrial control panels.
Contact Configuration: 1 Normally Open (1 NO) for start circuits.
Material: Metal construction, ensuring robustness and longevity.
Unmarked Button: Allows flexibility for custom labeling or universal application.

3. Applications

Industrial machinery, serving as a start button for equipment.
Automation control panels, enabling user interaction with systems.
Manufacturing lines, providing easy access to operational controls.
Energy and power systems, allowing manual activation of circuits.
Harsh environments, where dust and moisture protection is essential.

4. Benefits

Enhanced durability, thanks to the metal body and protective boot.
Reliable performance, with a spring return mechanism for momentary activation.
Easy installation, fitting standard Ø22mm mounting holes.
High visibility and tactile feedback, ensuring quick and efficient operation.
Versatile usage, suitable for a wide range of industrial and commercial applications.

5. Conclusion

The Schneider XB4BP31 Push Button is a rugged and reliable control device for industrial environments. Its protective boot, projecting design, and durable construction make it an ideal choice for applications requiring moisture and dust resistance while maintaining efficient control operations.

Main

Range of Product

Harmony XB4

Device short name

XB4

Product or Component Type

Push-button

Product Compatibility

Not compatible with legend holder

Bezel material

Chromium plated metal

Fixing collar material

Zamak

Mounting diameter

0.9 in (22.5 mm)

Sale per indivisible quantity

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Green projecting, unmarked

Head type

Standard

Operator additional information

Clear boot

Contacts type and composition

1 NO

Contact operation

Slow-break

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Complementary

Height

1.9 in (47 mm)

Width

1.2 in (30 mm)

Depth

2.4 in (61 mm)

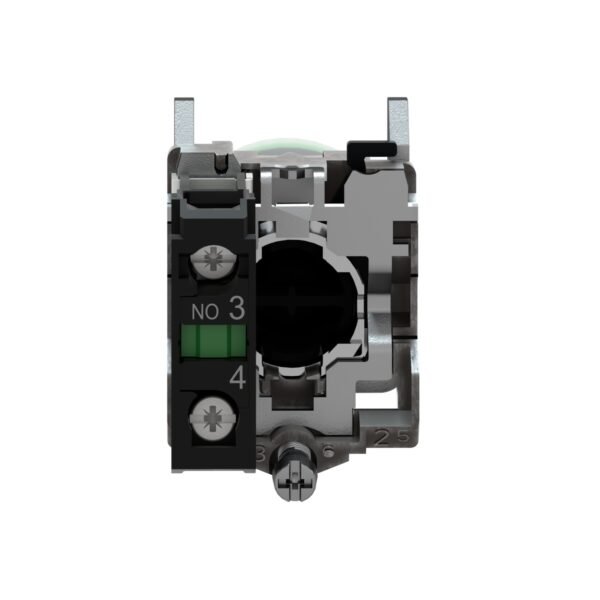

Terminals description ISO n°1

(13-14)NO

Net Weight

0.181 lb(US) (0.082 kg)

Resistance to high pressure washer

1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m

Contacts usage

Standard contacts

Positive opening

Without

Operating travel

0.1 in (2.6 mm) NO changing electrical state) 0.2 in (4.3 mm) total travel)

Operating force

3.8 N NO changing electrical state

Mechanical durability

10000000 cycles

Tightening torque

7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1

Shape of screw head

Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse gG IEC 60947-5-1

[Ith] conventional free air thermal current

10 A IEC 60947-5-1

[Ui] rated insulation voltage

600 V 3)IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV IEC 60947-1

[Ie] rated operational current

3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Device presentation

Complete product

Environment

Protective treatment

Ambient Air Temperature for Storage

-40…158 °F (-40…70 °C)

Ambient air temperature for operation

-40…158 °F (-40…70 °C)

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 IEC 60529 IP67

NEMA degree of protection

NEMA 13 NEMA 4X

IK degree of protection

IK06 conforming to IEC 50102

Standards

UL 508 IEC 60947-5-5 JIS C8201-5-1 IEC 60947-5-1 CSA C22.2 No 14 IEC 60947-1 IEC 60947-5-4 JIS C8201-1

Product Certifications

CSA LROS (Lloyds register of shipping) BV UL Listed DNV

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ordering and shipping details

Main documents

Datasheet	Download Datasheet
Product datasheet	Download
Instruction sheet	Download
Catalog	Download
Environmental disclosure	Download
CAD Files	Download

Datasheet	Download Datasheet
Product datasheet	Download
Instruction sheet	Download
Catalog	Download
Environmental disclosure	Download
CAD Files	Download

Category	US10CS222468
Discount Schedule	0CS2
GTIN	3389110887006
Returnability	Yes
Country of origin	FR

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.46 in (8.800 cm)
Package 1 Width	1.34 in (3.400 cm)
Package 1 Length	2.13 in (5.400 cm)
Package 1 Weight	2.892 oz (82.000 g)
Unit Type of Package 2	S03
Number of Units in Package 2	150
Package 2 Height	11.81 in (30.000 cm)
Package 2 Width	11.81 in (30.000 cm)
Package 2 Length	15.75 in (40.000 cm)
Package 2 Weight	28.625 lb(US) (12.984 kg)
Unit Type of Package 3	P06
Number of Units in Package 3	1200
Package 3 Height	29.53 in (75.000 cm)
Package 3 Width	23.62 in (60.000 cm)
Package 3 Length	31.50 in (80.000 cm)
Package 3 Weight	249.255 lb(US) (113.060 kg)
