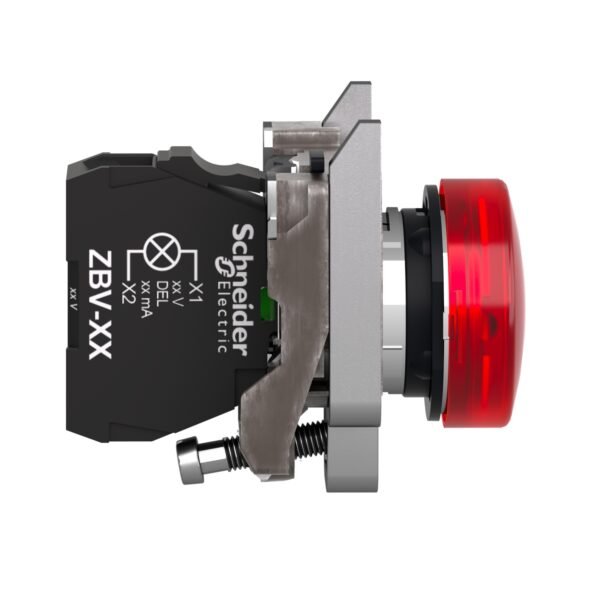

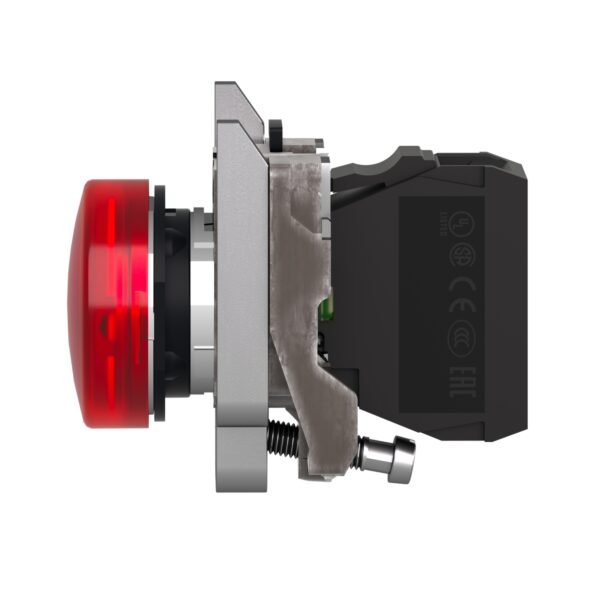

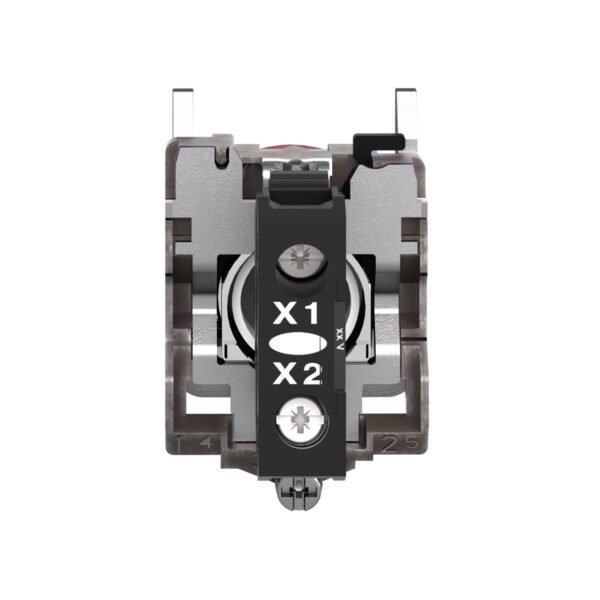

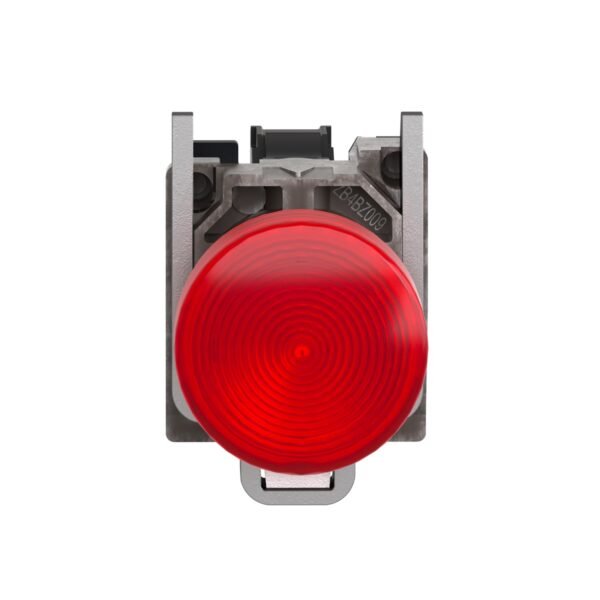

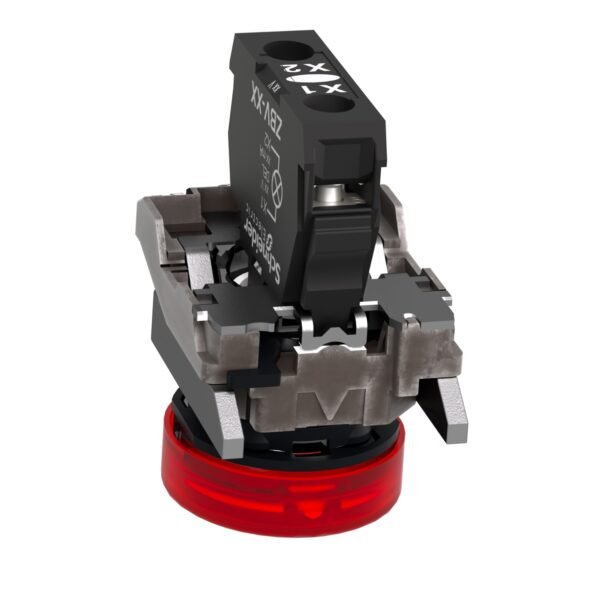

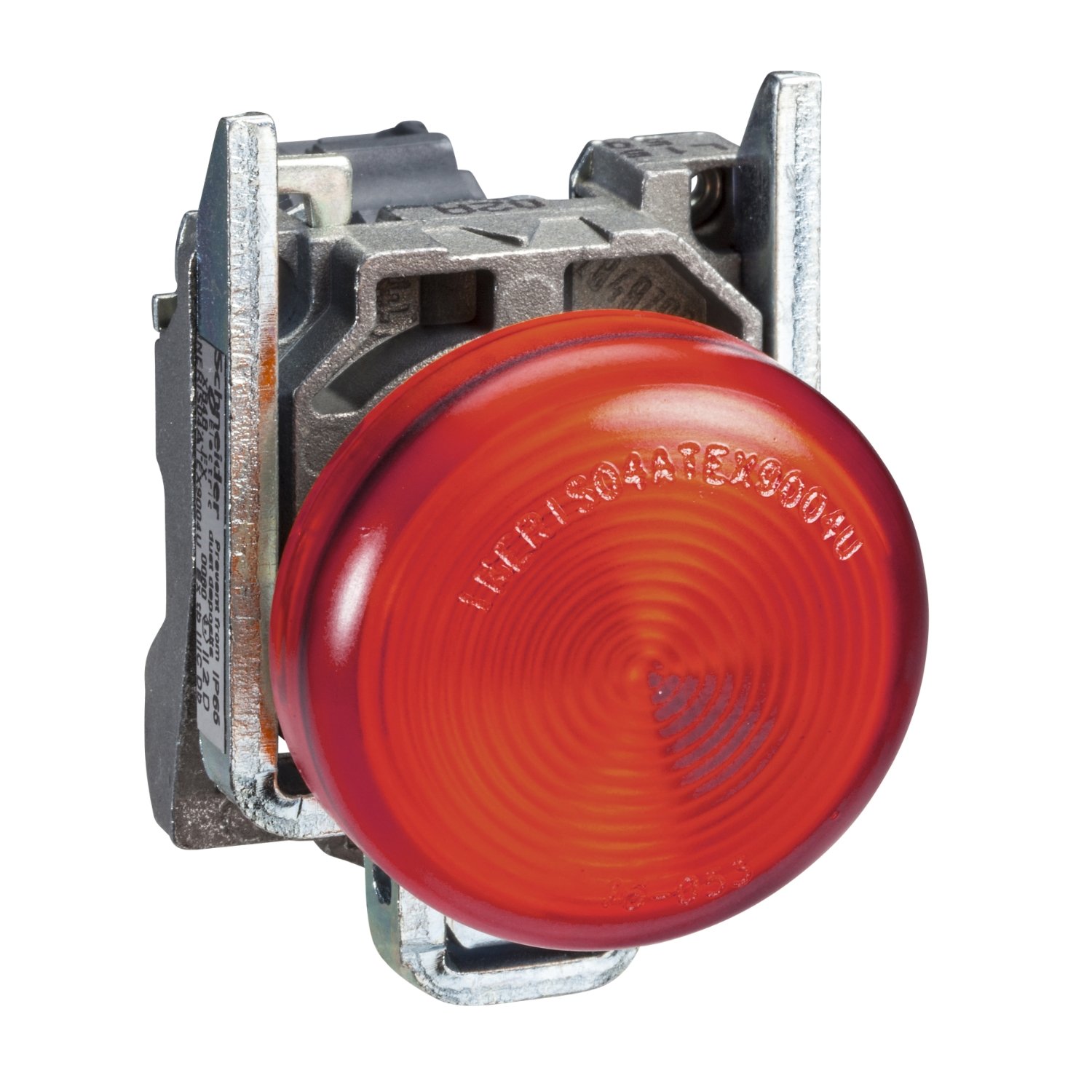

Schneider XB4BV64 | Pilot light, metal, red, Ø22, plain lens with BA9s bulb, <= 250 V
Original price was: EGP 7,814.00.EGP 4,532.00Current price is: EGP 4,532.00.
Description
Schneider XB4BV64 | Pilot light, metal, red, Ø22, plain lens with BA9s bulb, <= 250 V
Schneider XB4BV64 | Pilot light, metal, red, Ø22, plain lens with BA9s bulb, <= 250 V description
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of Product | Harmony XB4 |
|---|---|
| Product or Component Type | Pilot light |
| Device short name | XB4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Head type | Standard |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| cap/operator or lens colour | Red |
| Operator additional information | With plain lens |
| Light source | Bulb not included |
| Bulb base | BA 9s |
| Light block supply | Direct <2.4 W |
| [Us] rated supply voltage | <= 250 V |
| Height | 1.9 in (47 mm) |
|---|---|
| Width | 1.2 in (30 mm) |
| Depth | 2.2 in (55 mm) |
| Terminals description ISO n°1 | (X1-X2)PL |
| Net Weight | 0.165 lb(US) (0.075 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
| Signalling type | Steady |
| Device presentation | Complete product |
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
| Electrical shock protection class | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | UL 508 JIS C8201-5-1 IEC 60947-5-1 CSA C22.2 No 14 IEC 60947-1 IEC 60947-5-4 IEC 60947-5-5 JIS C8201-1 |
| Product Certifications | UL Listed CSA |
| Vibration resistance | 5 gn 12…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | US10CS222468 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110887198 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.465 in (8.800 cm) |
| Package 1 Width | 1.339 in (3.400 cm) |
| Package 1 Length | 2.126 in (5.400 cm) |
| Package 1 Weight | 2.610 oz (74.000 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 3.465 in (8.800 cm) |
| Package 2 Width | 1.339 in (3.400 cm) |
| Package 2 Length | 10.433 in (26.500 cm) |
| Package 2 Weight | 13.016 oz (369.000 g) |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 150 |
| Package 3 Height | 11.811 in (30.000 cm) |
| Package 3 Width | 11.811 in (30.000 cm) |
| Package 3 Length | 15.748 in (40.000 cm) |
| Package 3 Weight | 25.503 lb(US) (11.568 kg) |
| Warranty | 18 months |
|---|
