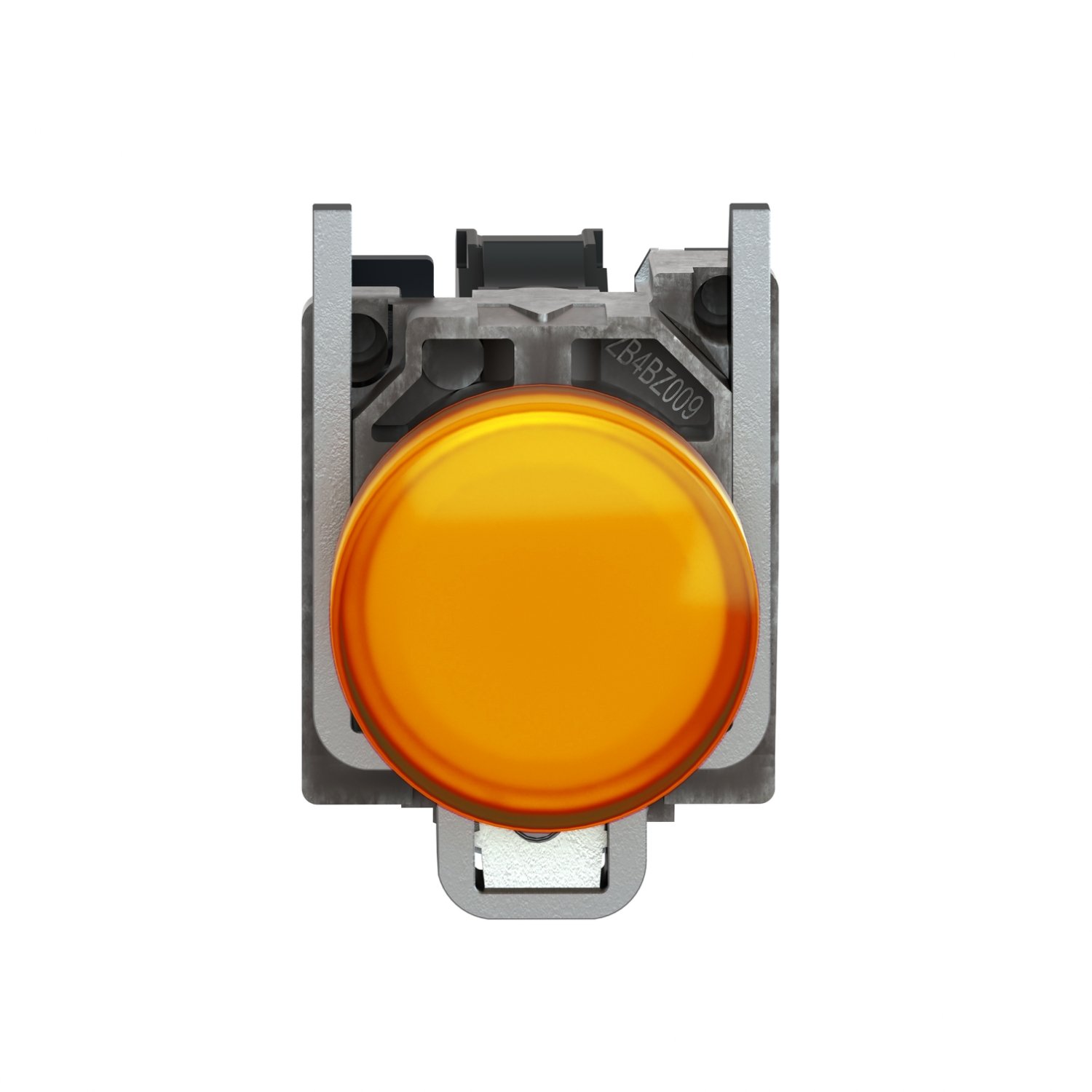

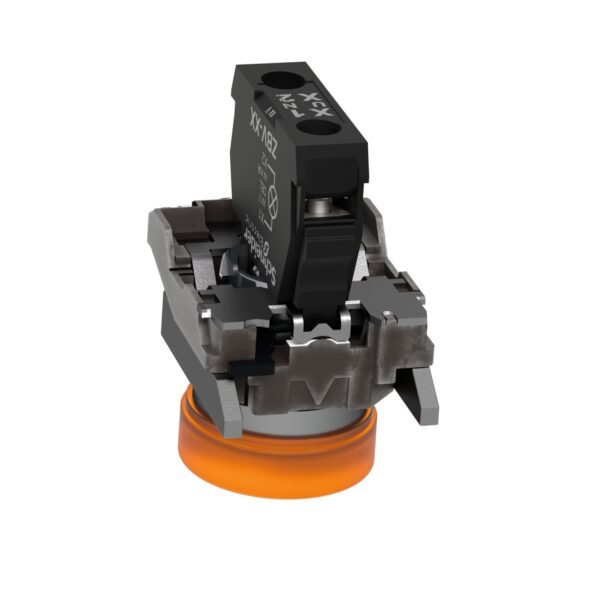

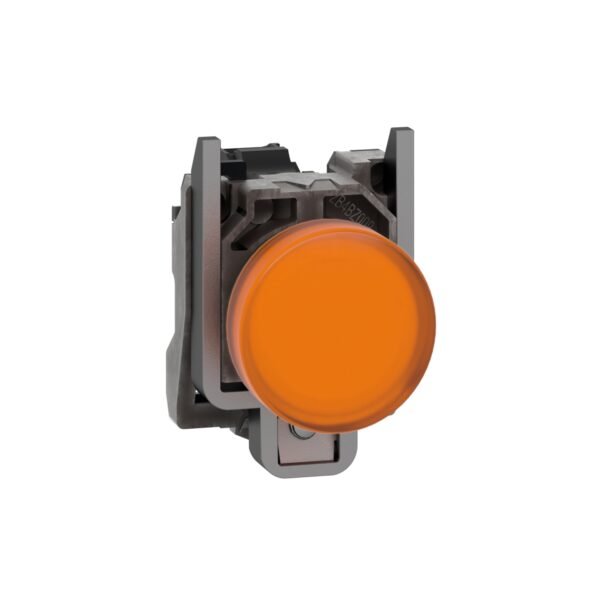

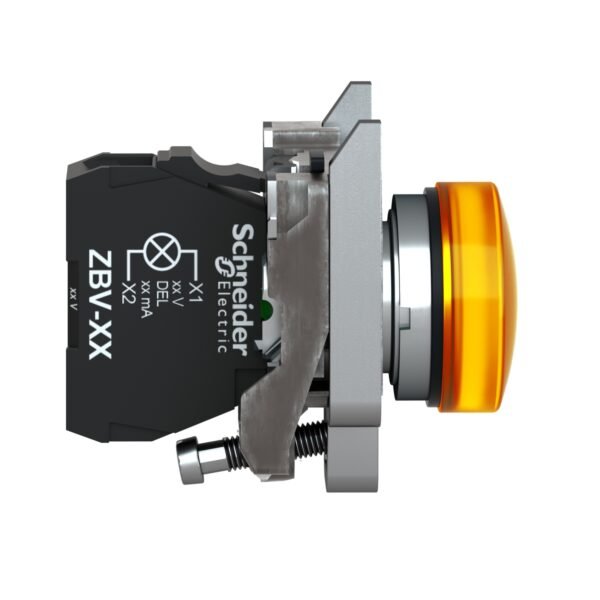

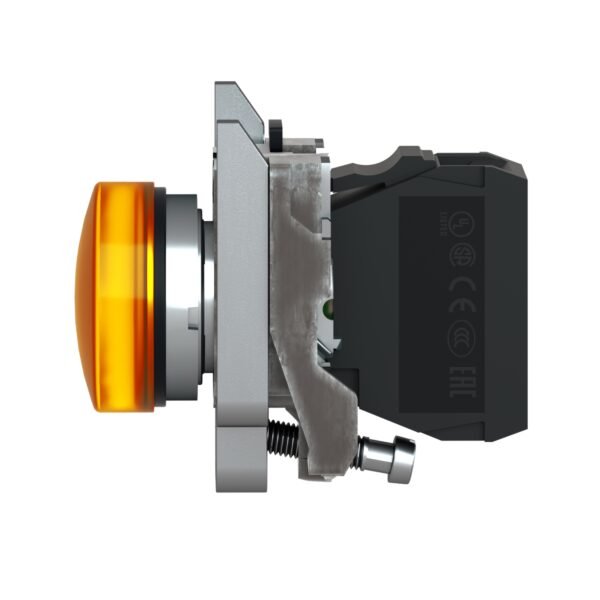

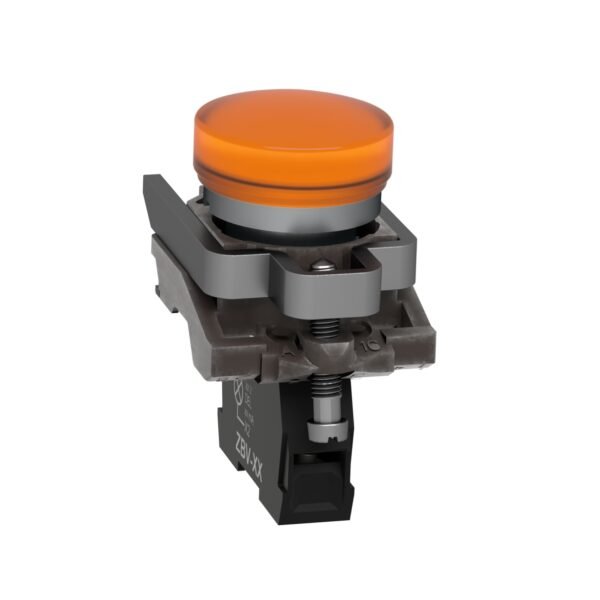

Schneider XB4BVB5 Harmony | Pilot light, metal, orange, Ø22, plain lens with integral LED, 24 V AC/DC
Schneider XB4BVB5 Harmony
Original price was: EGP 8,365.00.EGP 4,852.00Current price is: EGP 4,852.00.
Description
Introduction to Schneider XB4BVB5 Harmony
it is a versatile and reliable push-button control component designed for various industrial and commercial applications. In this comprehensive guide, we’ll explore its features, applications, installation process, maintenance tips, and more to provide you with a complete understanding of its capabilities.
Key Features of Schneider XB4BVB5 Harmony
it is packed with several key features:
- Robust Construction: Built to withstand challenging industrial environments, ensuring durability and longevity.
- User-Friendly Design: Easy to install and operate, suitable for both professionals and beginners.
- Wide Compatibility: Seamlessly integrates with other Schneider components, offering flexibility in system design.
- Safety Compliance: Meets international safety standards, ensuring reliability and peace of mind in various applications.
Applications of Schneider XB4BVB5 Harmony
it finds extensive use across diverse industries:
- Industrial Use: Deployed in control panels, machinery, and automation systems for dependable performance in harsh conditions.
- Commercial Use: Ideal for building management systems, HVAC controls, and security systems due to its ease of use and reliability.
Installation Guide for Schneider XB4BVB5 Harmony
Proper installation is essential for optimal performance:
- Site Preparation: Ensure the installation site is clean and free from obstructions.
- Mounting: Securely mount the Schneider XB4BVB5 Harmony in the desired location using appropriate hardware.
- Wiring Connection: Follow the provided wiring diagram to connect the switch correctly, ensuring proper functionality.
- Testing: Thoroughly test the installed unit to verify its operation and functionality.
Maintenance Tips for Schneider XB4BVB5 Harmony
Regular maintenance helps extend the lifespan of it:
- Scheduled Inspections: Periodically inspect the switch for signs of wear, damage, or corrosion.
- Prompt Repairs: Address any issues promptly to prevent further damage and ensure uninterrupted operation.
- Environmental Protection: Shield the switch from environmental factors such as moisture and dust to maintain performance.
Where to Buy Schneider XB4BVB5 Harmony
Ensure you purchase genuine Schneider products from authorized sources:
- Authorized Dealers: Purchase from authorized Schneider dealers to guarantee authenticity and product support.
- Online Retailers: Reputable online platforms like Amazon offer it, but ensure the seller is verified to avoid counterfeit products.
Conclusion
it is a reliable and adaptable push-button control component suitable for various industrial and commercial applications. Its robust construction, user-friendly design, and compatibility make it a preferred choice among professionals. By adhering to proper installation and maintenance procedures, you can maximize its performance and longevity in your systems.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony XB4 |
|---|---|
| Product or component type | Pilot light |
| Device short name | XB4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 22.5 mm |
| Head type | Standard |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Orange |
| Operator additional information | With plain lens |
| Light source | Universal LED |
| Bulb base | Integral LED |
| Light source colour | Orange |
| [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
| Height | 47 mm |
|---|---|
| Width | 30 mm |
| Depth | 54 mm |

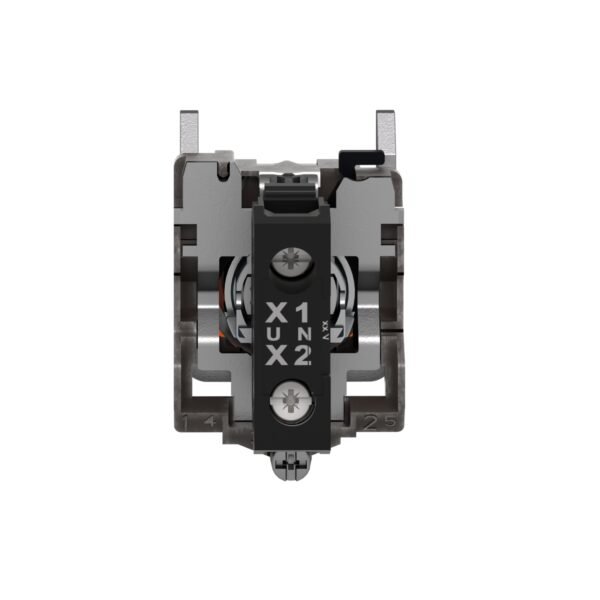

| Terminals description ISO n°1 | (X1-X2)PL |
| Net weight | 0.08 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Signalling type | Steady |
| Current consumption | 18 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Device presentation | Complete product |
| Supply voltage limits | 19.2…30 V DC 21.6…26.4 V AC |
| Protective treatment | TH |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | IEC 60947-1 IEC 60947-5-4 JIS C8201-5-1 CSA C22.2 No 14 IEC 60947-5-1 UL 508 IEC 60947-5-5 JIS C8201-1 |
| Product certifications | CSA UL listed |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic emission | Class B conforming to IEC 55011 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.500 cm |
| Package 1 Width | 5.500 cm |
| Package 1 Length | 8.500 cm |
| Package 1 Weight | 79.700 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 150 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 12.246 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1200 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 107.120 kg |
| Warranty | 18 months |
|---|
