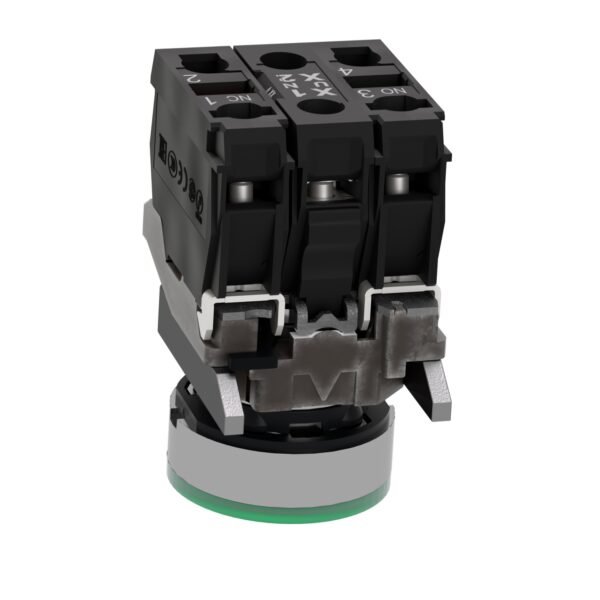

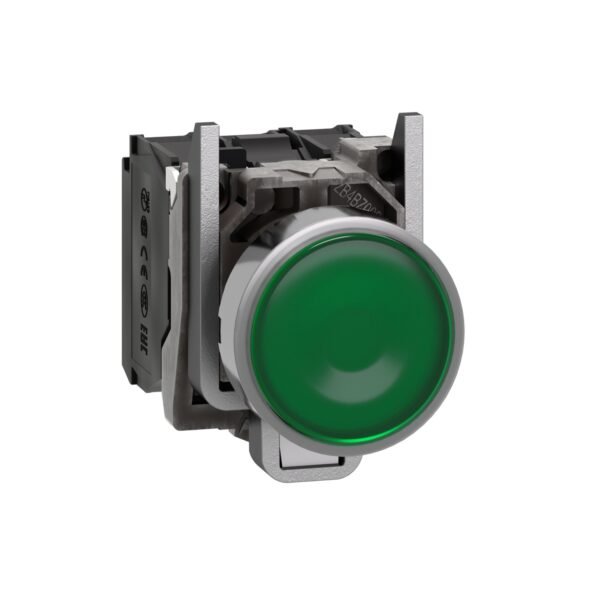

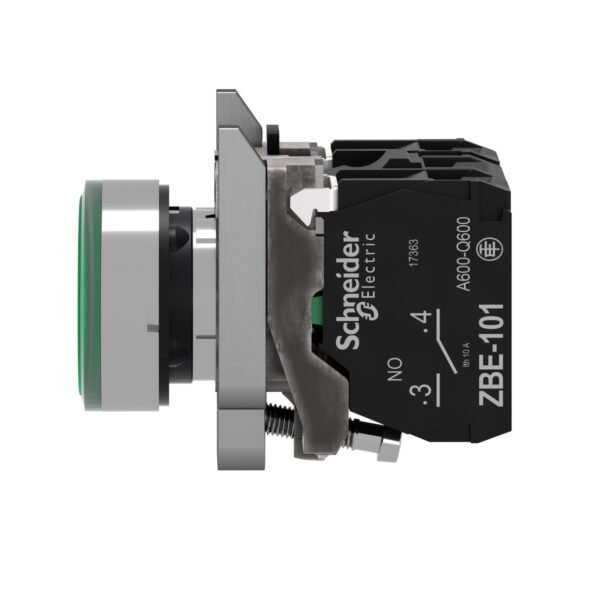

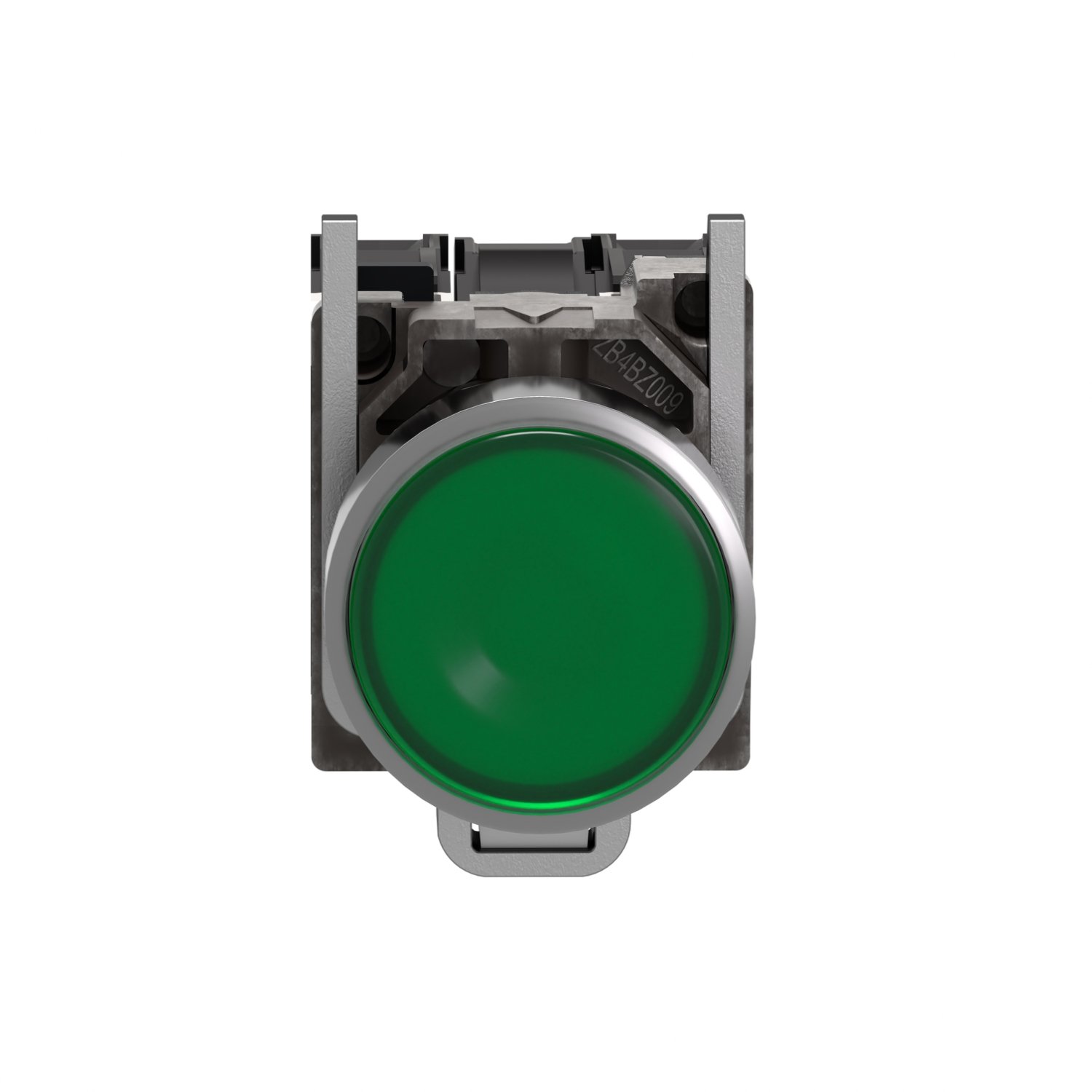

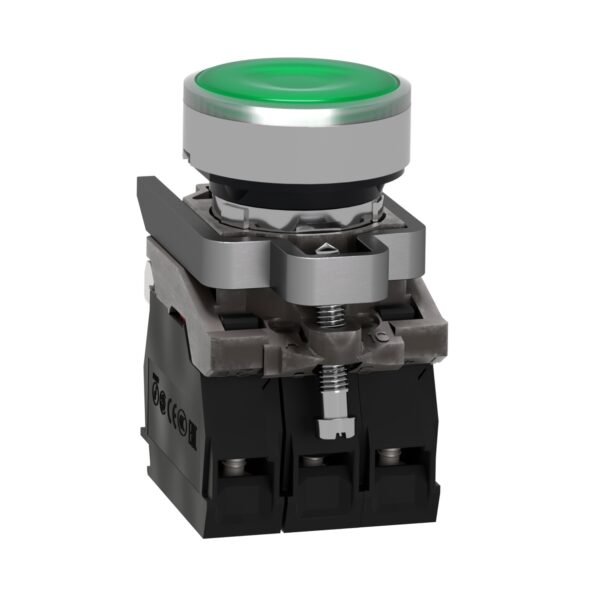

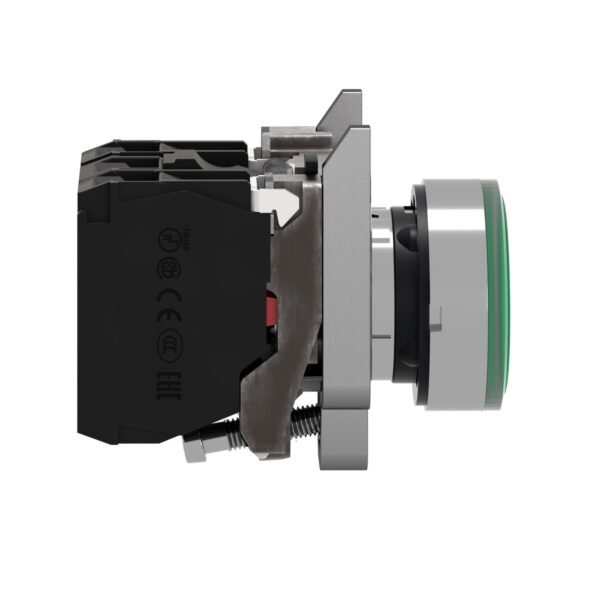

Schneider XB4BW33B5 Harmony | Illuminated push button, metal, flush, green, Ø22, spring return, 1 NO + 1 NC 24 V AC/DC
Schneider XB4BW33B5 Harmony
Original price was: EGP 15,654.00.EGP 9,079.00Current price is: EGP 9,079.00.
Description
Schneider XB4BW33B5 Harmony
it finds applications across various industries, including manufacturing, automotive, pharmaceuticals, food and beverage, and energy. Its versatility and reliability make it suitable for diverse industrial environments.
Manufacturing Industry
In the manufacturing sector, it is used in assembly lines, packaging machines, and conveyor systems to monitor and control production processes effectively.
Automotive Industry
In the automotive industry, it is integrated into robotic cells, welding machines, and assembly stations to ensure smooth operation and timely signaling of faults or anomalies.
Installation and Setup Guide
Installing and setting up it is straightforward, thanks to its user-friendly design and clear instructions provided by Schneider Electric. Here’s a basic guide to get started:
- Select the appropriate mounting location for the device.
- Ensure proper wiring according to the electrical diagram provided.
- Secure the device in place using the mounting accessories provided.
- Test the device to verify proper functionality.
- Configure settings as per the application requirements.
Maintenance and Troubleshooting Tips
Regular maintenance is essential to ensure optimal performance and longevity of it. Here are some maintenance and troubleshooting tips:
- Clean the device regularly to remove dust and debris.
- Check for loose connections and tighten them if necessary.
- Inspect LED indicators for any signs of wear or malfunction.
- Refer to the user manual for troubleshooting guidance in case of any issues.
Benefits of Choosing Schneider XB4BW33B5 Harmony
Choosing Schneider XB4BW33B5 Harmony offers numerous benefits to industrial users:
- Enhanced safety through clear signaling and indication.
- Improved productivity with reliable control of machinery and processes.
- Cost-effectiveness due to durable construction and long service life.
- Compliance with industry standards ensures compatibility and reliability.
Comparing Schneider XB4BW33B5 Harmony with Competitors
Schneider XB4BW33B5 Harmony stands out among its competitors due to its superior features, reliability, and performance. While there are other options available in the market, Schneider XB4BW33B5 Harmony remains a top choice for industrial applications.
Customer Reviews and Testimonials
Customer reviews and testimonials reflect the satisfaction and positive experiences of users with Schneider XB4BW33B5 Harmony. Here are some testimonials from satisfied customers:
- “Schneider XB4BW33B5 Harmony has exceeded our expectations in terms of reliability and performance. It has become an integral part of our production line.”
- “We’ve been using Schneider XB4BW33B5 Harmony for years, and it has never let us down. It’s a testament to Schneider Electric’s commitment to quality and innovation.”
Future Developments and Upgrades
Schneider Electric continues to innovate and improve its Harmony range of control and signaling devices. Future developments may include enhanced connectivity, advanced diagnostics, and integration with IoT platforms for smarter industrial automation solutions.
Conclusion
In conclusion, Schneider XB4BW33B5 Harmony is a reliable, versatile, and efficient control and signaling device that caters to the diverse needs of industrial applications. Its robust construction, advanced features, and ease of use make it a preferred choice among engineers and manufacturers worldwide.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony XB4 |
|---|---|
| Product or component type | Illuminated push-button |
| Device short name | XB4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Green flush |
| Operator additional information | With plain lens |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Light source | Universal LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 24 V AC/DC at 50/60 Hz |
| Height | 47 mm |
|---|---|
| Width | 30 mm |
| Depth | 57 mm |

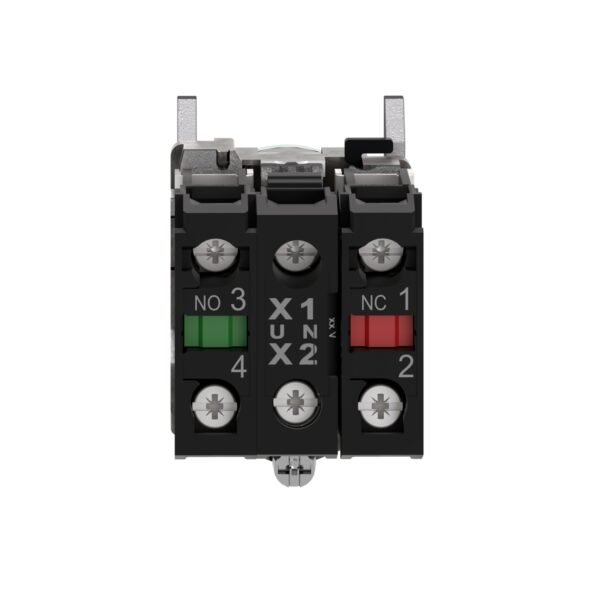

| Terminals description ISO n°1 | (21-22)NC (13-14)NO |
| Net weight | 0.097 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Operating travel | 1.5 mm (NC changing electrical state) 2.6 mm (NO changing electrical state) 4.3 mm (total travel) |
| Operating force | 3.5 N NC changing electrical state 3.8 N |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4 |
| Signalling type | Steady |
| Current consumption | 18 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Supply voltage limits | 19.2…30 V DC 21.6…26.4 V AC |
| Device presentation | Complete product |
| Protective treatment | TH |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | IEC 60947-5-1 JIS C8201-5-1 IEC 60947-5-5 CSA C22.2 No 14 IEC 60947-5-4 IEC 60947-1 UL 508 JIS C8201-1 |
| Product certifications | CSA LROS (Lloyds register of shipping) BV UL listed DNV |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic emission | Class B conforming to IEC 55011 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.500 cm |
| Package 1 Width | 5.500 cm |
| Package 1 Length | 8.500 cm |
| Package 1 Weight | 96.600 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 150 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 14.919 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1200 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 127.352 kg |
| Warranty | 18 months |
|---|
