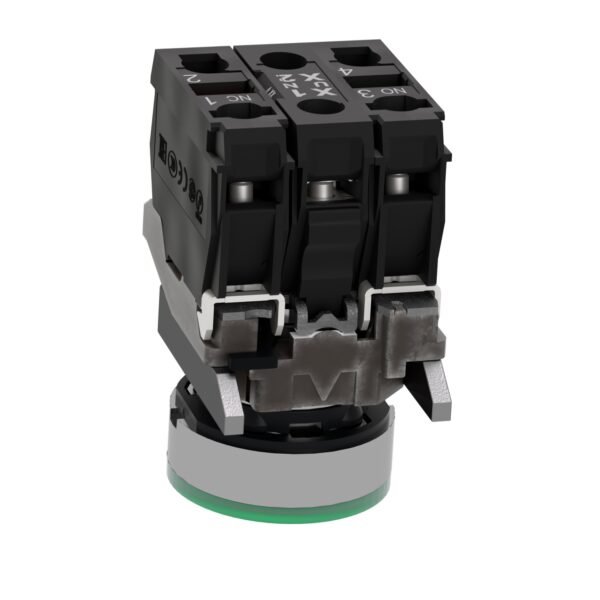

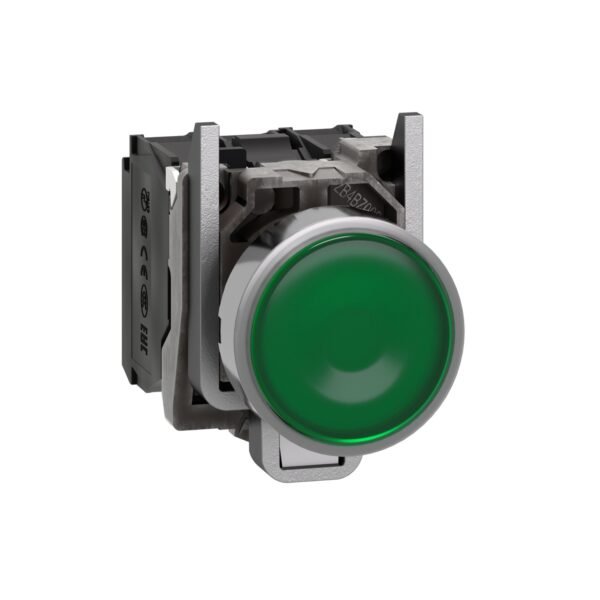

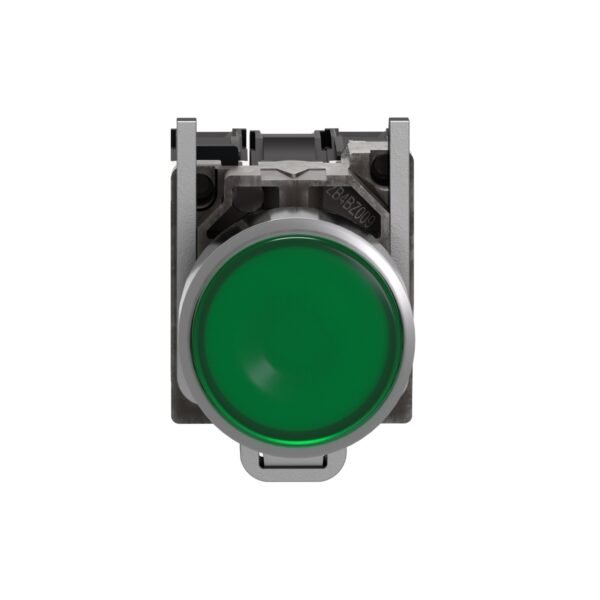

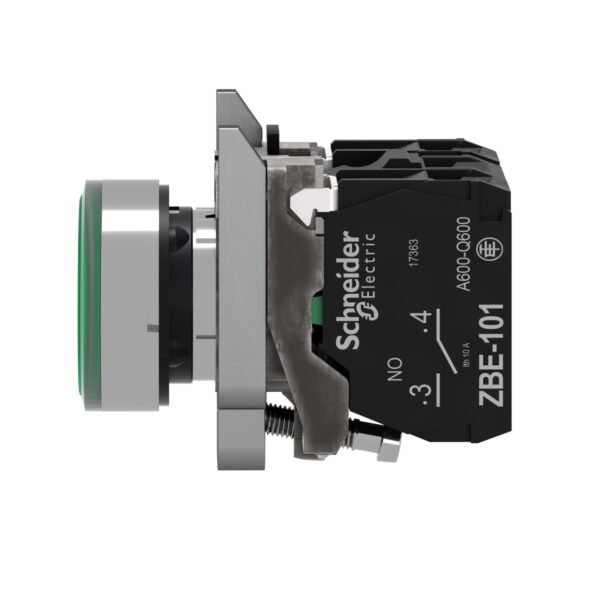

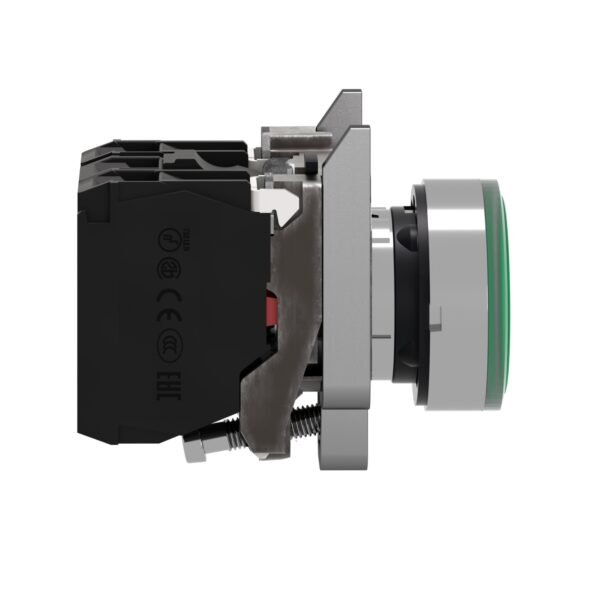

Schneider XB4BW33G5 Harmony | Green flush complete illum pushbutton Ø22 spring return 1NO+1NC 110…120V
Schneider XB4BW33G5 Harmony
Original price was: EGP 19,797.00.EGP 11,482.00Current price is: EGP 11,482.00.
Description
| Schneider XB4BW33G5 Harmony: A Comprehensive Guide |
|---|
1. Introduction
Welcome to our comprehensive guide on it. In this article, we’ll explore the features, applications, installation, and maintenance of this versatile pushbutton switch. Whether you’re in industrial automation or commercial control systems, the XB4BW33G5 Harmony offers reliability and performance.
2. Understanding Schneider XB4BW33G5 Harmony
it is a robust pushbutton switch designed to meet the demanding needs of industrial and commercial environments. With its durable construction and intuitive design, it provides seamless control and operation in various applications.
3. Features of Schneider XB4BW33G5 Harmony
3.1. Robust Construction
Built to withstand harsh conditions, it features a rugged construction that ensures long-term durability. It can endure mechanical stresses and environmental factors, making it suitable for challenging environments.
3.2. Intuitive Design
Featuring an intuitive design, it offers ease of operation. Its ergonomic layout and tactile feedback enhance user experience, reducing fatigue and increasing efficiency during prolonged use.
3.3. Versatile Compatibility
it is compatible with various Schneider Electric components and control systems. This compatibility allows for seamless integration into existing setups, making it a versatile solution for diverse applications.
4. Technical Specifications
4.1. Electrical Ratings
With impressive electrical ratings, it ensures reliable performance within specified voltage and current limits. It provides stable operation, contributing to the overall efficiency of control systems.
4.2. Mechanical Durability
Designed for longevity, the XB4BW33G5 Harmony is engineered to withstand frequent use and mechanical stresses. Its robust construction and high-quality materials ensure consistent performance over extended periods.
5. Applications of Schneider XB4BW33G5 Harmony
5.1. Industrial Environments
In industrial settings, it is used for controlling machinery and equipment. Its reliability and durability make it well-suited for applications requiring precise and responsive control.
5.2. Commercial Settings
In commercial applications, the XB4BW33G5 Harmony finds use in building management systems and control panels. Its versatility and compatibility make it a preferred choice for various control applications.
6. Installation and Setup
6.1. Easy Installation Process
Installing the XB4BW33G5 Harmony is straightforward. It comes with clear instructions for mounting and wiring, simplifying the installation process for users.
6.2. Safety Measures
Safety is paramount during installation. Users should follow all recommended safety precautions to prevent accidents and ensure proper functioning of the switch.
7. Maintenance Guidelines
7.1. Regular Inspection
Routine inspection is essential to maintain the performance of the XB4BW33G5 Harmony. Users should periodically check for any signs of wear or damage and address them promptly.
7.2. Troubleshooting Tips
In case of any issues, troubleshooting steps can help identify and resolve problems quickly. Common issues may include connectivity issues or mechanical failures, which can often be rectified with simple adjustments.
8. Advantages of Using Schneider XB4BW33G5 Harmony
8.1. Enhanced Performance
The XB4BW33G5 Harmony offers enhanced performance, thanks to its reliable operation and intuitive design. It helps improve efficiency and productivity in control systems.
8.2. Long-Term Reliability
With its durable construction and high-quality components, it delivers long-term reliability, reducing downtime and maintenance costs for users.
9. Comparison with Competitors
Compared to competitors, it stands out for its robustness, versatility, and compatibility. These features make it a preferred choice for users seeking reliable control solutions.
10. Customer Reviews and Testimonials
Customer reviews and testimonials highlight the satisfaction of users with the XB4BW33G5 Harmony. They praise its performance, durability, and ease of use, reaffirming its value in various applications.
11. Where to Purchase Schneider XB4BW33G5 Harmony
The XB4BW33G5 Harmony is available for purchase from authorized Schneider Electric distributors and online retailers. Users should ensure they buy from reputable sources to guarantee authenticity and warranty coverage.12. Conclusion
In conclusion, it is a versatile and reliable pushbutton switch suitable for industrial and commercial applications. Its robust construction, intuitive design, and compatibility make it a valuable asset in control systems.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of Product | Harmony XB4 |
|---|---|
| Product or Component Type | Illuminated push-button |
| Device short name | XB4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Green flush |
| Operator additional information | With plain lens |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Light source | Universal LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 110...120 V AC 50/60 Hz |
| Height | 1.9 in (47 mm) |
|---|---|
| Width | 1.2 in (30 mm) |
| Depth | 2.2 in (57 mm) |

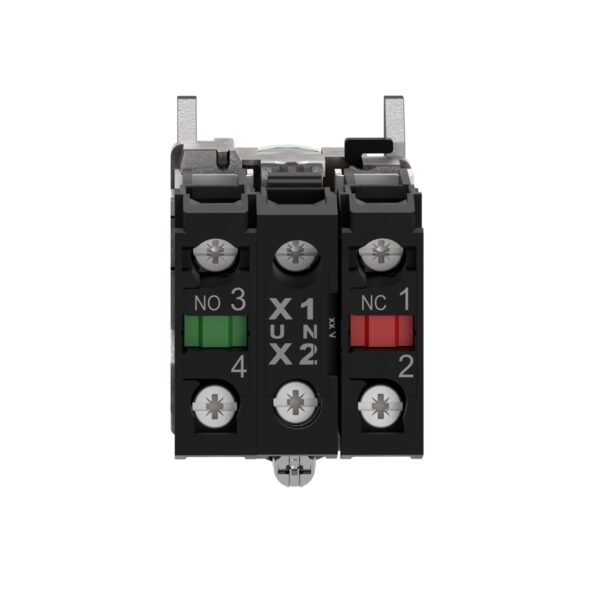

| Terminals description ISO n°1 | (13-14)NO (21-22)NC |
| Net Weight | 0.214 lb(US) (0.097 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state) 0.1 in (2.6 mm) NO changing electrical state) 0.2 in (4.3 mm) total travel) |
| Operating force | 3.5 N NC changing electrical state 3.8 N |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Signalling type | Steady |
| Current Consumption | 14 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV IEC 61000-4-5 |
| Supply voltage limits | 100…132 V AC |
| Device presentation | Complete product |
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | IEC 60947-5-1 IEC 60947-1 UL 508 JIS C8201-5-1 IEC 60947-5-4 CSA C22.2 No 14 IEC 60947-5-5 JIS C8201-1 |
| Product Certifications | CSA LROS (Lloyds register of shipping) BV UL Listed DNV |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
| Category | US10CS222468 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110892086 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.46 in (8.800 cm) |
| Package 1 Width | 1.34 in (3.400 cm) |
| Package 1 Length | 2.13 in (5.400 cm) |
| Package 1 Weight | 3.386 oz (96.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 22.218 lb(US) (10.078 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 800 |
| Package 3 Height | 29.53 in (75.000 cm) |
| Package 3 Width | 23.62 in (60.000 cm) |
| Package 3 Length | 31.50 in (80.000 cm) |
| Package 3 Weight | 203.452 lb(US) (92.284 kg) |
| Warranty | 18 months |
|---|
